Metal 3D Printing Meets Hypersonic Heat
Metal 3D printing for hypersonic heat exchangers is the use of advanced additive manufacturing processes to build complex, high-temperature metal thermal components as single monolithic structures, eliminating traditional joints and assemblies while enabling intricate internal channels tailored for extreme aerospace environments.
Metal 3D printing aerospace programs have talked about promise for years; hypersonic heat exchangers are where that promise turns into a clear competitive edge. Elmet Technologies’ decision to install a DMP Flex 350 Triple metal 3D printer to produce heat exchangers for hypersonic vehicles is not a routine equipment upgrade—it is a bet that monolithic metal components will beat legacy fabrication in both performance and supply resilience. The goal is to qualify and certify this system for production in 2026, a timeline that signals confidence not only in the machine but in additive workflows for one of the most demanding applications in flight hardware.
The takeaway is blunt: whoever masters metal additive for hypersonic heat exchangers will set the benchmark for future thermal management in extreme-speed aerospace.
Monolithic Hypersonic Heat Exchangers Break the Assembly Habit
Traditional heat exchanger fabrication is a monument to complexity. Brazing means cutting individual sections, aligning them, applying filler metal and running the whole structure through a furnace before you even start testing. In hypersonic environments, every one of those joints becomes a suspect under violent thermal cycling. Metal 3D printing aerospace programs that cling to this assembly habit are leaving performance—and risk reduction—on the table.
Elmet’s plan to print large heat exchangers as single monolithic components inside the DMP Flex 350 Triple is the anti-brazing manifesto. The printer’s three lasers and 350 x 350 x 350 mm build volume are not just specs; they are what make it realistic to consolidate complex internal tube geometries into one continuous structure. 3D printing from a single digital file removes intermediate assembly steps along with the joints they produce, which are potential failure points under extreme thermal cycling.
If your hypersonic heat exchanger still depends on dozens of brazed joints, you are designing to the limits of your fabrication shop, not to the limits of physics.
Low-Oxygen Metal AM: From Exotic to Essential
The quiet revolution behind hypersonic-ready metal 3D printing is oxygen control. The DMP Flex 350 Triple maintains oxygen below 25 ppm, with typical levels between 0 and 6 ppm during builds. According to 3D Systems, this low-oxygen architecture is ideal for complex components from highly reactive metals such as C103 and other refractory alloys. That is not marketing; for C103—an alloy of niobium, hafnium and titanium designed for extreme high-temperature aerospace applications—oxygen exposure can ruin powder and wreck economics.
Keeping oxygen that low lets Elmet reuse powder across multiple builds without degrading material properties, a critical lever when dealing with a costly refractory alloy. Industry-wide, qualification of C103 additive processes remains a challenge, as shown by parallel efforts to validate powder and workflows for this alloy. This is why hypersonic heat exchanger projects are forcing metal additive manufacturing to grow up: without reliable, low-oxygen processes, titanium additive manufacturing and refractory alloy printing stay in the lab, not on the vehicle.
In other words, hypersonic applications are turning exotic low-ppm process control into an essential feature, not a nice-to-have option.
Titanium Additive Manufacturing Demands Dedicated Machines

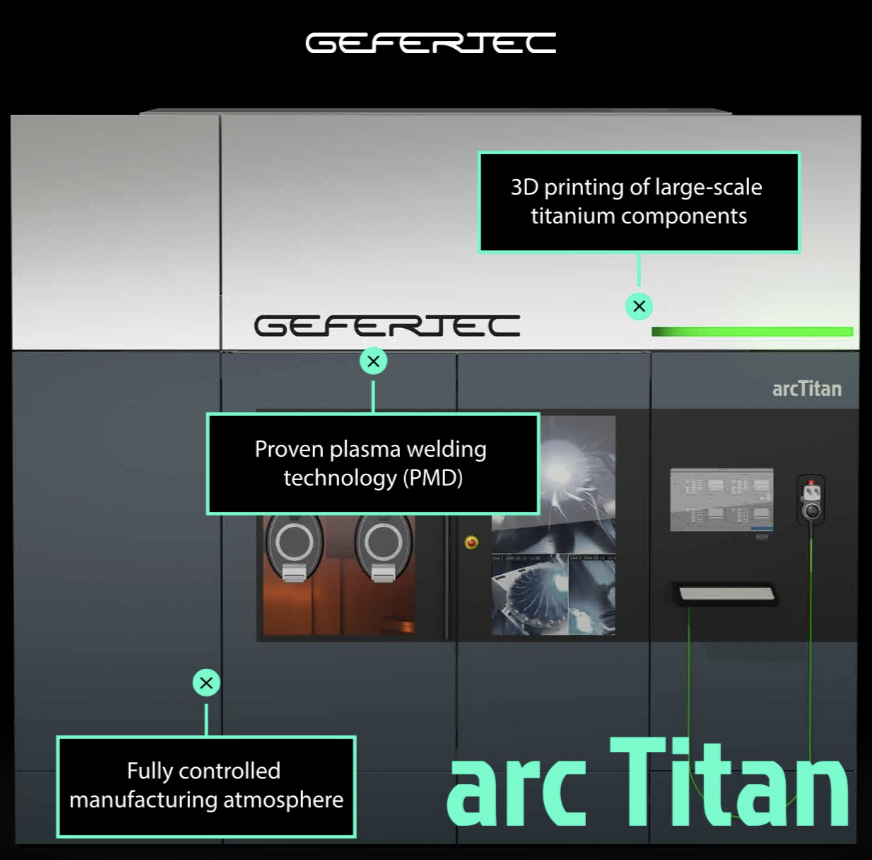

Titanium additive manufacturing has long been constrained by process inconsistency rather than material potential. Titanium’s high strength-to-weight ratio and corrosion resistance make it a preferred material for aerospace and energy applications, but its sensitivity to atmospheric contamination during processing has complicated additive workflows. GEFERTEC’s arcTitan system is a direct response: a sealed-chamber wire-arc additive manufacturing platform built specifically for titanium processing.
ArcTitan holds oxygen levels in the build chamber between 10 and 15 ppm throughout the entire build while using a plasma-based deposition process to manage heat input. The machine offers a 2 x 0.7 x 1 meter build envelope and a maximum deposition rate of 3 kg per hour, pairing build size with controlled atmosphere for titanium-heavy aerospace parts. GEFERTEC’s strategy is explicit: stop treating titanium as a checkbox on a general-purpose directed energy deposition system and instead engineer every subsystem—gas management, sensors, wire feed, controls—around titanium’s needs.
This specialization matters for certification. Aerospace buyers are more likely to trust a titanium-first platform than a generic WAAM machine with a titanium mode bolted on.
Large-Format Directed Energy Deposition Redraws the Airframe
Hypersonic programs do not end at small heat exchangers; they demand large structural and thermal subassemblies. That is where large-format directed energy deposition (DED) steps in. ArcTitan itself provides a 2 x 0.7 x 1 meter build envelope, already enough to cover substantial aerospace components. In the same machine family, the arc80X platform pushes build volumes up to 8 m³, moving additive manufacturing into territory once reserved for forged and welded assemblies.
These large L-DED systems let engineers design aerospace subassemblies as monolithic metal components, instead of mosaics of plates and welds. With sealed or controlled chambers and integrated 3DMP process monitoring across the range, they target the repeatability that certification demands. This is not a side note to titanium additive manufacturing; it is the scale-up path that connects meticulously printed hypersonic heat exchangers to equally advanced primary structures.
The implication is clear: once you can print multi-meter titanium and nickel parts with reliable atmospheres, the airframe and its thermal systems stop being separate design problems.
From Prototype to Supply Chain Strategy
The most overlooked aspect of this shift is supply chain control. Refractory metals like C103 flow through few suppliers and fabricators, concentrating risk. By installing and qualifying a metal additive manufacturing workflow in-house, Elmet is positioning 3D printing as localized production capability for the defense industrial base rather than a mere prototyping tool.
Meanwhile, arcTitan is part of a four-machine family that includes general-purpose and large-volume WAAM platforms, all built to integrate into existing manufacturing workflows and described as scalable and CE-certified. GEFERTEC has not yet disclosed when arcTitan will be commercially available or which customers are testing it, but the product strategy is obvious: segment by material and size, not by marketing label, and let aerospace and energy users choose the exact titanium or reactive-alloy tool they need.
The conclusion is unavoidable: metal 3D printing aerospace projects that fail to treat additive as core infrastructure—not outsourced experimentation—will lose pace as monolithic hypersonic heat exchangers move from breakthrough to baseline.
