Born qualified: redefining metal AM for aerospace and defense
In-situ quality monitoring in metal additive manufacturing is the continuous, layer-by-layer measurement and analysis of the build process to detect defects, quantify anomalies, and support real-time pass-or-fail decisions for safety-critical parts during production rather than after post-processing and destructive testing. The most important shift in metal additive manufacturing today is that aerospace qualification is starting to move from the lab to the build chamber. Instead of treating every flight-ready part as a months-long science project, engineers are trying to make parts “born qualified” by trusting the data collected in real time. That change is not incremental; it is existential. If metal 3D printing wants a permanent place in flight-critical and defense applications, in-situ quality monitoring has to replace slow, test-heavy qualification with something that looks and feels like modern production.
NASA’s 50,000-layer bet on real-time qualification
NASA Marshall’s new program with Phase3D is a deliberate attack on the slowest part of metal AM: qualification, not printing speed. The agency estimates that qualifying a single flight-critical additively manufactured component can take more than 18 months. That timeline is incompatible with responsive space and defense needs. By generating more than 50,000 individually inspected build layers on an EOS M300-4 quad-laser system, the team is building one of the largest in-situ inspection datasets for metal additive manufacturing qualification research. The goal is blunt: prove that the continuous measurement record Phase3D’s Fringe Inspection and Fringe Qualification produce can stand in for post-build CT scans at production scale. If that correlation holds, manufacturers can define quantitative go/no-go thresholds and qualify parts during the build, not a year and a half later. Real-time aerospace qualification stops being a slide in a pitch deck and becomes a measured process outcome.
Why structured light and data platforms matter more than more coupons
The traditional response to qualification risk has been more coupons, more CT, more destructive testing. That mindset is no longer sustainable. Fringe Inspection uses structured green light projection to capture calibrated 3D height measurements after every powder layer and laser exposure, building a continuous geometry map of the entire build. It is tuned to catch the defects that usually hide until post-build—powder spreading issues, recoater blade collisions, layer shifts, melt pool abnormalities, spatter buildup, delamination, and unexpected height variation. Earlier work showed 81% correlation between in-situ anomalies and CT-detected defects for the US Air Force, and 83% correlation for NASA, with 100% correlation for depressions above 42–47 µm. That is a quotable threshold: “Above specific micrometer levels, the correlation reached 100%” is a statement engineers can design around. The new program’s job is to prove that same behavior on a production-class quad-laser machine, not a single-laser research tool.
Rowan’s DEHub shows what process confidence looks like in the real world
NASA’s dataset is the headline, but Rowan University’s DEHub shows why this matters on a shop floor. Phase3D and DEHub are working together to advance data-driven metal additive manufacturing research, education, and process confidence, with a clear emphasis on process understanding, anomaly detection, qualification research, and hands-on education in data-driven manufacturing. When a build prep error caused the first 60 layers on a DMG MORI LASERTEC 30 SLM US to print only contours—no infill or supports—the team faced a nasty choice: abort early or roll the dice. With Fringe Inspection, they instead defined a defensible stop condition based on heightmaps for protrusions, swelling, poor powder coverage, and malformed parts. As the build transitioned from contour-only to bulk geometry, the measurements showed healthy parts and powder, and no recoater issues, letting them continue the job with measured confidence rather than superstition. That is what in-situ quality monitoring is supposed to do: turn gut feeling into traceable, defendable decisions.
From niche projects to fleet-wide adoption

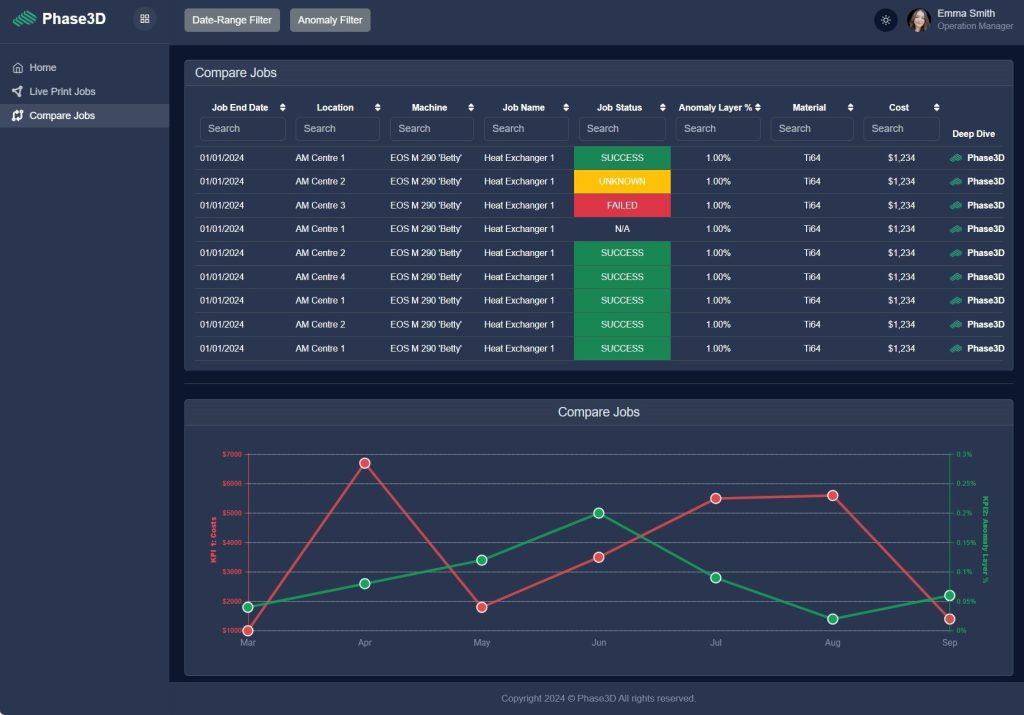

Metal additive manufacturing will not become mainstream in aerospace and defense until it looks boring—repeatable, auditable, and teachable. NASA’s work is structured around specific capability gaps in in-situ monitoring, process qualification, and complex geometry qualification, and is aligned to aerospace qualification standards such as NASA-STD-6030, NASA-STD-6033, and SAE AMS7032. Phase3D’s Fringe Qualification extends inspection from a single printer to a centralized platform capable of managing in-situ quality across entire production fleets. Meanwhile, DEHub is baking data literacy and process confidence into the next generation of engineers through hands-on education. Real-time quality assurance will not entirely replace post-production testing, but it can sharply reduce dependence on it, especially once the 50,000-layer dataset defines reliable go/no-go criteria for flight-ready parts. The message is clear: the bottleneck is no longer whether metal AM can print complex Invar brackets; it is whether industry will trust and institutionalize the data that proves those brackets are safe to fly.
