Extreme GPU Cooling Mods: What They Are and Why They Matter
Extreme GPU cooling modifications are enthusiast-built changes to standard graphics card cooling systems, using custom water loops, AIO cooler GPU conversions, or oversized passive GPU heatsink designs to achieve significantly lower temperatures than stock cooling while often prioritizing aesthetics, silence, and component longevity over direct performance gains.
The uncomfortable truth about GPU thermal modification is that it’s rarely about more frames. It’s about control. Enthusiasts do not strap radiators, pumps, and kilograms of aluminium to a graphics card because stock coolers are inadequate; they do it because they want to own every variable from coolant flow to VRAM contact pressure. A GPU water cooling mod is a statement that heat should never be the bottleneck, even if the benchmark charts barely move. In practice, we now have examples across the spectrum: an AIO and 11-fan RTX 3080, a fanless Nvidia GeForce RTX 4060 with a 2.5kg aluminium block, and an MSI RTX 5090 Lightning Z converted from integrated AIO to a full custom loop.
The Franken-AIO RTX 3080: Huge Drops, Tiny Gains
If you want proof that temperature and performance are not the same thing, the heavily-modded Nvidia GeForce RTX 3080 graphics card is the perfect case study. A modder replaced the stock fans with three 120mm fans, then escalated into a full 360mm AIO cooler plus multiple auxiliary fans, turning the card into a wind tunnel. In total, the setup used 11 fans once the AIO was counted, and the GPU temperature plunged by up to 29°C in Heaven and 33°C in Tomb Raider, bringing Tomb Raider temperatures down to 34°C.
The twist: all that effort produced a negligible 2fps gain over stock, and even manual overclocking only added about 7fps, or roughly 5%. That should shatter the myth that cooling alone unlocks hidden oceans of performance. What it does unlock is thermal headroom and lower hotspot and VRAM temperatures—19°C and 28°C reductions, respectively—which matter for longevity and consistency. The real payoff is psychological and aesthetic: the satisfaction of seeing a high-end card idle at temperatures that look more like a CPU on a custom loop.
The 2.5kg Passive Heatsink RTX 4060: Silence at Any Size

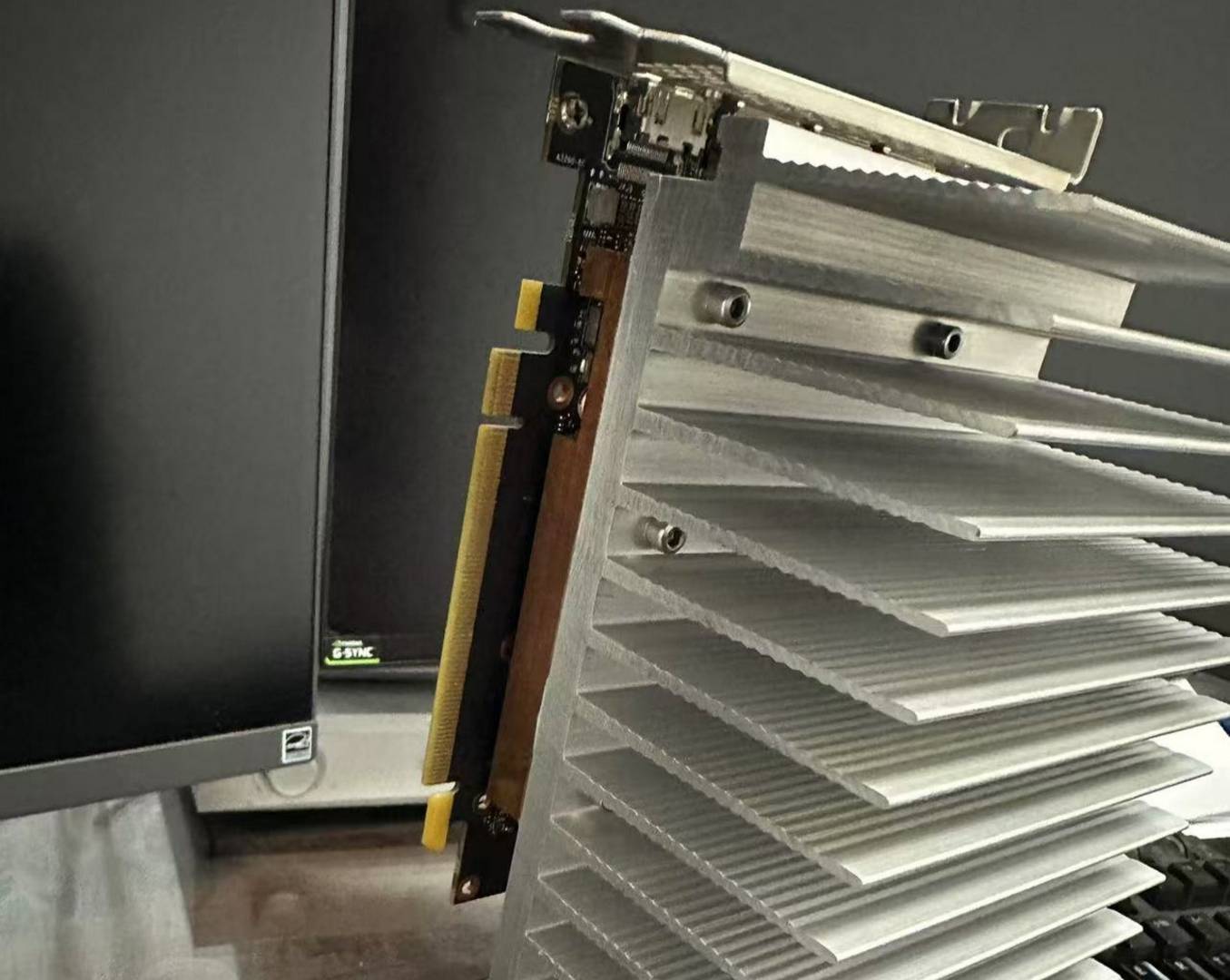

On the opposite end of the spectrum sits a fanless Nvidia GeForce RTX 4060 graphics card, cooled by an enormous passive GPU heatsink that weighs 2.5kg and dwarfs the PCB. This mod removes all fans and replaces the original cooler with a custom extruded aluminium fin stack, plus six heatpipes to spread heat to the far edge. The fins are spaced widely to favour natural convection instead of forced airflow, turning the GPU into a heat chimney rather than a mini leaf blower.
It is ridiculous in the best way: more than 220mm long, roughly three slots thick, and visually larger than the motherboard around it. But this is where physics sets hard limits. We are dealing with a roughly 115W TGP card; going much beyond 100W in a DIY passive setup becomes exponentially harder to cool, which is why a fully passive RTX 5090 remains fantasy. The worrying part is uncertainty: the modder did not share temperature data, especially for GDDR7 memory, and without confirmed contact to the heatsink those chips can overheat. In other words, silence demands both bulk and risk. You trade fan noise for weight, size, and unknown margins.
The RTX 5090 Lightning Z: Professional-Grade Water Cooling Obsession
At the ultra-high end, Roman “der8auer” Hartung took an MSI RTX 5090 Lightning Z—already a halo product with integrated AIO water cooling—and replaced its AIO with a custom water cooling setup built around a stainless-steel fitted waterblock. This RTX 5090 custom cooler ties the GPU into a full loop and drops operating temperature from 64°C to about 53°C at a staggering 800W load, an 11°C improvement even under punishing conditions. Tested with an external MO-RA radiator and three D5 pumps pushing nearly 190 litres per hour, the card held 53°C after an hour of gaming while coolant sat at 32°C.
This isn’t a casual mod; it’s an engineering project. The team discovered an aluminium plate with electroless nickel inside the original AIO and replaced it with PVD-coated stainless steel to avoid corrosion in an open loop. They kept the existing cold plate and copper base but added new 1mm thermal pads and a phase-change thermal interface. Add the price reality: the MSI RTX 5090 Lightning Z carries an MSRP of USD 5,000 (approx. RM23,000) and often sells for USD 7,000 to USD 8,000 (approx. RM32,000–RM37,000) on the secondary market, while speculation puts the GPU water cooling mod parts at another USD 8,000 (approx. RM37,000). According to the original report, “Given the steep costs and the level of expertise required, the mod isn't intended for general gamers – but it's a fun experiment for modders and DIY hobbyists nonetheless.”
Why Enthusiasts Do It—and When You Should Walk Away
Across these builds, one pattern is obvious: extreme GPU cooling mods are less about higher FPS and more about ownership of the entire thermal story. The RTX 3080 AIO cooler GPU experiment shows that even a 30°C drop can net almost no performance gain. The passive RTX 4060 build proves that fanless operation is possible only with absurd mass and careful fin design, yet may still hide VRAM risks. The RTX 5090 custom cooler demonstrates that professional-grade loops can trim double-digit degrees, but at eye-watering costs and with serious loop integration complexity.
These projects demand expertise: clean thermal paste or phase-change TIM application, correctly sized thermal pads, solid mounting brackets, and careful loop planning for flow rate and corrosion safety. Extreme GPU thermal modification is an enthusiast sport, not an everyday upgrade path. If what you want is quiet, reliable gaming, modern stock coolers and sane fan curves are enough. But if you care about aesthetics, silence, or a perfectly flat temperature graph, then chasing those last degrees can be its own reward—even when the benchmark graph barely budges.
