Badges as the Most Fun Way to Learn Hardware
Open-source badge design is the practice of turning wearable event passes into documented, reproducible hardware projects that teach PCB layout, microcontroller firmware, and mechanical design through playful, self-contained builds. At their best, DIY badge hardware is not swag; it is a portable lab that forces you to think about power, interaction, and aesthetics all at once. Two recent builds make the point sharply. One is a minimalist VU meter badge built around a through-hole PIC microcontroller and an electret microphone. The other is a dense, six-layer, Matrix-inspired capture-the-flag badge with acrylic, epoxy, and a full LED matrix. Together, they prove that PIC microcontroller projects and advanced PCB stacking techniques belong in the same creative spectrum.
The Open Sauce VU Meter: A PIC, a Mic, and a Mascot
The Open Sauce VU Meter Badge comes from a maker who, two weeks after buying a ticket to a 2026 convention in San Mateo, decided to design a custom badge instead of wearing whatever was handed out. This badge is intentionally modest: a PIC16F17576 in a 40-pin DIP package controls a row of 5 mm LEDs that form a VU meter around the event mascot’s head. An electret microphone feeds into the PIC’s analog signal conditioning op amp peripheral, turning ambient sound into LED animation. The board uses 100% through-hole components so others can assemble it quickly and learn from it. It is the kind of DIY badge hardware that lowers the barrier for newcomers: you can hand-solder everything, then “get cracking on software” as soon as the PCB arrives from fabrication.
This simplicity does not mean it is trivial. The designer lifted the microphone front end from a Microchip application note, then discovered the hard way that the PIC16F17576 provides no internal routing between op amps and the ADC; those links must be wired externally on the PCB. That single detail is an entire lesson in reading datasheets with suspicion rather than faith. Power constraints reveal another trade-off: testing with a coin-cell emulator showed that the quiescent current is dominated by microphone leakage through the bias resistor, because no FET was added to disconnect the microphone in sleep mode. This is exactly why badge projects work so well as classrooms. You meet real constraints—with a coin cell, with a DIP footprint, with a small firmware—and you either embrace the imperfection or redesign.
The Bug Bounty Village Badge: Six Layers of Game and Glow

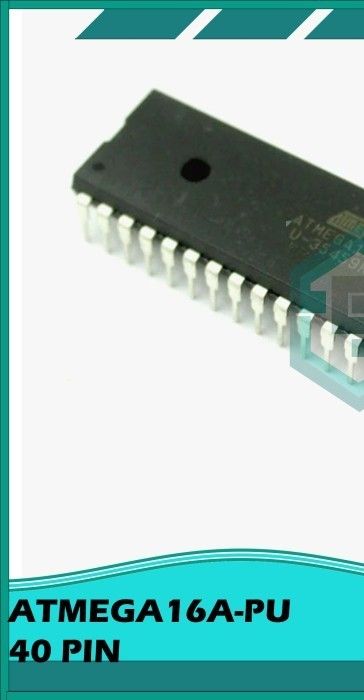

If the VU meter badge is a breadboard-friendly sketch, the Bug Bounty Village badge is a small product. For the 2025 event, its creator chased three goals at once: a Matrix-style “raining code” LED effect, a piece of acrylic floated above the PCB so the logo reads in 3D, and a hardware-embedded CTF so the badge earns its lanyard space. The front of the double-sided PCB is cut to the village logo and packed with 41 mini SMD LEDs plus four tall tactile switches that poke through the acrylic. Four more LEDs at the bottom stay dark until you feed the badge the correct binary flags, forming visible CTF progress markers. The ATmega16A, resistors, and power switch hide on the back so the front stays clean.
The physical build is an exercise in PCB stacking techniques. The hacker logo is printed into an acrylic layer, laser-cut with holes for buttons and mounting hardware, then floated above the LED matrix on standoffs. Stacked up, the badge includes the acrylic, screws that set the height, the base PCB, and all electronic parts tucked onto the rear. Color comes from UV printing rather than standard silkscreen, with a transparent protective coat to survive temperature swings. On top of that, experimentation with coatings led to a six-layer surface stack: black PCB mask, primer, white UV for color correction, blue or green UV, varnish, and a thick epoxy finish. The epoxy saga was painful—uneven surfaces, LEDs pulled into bad connections, and batches that never cured—but this is the kind of pain that turns a hobby board into something that feels finished.
Badges as an On-Ramp: From First PCB to Embedded CTF
What these two designs share is more important than their differences. Both are open projects intended for others to replicate or adapt—one designer even chose through-hole parts explicitly because “others would like to attempt this project in the future”. Both force their builders to care about firmware, not only copper. On the VU badge, the reward is tuning op amp and ADC settings on a PIC and experimenting with sleep states to stretch a coin cell. On the Bug Bounty Village badge, the reward is an embedded four-step game: explore the village for CTF challenges, solve one for a binary flag, enter that sequence with the front buttons, and watch the badge unlock that stage. That loop makes firmware feel like part of the event, not homework.
The lesson for badge makers is blunt: you do not need a six-layer stack to build something worth wearing, but you should know that such stacks are accessible. A DIP-based microphone VU meter and a sculpted acrylic LED matrix share the same core skills—schematic capture, PCB layout, microcontroller configuration, and clear documentation. As opinionated hardware, both reject the idea that badges are passive branding. They are arguments in FR-4 that learning electronics should be hands-on, a little messy, and visible to everyone around your neck.
