What Servo Motor Control From Embedded Linux Really Involves
Servo motor control from a single-board computer in embedded Linux means generating timed control signals, routing them through safe TTL-level interfaces, and coordinating both hardware and software so that position, speed, and direction of multiple servo channels can be driven deterministically from user space applications. In practice, you combine a servo controller or on-board GPIO with a 5 V power stage, follow the timing rules of typical RC servos, and configure the Linux kernel and user space so that your code can write repeatable pulse widths over GPIO or USB. This approach turns platforms such as BeagleY-AI and Zynq UltraScale+ boards into flexible motion controllers for arms, pan–tilt rigs, and other mechatronic projects, while keeping the complexity of low-level timing and protection inside dedicated hardware blocks or off-the-shelf servo controllers.
Choosing Hardware: BeagleY-AI, Zynq Boards, and TTL Servo Controllers

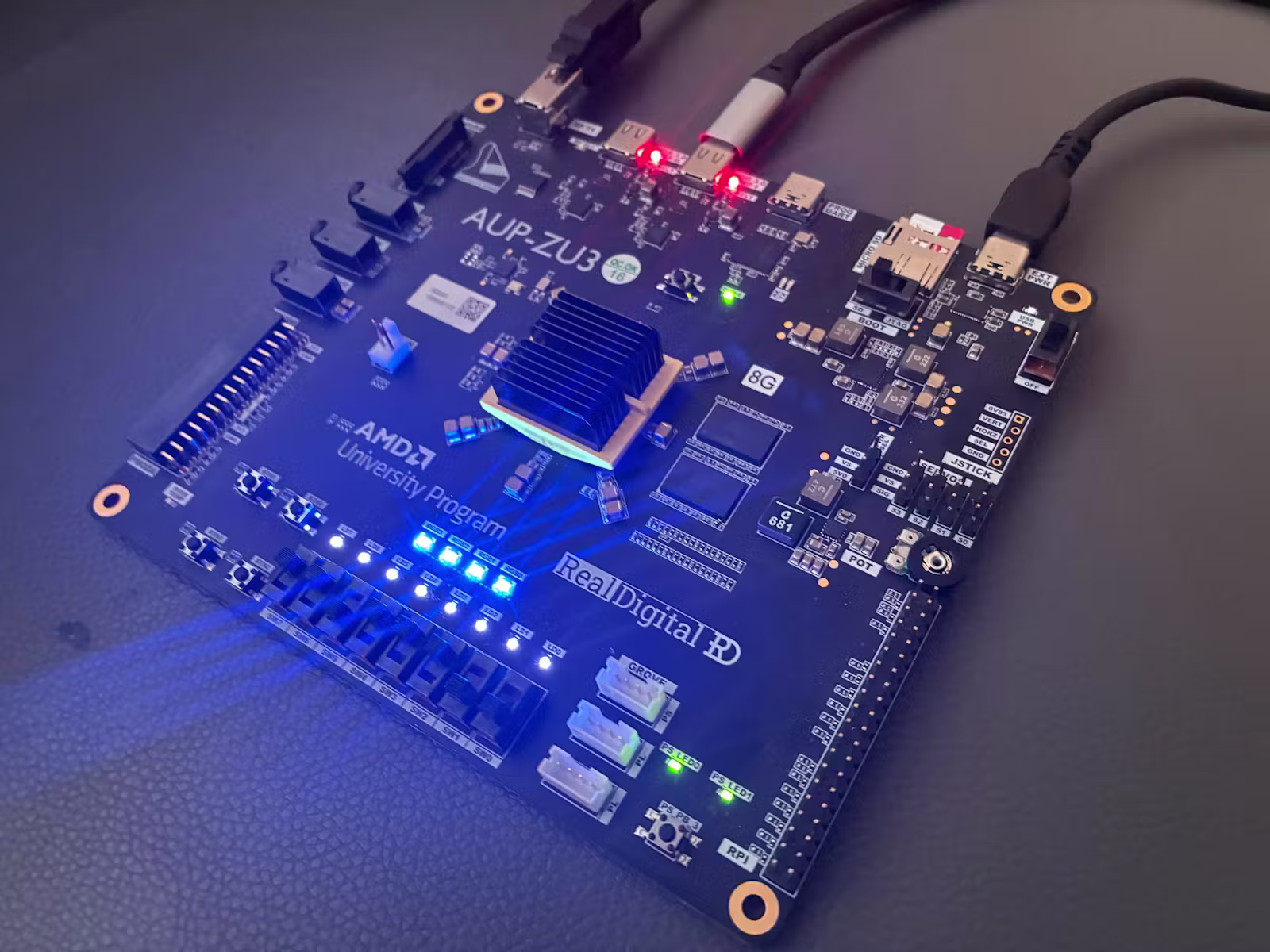

For single-board computer servo projects, you usually pick between a dedicated TTL servo controller and native GPIO pins. A Pololu-style TTL servo controller, as used with BeagleY-AI in a 3 DoF arm project, offloads the generation of precise servo pulses from the board and exposes a USB control interface. That frees your embedded Linux system to focus on kinematics and higher-level logic. On Zynq UltraScale+ platforms such as the AUP ZU3, you can instead place an AXI GPIO core in the programmable logic and drive servo timing from HDL or a soft IP block while the processing system runs PetaLinux. According to a GPIO control project on the AUP ZU3, the AXI GPIO is mapped at address 0x80000000 and exposed to Linux as a /sys/class/gpio device, which makes it easy to toggle pins from user space for basic timing or direction lines.
Configuring GPIO Under Embedded Linux for Servo Outputs
Once the hardware path is clear, you must configure GPIO under embedded Linux so pins behave as servo outputs rather than inputs. On Zynq with PetaLinux, this starts in Vivado by adding an AXI GPIO peripheral and exporting the design as an XSA. In the PetaLinux project, you confirm that the GPIO driver (GPIO_XILINX) and GPIO_SYSFS are enabled so your lines appear under /sys/class/gpio. You then override default device tree settings in system-user.dtsi so that xlnx,all-outputs is set to 0x1 and xlnx,tri-default to 0x00000000, ensuring the GPIO bank is configured as an output instead of an input. After building and booting, you can echo a line number into /sys/class/gpio/export, set its direction to "out", and toggle values to verify the signal before integrating higher-level servo control code.
Handling TTL Logic Levels Between 5 V Servo Controllers and CMOS Boards
Most hobby servos expect a 5 V supply and accept TTL-compatible control pulses, while many modern single-board computers expose 3.3 V CMOS GPIO that are not 5 V tolerant. With a TTL servo controller connected over USB, such as a Maestro board used alongside BeagleY-AI, the single-board computer never drives the 5 V servo signal directly; it communicates over USB, and the controller outputs 5 V-compatible pulses to each servo channel. When wiring power, you must provide a solid 5 V rail and ensure that grounds are shared between the controller, power source, and single-board computer. Project notes on an incomplete Maestro board warn that the 5 V power ground was not yet populated on the controller headers, which underlines why verifying ground continuity and header pinout before connecting any servos is essential to avoid erratic motion or hardware damage.
Practical Examples: From Sysfs Toggling to USB Servo Scripts
After GPIO and hardware are ready, you can create repeatable servo motions using either sysfs or a USB control API. On Zynq running PetaLinux, a simple shell script can export a GPIO pin, then run a loop that writes high and low values with carefully chosen delays to approximate RC servo pulses, or you can move precise timing into programmable logic while Linux sends position commands. On BeagleY-AI with a USB-connected TTL servo controller, you can write a Python 3 script using pyusb. A sample implementation finds the controller by vendor ID 0x1FFB and product IDs 0x0089–0x008C, then calls a SET_TARGET request (0x85) where the position is encoded in quarter-microseconds. Combined with higher-level math routines, such as a 3 DoF homogeneous transformation matrix, this lets you command complex arm movements from standard embedded Linux distributions.
