What Gigabyte’s Pizza-Box Cluster Is and Why It Matters

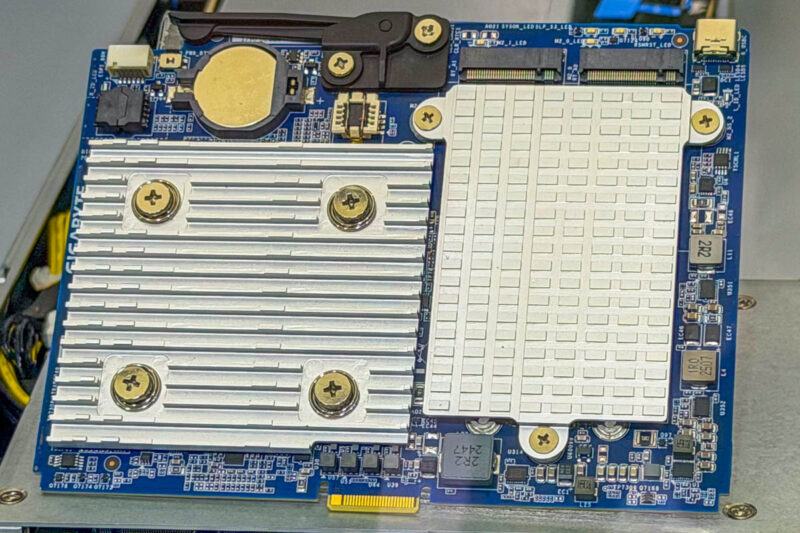

Gigabyte’s R1C7-K0A-AS1 is a 40-node cluster system that compresses 320 CPU cores, 40 integrated GPUs, and 80 SSDs into a single 1U chassis, redefining 1U server density for edge computing hardware, cloud infrastructure, and distributed AI workloads by using mobile-class Intel Lunar Lake processors instead of traditional datacenter CPUs. Each node is a compact multi-node PC on an index-card-sized board with an Intel Core Ultra 7 258V processor, 32 GB of LPDDR5X memory, integrated Arc 140V graphics, and two PCIe 5.0 M.2 slots for storage. Five sleds, each carrying eight of these boards, slide into the pizza-box enclosure to form a tightly packed, 40-node fabric. This layout turns what used to require multiple rack units into a single 1U building block that can be stacked for thousands of low-power cores per rack, while still leaving room for networking and high-efficiency power supplies.
Inside the Hardware: Lunar Lake at Extreme Density
At the heart of the R1C7-K0A-AS1 is Intel Lunar Lake silicon tuned for efficiency and integrated acceleration. Each Core Ultra 7 258V combines four Lion Cove performance cores and four Skymont efficiency cores, with clocks up to 4.8 GHz on P‑cores and 3.7 GHz on E‑cores, plus an Arc 140V iGPU with eight Xe cores and a 48 TOPS NPU. Forty such nodes add up to 320 cores (160 P‑cores and 160 E‑cores) and 1.28 TB of LPDDR5X memory in one rack unit. According to the Register, “Each processor is paired with 32 GB of LPDDR5x 8,533 MT/s memory, Arc 140V graphics with eight Xe cores, and a 48 TOPS NPU.” For storage, every node has two PCIe Gen5 x2 M.2 slots, yielding 80 SSDs per chassis for local, low-latency data and OS images, which is ideal for microservices and edge AI deployments that prefer local persistence.
Networking, Management, and the Pizza-Box Fabric
The rear of the chassis reveals how this 40-node cluster system connects to the outside world. Two QSFP28 ports provide 100 Gbps-class connectivity, consolidating traffic from all 40 nodes into a compact uplink footprint, while a separate management controller exposes a dedicated rear management port for chassis-wide monitoring and control. Internally, each eight-node cartridge appears to receive a pair of MCIO 8i-style connectors, which likely carry either PCIe lanes or Ethernet from every node toward a central switching or aggregation chip under the large rear heatsink. ServeTheHome notes that if those connectors carry Ethernet, the hidden ASIC could be an integrated switch, which would turn the R1C7-K0A-AS1 into a self-contained micro data center. Power is delivered by two 3.2 kW 80 Plus Titanium power supplies, giving ample headroom for 40 low-power Lunar Lake nodes and shared networking without resorting to bulky external power shelves.
Challenging Traditional Server Architecture and Power Models
Instead of a handful of heavy multi-socket servers, the R1C7-K0A-AS1 proposes a pizza-box cluster formed from many small, independent nodes. This breaks from conventional designs that scale up via large Xeon or Epyc CPUs and complex NUMA topologies. Here, density comes from scaling out: 40 modest, notebook-class nodes per 1U, each with its own memory, SSDs, CPU, and iGPU. At rack scale, a full 40U filled with these units would yield 12,800 CPU cores, 3,200 SSDs, 1,600 integrated GPUs, and 51.2 TB of LPDDR5X memory, according to ServeTheHome. That density challenges even upcoming high-core-count Arm server platforms while relying on well-known x86 software ecosystems. Power and cooling models also change: lower TDP per node enables tighter packing and high-efficiency power delivery, suiting environments where many small workloads need isolation but share the same physical footprint, like micro data centers or telco edge sites.
Edge, Cloud, and AI Workloads Enabled by the R1C7-K0A-AS1
Because each node is a self-contained compact multi-node PC with its own integrated GPU and NPU, Gigabyte’s design is well aligned with modern edge computing hardware needs. The Register reports that the system is suited to microservices stacks such as Kubernetes, making it attractive for cloud providers that want bare-metal isolation for tenants without the overhead of virtualization. With 40 iGPUs available in 1U, the chassis can support workloads like cloud desktops, casual cloud gaming, or video transcoding without separate GPU cards or vGPU licensing. At the edge, operators could deploy hundreds of lightweight AI inference endpoints, each allocated to local camera feeds, sensor analytics, or real-time decision engines. Localized storage on every node ensures data gravity stays close to where it is generated, while the shared high-speed uplinks connect the cluster to central analytics or training backends in a core data center.
