What On-Device LLMs on ESP32-S3 Give You
Running an on-device LLM on an ESP32-S3 means deploying a compact language model directly on the microcontroller so it can generate coherent text, handle prompts, and support simple chat or storytelling experiences without relying on external compute resources or larger embedded platforms.
If you like microcontroller machine learning but thought language models were out of reach, the ESP32-S3 proves otherwise. ESP32-AI fits a 28.9M-parameter LLM on this tiny chip that can tell coherent stories and track variables. The trick is to store most of the model’s parameters as an embedding table in flash while keeping only about a 560K dense core in fast RAM. That balance lets you run a fully on-chip model at around 9 tokens per second, which is fast enough for lightweight chatbots or story generators. The caveat: you must be disciplined about memory, wiring, and flashing, because most upload failures come from small mistakes like unstable power or reversed connections.
What You Need Before You Start
Before jumping into ESP32 AI inference, you need hardware that you can reliably flash and power. Even if your end target is an ESP32-S3 module, it helps to think like you’re wiring an ESP32-CAM: clean power, clear pinout understanding, and a way to program it from your computer.

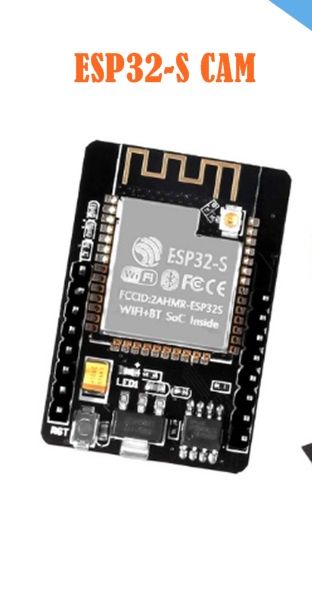

For a development setup following the ESP32-CAM style, you’ll need: an ESP32-based board (for example, an ESP32-CAM module), an OV2640 camera module if you want vision features, an FTDI USB‑to‑TTL programmer, female‑to‑female jumper wires, a USB cable, and optionally a microSD card for logging. The ESP32-CAM couples an ESP32 microcontroller with Wi‑Fi, Bluetooth, and camera support, which makes it a flexible base for IoT and embedded vision projects. Once your hardware is ready, we’ll focus on the ESP32-S3’s on-device LLM capability: storing a 25M-parameter embedding table in memory‑mapped flash and keeping the compute-heavy 560K core in RAM. That split is what makes this edge AI deployment practical.
Step-by-Step: From Wiring to On-Device LLM
Treat this like helping a friend: we’ll wire the board, configure the toolchain, confirm a basic sketch works, then move up to an on-device LLM. The sequence matters; skipping the basic steps makes debugging the AI part far more painful later.

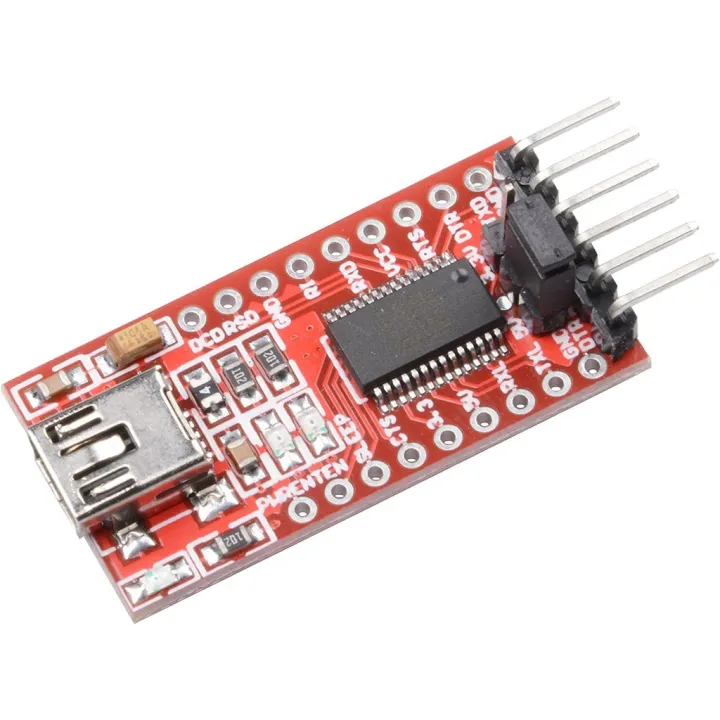

- Wire your ESP32 board to an FTDI programmer: connect 5V, GND, TX, and RX, and ensure GPIO0 can be pulled to GND during programming because the ESP32-CAM has no built-in USB interface and requires an external FTDI USB-to-TTL converter for flashing.
- Install the ESP32 board package in the Arduino IDE, then select the AI Thinker ESP32-CAM profile with an upload speed of 115200, flash frequency of 40 MHz, and the Huge APP partition scheme before uploading any sketch.
- Upload the Camera Web Server example sketch included with the ESP32 boards package, then disconnect GPIO0 from GND and reset the board so it boots normally after programming.
- Check for and fix common wiring and configuration issues—verify GPIO0 is wired correctly, TX/RX are not reversed, you have a stable 5V power supply, the correct COM port and board profile are selected, and the camera ribbon cable is seated properly, because most upload failures come from wiring mistakes or unstable power.
- Once the base sketch is working, flash an ESP32-AI style firmware that stores a 25M-parameter embedding table in memory-mapped flash and keeps about a 560K dense core in fast RAM so your on-device LLM can run fully on-chip at roughly 9 tokens per second.
The gotcha here is impatience: people try to flash an AI firmware onto an unproven setup and then blame the model when uploads fail. In reality, most problems trace back to basics like TX/RX swapped, GPIO0 not grounded during flashing, or noisy 5V power. Once your board happily runs the Camera Web Server example, moving to an ESP32-AI firmware is far smoother. At that point, you benefit from a 28.9M-parameter on-device LLM that can tell a story and maintain state over time, turning your ESP32-S3 into a tiny offline storyteller or chatbot.
What You Can Build with On-Device ESP32 AI
With the basics wired and flashed, you can start turning the hardware into real projects. The ESP32-CAM alone is already a solid base for wireless security cameras, smart doorbells, motion detection cameras, QR code scanners, robot cameras, remote monitoring systems, time‑lapse cameras, and IoT image loggers. Add an on-device LLM and these projects gain a text brain that can label events, narrate what it sees, or interact with users without external compute.
Because someone managed to squeeze a 28.9M-parameter LLM onto an ESP32-S3 that tells coherent stories, you can aim for storytelling toys, simple chatbots that live inside smart home nodes, or edge AI deployment where a device maintains small conversations while tracking variables over time. One quotable takeaway is that “ESP32-AI fits a 28.9M-parameter LLM on an ESP32-S3 that can tell coherent stories”. Tie that to sensors or a camera and you get devices that both sense and narrate—the kind of microcontroller machine learning demo that feels like science fiction running on a postage-stamp board.
Is It Worth It?
Pushing an on-device LLM onto an ESP32-S3 is absolutely worth it if you enjoy squeezing maximum value out of tiny hardware. You get a microcontroller that can run an LLM with 28.9 million parameters and tell coherent stories, plus all the usual ESP32 perks: Wi‑Fi, Bluetooth, and camera support for IoT and embedded vision projects. The key risks are small but real: wiring errors, unstable power, and mismatched toolchain settings cause most upload failures.
If you go in expecting desktop‑class performance, you will be disappointed; at about 9 tokens per second, responses feel more like an old terminal than a smartphone app. But for learning edge AI deployment, building offline story boxes, or adding a chatty layer to existing ESP32 projects, the tradeoff is fair. Take your time on the setup, verify the simple camera demo, and only then move to ESP32 AI inference—the journey is half the fun, and the result is a tiny board that can talk back.
