Why an ESP32-S3 Language Model Is Worth Your Time
Running a 15.2M-parameter language model on an ESP32-S3 microcontroller means turning a low-cost embedded board into a self-contained offline LLM engine that can generate human-readable text without any cloud service, network stack, or external compute. This shifts language understanding and generation from remote servers into tiny devices that fit on your desk or inside everyday products. Instead of streaming prompts and responses over the internet, the model lives side by side with your sensors, actuators, and application code, giving you tighter control over latency, privacy, and power budgets. For anyone building edge AI microcontroller projects, this is a clear sign that language models no longer belong only in data centers.
NanoMind-S3 shows that a dense 15.2M-parameter LLaMA-2 Stories model can run on a single ESP32-S3 DevKitC-1, and that is the real story here. The model does not cheat with lookup tables or static responses; every parameter participates in matrix math inside the microcontroller’s dual-core Xtensa LX7 CPU. Offline LLM inference is not a theoretical demo—this setup generates short, coherent children’s stories over a serial terminal, token by token, at around 2.96 tokens per second once you type a prompt and hit Enter. In other words, you are no longer forced to send text to a server to get meaningful language output. You can build products and experiments that are self-contained by design.
What You Need: Hardware and Architecture Mindset

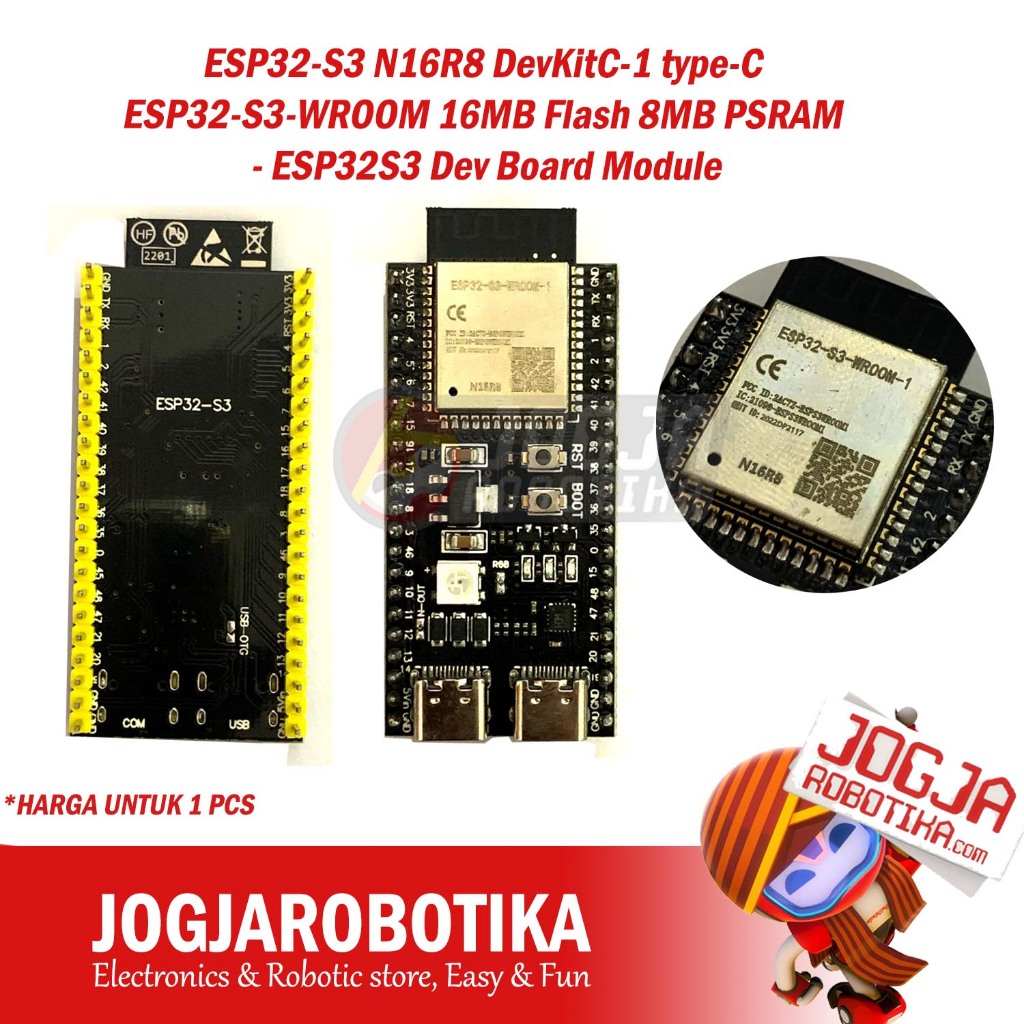

To deploy an ESP32-S3 language model in the style of NanoMind-S3, you start with the right board and a clear memory plan. The reference setup uses an ESP32-S3 DevKitC-1 N16R8 with 16MB of Flash, 8MB of Octal PSRAM at 80MHz, a dual-core Xtensa LX7 CPU at 240MHz, and a USB serial terminal for interaction. That is a modest microcontroller by desktop standards, but plenty if you respect its constraints. The key is to treat Flash, PSRAM, and on-chip SRAM as distinct tiers and decide what lives where instead of pretending you have a single giant address space.
In NanoMind-S3, the 7.49MB of INT4-quantized model weights reside directly in external Flash and are memory-mapped into the CPU address space through the Flash MMU, consuming no PSRAM. Meanwhile, the KV-cache and activation buffers—about 3.54MB for six Transformer layers at sequence length 256 and dimension 288—sit in Octal PSRAM, leaving roughly 4.04MB of PSRAM free after allocation. This separation is not an optimization detail; it is the difference between the model fitting or crashing. If you approach TinyML deployment on an edge AI microcontroller with this tiered-memory mindset, you can plan for language models instead of hoping they fit by accident.
How NanoMind-S3 Achieves Offline LLM Inference
The firmware behind NanoMind-S3 is a lesson in what it takes to get offline LLM inference working on constrained hardware. First, the original FP32 model is compressed to INT4 using a custom exporter, cutting the binary from 58MB down to 7.49MB while applying per-row FP32 scale factors for dequantization. On-device, unpacking each byte into two signed 4-bit weights uses a single arithmetic shift per nibble, preserving speed and simplicity. This kind of quantization is not optional; without it, the model would never fit in your memory budget. As a bonus, INT4 also doubles throughput compared to INT8, because halving the model size reduces pressure on the Flash MMU bandwidth.
Second, every heavy matrix multiplication is split across both CPU cores: core 0 handles the first half of the rows, core 1 handles the second half, with persistent FreeRTOS tasks and binary semaphores keeping them synchronized. This achieves 200% CPU utilization for the dense math instead of leaving one core idle. Per token, the forward pass still executes about 30.4 million multiply-accumulate operations, including INT4 embeddings, six Transformer layers with attention and SwiGLU feed-forward, and the final logits projection before temperature and top-p sampling. The point is simple: if you want a real LLM and not a toy, you must design your quantization, memory mapping, and dual-core scheduling together.
Adding Vision: TinyML Deployment for Object Detection
If language-only ESP32-S3 projects excite you, combining them with vision is where edge AI microcontroller designs become truly interesting. Training a TinyML model with Edge Impulse and running real-time object detection on an ESP32-S3 Camera shows that these chips can handle live image processing as well. In practice, that means your device can both see and talk: a camera-based object detector can provide semantic context, while the on-device language model can narrate, explain, or guide based on what it sees. The hardware is already in the same family, so the mental model for memory and compute budgeting carries over.
NanoMind-S3 demonstrates dense language modeling, while ESP32-S3 camera projects demonstrate practical TinyML deployment for vision. Put them together and you get a multi-modal on-device AI system where images and text share a microcontroller instead of a cloud account. That setup directly addresses privacy and latency concerns, because both the object detection and the language generation remain completely offline with zero cloud or WiFi dependency. Your frames do not leave the device, your prompts are never logged by remote servers, and your response time depends on local compute, not on network jitter. For many applications—children’s toys, industrial sensors, or personal gadgets—that tradeoff is worth far more than having a slightly larger model in the cloud.
Why Edge-Deployed LLMs Matter and Where to Go Next
The most important lesson from NanoMind-S3 is that edge-deployed language models are no longer science fiction for resource-constrained devices. Based on a thorough search of public projects, repositories, and press coverage, this appears to be the largest fully-dense actively-computed LLM on a single ESP32-S3 that has been documented publicly. That matters because it sets a reference point: if a 15.2M-parameter Transformer can run in this envelope, then many practical assistants, tutors, and narrators for embedded systems are within reach. You do not need a server farm to give a small device a voice and a sense of narrative.
From here, the path forward is about being opinionated in your design choices. If you care about privacy and latency, you should default to keeping inference local and only add cloud connections when they bring clear value. If you care about maintainability, treat quantization scripts, memory layouts, and multi-core scheduling as first-class parts of your codebase, not one-off hacks. And if you care about user experience, remember that 2.96 tokens per second is enough for many interactive uses as long as you design prompts and interfaces around that throughput. The bottom line: edge AI microcontrollers like the ESP32-S3 are ready to host real language models today—you only need the discipline to work within their limits and the imagination to build something worth running offline.
