R2R DACs: From Esoteric Tech to Everyday Desktop Gear
An R2R DAC desktop device is a digital-to-analog converter that uses a precise resistor ladder DAC network instead of a conventional delta-sigma chip to transform digital audio data into an analog signal, often combining this architecture with integrated headphone amplification in a compact form suitable for everyday computer and media use.
Audiophiles love arguing about DACs, but the real story today is simple: resistor ladder DAC designs have broken out of high-end towers and landed under ordinary monitors. When the FiiO K11 R2R launched in 2024, it caused quite a stir within the audiophile community. Not because R2R exists—that battle was fought years ago—but because this format is now small, affordable and practical enough to sit next to your keyboard without a second thought. The message is clear: the era when R2R meant exotic prices and hulking chassis is over. If you still think ladder DACs are a niche indulgence, the latest wave of desktop units says you are stuck in the past.
Why the Resistor Ladder Matters More Than the Logo on the Chip
R2R DACs had traditionally been reserved for significantly more expensive hardware, largely because building a precise resistor ladder is more complicated and costly than dropping a conventional delta-sigma DAC chip into a circuit. An R2R DAC can be thought of as a carefully arranged ladder of resistors, and the FiiO K11 R2R uses a four-channel, fully differential architecture containing 192 thin-film resistors. In other words, the “chip” is the circuit itself.
This matters for two reasons. First, R2R relies more heavily on a physical resistor network, which makes the accuracy and consistency of every resistor important. You are not buying a brand name on a silicon package; you are buying the designer’s discipline. Second, once that discipline hits desktop scale, it changes expectations: ladder DAC sound is no longer tied to hi-fi racks or boutique price tags. Anyone clinging to the idea that only integrated delta-sigma solutions can be compact, reliable or flexible is now arguing against products you can hold in one hand.

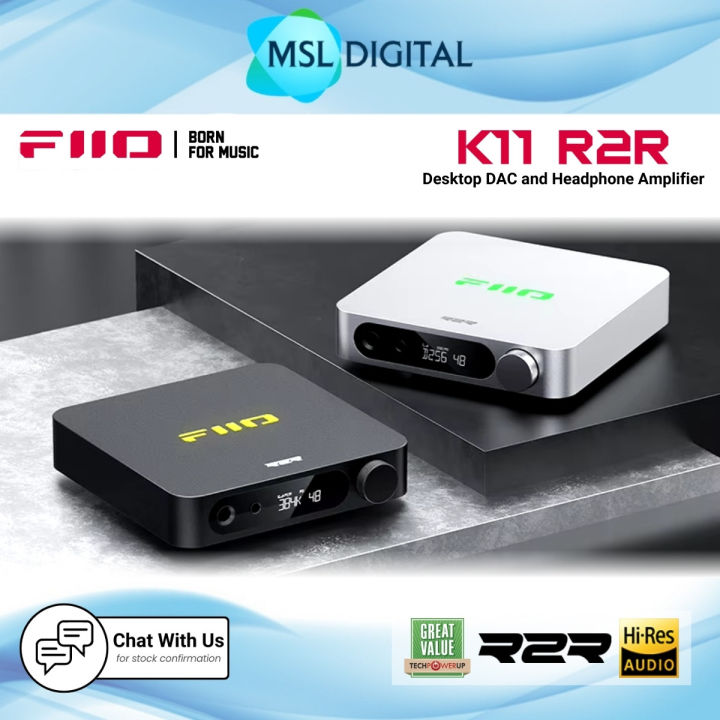

The FiiO K11 R2R: Accessible Ladder DAC, Serious Desktop Tool
FiiO somehow squeezed the technology into a complete desktop DAC and headphone amplifier for around USD 160 (approx. RM740). For perspective, the HIFIMAN EF499 launched at USD 299 (approx. RM1380), while portable R2R dongles such as the Cayin RU6 and HiBy FC6 were priced at around USD 249 (approx. RM1150) and USD 299 (approx. RM1380), respectively. In the UAE, it currently sells for between AED 615 and AED 699 on Amazon, depending on the seller. That pricing alone undercuts the old assumption that a resistor ladder DAC must be a luxury purchase.
Despite the low price, the K11 R2R is not a stripped-down curiosity built solely to demonstrate its unusual DAC architecture. It is a fully fledged desktop DAC, headphone amplifier and preamp, with USB-C, optical and coaxial inputs, RCA line output, and both 6.35mm single-ended and 4.4mm balanced headphone connections. Measuring 147x133x32.3mm and weighing just over 400g, it is an impressively compact little box that looks like an older Mac Mini shrunk down to fit beneath a monitor. After using the K11 R2R for more than a week with music, PC games, a PS5 and television content, I have come away quite impressed. That is the kind of quote you expect about a high-end audio DAC, not an “entry” ladder box.
R2R DAC Desktops Are Built for Real Desks, Not Just Spec Sheets
The most important thing about the K11 R2R is not the resistor count; it is how effortlessly it drops into a modern setup. It is a versatile selection for such a small device and allowed me to keep my PC connected over USB while routing my TV and PlayStation 5 through optical. Changing between them only requires switching the active input rather than constantly reconnecting cables. In practice, that makes this resistor ladder DAC a hub, not a toy.
Features like three gain levels, separate NOS and OS playback modes, and up to 1.3W of output power per channel through the balanced connection at 32 ohms turn it into a daily driver rather than a collector’s piece. The small LCD, menu system and single multifunction dial may take some learning, but once mastered, you are controlling a preamp, a headphone amp and a DAC in one. This is what the new generation of R2R DAC desktop gear looks like: unapologetically practical, yet built around architecture that used to belong only in big-ticket stacks.
Why “Peak R2R” Talk Is Misguided
Some enthusiasts already grumble that we have seen everything R2R has to offer, as if the story ends once a few halo products hit the market. The K11 R2R’s very existence says otherwise. When the FiiO K11 R2R launched in 2024, it caused quite a stir within the audiophile community, not because it chased the highest possible spec, but because it delivered an unapologetically ladder-based design in a form factor and price that looked suspiciously like “normal” gear.
The next act for resistor ladder DAC hardware is not extreme, it is incremental: more compact chassis, smarter connectivity, and firmer integration into everyday listening spaces. Desktop users are already proving that R2R is not a museum piece but a viable default. The lesson from the K11 R2R is that once a technology escapes the top shelf and lands on ordinary desks, the category is still very much alive. Declaring the movement over now is like calling a race at the halfway mark.
