Compact PC Cooling Moves From Compromise to Ambition
Compact PC cooling refers to the airflow, heatsink, and liquid-cooling solutions designed to keep powerful components within safe temperatures inside smaller cases, where limited space, reduced airflow paths, and denser hardware layouts have traditionally forced users to dial back performance or accept higher noise and heat. That old trade-off is starting to erode. Arctic’s new Xtender Mini microATX case and Noctua’s next-generation 70mm low-profile CPU cooler both target builders who want strong performance and clean aesthetics in tight spaces. Instead of treating small form factor thermal design as an afterthought, these products are built around cooling first: clear airflow paths, smarter component placement, and higher-end fans and heatsinks. Together they illustrate how compact PC builders are getting access to ideas once reserved for full towers and custom loops.
Xtender Mini: Flagship MicroATX Case Design for Serious Airflow
Arctic’s Xtender Mini brings its larger sibling’s look to a microATX footprint, pairing tempered glass front and side panels with a layout tuned for airflow. Despite the smaller size, it supports graphics cards up to 402mm long and 165mm tall, so high-end GPUs are firmly on the table. Four 120mm A-RGB fans ship as standard: one rear exhaust plus three reverse-blade units along the case floor feeding fresh air directly into the main chamber. A side mount supports a 360mm radiator, aligning well with the growing trend toward all-in-one liquid cooling in compact PC cooling setups. The PSU moves to a roof-mounted shroud, freeing space for cleaner cable management and better front-to-back airflow. Arctic adds magnetic dust filters on the underside and top, using a pull-out design that keeps the exterior tidy while staying easy to clean.
Small Form Factor Thermal Layout: Cooling-First MicroATX Thinking

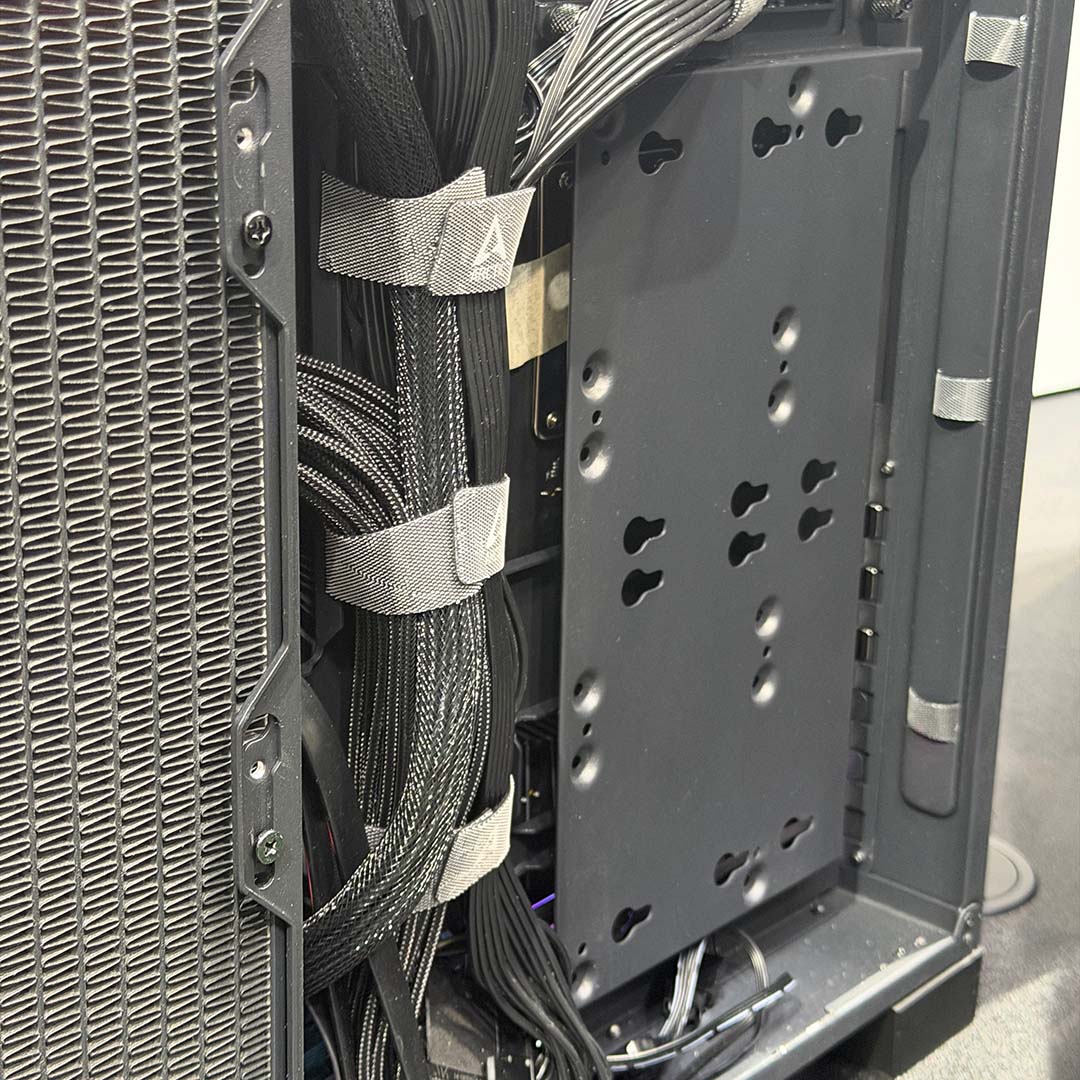

The Xtender Mini’s layout reflects a cooling-first approach to microATX case design. Moving the power button and USB ports to the lower front preserves clean top lines while keeping the roof focused on the PSU chamber and exhaust. According to Club386, Arctic equips the case with “four 120mm A-RGB fans as standard,” which is far more generous than many entry microATX enclosures. Floor-mounted reverse-blade fans pull in cool air through a filtered intake, while the side radiator mount and rear exhaust create short, direct airflow paths to key heat sources. Cable routing benefits from the PSU’s accessible placement, making it easier to avoid airflow-blocking cable clumps. There is even a rear drive bay for users who still need a 2.5in or 3.5in drive alongside M.2 SSDs. The result is a compact case that assumes builders will install powerful CPUs and GPUs, then gives them the airflow to support that choice.
Noctua’s 70mm NH-L12 Successor: Low-Profile Cooler, High Ambition
On the CPU side, Noctua’s upcoming low-profile cooler targets dense systems that need strong small form factor thermal performance. The prototype stands 70mm tall including fan and is designed for AM5 CPUs, with an eye on mini-ITX and compact microATX builds. Noctua calls it a “completely reconceived NH-L12 series heatsink,” and the design includes six heatpipes plus an LBC (Low Base Convexity) base. That base is tuned for optimal hotspot contact on AM4 and AM5 processors, reducing the need for offset mounting tricks. Impressive RAM clearance is part of the story: the heatsink allows 35mm of RAM height, which should fit many popular DDR5 modules without conflicts. Cooling duties fall to a full NF-A12x25 G2 120mm fan, the company’s flagship, giving this low-profile CPU cooler airflow closer to a mid-height tower than a typical slim 92mm design.
Engineering Toward No-Compromise Compact Builds
Viewed together, Arctic’s Xtender Mini and Noctua’s reworked NH-L12-class cooler highlight a clear direction: compact PCs are being engineered for high performance first, small size second. Arctic’s use of four pre-installed 120mm fans, floor intakes, and support for a 360mm AIO option shows microATX case design no longer assumes low-power components. At the same time, Noctua’s 70mm cooler brings a flagship 120mm fan, six heatpipes, and AM5-optimized contact into a format that can slip under many side panels and in tighter cases. The planned bundle of NT-H2 thermal compound and NA-TPG1 paste guard further underlines a focus on efficient, clean installs. For builders, this means fewer thermal compromises: compact PC cooling now has the tools to handle modern CPUs and GPUs in smaller chassis, with engineering innovations doing the heavy lifting instead of aggressive underclocking.
