What Gigabyte’s 40-Node 1U Cluster Actually Is

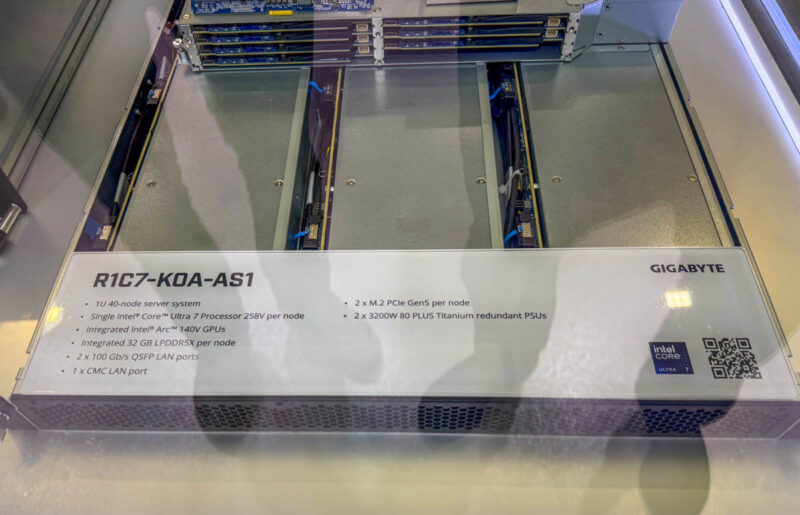

Gigabyte’s R1C7-K0A-AS1 is a compact server cluster that squeezes 40 independent compute nodes, 320 CPU cores, 40 integrated GPUs, and 80 SSDs into a single 1U multi-node system, redefining how much usable compute can fit into a standard rack unit for dense data center and edge deployments. Each node is a small card built around Intel’s Core Ultra 7 258V (Lunar Lake) mobile processor, combining four Lion Cove performance cores with four Skymont efficiency cores. Nodes ship with 32 GB of LPDDR5X memory running at 8,533 MT/s, integrated Arc 140V graphics with eight Xe cores, and a 48 TOPS NPU. Storage comes from two PCIe Gen5 M.2 SSD slots per node, giving the full chassis 1.28 TB of memory and 80 SSDs. Two 3.2 kW 80 Plus Titanium power supplies and dual 100 GbE QSFP28 ports feed the entire cluster.
Inside the Pizza-Box: Sleds, Nodes and Networking

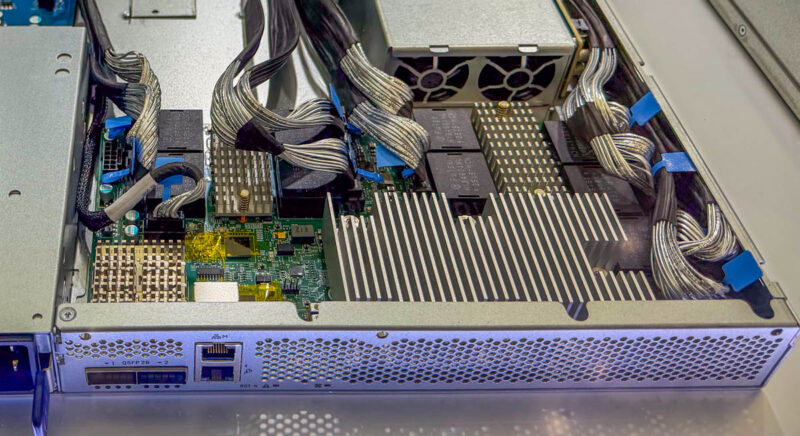

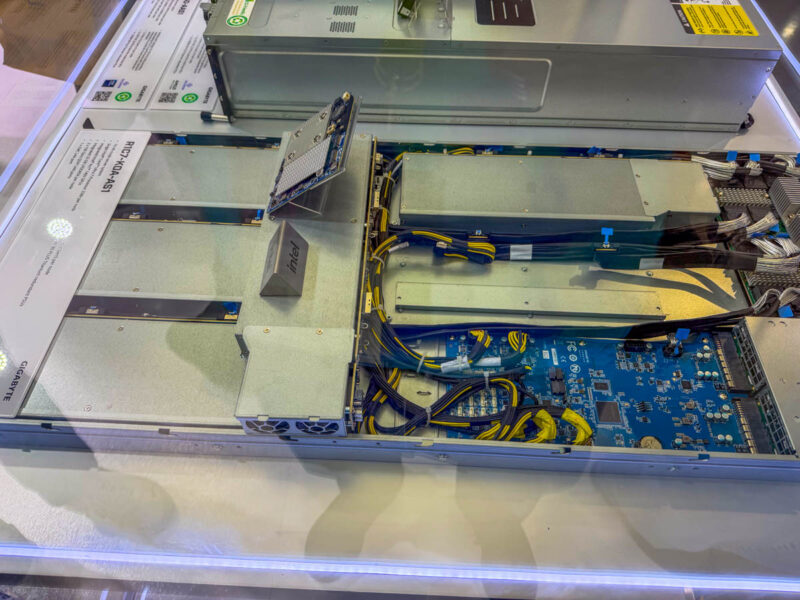

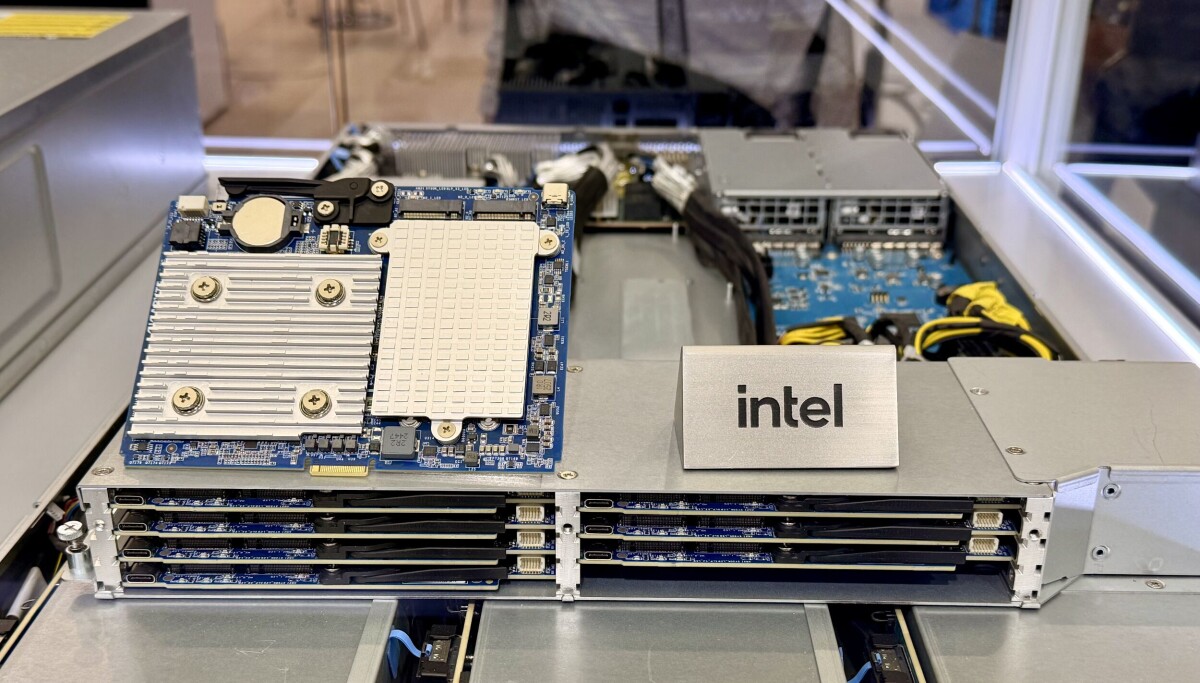

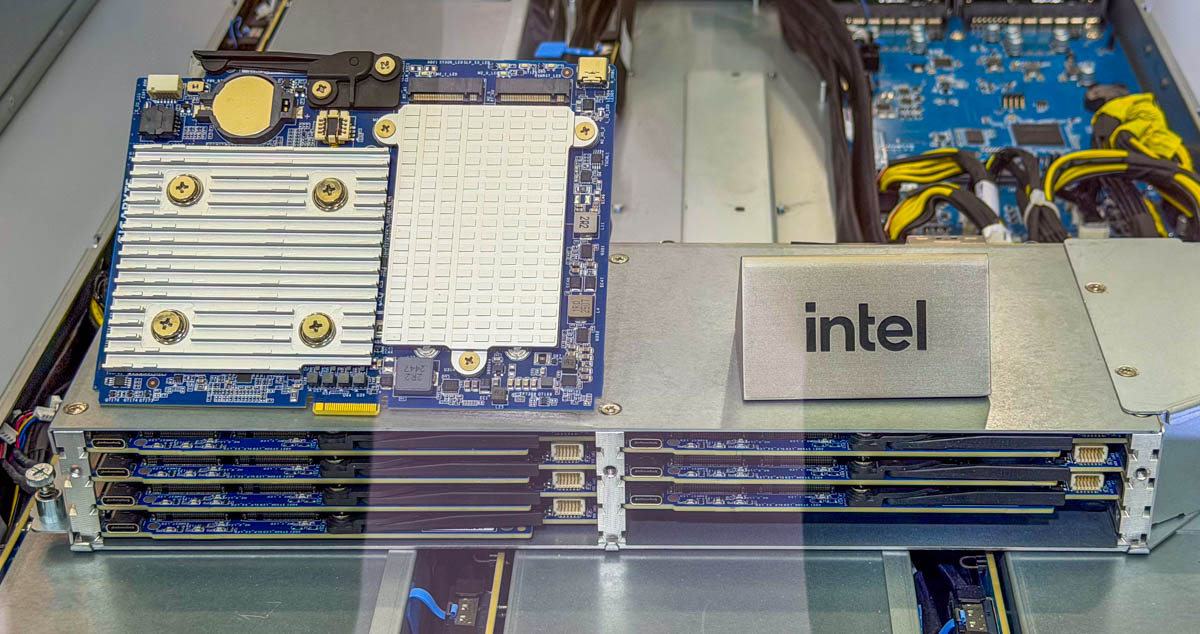

Physically, the R1C7-K0A-AS1 looks less like a classic server and more like a GPU chassis packed with compute cartridges. Gigabyte uses five sleds that resemble accelerator cards, each holding eight Lunar Lake nodes for a total of 40 systems in a 1U multi-node system. Under one heatsink on each node card sits the Core Ultra 7 258V; the other covers a pair of PCIe Gen5 x2 M.2 slots, which can support mirrored or tiered SSD setups. At the back, the design centers on two 100 Gbps QSFP28 ports, a management interface, and a large shared heatsink likely tied to an on-board switch or aggregation chip. According to ServeTheHome, each cartridge appears to connect via two MCIO 8i connectors, though whether these carry PCIe lanes, Ethernet, or both is still unconfirmed and will shape how operators wire this compact server cluster into existing fabrics.
Why Ultra-Dense Nodes Matter for Data Center Density
The attraction of Gigabyte’s design is simple: more usable compute in less space, with less complexity per node. With 40 nodes per 1U, a full 40U rack filled with R1C7-K0A-AS1 chassis could expose 12,800 CPU cores, 1,600 integrated GPUs, 3,200 SSDs, and 51.2 TB of LPDDR5X memory, while still terminating into 80 power connections and 80 100 GbE uplinks. That level of data center density rivals some upcoming many-core server platforms while retaining the operational familiarity of x86 and per-node isolation. Instead of scaling a few large dual-socket boxes, operators can scale by node count, mapping each physical board to a microservice, container pool, or desktop tenant. This pattern aligns with trends toward microservices and container-native infrastructure, where smaller, independent failure domains and right-sized nodes can reduce wasted capacity and improve overall utilization.
Edge Computing Hardware and AI-Driven Workloads
The R1C7-K0A-AS1 also hints at where edge computing hardware is heading. Each Lunar Lake node blends eight CPU cores, an Intel Arc 140V integrated GPU, and a 48 TOPS NPU into a single low-power footprint. That mix suits video processing, lightweight AI inference, and content delivery that need modest acceleration close to users. The Register notes that Gigabyte sees the platform as a fit for microservices workloads such as Kubernetes, while the integrated graphics remove the need for vGPU licensing when using nodes as bare metal VDI, cloud PCs, or casual game streaming endpoints. In effect, this compact server cluster turns one 1U into a 40-seat edge “mini cloud”, with enough local compute to run distributed AI pipelines, transcoding, and user sessions without external accelerators.
From Traditional Servers to Multi-Node Clusters
Gigabyte’s system underlines a shift away from monolithic servers toward multi-node solutions for AI, edge computing, and distributed workloads. Instead of buying large dual-socket machines and carving them up with virtualization, operators can deploy physical isolation at the node level, gaining predictable performance and simpler troubleshooting. ServeTheHome notes that clusters built from Intel iGPU nodes are not new, pointing to previous Intel Visual Compute Accelerator designs and Quick Sync-based transcoding systems, but the R1C7-K0A-AS1 pushes the idea to an extreme density in a 1U chassis. For enterprises, this makes it easier to align hardware with tenancy models—one node per customer, per developer team, or per service—and to scale horizontally in small, repeatable increments. As AI inference and media-heavy applications spread beyond core data centers, this kind of dense, flexible 1U multi-node system is likely to gain traction.
