What These Bench Jigs Do and Why They Matter
Essential benchtop woodworking jigs such as a DIY shooting board, a saw hook jig, and a corner sanding block are small fixtures that guide your hand tools so they cut and shape wood more accurately, eliminate guesswork when squaring end grain and crosscuts, and help you reach rounded corners and controlled hand-saw cuts that are awkward or impossible with machines alone. If you’re starting to rely more on planes, handsaws, and sandpaper, these three jigs turn your workbench into a precise workstation instead of a balancing act. You still need decent layout and sharp edges, but once they’re built, you can repeat accurate cuts over multiple pieces without fussing with clamps or complex setups. The caveat: these jigs reward careful construction and use—small alignment errors show up in every part you run through them.
Step-by-Step: Build and Use the Shooting Board
A DIY shooting board is the foundation of hand tool accuracy, because it squares end cuts and miters so reliably that it removes most of the guesswork. The version described here uses an adjustable fence so you can bring it back to perfect 90° whenever needed. That adjustability is what keeps your crosscuts and end grain truly square across several projects, instead of drifting as the seasons and your technique change. The expected result is straightforward: once tuned, you depend on this shooting board to square up the ends of parts perfectly. The one real gotcha is alignment; if your fence is off or your pressure is wrong, you’ll build error into every piece instead of removing it.

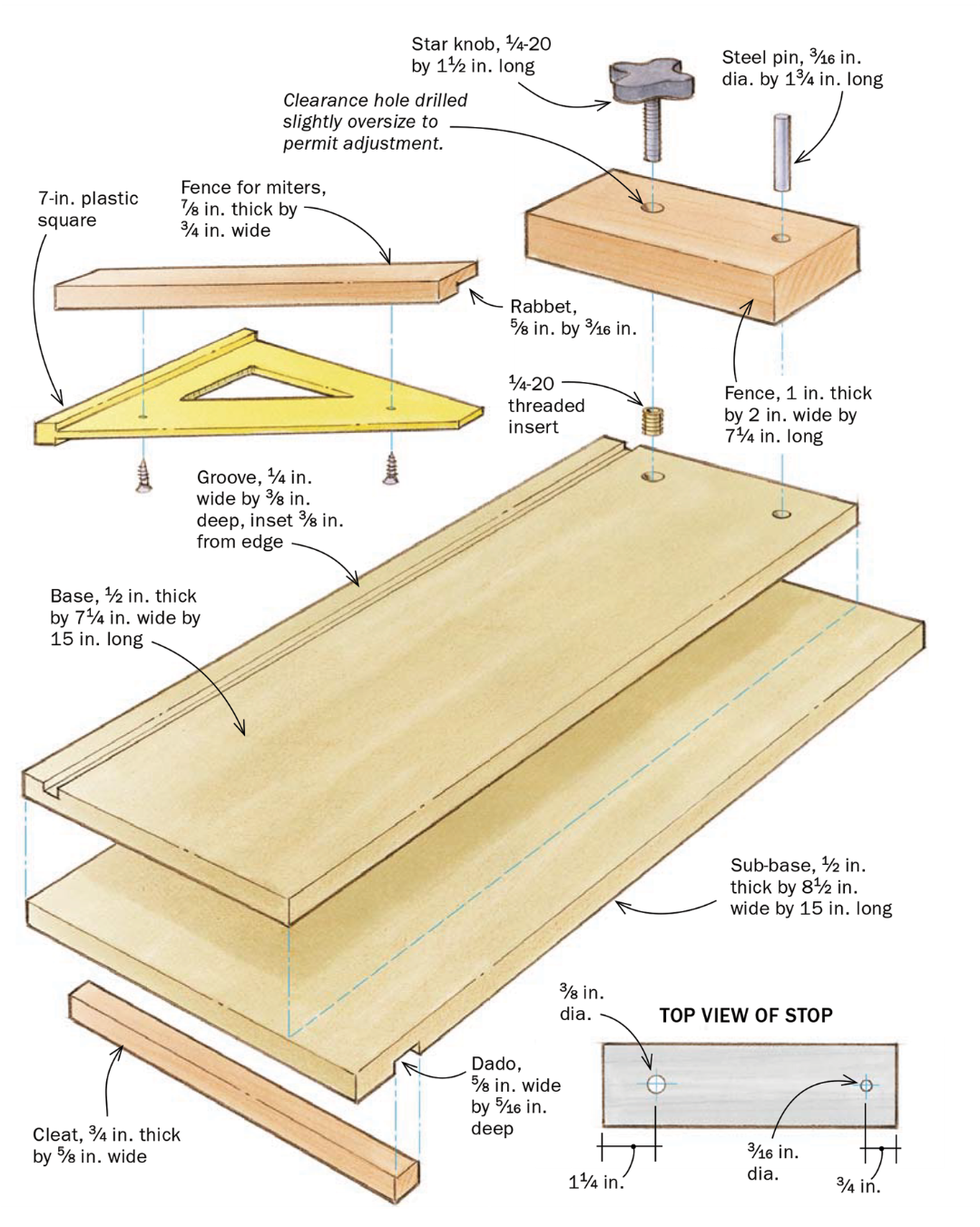

- Glue two layers of plywood to create the base, with the lower subbase dadoed to receive a cleat that registers against the edge of your bench, and the top layer grooved along its edge to guide a speed square for shooting miters.
- Shape a hardwood fence that can pivot on a steel pin, drill it for a knob on the opposite end, and drill the clearance hole slightly oversize so the fence has a small range of adjustment to be squared later.
- Clamp the pre-drilled fence as square as you can to the jig with its end overhanging the step in the base, then use the fence as a guide to drill matching holes in the base before driving the steel pin and threading the insert.
- Install the fence, then plane its overhanging end flush with the step on the base so the fence becomes a zero-clearance backstop that supports parts right up to the cut line while planing.

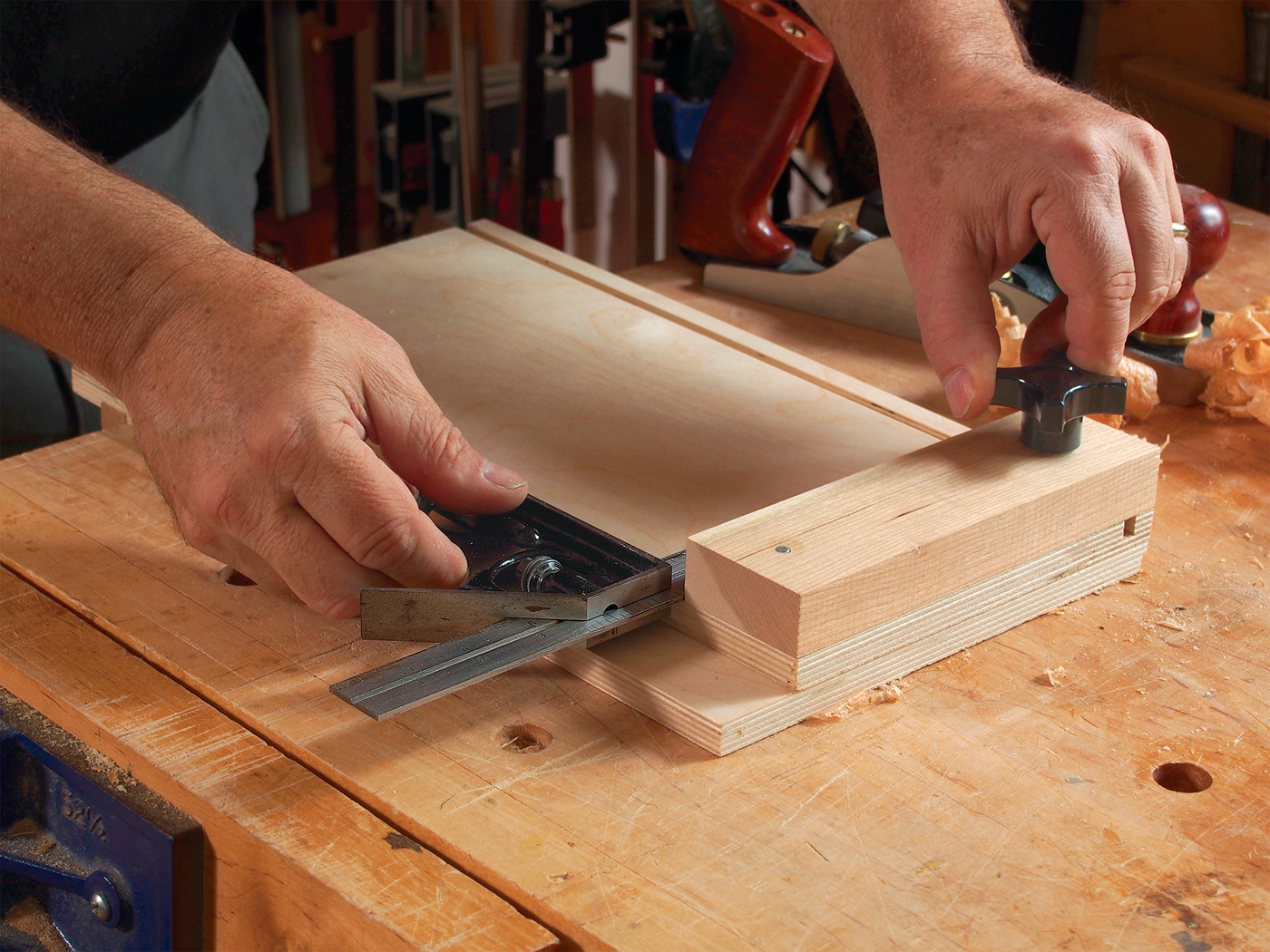

- To set up for shooting end grain, loosen the adjustment knob, square the fence to the edge of the jig using a combination square, then lock it and let the first few passes with the plane flush the fence tight to the edge of the jig.

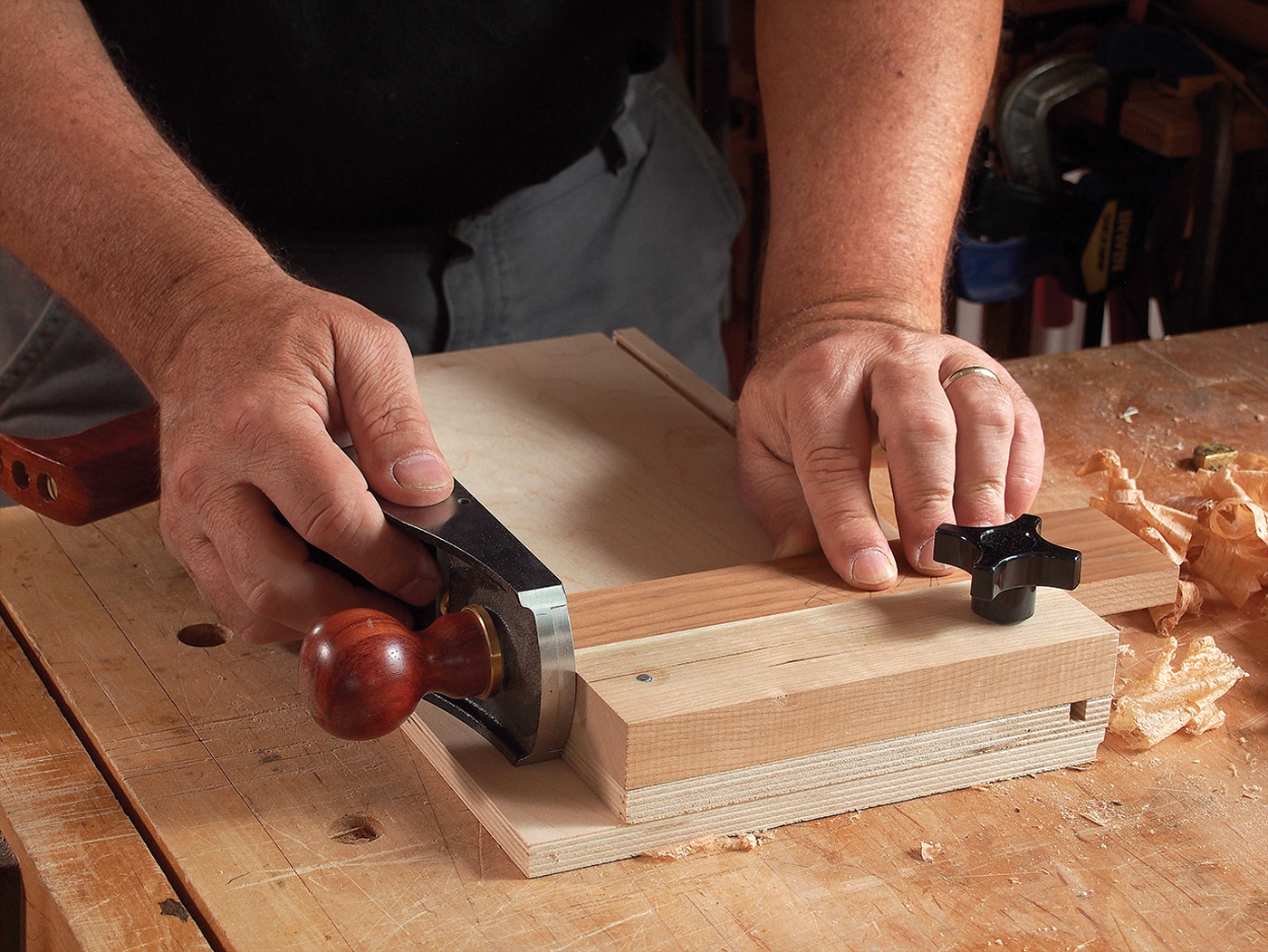

- Place a low-angle smoothing plane on its side on the bed so it rides against the edge of the base, set it for a light cut to keep it from bogging down in end grain, and bring the workpiece against the fence and plane sole ahead of the blade before making the cut.
- When shooting miters, slide a plastic speed square with a hardwood fence in the groove in the base and adjust the main shooting-board fence to dial in your miter angle while the square registers reliably against the fence.
Two common mistakes show up quickly here. First, pushing the work into the fence instead of down onto the base will tip the plane off its reference side and pare into the fence; to maintain a square cut, exert pressure downward because the plane’s side is the reference face. Second, letting the workpiece overhang the step or sit proud of the edge results in angled cuts and tearout along the back edge; instead, keep the workpiece flush to the edge by sliding it against the plane’s sole ahead of the blade before each pass. Once you avoid those habits, squaring up parts is easy and fast, and you gain consistent, repeatable 90° cuts with hand tools on every project.
Saw Hook Jig: Controlled Crosscuts and Miters at the Bench
The saw hook jig lets you bring controlled hand sawing right to the benchtop instead of wrestling full boards into clamps for every small cut. It has a cleat that hooks over the edge of your bench and a fence with slots at 45° and 90° angles, so the saw runs in a guided path for accurate crosscuts and miters without complex clamping. Because the slots physically reference the blade, you gain repeatable angles and better hand tool accuracy whether you’re trimming parts to length or cutting small miters. The goal is that each cut feels predictable, and your saw no longer wanders off line under pressure. The hidden risk is how you create those slots; if they’re too tight or off-angle, the saw will bind or twist and your guidance will work against you instead of helping.
To avoid binding, the fence is built from precut blocks rather than sawn as one piece. In the past, sawing straight through the fence to create the slots made it difficult to cut perfectly plumb at the exact angle, which hurt accuracy. Instead, start by running a shallow dado across the base where the fence will sit, then precut the fence into individual blocks at the chopsaw and glue the blocks into the dado. Use a card scraper as a spacer between blocks so the resulting slot is slightly wider than the saw kerf, which keeps the saw from binding during cuts. According to one experienced woodworker, spacing the blocks this way prevents the blade from pinching in the jig and gives a smooth, controlled stroke. For very small, thin stock you can switch to a rabbeted block clamped in a vise and make guiding kerfs with your saw and a square, orienting the fence side toward you if you use a pull saw.
Corner Sanding Block: Clean, Rounded Edges by Hand

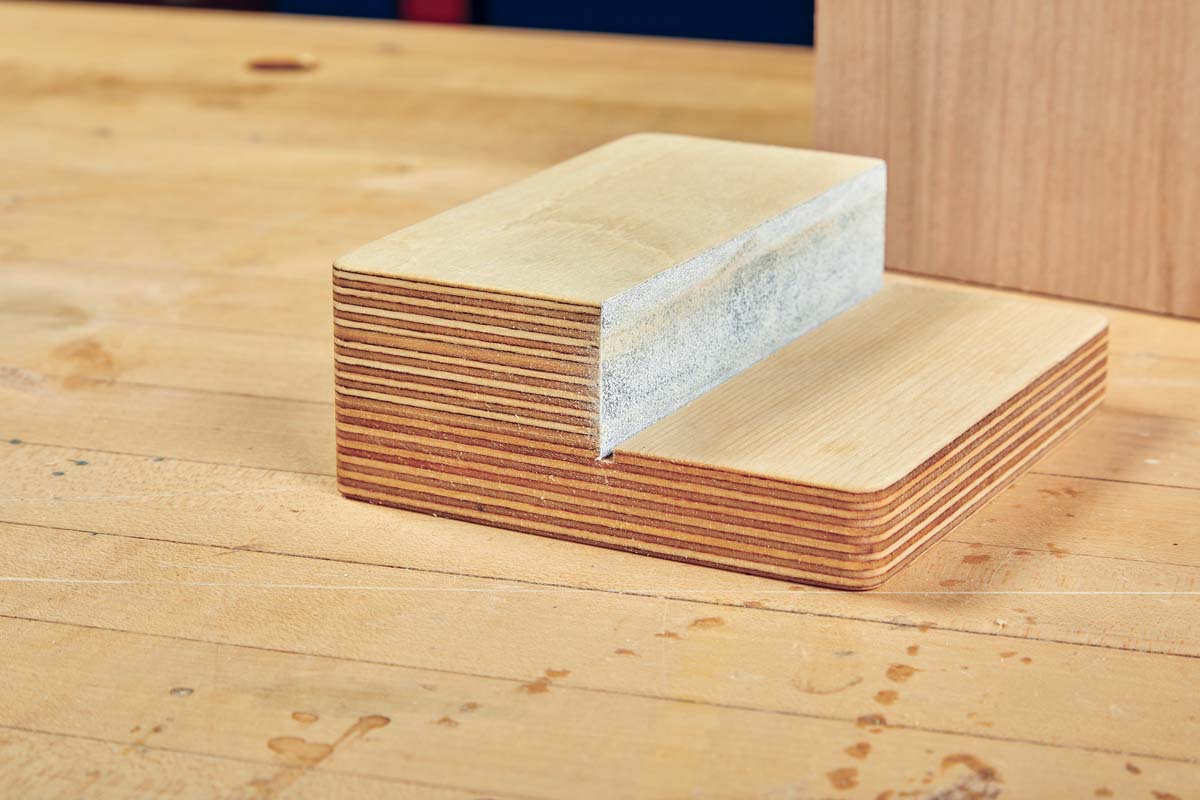

Random orbital sanders struggle to reach tight rounded corners and small contours, which is where a corner sanding block earns its place on the bench. When a band saw has removed most of the waste but left blade marks on a curved corner, the block supports the edge square while you refine the shape by hand. The design uses two pieces of plywood: a larger piece that keeps the sanding edge square to the corner and a smaller one, half its size, that forms the sanding face. Before they’re face-glued together, a groove is cut in front of the smaller piece’s position so that the sandpaper can extend across the entire edge and the groove can provide dust relief while sanding. The result is a simple jig that reaches spots your power sander misses and leaves cleaner, more controlled curves.
Using the corner sanding block is straightforward but still benefits from a deliberate approach. Cut a piece of adhesive-backed sandpaper to fit along the exposed edge of the smaller plywood piece so the abrasive bridges the groove and contacts the full corner. Press the adhesive firmly to avoid bubbles, then register the larger plywood face against the corner you’re shaping so the sanding edge stays square as you work. As you sand, the groove ahead of the sanding face gives dust somewhere to go instead of packing under the paper, which helps the abrasive cut more effectively and reduces burnishing. When the paper loads up or loses its bite, peel it off and replace it as needed. Over time, this block becomes your go-to tool for rounded edges that are too small or awkward for a random orbital sander.
Why These Jigs Are Worth Building and How to Keep Them Honest
Together, a shooting board, saw hook jig, and corner sanding block turn your basic workbench into a precise station for hand tool accuracy. You get square end cuts and miters from the shooting board, controlled crosscuts and miters at 45° and 90° from the saw hook, and tidy rounded corners from the sanding block. Proper jig setup—especially squaring the shooting-board fence with a combination square and using an adjustable fence you can tune as needed—reduces setup time on each project and improves consistency across multiple pieces. The main things to watch for are the common mistakes: misaligned slots in the saw hook, pushing into the shooting-board fence instead of down onto the base, and letting workpieces overhang instead of staying flush. Build them with care, tune them slowly, and they’ll quietly improve every hand-cut and hand-shaped surface you make.
