Why Build a DIY Pull Saw Miter Box?
A DIY miter box for a Japanese pull saw is a shop-made woodworking jig build that supports small workpieces on a rotating turntable and fixed guides so you can make precise, repeatable 45° and 90° precision angle cuts with far more control than freehand sawing.
If you cut picture frames, tiny moldings, box parts, or delicate trim, a pull saw jig can feel safer and more pleasant than wrestling those parts on a table saw, while still giving clean, repeatable cuts using a Japanese pull saw. The heart of this project is an adjustable pull saw miter box with a rotating turntable, adjustable fence, and saw guide system that work together for accurate miters and crosscuts. Before you build, gather basic shop tools with a band saw and drill press, plus the downloadable step-by-step plans for this adjustable pull saw miter box. Think of this as building a long-term shop helper, not a one-off jig; the goal is a stable base, precision angle control, and a guide that keeps your saw tracking like it is on rails.
Laying the Foundation: Base, Turntable, and Inserts
The build starts with a solid base and a perfectly round turntable because everything else depends on those two parts being flat, square, and smooth. The designer of this adjustable pull saw miter box lays out and constructs a plywood base, then uses a favorite band saw trick to cut a perfectly round turntable for the jig foundation. That round turntable lets the fence and saw guides swing to different angles without binding, so take your time here. Once the base and disc are fitted together, you have the foundation of the jig ready for the precision features that follow.
- Lay out and cut a stable plywood base large enough to support your small workpieces and the rotating turntable.

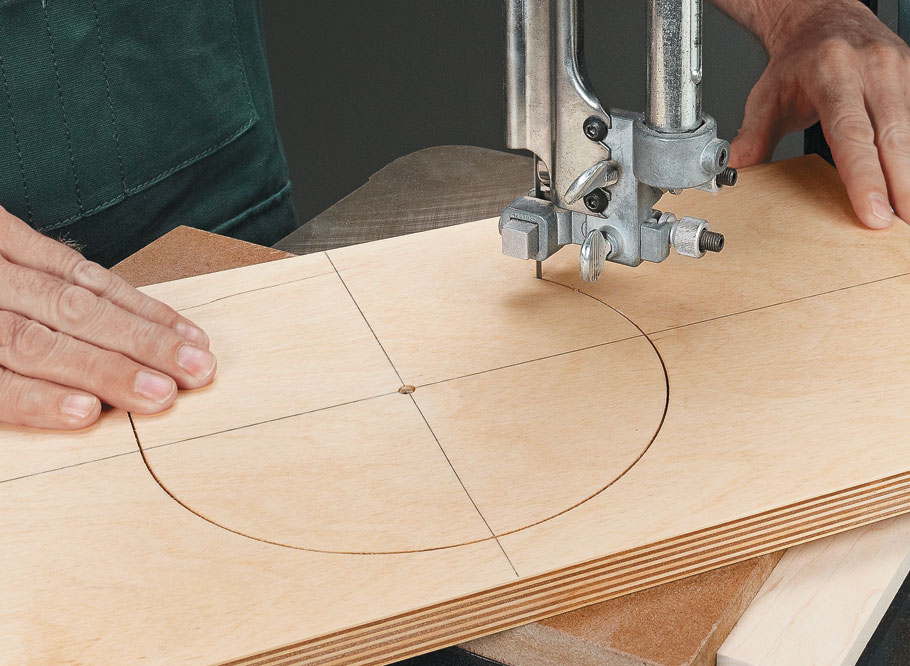

- Mount a circle-cutting jig on the band saw and cut a perfectly round plywood disc to serve as the turntable for the pull saw jig.
- Drill a centered pivot hole in the turntable and a matching hole in the base so the disc can rotate smoothly without slop.
- Use a drill press to bore clean, perpendicular holes for threaded inserts where the adjustable fence will attach.
- Install the threaded inserts carefully so the fence bolts in square and can be removed or adjusted without stripping the plywood.
Using a drill press to install threaded inserts keeps them straight and prevents wobble in the fence connection, which is critical for accurate miter cuts. This is also where many jigs fail: if the turntable rubs the base or the inserts sit crooked, every angle you set will be off. Treat the base and turntable as precision parts, not rough shop fixtures. Once they spin freely and the fence bolts on solidly, you have a foundation strong enough to support the indexing system and angle locks that make the jig shine.

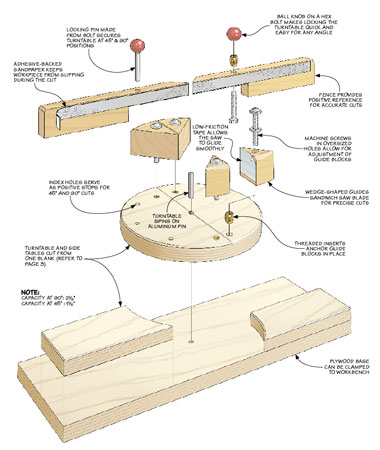

Dialing in Angles: Stops, Locks, and Guide Blocks
With the foundation in place, you can add the hardware that turns this into a precision angle-cutting tool. The next stage is installing an indexing system that creates positive stops for both 45° miters and 90° crosscuts. Those fixed positions cover most framing work, and they are the reason you can return to the jig weeks later and still hit the same angle. Alongside those stops, an adjustable locking mechanism lets you secure the turntable at almost any angle between 0° and 45°, giving you flexible setups for custom trim or box parts.
The final structural step is building the guide blocks that keep the Japanese pull saw perfectly aligned through each stroke. One quote worth remembering from the project notes is that “the combination of a sharp pull saw, solid workpiece support, and precision guides delivers results that are difficult to match with other methods for cutting small parts”. The guide blocks clamp or screw to the fence and base so they straddle the blade, forming a snug track for the saw. Fit them so the saw slides without friction but cannot twist. Between the indexing stops, the adjustable locking mechanism, and these guide blocks, you now have a pull saw jig that can lock in both standard and odd angles while holding the saw on line.
Putting Your New Pull Saw Jig to Work
Once everything is assembled, it is time to see whether the jig works as promised. The builder demonstrates how the finished jig produces clean, effortless cuts once the indexing system, angle locks, and guide blocks are in place. Set the turntable to the 45° stop and lock it, clamp a small molding against the fence, and run your pull saw through the guides. You should see a crisp miter with square cheeks and no wandering. Do the same at the 90° stop to check crosscuts, then try a few custom angles using the adjustable locking mechanism that secures the turntable at virtually any angle in between.
Use the jig on real projects—picture frames, decorative moldings, small boxes, or fine furniture parts—to verify its precision in practical work. As you build with it, you will notice that clean, repeatable cuts feel less like a balancing act and more like a routine step in your process. The expected result is a foundation-ready jig at the end of the base build, and then a fully finished adjustable pull saw miter box whose cuts are hard to match with other methods for small parts once all the precision features are added. Treat it well, keep the saw sharp, and this DIY miter box will become one of the most useful jigs in your shop.
