What Next-Generation GPU Cooling Really Means
Next-generation GPU cooling refers to specialized GPU cooling solutions designed to manage high-power GPU thermal loads approaching 1000W, using modular airflow accessories, large all-in-one liquid coolers, and redesigned cases that treat the graphics card as a separate heat source rather than a passive component. Today’s flagship GPUs already dump huge amounts of heat into the case, and many designs do not exhaust that heat directly outside. As power climbs, that waste heat raises CPU, VRM, and memory temperatures, stressing traditional case fans and tower coolers. The move toward 1000W GPU cooler concepts signals a break from the era where a single triple-fan card and a few case fans could handle everything. Instead, cooling is becoming a dedicated subsystem for the graphics card, with its own airflow path, pumps, and radiators, foreshadowing how upcoming Rubin RTX-class hardware will be integrated into enthusiast systems.

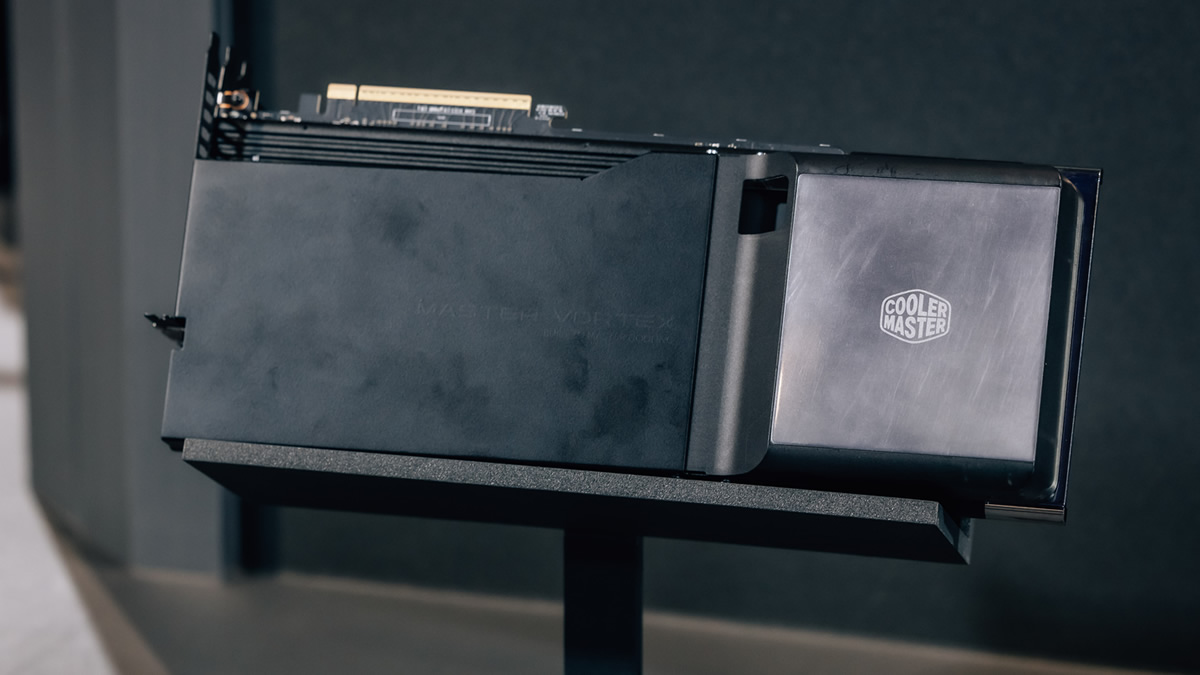

Cooler Master’s MasterFlow: Modular Airflow for GPU Heat
Cooler Master’s MasterFlow takes a modular approach to next-generation GPU cooling by attacking a specific weak point: heat that lingers inside the case. The add-on sits above a modern high-end GPU, aligning with the “flow-through” cut-out found on cards such as Nvidia’s RTX 5070 Ti and above. A blower fan pulls hot air from that opening and pushes it directly out through the PCIe slot above the card, separating GPU exhaust from the rest of the system. According to Cooler Master, this add-on can lower CPU temperatures by 4–6 degrees, underscoring how tightly linked GPU and system thermals have become. The design is still in development, with power delivery options ranging from a simple 4-pin fan header to USB Type-C, but the core idea is clear: treat the GPU as a primary heat source that deserves dedicated, replaceable airflow hardware inside the case.
AURAS’s Twin 360mm AIO: A 1000W GPU Cooler Concept
Where MasterFlow refines airflow, AURAS pushes liquid cooling to an extreme with its “Advanced VGA Solution,” a conceptual 1000W GPU cooler built around twin 360mm radiators. The design pairs a dual high-flow pump with high-density radiators and a full-cover waterblock that spans the entire graphics card PCB. Inside the block, high-density pure copper micro-fins increase surface area and heat transfer, while the shroud adds ARGB lighting and a mirror finish for visual flair. This is not a shipping product yet, but AURAS is a major cooling partner for board vendors, which makes this concept an important signal. It suggests that Rubin-based RTX GPUs and their peers may ship with or expect AIO GPU cooling as standard for top SKUs. The trade-off is clear: such a 1000W GPU cooler will need large cases and careful mounting, pushing PC builders toward chassis designed around radiator capacity.
What Rubin RTX-Class Cards Could Demand from Cases
Both MasterFlow and AURAS’s dual-360mm AIO hint at a near future where next-generation GPU cooling shapes the entire PC layout. With GPUs approaching 1000W TDP, case airflow can no longer treat the graphics card as an afterthought behind CPU cooling. Instead, builders may need dedicated GPU exhaust paths, side or bottom intakes aimed straight at the card, and mounting points for large radiators tied only to the GPU. Standard mid-towers could struggle to host twin 360mm radiators for a single card, so larger chassis and more modular layouts are likely to gain ground. As AURAS also scales liquid solutions for next-gen EPYC and Xeon platforms, the line between consumer and datacenter cooling philosophies is narrowing. High-power GPU thermal management is becoming a shared engineering problem, and Rubin-class cards may be the first mainstream products that truly require specialized cooling infrastructure from day one.
