What Is the ESP32 Bit Pirate and Why Use It?
The ESP32 Bit Pirate is open-source firmware that turns a compatible ESP32-S3 board into a multi-function USB hardware development tool for protocol hacking, debugging, and embedded systems debugging workflows. Instead of buying separate instruments, you reflash a standard ESP32-S3 DevKit and gain a USB UART programmer, SPI programmer, ESP32 logic analyzer, and more in one device. The firmware speaks I2C, SPI, UART, 1-Wire, CAN, JTAG/SWD, and many radio protocols through either a serial terminal or a browser-based Web CLI. ESP32 Bit Pirate v1.6 adds USB “adapters” so the board appears to tools like flashrom, PulseView, AVRDUDE, and OpenOCD as familiar programmers and analyzers. Combined with the ESP32 Bit Pirate Dock carrier board, which adds safe 1.8 V, 3.3 V, and 5 V level shifting and Bus Pirate-compatible headers, the DevKit becomes practical, plug-and-play lab gear for hobbyists and professionals.

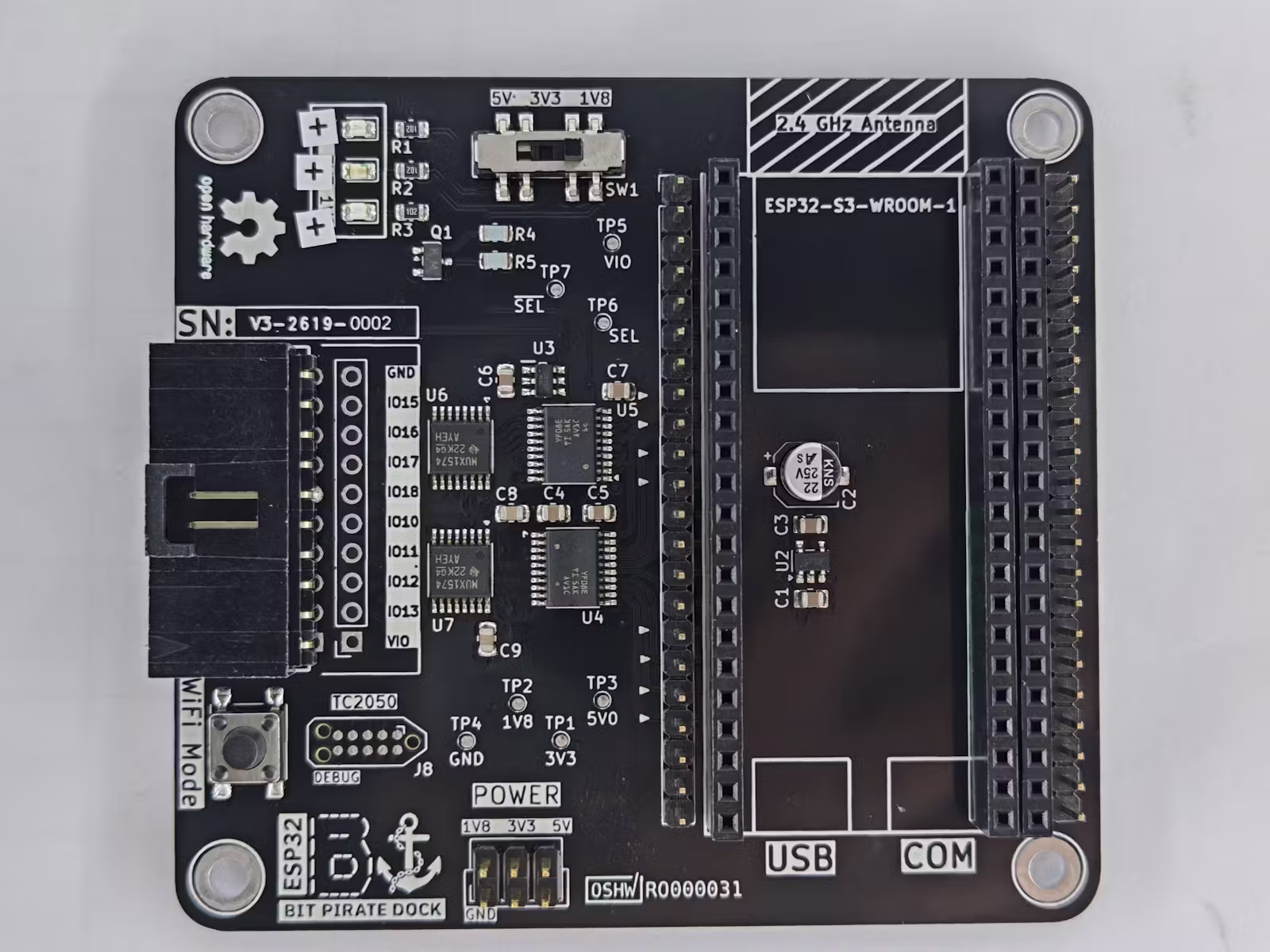

Hardware Setup: ESP32-S3 DevKit and Bit Pirate Dock
To build a reliable USB UART programmer and logic analyzer, start with an ESP32-S3 DevKit that matches the ESP32 Bit Pirate firmware’s supported boards. The ESP32 Bit Pirate Dock is an open-source carrier that the DevKit drops into, turning its GPIO into safe, selectable-voltage I/O. According to the ESP32 Bit Pirate Dock project, it “can safely talk to peripherals at 1.8 V, 3.3 V, and 5 V” and reuses the classic Bus Pirate ecosystem of probes and adapters. The dock adds level translation between the 3.3 V ESP32-S3 and your device under test, selectable rails, and a familiar Bus Pirate-style connector layout. Once assembled, you have a compact box that plugs into your PC over USB and into target hardware using standard clip leads or adapters, reducing wiring mistakes and protecting the DevKit from over-voltage damage during embedded systems debugging.
Flashing Bit Pirate and Enabling the USB UART Bridge
With the hardware ready, flash the ESP32-S3 with the ESP32 Bit Pirate firmware using its one-click Web Flasher or a serial flashing tool. After the initial flash, connect via the Web CLI or a serial terminal and configure the USB adapters menu. For a USB UART programmer and console bridge, select the USB-UART bridge adapter, assign the RX and TX pins you wired through the dock, then reboot when prompted. The ESP32-S3 will re-enumerate as a standard serial port on your computer. You can now use PuTTY, screen, minicom, or the Arduino Serial Monitor to read logs, enter bootloaders, or interact with headless boards. Optional BOOT and RESET pins can be mapped so the ESP32-S3 can toggle a target’s programming mode without manual button pressing, streamlining firmware upload and automated testing.
Using AVRDUDE and flashrom: SPI Programmers on a Budget
To turn the ESP32-S3 into an SPI programmer, Bit Pirate provides two USB adapters. The AVRDUDE adapter speaks the legacy Bus Pirate binary SPI protocol, so AVRDUDE treats the ESP32-S3 as a Bus Pirate-compatible programmer. Configure the SPI pins (MOSI, MISO, SCK) and target reset line in the firmware, then select the Bus Pirate backend in AVRDUDE to read signatures, flash firmware, or inspect fuses on supported AVR microcontrollers. For SPI flash chips, enable the flashrom adapter, which implements the serprog protocol. After assigning CS, SCK, MOSI, and MISO pins, flashrom can identify, read, write, and verify SPI flash devices. This workflow lets you back up router firmware, dump development board memories, or recover bricked systems without dedicated, single-purpose hardware development tools, all driven by widely used command-line utilities.
Logic Analyzer and JTAG: PulseView and OpenOCD Integration
For digital signal inspection, select the SUMP logic analyzer adapter in Bit Pirate. Choose several GPIO pins on the ESP32-S3, then connect them through the dock level shifters to your target’s signals. On your PC, open sigrok or PulseView, choose the SUMP-compatible device, and capture waveforms. You can decode UART, I2C, SPI, PWM, and many other protocols from these traces, turning the ESP32-S3 into a practical ESP32 logic analyzer for embedded systems debugging. To debug code on supported MCUs, switch to the OpenOCD adapter, assign JTAG or SWD pins in the firmware, and point OpenOCD to the ESP32-S3 as a remote adapter. This lets you set breakpoints, inspect memory, and step through firmware without a dedicated JTAG probe, making the ESP32 Bit Pirate setup a flexible, budget-friendly replacement for multiple lab instruments.
