What Arduino–Python Serial Communication Does for You
Arduino Python serial communication is the process of sending and receiving sensor data between an Arduino board and a Python program over a USB virtual serial port, using the pySerial library to exchange real-time measurements and log them into CSV files for later analysis.
If you have an Arduino lying around and want your PC to collect sensor data, Python is a friendly way to do it. With pySerial, a Python script can talk to an Arduino or to the ATmega328P it is built around using serial functions, letting both sides send and receive information in real time. The same setup can collect sensor data from multiple channels and save the measurements into CSV files for spreadsheets or other tools. You should try this if you’re comfortable installing software and editing short scripts, and you have a basic Arduino sketch that prints sensor values over Serial. The real prerequisite is a working USB connection and matching serial settings on both ends; if those don’t match, nothing else works.
Setting Up Python, pySerial, and Your Arduino Connection
Before writing any logging code, you need a clean path from your computer to the Arduino. That means a Python interpreter, the pySerial library, and a working COM port or tty device that both sides agree on. You will use this same connection later for sensor data collection Arduino projects that send multiple channels of readings to your PC. A common gotcha here is mismatched baud rates or picking the wrong port name, which leads to confusing timeouts instead of readable data.
- Check whether Python is installed by typing "python" in your system’s command prompt; if the shell reports that Python is not found or not recognized, download it from the official Python downloads page and install the interpreter.
- Install the pySerial library by running either "python -m pip install pyserial" or "py -m pip install pyserial" in the command prompt so your scripts can open and manage serial ports.
- Connect your Arduino to your PC with a USB cable, then open Device Manager and find the COM port number assigned to your board; note that this number may be different on each system.
- Write a minimal test script that imports the serial module, opens the port with "SerialObj = serial.Serial('COM24')" (replace COM24 with your actual port), and then calls "SerialObj.close()" to close it; if this script runs without errors, your basic setup is working.
At this point, you have a verified serial path between Python and Arduino. You can further configure the port by setting baudrate, bytesize, parity, and stopbits so both sides use the same 8N1 configuration, which is the common format of 8 data bits, no parity, and 1 stop bit for serial communication. If your Arduino sketch prints sensor data at 9600 baud but your Python script expects a different speed, you will only see garbage or nothing at all, so keep those parameters in sync.
Streaming Sensor Data from Arduino into Python

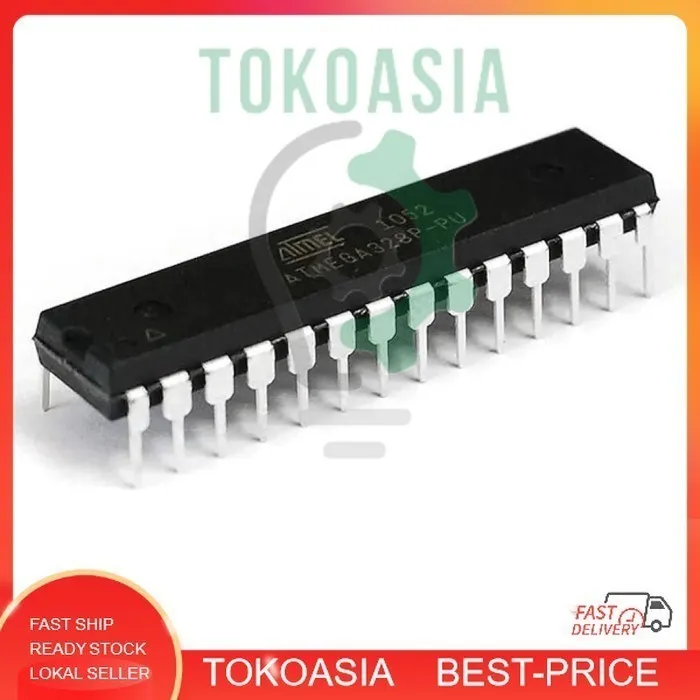

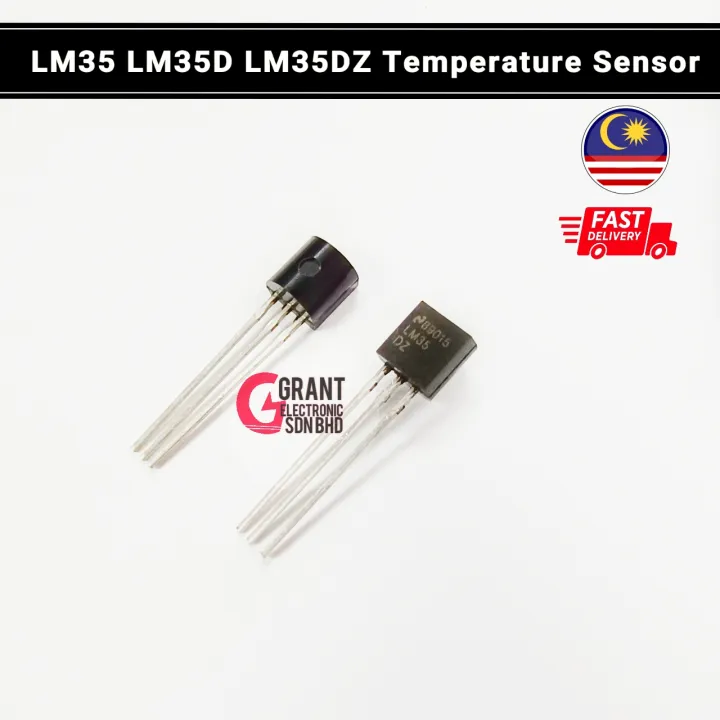

Once the connection is solid, you can move on to sensor data collection. The Arduino Uno and other boards based on the ATmega328P can transmit digitized measurements through their USB interface, which appears on the PC as a virtual serial (COM) port. On the hardware side, you might have sensors connected through an analog front end that feeds the Arduino’s ADC, such as LM35 temperature sensors amplified by an LM324 op-amp before they reach analog inputs A0 to A3. On the software side, your Arduino sketch should format readings as text and send them over Serial at a fixed rate.
On the Python side, a pySerial programming tutorial usually starts with opening the port, then using readline() to receive text from the Arduino. For example, an Arduino can transmit a text string like "Hello from Arduino" over the serial port, and a Python script reads this line and displays it on the console. The pySerial library enables bidirectional communication between Arduino and Python applications: you can write bytes from the PC that the Arduino sketch reacts to, and you can read sensor data sent from the board. When sending data from Python, note that the serial port expects byte arrays rather than plain strings, so you need to encode text before writing it. If you forget to encode or decode properly, you will see cryptic errors instead of clean sensor values.
Logging Serial Sensor Streams into CSV Files
With a reliable data stream, the next step is Arduino data logging CSV style: capturing each packet of sensor readings and writing it to a file. A typical data acquisition system can collect temperature from four sensors in real time and automatically save the measurements to a CSV file for easy analysis in spreadsheet software or other tools. In a CSV file, each row is one record and commas separate the individual values or fields, making it straightforward to process with text editors, spreadsheets, or Python scripts. This format works well not only for temperature but also for humidity and other scalar sensor readings that you might gather over long runs.
A Python datalogger often begins by creating a unique CSV filename that includes the current date and time, so each logging session goes into a separate file. Once the program starts, it connects to the Arduino, opens that CSV, and begins logging temperature data in real time. The application continuously reads each incoming data packet, separates the four temperature values, displays them on the screen, and stores them in a CSV file for later analysis and visualization. After your session finishes, you can open the generated CSV in spreadsheet software like Excel or LibreOffice Calc and then organize, filter, and analyze the recorded temperature data. A practical quotable summary is: "The Python application continuously reads each incoming data packet, separates the four temperature values, displays them on the screen, and stores them in a CSV file for later analysis and visualization."
Putting It All Together: What to Watch For
By now, you have the pieces for a full Arduino Python serial communication workflow: a Python interpreter and pySerial installed, a verified COM port connection, an Arduino sketch that transmits sensor readings, and a Python script that logs those readings in CSV format. This gives you a functional data acquisition and logging setup without needing complex software on the microcontroller side. The main things to watch for are matching baud rates, using byte arrays when sending data from Python, and keeping the CSV structure consistent so downstream analysis is straightforward.
From here, you can extend your system: parse multi-channel packets more deeply, add simple processing in Python, or hook the logged CSV files into plotting and visualization libraries. Python scripts are well suited to parse, process, and visualize real-time sensor streams from Arduino hardware once you have the serial link in place. Overall, this setup is worth building if you care about permanent records of temperature, humidity, or similar readings, and you want the flexibility of editing and examining your data using familiar desktop tools.
