What a Pocket Arduino Gaming Console Is

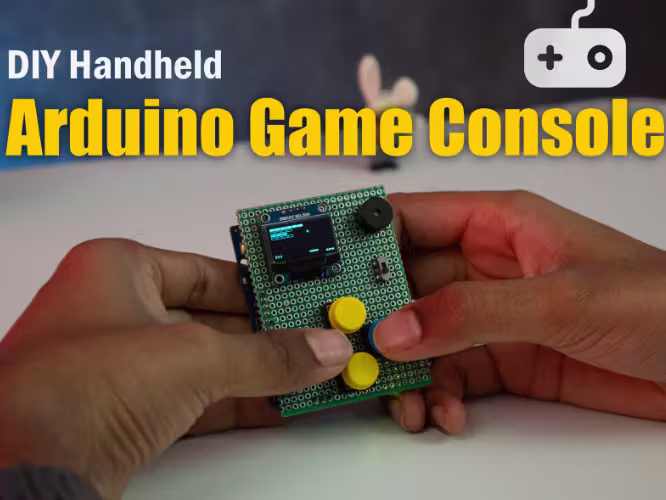

A pocket Arduino gaming console is a compact, handheld retro handheld device powered by an Arduino R4 WiFi board, a small OLED screen, and a few push buttons, pre-loaded with simple arcade-style games and designed to run on battery power so you can play anywhere. This DIY game console build uses a custom HAT board instead of a breadboard to keep everything fixed, tidy, and portable, turning loose components into a single plug-on module. In this project, the Arduino R4 WiFi serves as the main processor, running ten lightweight replicas of classics like Snake, Tetris, and Pacman on a 0.96-inch SSD1306 OLED display. Power comes from a 1S LiPo battery and a 5V boost converter, so the whole unit fits into your pocket while still offering a comfortable screen and four-button control layout ideal for fast, responsive retro-style gameplay on the go.
Parts You Need for This Arduino R4 WiFi Project
To build this Arduino gaming console, you start with an Arduino UNO R4 WiFi, which acts as the brain of the retro handheld device and runs all ten games from a single sketch. The display is a 0.96-inch I2C OLED (SSD1306, 128×64 pixels), giving sharp monochrome graphics while keeping power draw low. Four tactile push buttons provide UP, DOWN, LEFT, and RIGHT input, wired as active LOW with internal pull-ups for reliable reading. Audio feedback comes from a small active buzzer on a digital pin. For portability, a 1S 3.7 V LiPo battery feeds a 5 V boost converter, with a slide switch between them for on/off control. All components mount on a double-sided perfboard cut to match the Arduino headers, forming a custom HAT that plugs straight into the R4 without any breadboard or loose wiring.
Designing and Assembling the Custom HAT (No Breadboard Needed)
The core idea of this DIY game console build is the HAT-style board: a piece of double-sided perfboard trimmed to the Arduino UNO R4 WiFi footprint so it can plug directly into the headers like a shield. On the top side, place the OLED near the top edge, the four buttons where your thumb comfortably reaches, and the buzzer wherever it fits without blocking anything else. On the bottom edge, align the LiPo connector, boost converter module, and slide switch to keep power wiring short and easy to route. Use female header strips so the HAT can be removed for reprogramming or reuse. Keep I2C lines for SDA and SCL away from the button signal traces to avoid display noise, and keep all wires as short as you can to maintain a compact, reliable layout while still leaving room for the battery pack behind the board.
Wiring and Power: From LiPo to 5 V Pocket Console
Wiring this retro handheld device is straightforward thanks to the custom HAT. Connect the OLED’s VCC to 5 V, GND to GND, SDA to A4, and SCL to A5 for I2C communication. Each button uses INPUT_PULLUP, so wire one side to its digital pin (UP → D4, DOWN → D2, LEFT → D3, RIGHT → D5) and the other side to GND, giving clean active LOW presses. The active buzzer connects to a digital pin, such as D7, so the games can play simple tones for hits, jumps, or menu selections. Power starts at the 1S LiPo battery, passes through the slide switch, and feeds the boost converter input; the converter’s 5 V output then goes to the Arduino’s 5 V pin. Before connecting, verify the boost output is exactly 5 V with a multimeter to protect your Arduino and ensure stable gameplay.
Loading Ten Classic-Style Games and Playing
Once the hardware is assembled, upload the firmware that turns this Arduino R4 WiFi project into a full mini console. The code is modular: each game lives in its own header file, while the main sketch handles the menu, input reading, and display setup with the U8g2 library. According to the original build, “it runs 10 retro-style arcade games on a 0.96" SSD1306 OLED display (128×64 px), controlled by four tactile push buttons.” These include Asteroids, Breakout, Dino, Flappy Bird, Maze Runner, Pacman, Pong, Snake, Space Invaders, and Tetris, all recreated in lightweight form so they fit in memory and run smoothly. On power-up you see a splash screen, then a scrollable game menu controlled with UP and DOWN, and LEFT or RIGHT to launch. When a game ends, it cleanly returns to the menu, ready for the next round of pocket-sized retro fun.
