Extreme PC builds are becoming power experiments first, computers second
Extreme PC builds are custom desktop systems where power delivery, not appearance or frame rates, becomes the main experiment, using unconventional energy sources or ultra high-wattage PSU hardware to test what modern components can endure before power, heat, or household wiring imposes a hard limit. That is the real story behind two recent projects: a desktop AM4 system powered by 192 AA batteries, and a 3200W high-wattage PSU designed for multi-GPU AI workstations. Both are impractical for everyday users, but they expose a trend that matters: the PC world is quietly shifting from “how fast can this run?” to “how much power can we safely feed it?” That shift will define what gaming rigs and AI workstations look like next decade—and who can afford to power them.
192 AA batteries and direct-to-board power: DIY power solutions get serious

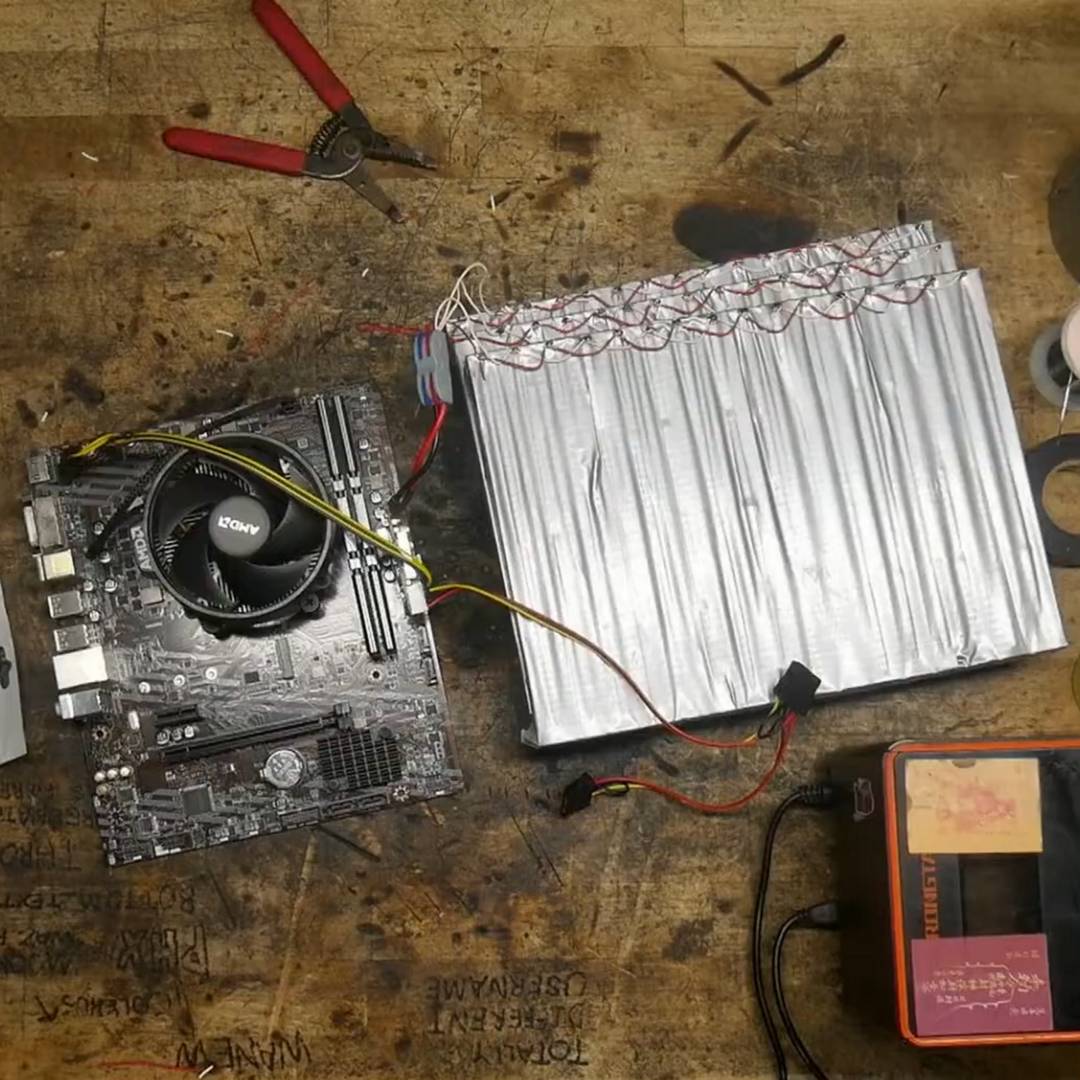

On one end of the spectrum, a modder proved that an AM4 desktop does not need a wall outlet at all—it needs ingenuity. YouTuber Uwos Lab powered an AMD Ryzen rig on a massive pack of 192 AA batteries and kept an AM4 system running for 30 minutes, with enough capacity left for at least another hour. To do it, he mounted 64 AA cells on laser-cut wood frames and wired every eight cells in parallel to output 12V, then linked three of these packs for a 192-cell battery. Instead of wasting energy converting DC to AC for a standard PSU, he went straight from 12V DC into a DC-to-ATX adapter that fed the 24-pin and 8-pin motherboard connectors. That clever direct feed is the key lesson: DIY power solutions are starting to treat PCs more like embedded devices and less like sacred ATX boxes.
This was not a toy workload either. After confirming the system stayed up, Uwos Lab installed a Linux distribution and ran tests including FreeDoom, with the Ryzen G-series CPU and motherboard likely pulling around 100W, comparable to an entry-tier gaming laptop with an RTX 3050-class GPU. The voltage only dropped from about 13V to 11.95V during the run, leading him to estimate another hour or two of usable power in the pack. In quotable terms, “a 192-cell AA battery pack kept a 100W-class AM4 desktop running for over half an hour, with meaningful charge still in reserve”. The downside is ugly: these were non-rechargeable cells, and with 100-packs costing around USD 30 (approx. RM138), throwing them out after a short experiment would quickly become expensive. Extreme PC builds like this clearly are not eco-friendly daily drivers—but as AM4 modding proof-of-concept, they are brilliant.
From laptop-class loads to 3200W monsters: high-wattage PSUs redraw the ceiling

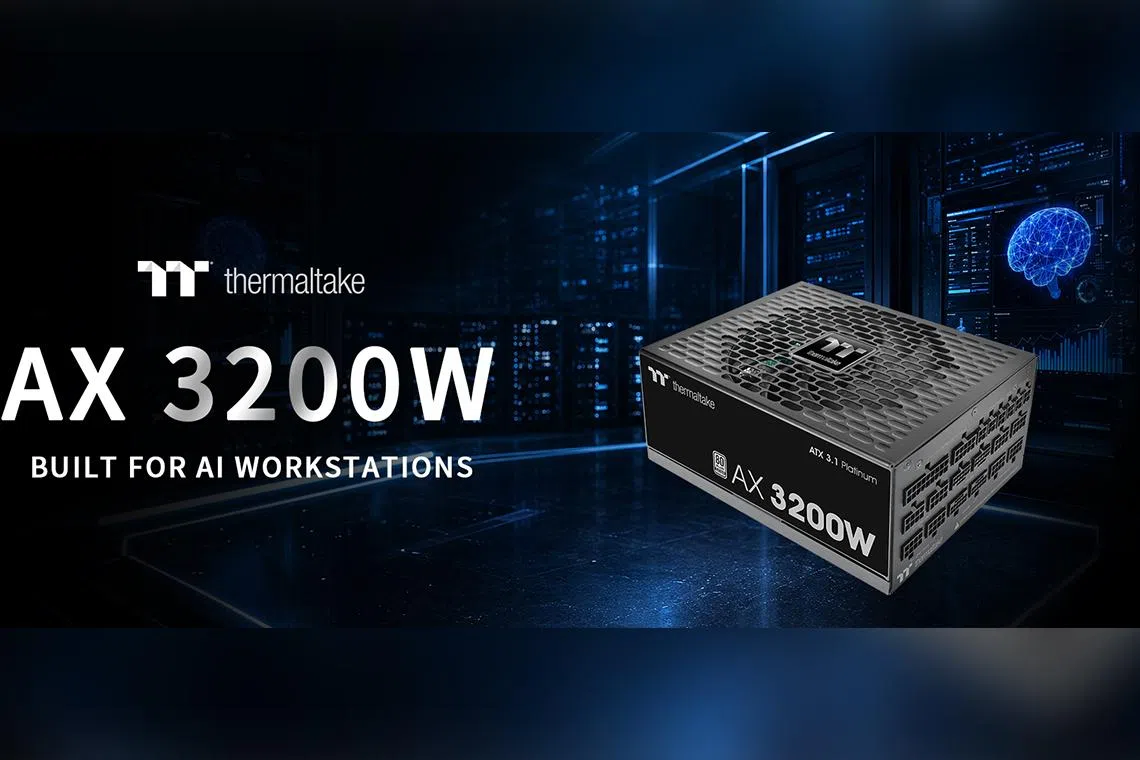

On the opposite end of extreme PC builds sits Thermaltake’s AX 3200W Platinum Power Supply, a high-wattage PSU that smashes through the 3000W barrier. It is not a gimmick; it is explicitly aimed at builders who want to run machine learning models locally on a workstation with multiple GPUs. With an estimated 575W TDP for an RTX 5090-class card, this 3200W unit can comfortably power four of them alongside the CPU and other parts, plus overhead. It ships with four PCIe 5.1 (12V-2x6) connectors rated at 600W each, an ATX 3.1 design, and an 80 Plus Platinum efficiency rating. In other words, it is engineered for the opposite of Uwos Lab’s careful 100W draw; it assumes your system is closer to a compact data-center node than a desktop.
However, this kind of high-wattage PSU collides with the physical limits of household power. The unit is rated for up to 16A at 230–240V, while many common wall plugs are fused at 13A, and typical regulations do not allow appliances above 15A on these circuits. The result is absurd: you can buy a PSU that, if used as intended, risks tripping breakers or even starting an electrical fire if carelessly plugged into a standard socket. As one line sums it up, “the AX 3200W is emblematic of the power consumption costs that need to be factored if you ever decide to set up some kind of local AI workstation on your own”. This is enthusiast gear in name, but the reality is closer to light industrial equipment, and most home users should avoid it without a professional electrical setup.
What these extremes tell us about the future of PC power and thermals
Put the AA-powered AM4 mod and the 3200W AI PSU side by side and a pattern emerges: power is now the primary constraint in PC design. On the low-power end, Uwos Lab’s experiment shows that a 100W-class desktop, with no discrete GPU, can be sustained with a carefully planned DC battery pack and direct 12V feed. On the high-power end, a single workstation PSU can in theory drive four 575W-class GPUs plus the rest of the system, yet it bumps into the hard limit of what a household wall socket should safely deliver. Together, these projects act like boundary markers for both practical and theoretical limits in PC power consumption and thermal management. They show where creative engineering can stretch the rules—and where infrastructure itself pushes back.
For ordinary users, the impact is indirect but important. The AA battery build is a reminder that efficient systems—whether for portable labs, off-grid setups, or silent PCs—can run on surprisingly modest power with clever DIY power solutions, but disposable batteries remain wasteful and costly at scale, especially when a 100-pack is already around USD 30 (approx. RM138). The 3200W PSU, meanwhile, underlines that AI-at-home is not only a GPU pricing problem; it is a wiring and electricity bill problem too. Given that its 16A rating puts it beyond what most home sockets should handle, the product is effectively aimed at a niche with special electrical installations. The future likely belongs to two parallel paths: lean, laptop-class desktops that respect the 100–200W envelope, and semi-professional AI towers that look less like PCs and more like small servers wired into dedicated circuits.
