Extreme GPU Cooling: A Hobby About Temperatures, Not FPS
Extreme GPU cooling is the practice of replacing or heavily modifying stock graphics card coolers with AIO GPU coolers, custom water cooling loops, or massive passive heatsink mods to cut temperatures by double-digit degrees, enabling quieter operation, sustained boost clocks, and showcase builds rather than delivering large, direct frame rate gains. At its core, this niche is about technical experimentation and aesthetic bragging rights: how far you can push RTX 5090 cooling, how cold you can run an RTX 3080 with GPU water cooling, or whether a passive GPU cooling solution can tame a mid-range card at 115W without any fans at all. The key takeaway is blunt: temperature obsession drives these projects more than practical performance needs.
AIO Madness: 11 Fans on an RTX 3080 for a 33°C Drop

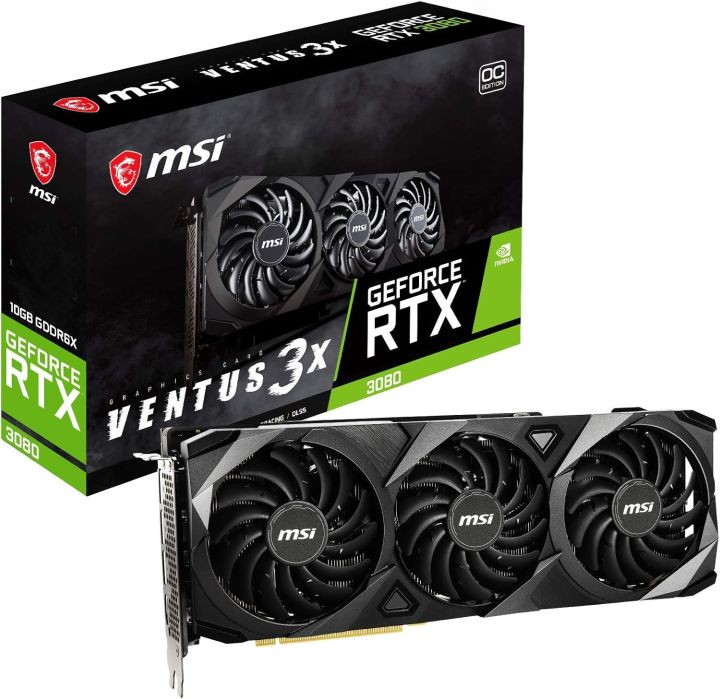

Nothing captures the spirit of extreme modding better than the RTX 3080 experiment where a creator strapped an AIO GPU cooler and eight extra fans onto a stock fin stack, cutting load temperatures by up to 33°C. The process was gloriously over-the-top: maxing the original fans, swapping in three 120mm case fans with zip ties, then switching to even faster, louder units to drag temps down to 50°C. Attempts to tape off the shroud and add tiny 15,000rpm server fans did nothing for temperatures and added a wall of noise. The breakthrough came when a full 360mm AIO was mounted over the PCB—after smothering it in thermal putty—for a further 9°C reduction. Yet the punchline says everything about this hobby: that huge temperature win translated to a negligible 2fps gain over stock, even with overclocking only netting around a 5% uplift. This is not rational optimization; it is engineering spectacle.
Passive GPU Cooling: A 2.5kg Aluminum Block Against 115W

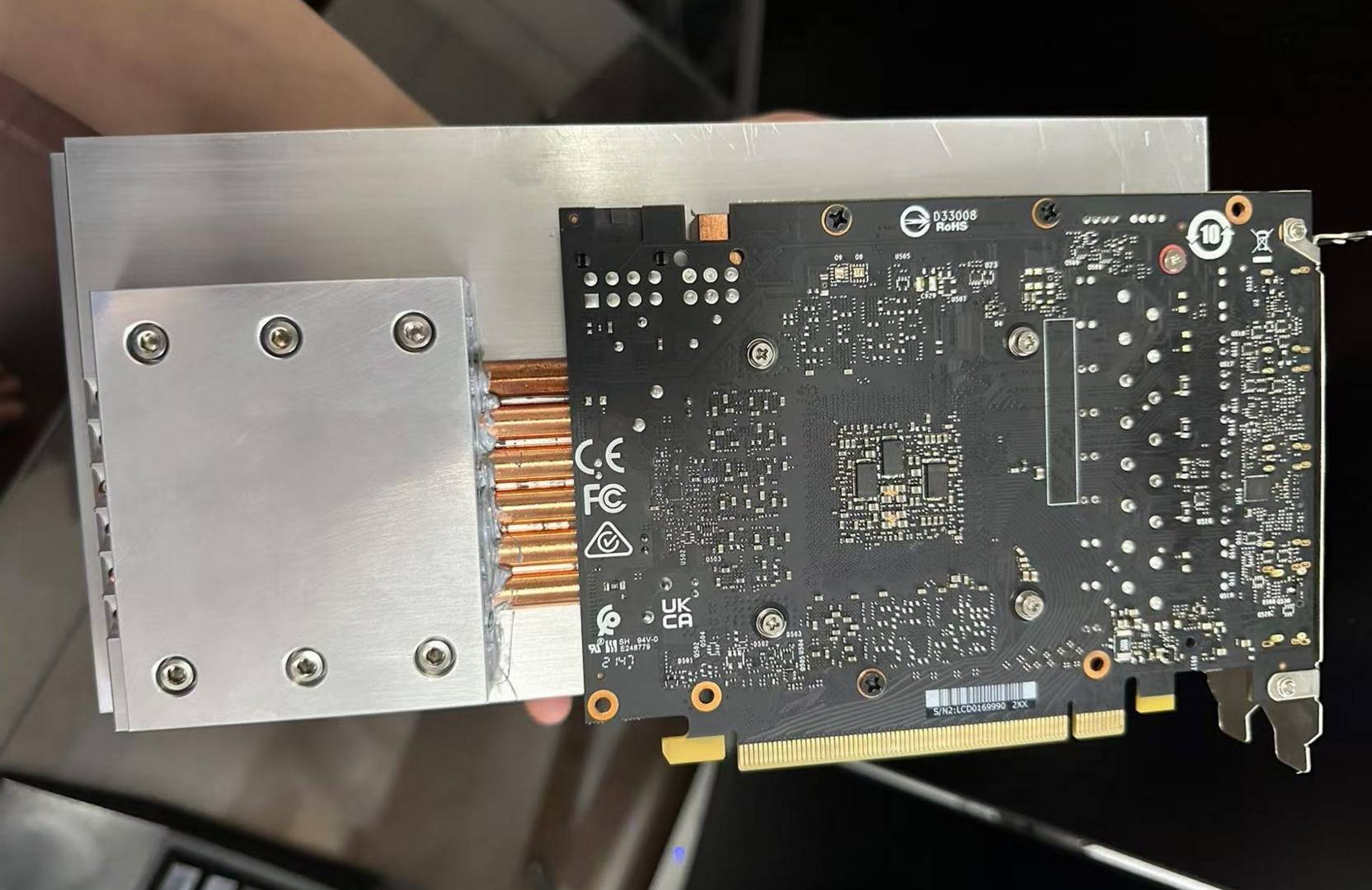

On the opposite end of the noise spectrum, one modder removed every fan from an RTX 4060 and replaced the cooler with a mammoth, fully passive extruded aluminum heatsink that weighs 2.5kg and is more than twice the size of the original card. This custom heatsink mod uses six heatpipes to spread heat across widely spaced fins, prioritizing natural convection instead of forced airflow. It sprawls across roughly three slots and over 220mm of length, dwarfing both the PCB and nearby components. As a proof of concept, it’s compelling: passive GPU cooling is clearly viable around the RTX 4060’s 115W TGP, where bulky metal becomes an acceptable trade-off. But the omission of concrete temperature data and especially GDDR7 memory readings is worrying; without solid contact, those chips can overheat fast. This design is a statement piece, not a ready-made recipe the average builder should copy blindly.
Custom Water Loops on an RTX 5090 Lightning Z: Precision Overkill

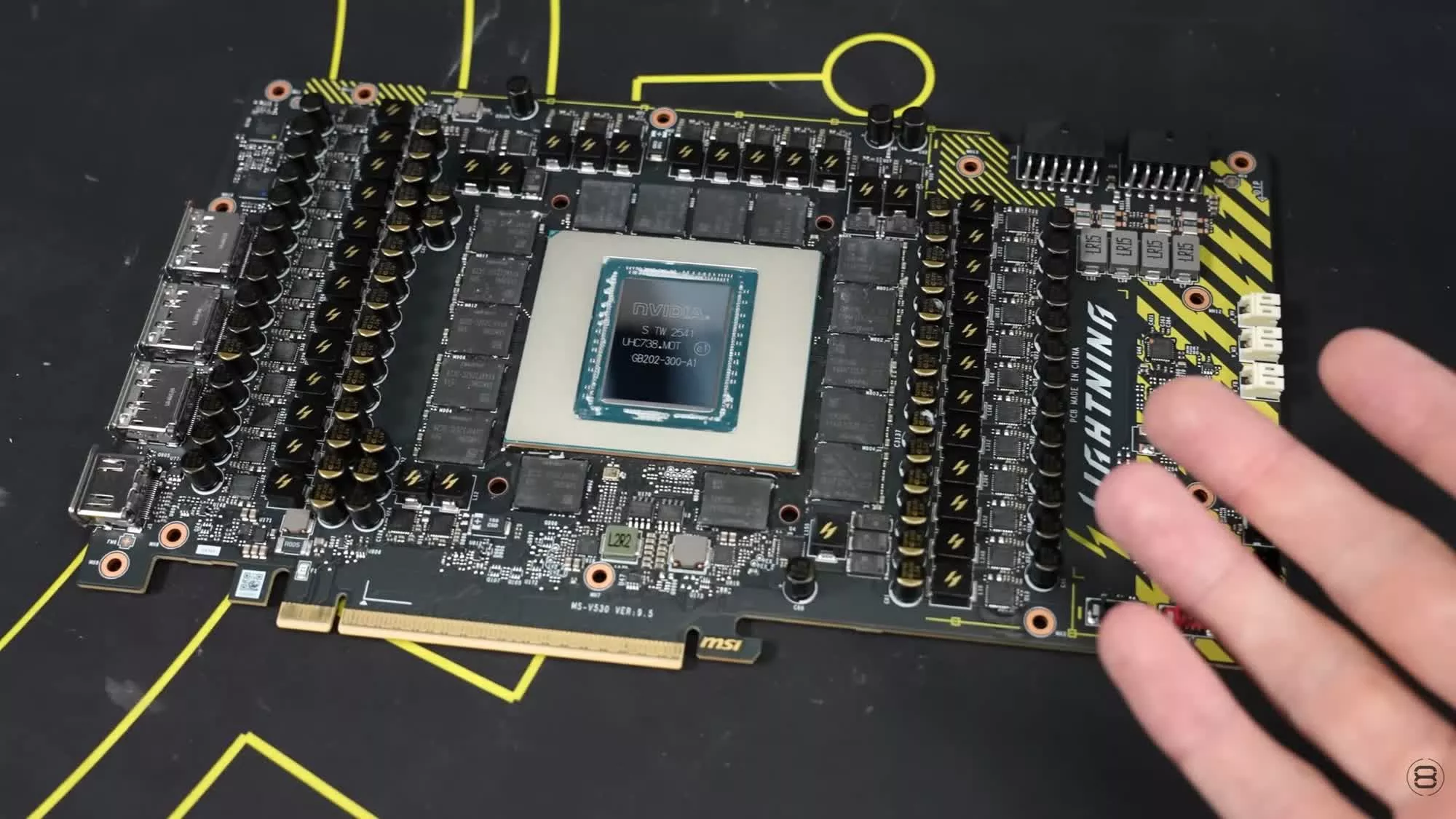

At the apex of GPU water cooling sits the RTX 5090 Lightning Z, where an enthusiast team swapped the card’s integrated AIO for a stainless-steel waterblock that ties into a full custom loop. Under an 800W load, that conversion dropped operating temperatures from 64°C to around 53°C, an 11°C improvement that held even after extended gaming. According to the project, “the conversion kit lowered operating temperatures by around 11 degrees Celsius at 800W under full load,” and the coolant itself stabilized near 32°C thanks to an external MO-RA radiator and three D5 pumps pushing almost 190 liters per hour. The hardware underneath is outrageously exclusive: a limited-run RTX 5090 Lightning Z with an official MSRP of USD 5,000 (approx. RM23,000), often selling for USD 7,000 to USD 8,000 (approx. RM32,200–RM36,800) on the secondary market. With speculation that the custom loop adds roughly USD 8,000 (approx. RM36,800) more, this is unapologetic overkill aimed squarely at modders and DIY hobbyists, not normal gamers.
Who Extreme Cooling Is Really For
When you zoom out, a clear pattern appears: extreme cooling mods are less about rational gains and more about pursuing the edge of what’s possible. The RTX 3080 AIO-and-11-fan monster proves that slashing load temps and VRAM hotspots does not automatically unlock meaningful FPS improvements. The passive RTX 4060 rig shows how far you must go in size and mass to stay fanless at around 115W, and why scaling that approach to a future RTX 5090 would be “practically a dream” at realistic power levels. The custom RTX 5090 Lightning Z loop demonstrates that enthusiasts will spend more on cooling than many people spend on their entire PCs, for an 11°C win and the satisfaction of a perfectly tuned loop. These projects appeal to overclockers, show-build creators, and content makers whose channels thrive on “mods that no one would usually undertake,” from dual CPU tower coolers on RTX 2060s to stainless-steel waterblocks on four-figure cards. For everyone else, they’re a reminder that engineering can be playful—and wonderfully excessive.
