What Happens When Everyday Gadgets Meet Creative Hardware Modifications?
Device hacking projects are hands-on experiments where makers repurpose consumer electronics, turning everyday tools into new devices through custom firmware, rewiring, and creative hardware modifications that extend usefulness and add unexpected features. Instead of treating gadgets as fixed-purpose products, these DIY electronics repurposing efforts treat them as raw material for learning and play. Cheap walkie-talkies become quirky gaming consoles, and old camera viewfinders become compact televisions. This mindset encourages people to see value in broken or obsolete electronics that might otherwise be discarded. It blends reverse engineering, soldering, and software development into one practical form of problem-solving. The result is not only novelty gadgets, but also a deeper understanding of how hardware and software fit together. These projects show that with patience, a multimeter, and curiosity, almost any electronic device can be transformed into something new.
The Walkie‑Talkie DOOM Hack: Turning a Toy into a Game Console
Aaron Christophel’s walkie-talkie DOOM hack takes a low-cost video walkie-talkie—meant for short-distance family chats—and turns it into a tiny game machine. The gadget’s TXW818 system-on-chip, color screen, camera, microphone, speaker, and rechargeable battery form a compact computing platform. Christophel started by dumping the original firmware and examining it with Ghidra, then building custom drivers for the screen and camera because the provided SDK lacked them. He fought through obfuscated chip markings and firmware that shut off the debug interface at boot, keeping access alive by carefully timing communication with the flash chip and adding capacitors. To squeeze DOOM in, he shrank the game data from about 1.25 megabytes down to around 500 kilobytes and unpacked it into 4 megabytes of PSRAM during boot. Players move with the walkie buttons while the front camera overlays their face at the center of the action.
Inside the Hack: Reverse Engineering as Play and Education
Christophel’s project underlines how DIY electronics repurposing can be both playful and educational. Reverse engineering the walkie-talkie meant identifying two- and four-megabyte flash variants, working around scrambled markings, and using tools like a USB-to-UART converter and a Blue Pill board configured as a J-Link clone. He wrote new firmware that initializes the display, manages button input, and detects available flash to adjust settings automatically. According to Techeblog, he “has made the whole source code available on GitHub, so if you’re intrigued, you can now build the binaries and try it for yourself.” That openness turns a novelty into a learning platform. Anyone willing to solder, flash firmware, and debug can follow his path, gaining skills that transfer to other creative hardware modifications—from smart-home hacks to custom handheld consoles.
From Broadcast Viewfinder to Desk‑Friendly CRT TV

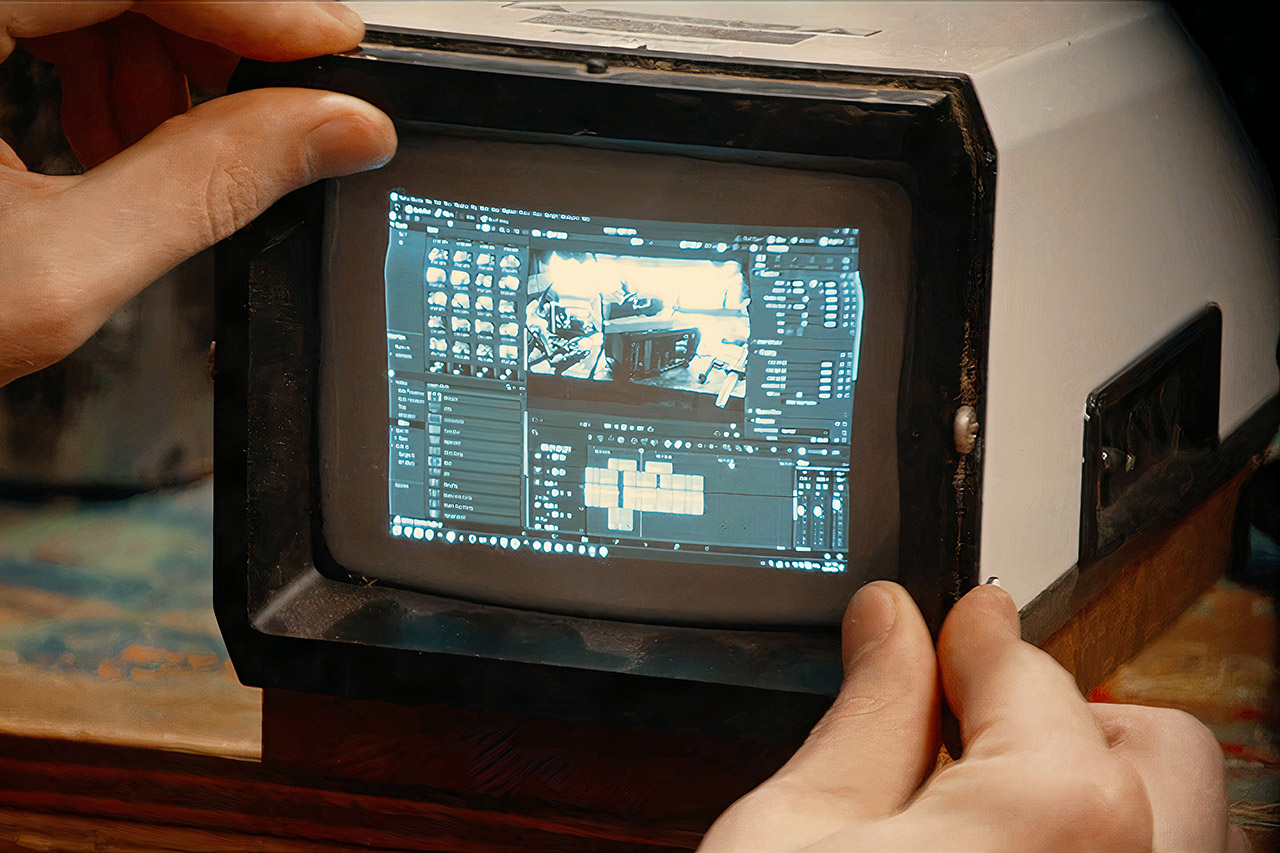

Where Christophel modified a toy, Evan Monsma resurrected pro gear: a broadcast camera viewfinder containing a small monochrome CRT. His goal was to free the screen from the camera body and turn it into a standalone TV for composite video. With no pinout available, he opened the unit and used a multimeter to trace every wire. He found that a yellow conductor carried about 12 volts, black and red were ground, and the grey line held the video signal—three connections were enough to run the tube. Monsma trimmed the factory cable and added a DC barrel jack for power and an RCA connector for composite input, securing everything with adhesive and heat-shrink tubing. The original focus-peaking switch, brightness, and contrast controls remain active, so this hacked viewfinder can display games, movie clips, or footage from antique cameras with a crisp analog image.
Why Repurposed Electronics Matter for Makers and the Planet

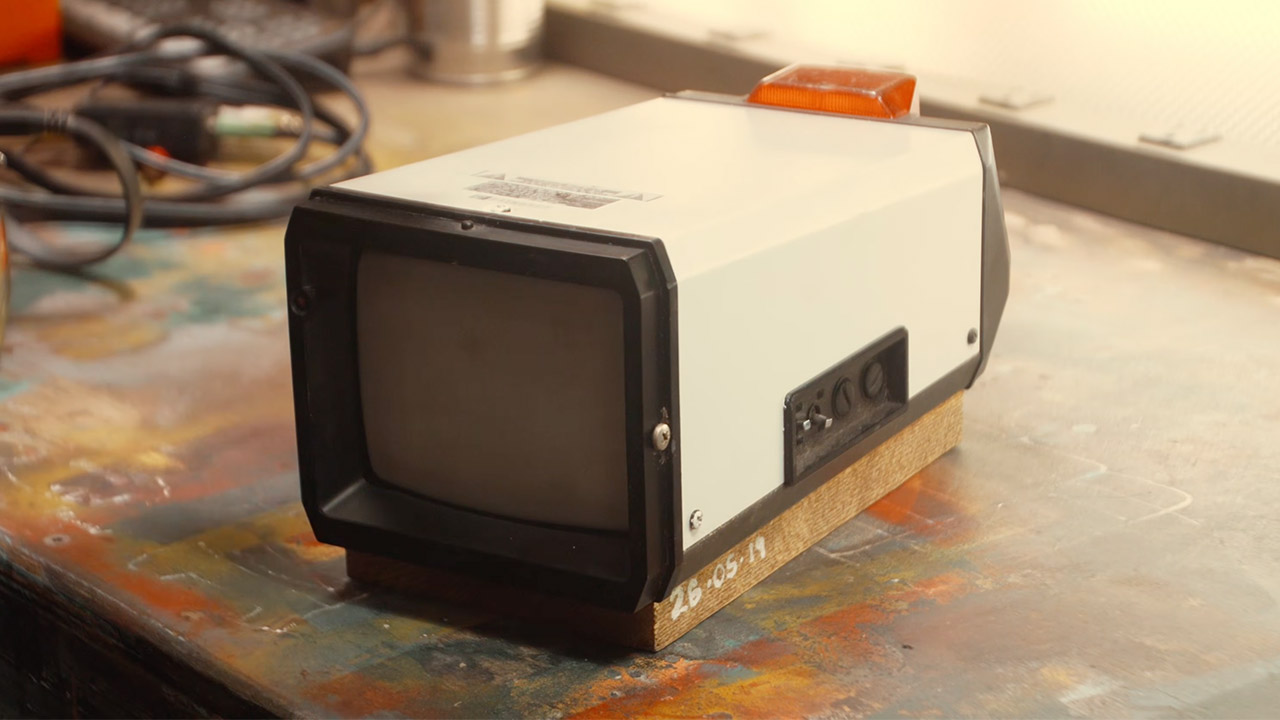

Monsma’s finished CRT TV, mounted on a neat wooden base with hidden cables, shows how DIY electronics repurposing can turn obsolete hardware into practical, attractive tools. The viewfinder warms up in seconds, avoids the scaling artifacts common on cheap digital displays, and accepts composite video from retro consoles, older cameras, or modern HDMI sources via a converter. He even reused the original sunshade as a flip-over platform for another small gadget, making the piece both decorative and useful. Projects like this and Christophel’s walkie-talkie DOOM hack extend device lifecycles instead of sending them to the trash. They encourage makers to see broken or outdated electronics as parts bins for new ideas. In the process, they nurture problem-solving skills, from tracing mystery pinouts to writing custom drivers, and show that hacking old gadgets can be as rewarding as buying new ones.
