The Real Threat Behind RTX 50 Series Cable Meltdowns
The current RTX 50 series power connector problems are a GPU power delivery safety issue where high‑draw cards, fragile 12VHPWR connectors, and unsafe DIY cable modifications combine to overload cables, overheat plastic housings, and create genuine fire hazards inside gaming PCs. This is not a cosmetic defect; it is a recurring electrical risk that can destroy hardware and threaten homes when enthusiasts push connectors beyond their design limits and rely on improvised fixes instead of well‑engineered solutions. The key takeaway is blunt: the most dangerous thing on a high‑end GPU today isn’t the silicon, it’s the way many users are feeding it power. RTX 5070 and 5090 owners are experimenting with split PCIe leads, case panel cutouts, and extra fans, while their connectors continue to burn and melt. These workarounds keep systems running but hide a simple truth—if the power path is wrong, no amount of creativity will make it safe.

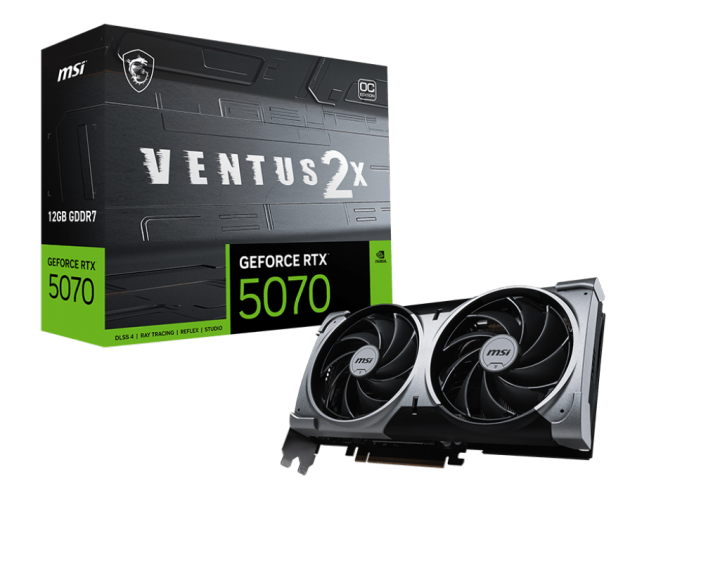

RTX 5070: When One 8‑Pin Becomes a Fire Hazard
The clearest warning sign comes from an RTX 5070 build that turned a standard PCIe cable into a fuse. In that system, the card was powered through a 12VHPWR adapter with dual 8‑pin PCIe headers at the PSU side—normal so far. The problem was how those headers were fed: a single, separate 8‑pin PCIe cable was split into two, then asked to power both connectors. Electrically, an individual 8‑pin PCIe connector is rated for around 150W, and using two separate PSU cables is how you safely reach the higher draw modern GPUs demand. Splitting one cable does not create a second 150W source; it forces the same conductors to carry double the current. According to the original report, “you should never, ever split a single 8‑pin PCIe cable into two” because the card ends up “pulling more power through the cable than it was able to handle,” which led straight to cable melting. This isn’t clever optimization—it’s playing with fire inside a metal box.
To make matters worse, the 12VHPWR adapter itself survived, as did the GPU, while the improvised splitter became the sacrificial victim. That outcome tempts others to copy the setup: if the card lives, maybe the risk feels acceptable. It is not. The melted cable is proof that overload happened and that the system only avoided a larger disaster by luck. There are legitimate splitter cables on the market, but they typically break one 8‑pin into dual 6‑pin headers and are meant for lower‑draw GPUs, not 250W class cards. Treating a single 8‑pin as a flexible resource you can divide at will crosses the line from enthusiast tinkering into unsafe electrical misuse.

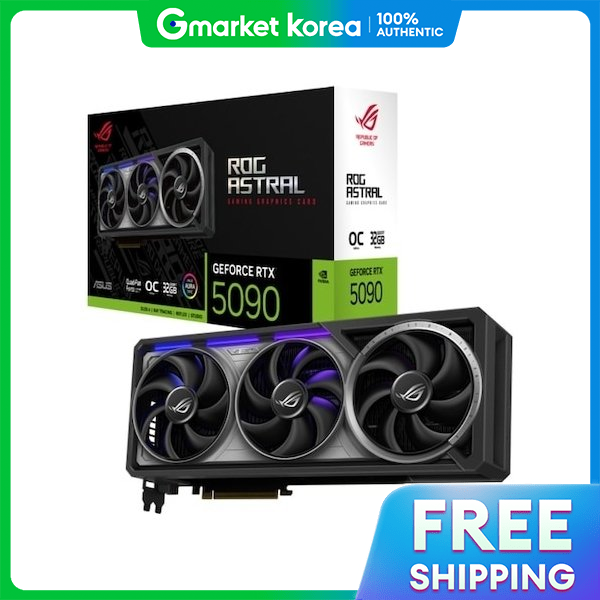

RTX 5090: Case Mods, Mesh Panels and Burned 12VHPWR Heads
RTX 5090 owners are discovering that even careful mechanical planning can’t fully shield them from 12VHPWR connector failure. One user went so far as cutting a dedicated opening into the mesh side panel of their case to give the 16‑pin 12VHPWR cable a straight, strain‑free path. They avoided tight bends, kept the connector relaxed, and ran the GPU at stock—no overclock, no undervolt. Despite that effort, the cable still overheated and the connector’s head burned out. This incident shows that the problem isn’t only clumsy cable routing or cramped cases. Even on a 1200W PSU with a purpose‑made cable, the 12VHPWR interface can reach failure without obvious abuse. The owner blamed the PSU brand and its cable and had to send the unit back for inspection, facing a long wait with little clarity on what went wrong. Meanwhile, they paid for a repair specialist to replace the GPU’s header and then upgraded to a 1600W PSU plus a small fan pointed straight at the connector in an attempt to keep it cool. When you’re adding targeted airflow just to keep a power plug alive, the ecosystem has clearly lost the plot.
Why DIY Fixes Miss the Electrical Reality
From split 8‑pins to custom side‑panel cutouts and connector‑cooling fans, the community is treating RTX 50 series power issues as a case design problem instead of an electrical one. That mindset is dangerous. The 12VHPWR standard was introduced to move up to 600W through a single connector, far above the 150W rating of an 8‑pin PCIe lead. When users bend spec with improvised adapters, reused cables, or questionable PSU leads, they are stressing contacts and conductors that already run near their limits. Even official advice is thin. One documented guideline from the GPU vendor is that dual 8‑pin feeds should come from two separate PSU cables, not a split lead. Beyond that, enthusiasts are largely piecing together their own rules based on anecdotes and teardown videos. The result is trial‑and‑error experimentation on live hardware. Some people escape with only a scorched plug; others face full connector burnouts. Until clear connector configuration guidance becomes standard and cable designs prioritize fail‑safe behavior, most DIY fixes will act like band‑aids on a fracture—covering symptoms while leaving the underlying risk intact.
A Hard Conclusion: Treat GPU Power Like a Safety System
The lesson from these RTX 5070 and 5090 incidents is not that high‑end GPUs are too power‑hungry; it is that the ecosystem around their connectors has become casually unsafe. PCIe cable melting, scorched 12VHPWR heads, and near‑miss fire stories are now familiar in enthusiast circles. Yet too many builders still see power wiring as a creative challenge, something to bend and adapt until it fits the case layout or aesthetic. That mindset must change. GPU power delivery safety is a design requirement, not an optional hobby project. Respect connector ratings. Avoid splitter tricks that rewrite the electrical math. Favor proven PSU brands and cables, and treat any sign of discoloration, smell, or warmth at the RTX 5090 power connector as urgent, not cosmetic. Until connector standards are clearer and failure modes are rarer, the safest modification you can make is restraint: stop pushing improvised solutions into a power path that already runs close to the edge.
