What an Ultra-Low-Power Solar Monitoring Node Is
An ultra-low-power solar monitoring node is a compact, solar powered logger that measures voltage, current, and environmental conditions while consuming so little energy that it does not significantly drain the battery or panel it monitors, enabling long-term off-grid deployment. In practice, this kind of off-grid sensor system combines a low power Arduino monitoring platform, such as a 3.3V Arduino Pro Mini, with an INA219 current sensor and a small solar charger and battery. The result is a self-sustaining node that logs solar performance or triggers local actions without needing grid power or constant maintenance. Because the electronics sleep for most of the time and only wake for brief measurements, these systems are well suited for environmental, agricultural, or boundary protection projects where changing batteries frequently is difficult or impossible.
Choosing Core Hardware: Pro Mini 3.3V and INA219

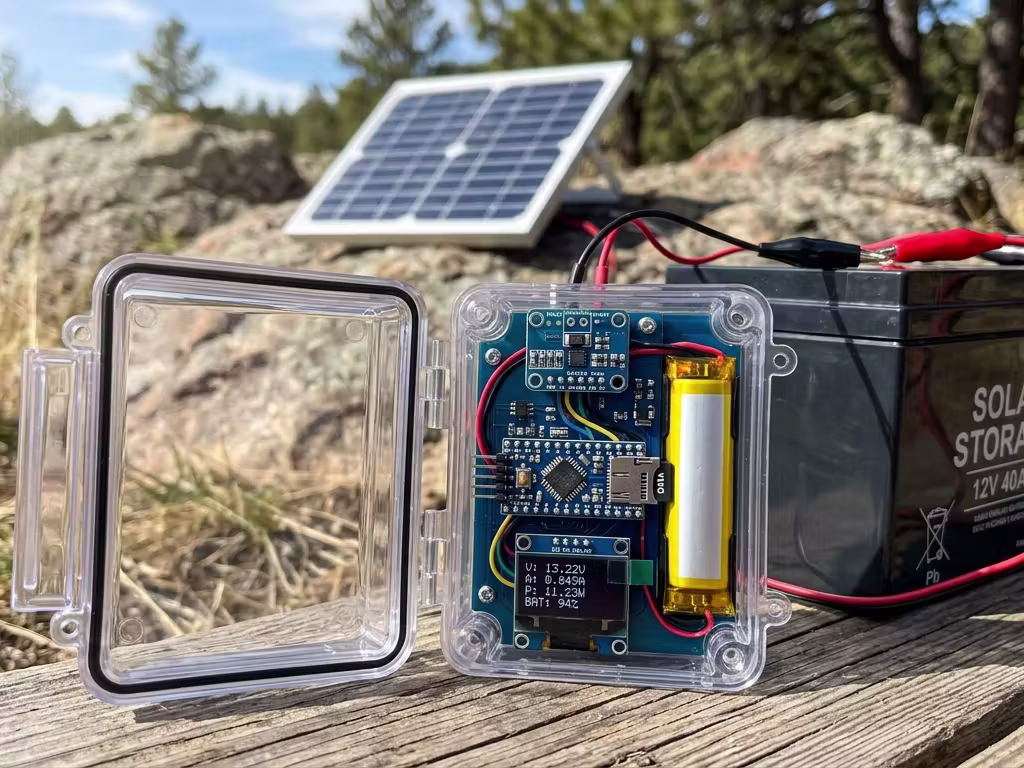

Start your solar powered logger with an Arduino Pro Mini 3.3V running at 8 MHz, which offers very low quiescent current and stable operation from a small lithium cell. Pair it with an INA219 current sensor on the I2C bus to measure bus voltage, shunt current, and power on the high side of your solar or battery line. This high-side sensing keeps the ground path clean and avoids extra voltage drops. According to RikMakersHub, the INA219 is configured via firmware for the gain and resolution that match the solar panel’s expected maximum output. Add a basic solar charging module connected to a recycled 18650 Li-Ion cell or similar storage, and route a regulated 3.3V line into the Pro Mini. Keep logic and high-current paths physically separated on the PCB or perfboard to protect the microcontroller from noise.
Firmware Design for Low Power Arduino Monitoring
To turn this hardware into a reliable off-grid sensor system, focus on firmware that minimizes active time and avoids blocking delays. Initialize I2C once at startup, configure the INA219, then use short, timed wake cycles where the Pro Mini reads bus voltage and shunt current, computes power, and formats the telemetry. Replace long delay calls with sleep modes and timer or watchdog-based wake-ups so the microcontroller spends most of its life in low-power states. The Low-Power Solar Logger project emphasizes “non-blocking telemetry loops” that keep the main loop clean and short. You can log readings to serial, an SD card, or a radio link, depending on your deployment needs. By tuning sampling intervals, you balance detail against energy use, allowing solar-powered nodes that can operate for months or even indefinitely.
Power Optimisation and Hardware Tricks for Off-Grid Nodes
Hardware choices have a big impact on how long your solar powered logger can run between cloudy days. On the Arduino Pro Mini, desolder the onboard power LED to remove constant standby current draw; the Pulse Sentinel project notes that this change drops passive current into critical micro-amp ranges. Use a modest 5V epoxy solar panel to trickle-charge your storage cell, and keep wiring short and secure to reduce losses. Place high-current solar and load paths away from the Pro Mini and INA219 traces, so measurement remains stable. Weatherproof enclosures are important for agricultural deployments: a simple IP65 box with a bottom-facing sound or cable port protects electronics from rain. Combined, these steps create a low power Arduino monitoring platform that lasts through harsh seasons without frequent servicing.
From Solar Logger to Practical Agricultural IoT

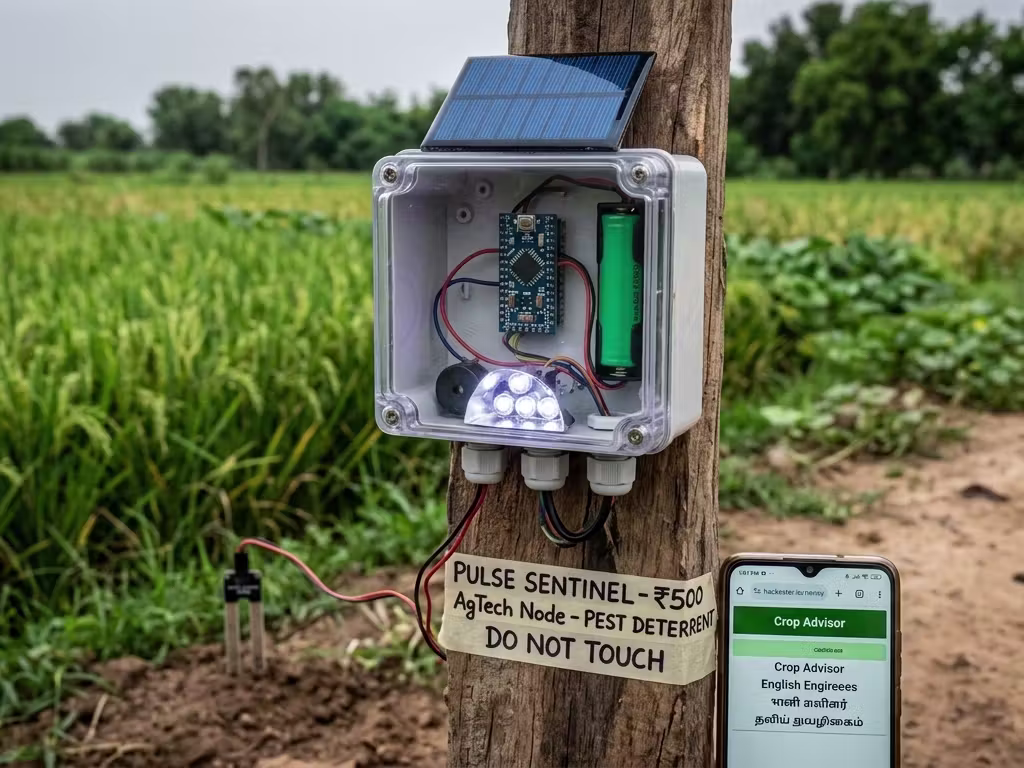

Once you have a stable off-grid sensor system, you can adapt the same architecture for many agricultural and environmental tasks. The Pulse Sentinel project shows how a value-engineered node under ₹500 can defend crop boundaries using an Arduino Pro Mini 3.3V, a high-decibel piezo buzzer, and a 1W LED driven through a BC547 transistor, all powered from a recycled 18650 cell and a small solar panel. Your solar monitoring node can log panel performance by day and activate local alarms, pumps, or lights when thresholds are reached. Multiple nodes can be placed around a field to gather solar, soil, or boundary data without network infrastructure. By combining the INA219 current sensor, ultra-low-power firmware, and careful hardware design, you build an agricultural IoT system that is affordable, battery-efficient, and ready for long-term remote deployment.
