What WioDeck Is and Why It’s a Perfect Wio Terminal Project
WioDeck is an open-source custom multi-tool build that turns a Seeed Wio Terminal into a cyberpunk-style heads-up display for timers, system monitoring, and wireless diagnostics in one handheld device. It began as a simple Claude usage meter, inspired by a dedicated Clawdmeter project, before evolving into a full personal HUD. According to the WioDeck creator on Hackster, the device now combines a Claude usage screen, system information, a process monitor, and multiple timers with a dark, neon interface. For anyone exploring embedded system development, WioDeck shows how far Wio Terminal projects can go beyond “blinky LED” demos. You use the built-in display, touchscreen, wireless radios, and storage to build something you will keep on your desk every day rather than a prototype that ends up in a drawer.
Set Up Your Wio Terminal and Core HUD Screens
Start by preparing your Wio Terminal as a dedicated multi-function HUD. Install the required development environment, flash the WioDeck firmware, and confirm that the display, joystick, and USB serial connection all work. The first screen to configure is the usage meter: feed session and weekly usage over USB serial from your computer so the Wio Terminal can show live quotas. Then add system information pages such as CPU load, memory usage, and a basic process monitor. These views turn the device into a compact PC companion while you work. Build timer utilities next: a Pomodoro timer to structure focus sessions, a stopwatch for quick measurements, and a countdown timer for deadlines. With these core screens in place, WioDeck already feels like a mini command deck rather than a simple embedded demo.
Add Wireless Network Tools: BLE Scanner and Wi‑Fi Analyser
Next, turn WioDeck into a wireless network scanner for quick diagnostics. Configure the Wio Terminal’s Wi‑Fi radio to scan nearby access points and display useful details like signal strength and channel usage. Present results in a clear list so you can spot crowded channels and troubleshoot connection problems at a glance. Then enable Bluetooth Low Energy (BLE) scanning, which the creator originally used as an option to “cut the cable” and send usage data wirelessly. Extend that idea into a BLE scanner screen that lists nearby devices and their identifiers for basic debugging and testing. Together, the Wi‑Fi analyser and BLE scanner make WioDeck a handy pocket tool when you are tuning networks, checking coverage, or validating that embedded peripherals are alive and advertising correctly.
Build the Cyberpunk Interface: Matrix Rain, Sensors, and Storage

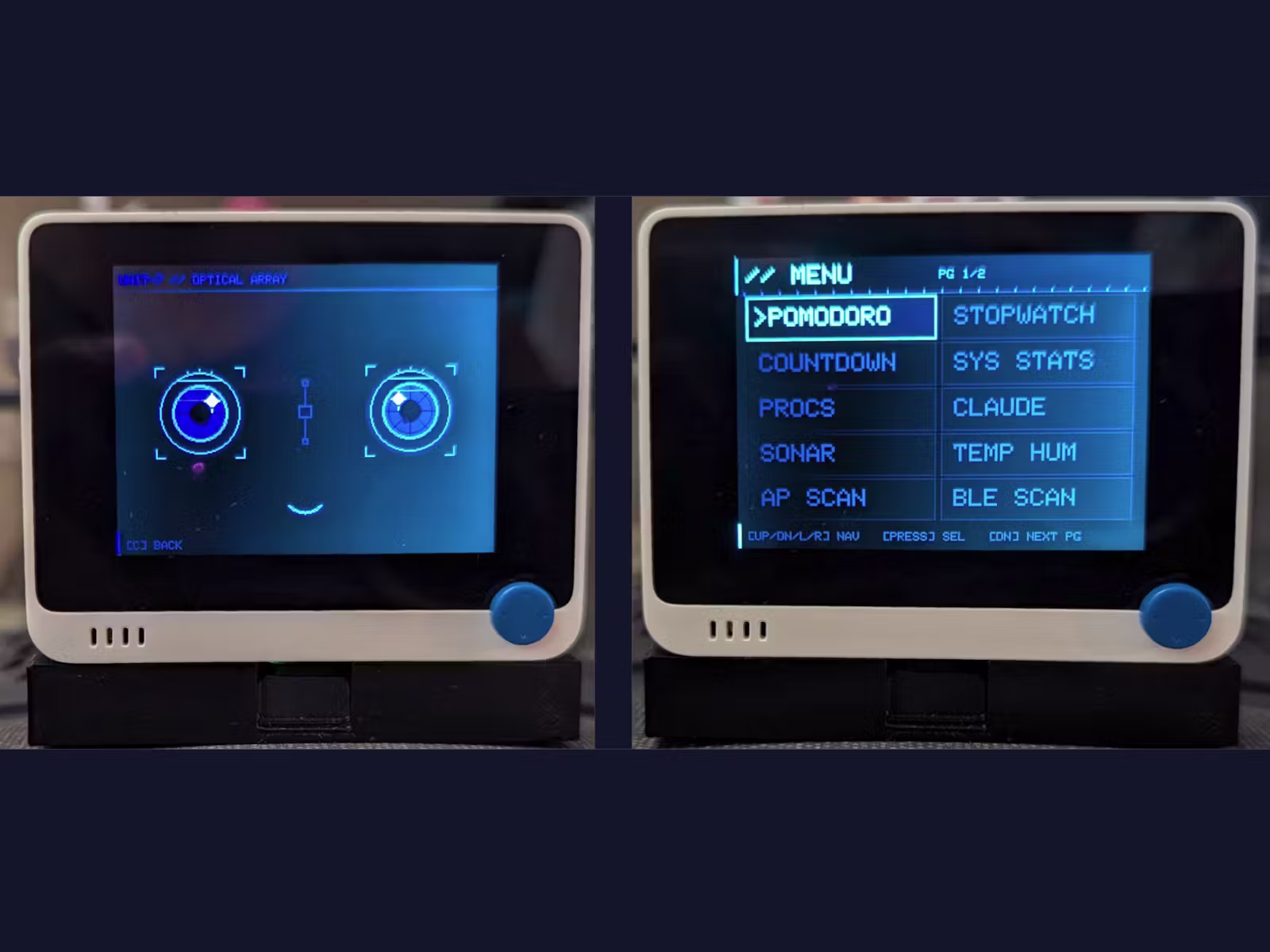

With the utility pieces in place, focus on the cyberpunk look and extra functions that make WioDeck fun to keep powered on. Design screens around dark backgrounds and neon colors, using arc gauges and bold typography to match the HUD theme. Add a Matrix digital rain animation as an ambient screen that runs when you are not actively checking stats. Then connect sensors to create a sonar-style proximity page and a temperature and humidity display, turning the device into a small environment monitor. Finally, enable an SD card viewer so you can browse files on the Wio Terminal’s storage. All screens are reachable from a joystick-driven menu, and configuration settings persist to flash, so WioDeck boots straight back into your preferred layout every time.
Polish the Experience and Extend the Open-Source Build
To finish the build, refine navigation and responsiveness so WioDeck feels like a cohesive product rather than a pile of demos. Organize screens into a clear menu structure, keep transitions snappy, and maintain consistent fonts and colors. Because everything runs on the Wio Terminal’s touchscreen and onboard radios, you have plenty of room to experiment with new Wio Terminal projects that reuse the same framework. For example, you can add extra system monitoring views for different operating systems, create task reminders linked to timers, or expand the wireless network scanner with more metrics. The project’s open-source nature means you can study how each screen is implemented, learn embedded system development patterns, and then fork WioDeck into your own personalized desk companion that fits your workflow.
