What an Arduino Air Quality Monitor Is and Why It Matters
An Arduino air quality monitor is a do-it-yourself system that uses an Arduino board and a particulate matter sensor to measure, log, and display real-time pollution data such as PM1.0, PM2.5, and PM10 concentrations in micrograms per cubic meter, helping you understand and respond to indoor or outdoor air conditions for health and environmental awareness. Fine particulate matter (PM2.5) can reach deep into the lungs and even enter the bloodstream, so reliable measurements are valuable for homes, workshops, and environmental monitoring projects. In this guide, you will build a DIY air quality system using the Arduino GIGA R1 WiFi and the DFRobot PM2.5 sensor (SEN0460). This combination forms a low-cost alternative to commercial monitors, while still offering laboratory-grade readings, real-time feedback, and flexible connections for displays, data logging, or cloud dashboards using the environmental monitoring Arduino platform.
Why Use Arduino GIGA R1 and the DFRobot PM2.5 Sensor?
The Arduino GIGA R1 WiFi is well suited for an environmental monitoring Arduino project because its STM32H747XI dual-core microcontroller runs at up to 480 MHz (Cortex‑M7) plus 240 MHz (Cortex‑M4), with 2 MB of flash, 1 MB of RAM, and 8 MB of SDRAM. That is more than enough for real-time air quality processing, logging, and wireless features. With 76 GPIO pins, 3 I2C ports, 4 UARTs, and 2 SPI ports, it can handle a PM2.5 sensor, screen, SD card, and network connectivity at the same time. The DFRobot PM2.5 sensor (SEN0460) uses laser-scattering technology to measure particles from 0.3 µm to 10 µm and reports PM1.0, PM2.5, and PM10 via a Gravity I2C interface. According to DFRobot, the sensor measures 0–500 µg/m³ (up to 1000 µg/m³ maximum) with 1 µg/m³ resolution, making it ideal for precise Arduino air quality monitor projects.
Hardware Setup: Power, Wiring, and Sensor Connection

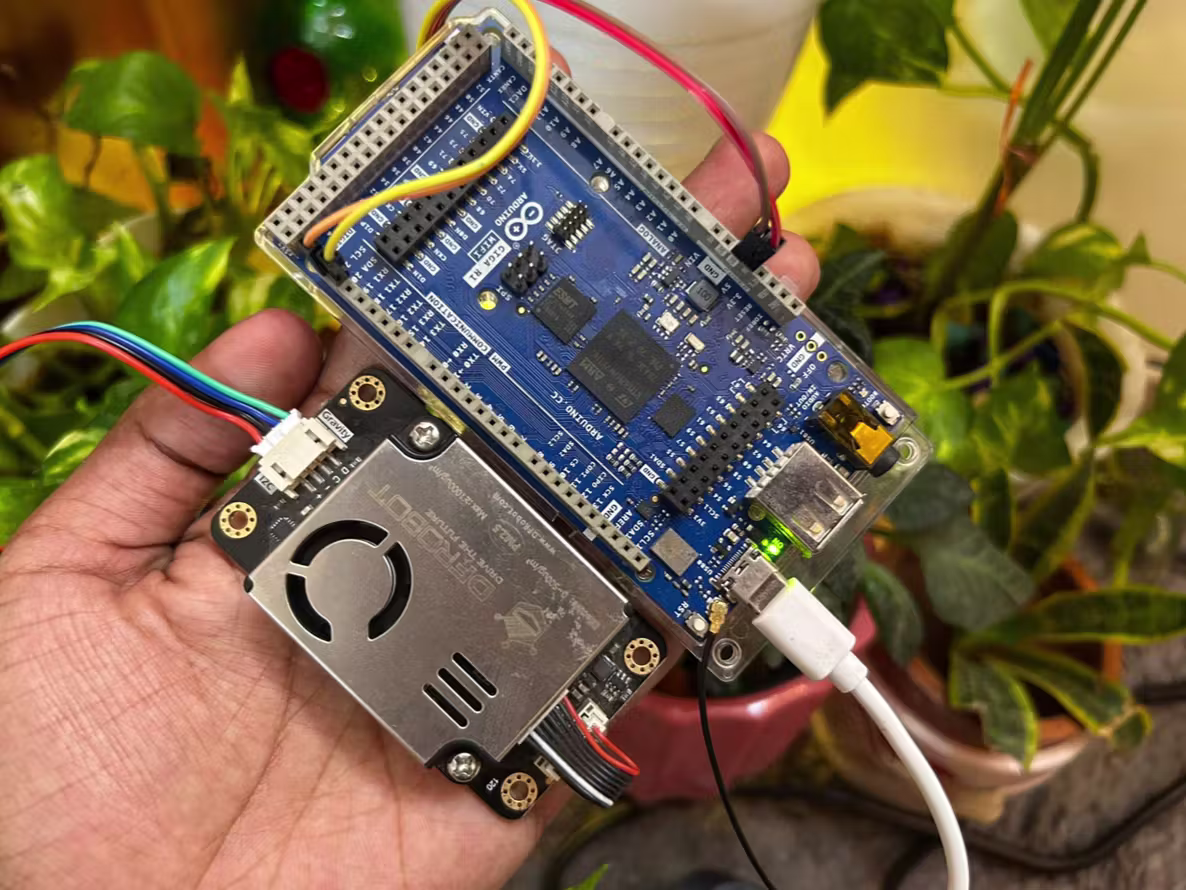

To start building your PM2.5 sensor Arduino project, prepare an Arduino GIGA R1 WiFi, a DFRobot PM2.5 sensor (SEN0460) with Gravity I2C connector, and standard jumper wires if needed. Install the latest Arduino IDE and add the “Arduino Mbed OS GIGA Board Package” via Boards Manager, then select Arduino GIGA R1 WiFi as your target board and choose the correct USB‑C serial port. The GIGA R1 uses 3.3 V logic, so avoid applying 5 V to any GPIO pins. Fortunately, the DFRobot sensor accepts 3.3 V logic on SDA and SCL while being powered from 5 V. Use I2C1 on the GIGA: connect sensor VCC to 5 V, GND to GND, SDA to pin 20, and SCL to pin 21. The default I2C address is 0x19, which you can confirm with an I2C scanner example before moving on.
Programming the Arduino Air Quality Monitor
With the hardware in place, the next step is programming your DIY air quality system. In the Arduino IDE, open Library Manager and search for “DFRobot AirQualitySensor”. Install the library, then explore its examples under File → Examples → DFRobot_AirQualitySensor. The core sketch begins by including DFRobot_AirQualitySensor.h, creating a sensor object on the default Wire bus at I2C address 0x19, and calling begin() in setup(). A loop retries begin() until the sensor responds, which helps catch wiring mistakes. Once initialized, you can read particle concentrations using gainParticleConcentration_ugm3() for PM1.0, PM2.5, and PM10 in µg/m³, choosing either standard or atmospheric modes. The example code prints readings every second to the Serial Monitor at 115200 baud and uses a simple if/else block to label the air quality as “Good”, “Moderate”, or “Unhealthy” based on the PM2.5 value, giving instant, readable feedback.
Logging, Display Options, and Next Steps
Once your PM2.5 sensor Arduino monitor is streaming reliable values, you can extend it into a more advanced environmental monitoring Arduino station. The processing power and memory of the Arduino GIGA R1 leave room for features such as SD card logging, OLED or LCD displays, and WiFi dashboards. For example, you could log PM1.0, PM2.5, and PM10 every minute to an SD card for long-term indoor air quality trends or wildfire smoke tracking. You can also connect extra sensors, such as temperature or humidity, to study how conditions relate to particulate levels. The Gravity I2C interface and multiple I2C buses simplify adding hardware. Combined, these options turn a basic DIY air quality system into a flexible platform for personal health monitoring or environmental research, while staying more affordable and customizable than most commercial air quality monitors.
