Compact air cooling: redefining what a tower can do
A compact CPU cooler is a space‑efficient air cooling solution designed to fit modern, cluttered PC interiors while still providing high performance cooling for powerful processors. Instead of chasing size, the latest designs focus on smarter heatpipe layouts, optimized fin stacks, and fan innovation to rival bulky dual‑tower units. This new generation targets builders who run hot CPUs but want cleaner aesthetics, easier installation, and full RAM compatibility. DeepCool’s Assassin V, Cooler Master’s V8 Ace 3DHP, and Arctic’s Freezer 61 each attack the same problem from different angles: single‑fan efficiency, highly activated heatsinks, and RAM clearance coolers with reverse fans. Together they show how far air cooler performance has advanced, compressing 300W‑plus capability into smaller footprints that are better suited to compact and space‑constrained cases than traditional flagship towers.
DeepCool Assassin V: 320W cooling with a single hidden fan
DeepCool’s Assassin V is a dual‑tower compact CPU cooler that relies on one centrally mounted 140mm fan and a next‑gen vapour chamber to achieve flagship air cooler performance. Club386 reports that “its new cooler can handle even 320W CPUs,” beating the dual‑fan Assassin IV VC’s 300W rating while maintaining full RAM clearance and a very clean exterior. Eight heatpipes feed two square fin stacks, and the fan slides between them on a custom frame, powered by pogo pins for tool‑free removal and easier cleaning. On top, a 4.5in 854×480 LCD screen displays system metrics such as CPU or GPU frequency, fan speed, and power consumption, turning the cooler into a built‑in monitoring hub. With no exposed fan or RGB, the Assassin V targets builders who want a minimalist, screen‑equipped tower cooler that still fits in tighter, visually tidy builds.
Cooler Master V8 Ace 3DHP: single tower, dual‑tower ambitions
Cooler Master’s V8 Ace 3DHP aims to compress dual‑tower air cooler performance into a single‑tower form factor through its new 3D Heatpipe technology. Instead of conventional U‑shaped heatpipes, the design uses W‑shaped “3DHP” pipes that add an extra leg into the fin stack, increasing how much of the heatsink is thermally active. According to Overclock3D, Cooler Master claims this layout can “activate over 95%” of the heatsink surface, compared with around 70% for standard designs. That efficiency helps the V8 Ace compete with heavyweights like the NH‑D15 G2 while remaining a more compact CPU cooler. Cooling is boosted further by 30mm‑thick Liquid Crystal Polymer fans, including a reverse‑bladed rear unit for cleaner airflow and styling. AMD‑ and Intel‑specific versions with tailored brackets aim to maximize contact pressure, making this cooler a strong choice when you want high performance cooling without a bulky dual‑tower footprint.

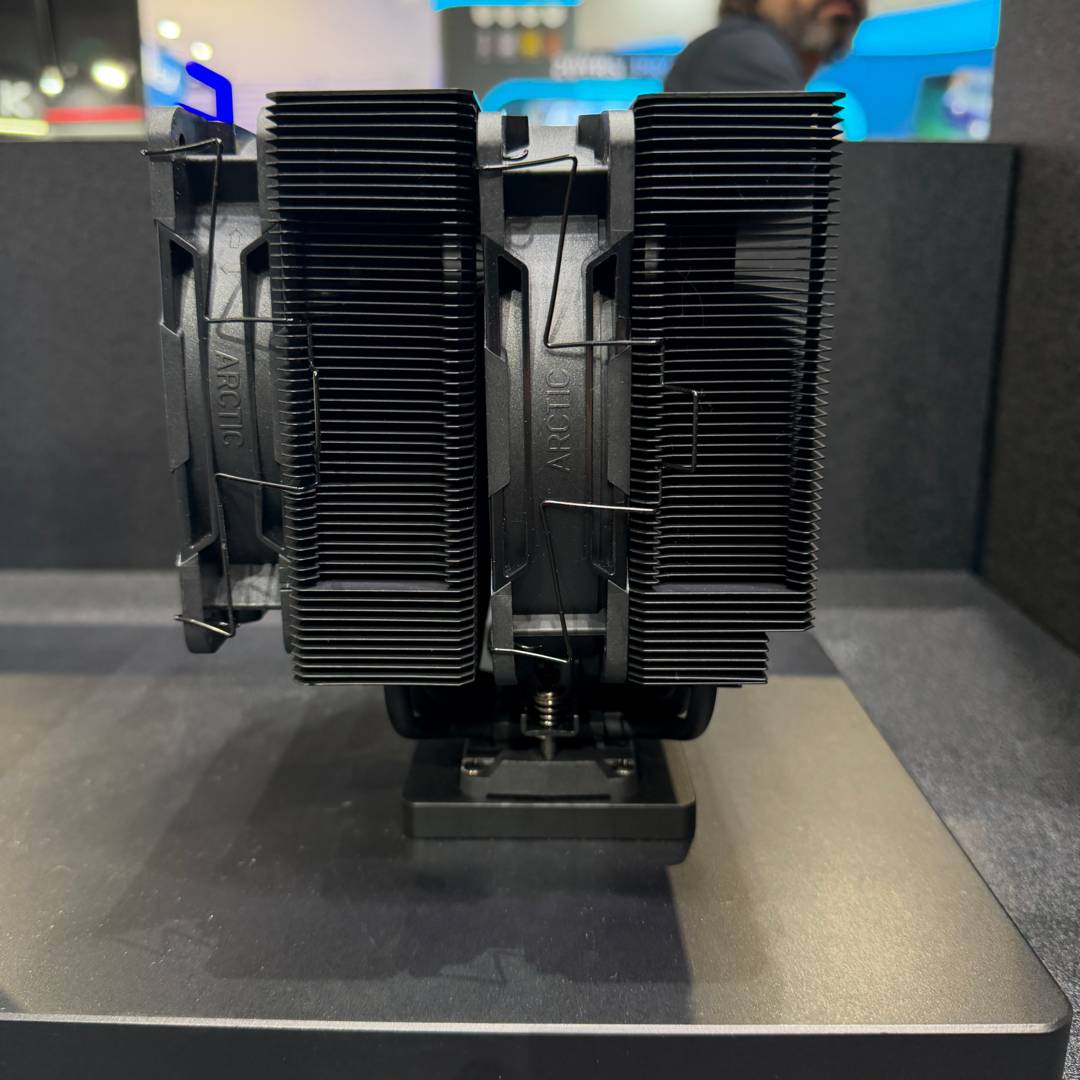

Arctic Freezer 61: RAM clearance first, performance intact
Arctic’s Freezer 61 targets builders who fight constant RAM clearance issues but refuse to compromise on air cooler performance. It keeps a dual‑tower structure with six heatpipes, yet reshuffles the fans: a P14 Pro Reverse sits at the rear, near the VRM area, while a P12 Pro Reverse is sandwiched between the fin stacks. By moving the front fan to the back, the cooler provides full space for tall memory modules, transforming it into a true RAM clearance cooler without blocking DIMM slots. Arctic states this reverse push‑pull layout still supplies enough airflow and static pressure to handle a 300W CPU, proving performance does not have to come at the cost of compatibility. Standard metal fan clips ensure the cooler works with a wide range of 120mm and 140mm blowers, and support for both modern Intel LGA and AMD AM sockets makes it a practical drop‑in for many compact builds.
Which compact tower cooler suits your next build?
All three coolers push the idea that a compact CPU cooler can rival larger towers while suiting tighter, modern cases. The Assassin V favors minimalist styling and monitoring features, trading extra fans for a powerful vapour chamber and a central 140mm fan. Cooler Master’s V8 Ace 3DHP focuses on maximized heatsink activation with W‑shaped heatpipes and thick LCP fans, ideal when you want high performance cooling in a single‑tower layout. Arctic’s Freezer 61 solves RAM clearance problems by relocating its front fan, making it especially attractive for builds with tall RGB memory and dense motherboards. When comparing tower coolers today, the decision is no longer only about size; it is about how each design manages airflow, heat transfer, and component clearance. These three coolers show that smart engineering can deliver top‑tier air cooler performance even in space‑constrained PC setups.
