Project Overview: A Budget-Friendly Wireless Laser Shooting Range

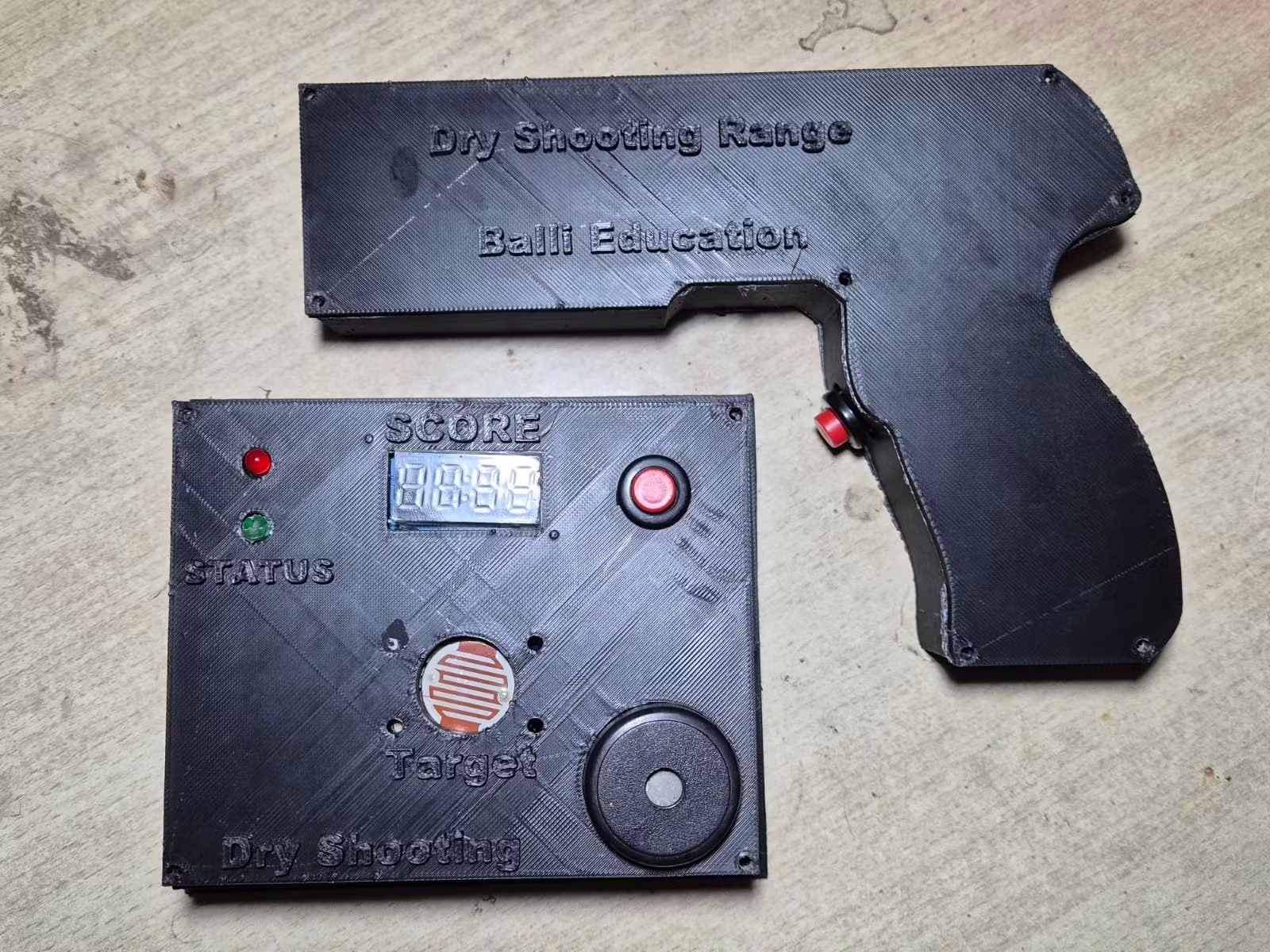

This DIY laser shooting range is an open-source Arduino shooting trainer designed to be affordable, portable, and easy to build. The setup uses two independent Arduino Nano boards: one inside a handheld laser gun unit and one inside a standalone target unit. Together they form a wireless laser target system that tracks shots, hits, and real-time accuracy. The gun unit fires a short laser pulse on each trigger press and keeps count of every shot on a TM1637 four-digit LED display. The target unit detects laser hits with an LDR sensor, confirms them with a buzzer and LED, and wirelessly reports the updated hit count back to the gun via an NRF24L01 2.4 GHz radio link. Because everything is built from common modules and shared as an open-source project, this budget shooting range build is approachable even for beginners comfortable with basic soldering and Arduino programming.
Core Components and How the System Communicates
The heart of this DIY laser shooting range is the pairing of Arduino Nano boards with NRF24L01 wireless modules and TM1637 LED displays. The gun unit hosts a laser diode, a fire button, a reset button, a small buzzer, and a 4-digit display that cycles through shots, hits, and accuracy. Each button press turns the laser on for 80 milliseconds, increments an internal fire counter, and briefly shows FIRE before returning to the statistics screens. The target unit combines an LDR sensor with a 10 kΩ pull-up resistor, a green status LED, its own buzzer, and another TM1637 display that shows the hit count. When the LDR sees the laser for long enough to qualify as a hit, the target sends a two-byte packet over the NRF24L01 link. Automatic acknowledgement and retry features ensure robust wireless communication between the two units.
Gun Unit Logic: Tracking Shots and Accuracy in Real Time
On the gun side, the Arduino continuously monitors the debounced fire button. When pressed, it briefly powers the laser, beeps the buzzer, and increments the shot counter up to a maximum of 99. The TM1637 display rotates every two seconds through three status pages: Fr for shots fired, Ht for hits received from the target, and AC for accuracy percentage, calculated as hits multiplied by 100 divided by shots. A blinking colon acts as a heartbeat, indicating that the Arduino loop is running correctly. Wireless status is clearly indicated: when heartbeat packets arrive from the target, the display shows LinE and the red front LED lights solid. If no data arrives for three seconds, the display switches to dashes and the LED turns off, warning you that the link is down. A dedicated reset button sends a broadcast command to clear both shots and hits simultaneously.
Target Unit Logic: Reliable Laser Hit Detection and Self-Test
The target unit is responsible for robust hit detection and overall system reliability. Its LDR is wired to an Arduino pin with a 10 kΩ pull-up, so the input normally reads HIGH and drops LOW when the laser strikes. The firmware measures how long this LOW state lasts without blocking other tasks. Pulses shorter than 50 milliseconds are treated as noise, while those between 50 and 2000 milliseconds register as valid hits that increment the hit counter, flash the status LED, beep the buzzer, and update the display. The target also sends heartbeat packets every 1.5 seconds so the gun knows it is online. On startup, the target runs a comprehensive self-test sequence on the display, LED, buzzer, reset button, and LDR, giving visual and audible feedback for each step before declaring PASS. This ensures your wireless laser target system is functioning correctly before training.
Assembling, Using, and Modifying Your Arduino Shooting Trainer
To assemble this budget shooting range build, you mount each Arduino Nano on a small perfboard or inside a project box, then wire the respective components according to the original open-source schematic and code. The gun becomes a compact handheld controller with the laser and status LED on the front, while the target is a standalone box that you can place anywhere in your home range or training area. Once powered, wait for the link status to show LinE, then start firing and watch your live statistics for shots, hits, and accuracy. Because the project is fully open-source, you can extend it by adding more targets, changing hit thresholds, or integrating different enclosures and power options. The modular design and clear documentation make this DIY laser shooting range an excellent platform for learning wireless embedded systems while improving your marksmanship practice.
