How to Turn Classic Game Controllers Into Wireless Modern Gamepads

What Wireless Controller Mods Are and Why They’re Worth Doing

A wireless controller mod is a hardware and firmware upgrade that turns a cabled or single‑platform classic gamepad into a Bluetooth or 2.4 GHz wireless controller that works like a modern, cross‑platform gamepad while preserving the original feel, layout, and ergonomics of the retro device. If you love the way old controllers sit in your hands but hate short cables and finicky adapters, this is squarely aimed at you. The core idea is simple: you drop a small microcontroller board inside the retro shell, wire its inputs to the existing buttons, then let custom firmware translate everything into formats today’s systems understand.

To follow along, you should be comfortable with basic microcontroller work and light soldering. You don’t need to be an electrical engineer, but you should know how to identify pads on a PCB, use a multimeter, and flash firmware from your PC. The payoff is big: your old Virtual Boy pad becomes a wireless Nintendo Switch 2 gamepad, and your Steam Controller turns into a true cross‑platform XInput controller for PC and modern devices.

What You Need: Hardware, Tools, and the Right Donor Controllers

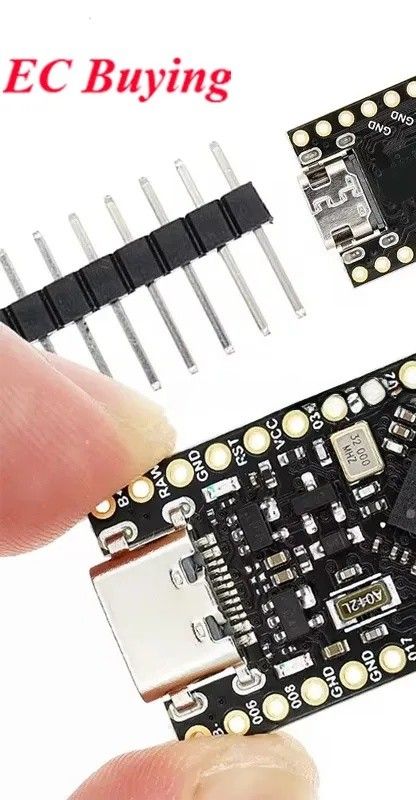

Before you grab a screwdriver, you need to gather the parts that make retro gamepad conversion possible. For Steam Controller XInput work, hobbyists use microcontroller boards such as the Pro Micro nRF52840, which include Bluetooth and 2.4 GHz radios and are powerful enough to translate inputs on the device itself. These boards run open‑source firmware that reads the controller’s raw input and maps it on the fly to Xbox, PlayStation, or Nintendo layouts. For a Virtual Boy Switch adapter, modders use a custom replacement PCB built around an ESP32 microcontroller that handles wireless communication and button translation while keeping the original case and controls untouched.

On the tool side, you’ll need a small Phillips screwdriver, a fine‑tip soldering iron, solder, and a way to connect boards to your PC—usually USB‑C—plus optional 3D‑printed bits for tidier builds. According to one project description, the wireless "puck" that drives the Steam Controller has about 1 millisecond of latency, so responsiveness is indistinguishable from native pads when the mod is done right. The real caveat: once you open a controller, any slip with heat or tools can damage irreplaceable parts, so work slowly and test as you go.

Step‑by‑Step: Converting a Retro Controller to a Wireless Gamepad

Here’s the core workflow most wireless controller mods follow. I’ll describe it like you’re at the workbench with me, using the Virtual Boy controller and Steam Controller projects as concrete examples. The sequence matters: if you jump around, you can end up with mismatched power wiring or firmware that doesn’t see half your buttons.

1. Open the controller shell and expose the original PCB, using the right screwdriver and keeping track of all screws.

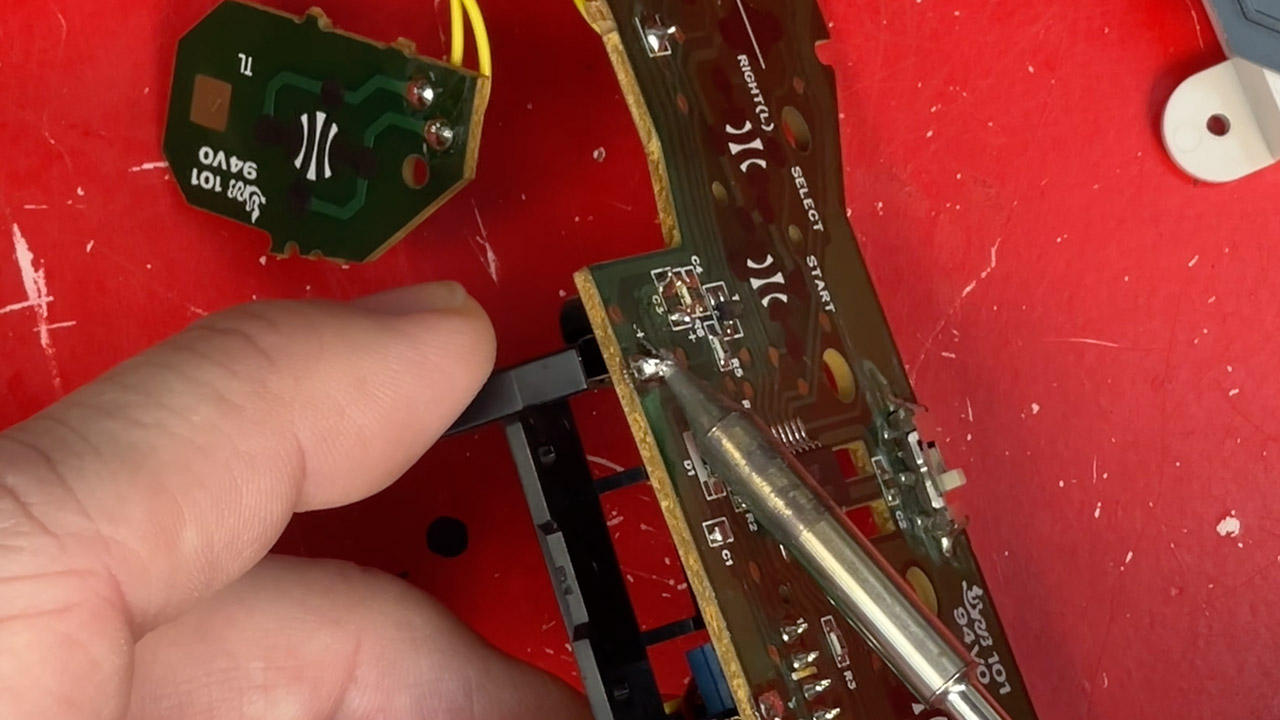

2. Prepare power: add new solder points to the battery terminals or power pads so the replacement board can draw power safely.
3. Remove the old board carefully, watching for any membrane or trigger parts that need to stay aligned in the shell.
4. Install the new microcontroller board or replacement PCB, matching the power switch to the existing slider and any light pipes or plugs to cable‑exit holes.
5. Wire or connect all button and pad contacts from the original controls to the new board’s input pins, checking continuity as you go.
6. Put the microcontroller into DFU or bootloader mode, connect it via USB‑C, and flash the appropriate firmware (for example, an Arduino sketch for the Steam Controller "puck").
7. Reassemble the shell, then power on and pair the controller via standard Bluetooth procedures so it appears as a normal Pro Controller on Switch or as an XInput‑compatible pad on PC.
8. Use the web‑based configurator (over WebUSB where supported) to pick modes like Switch Pro, Xbox, DualSense, or experimental retro mappings.

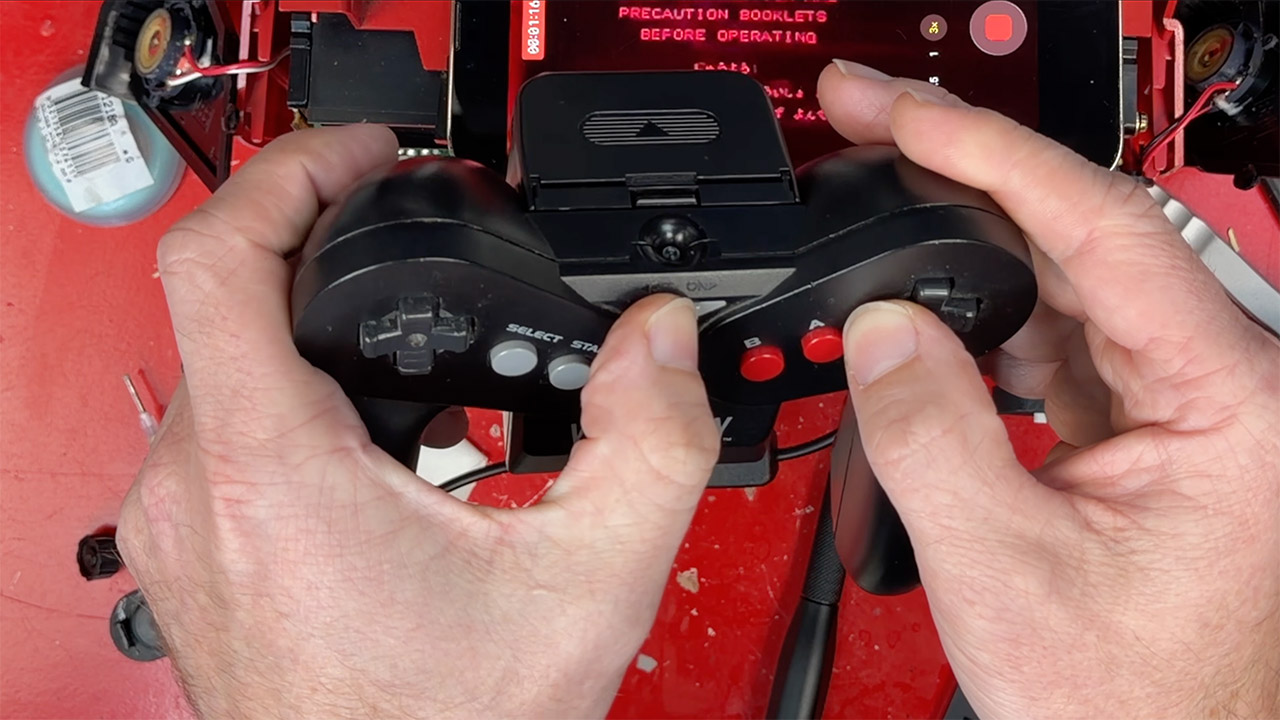

In the Virtual Boy Switch adapter example, every physical button and pad stays in its factory position and spacing, preserving the dual‑D‑pad feel that makes those games work. In the Steam Controller mod, the new firmware lets the pad behave much like an official Switch, Xbox, or PlayStation controller once set up, without needing Steam running in the background. The subtle gotcha is mode selection: some profiles can be toggled with button combinations, while others need the web interface, so keep a small mode map handy until it becomes second nature.

What You Get: Cross‑Platform Play Without Sacrificing Retro Feel

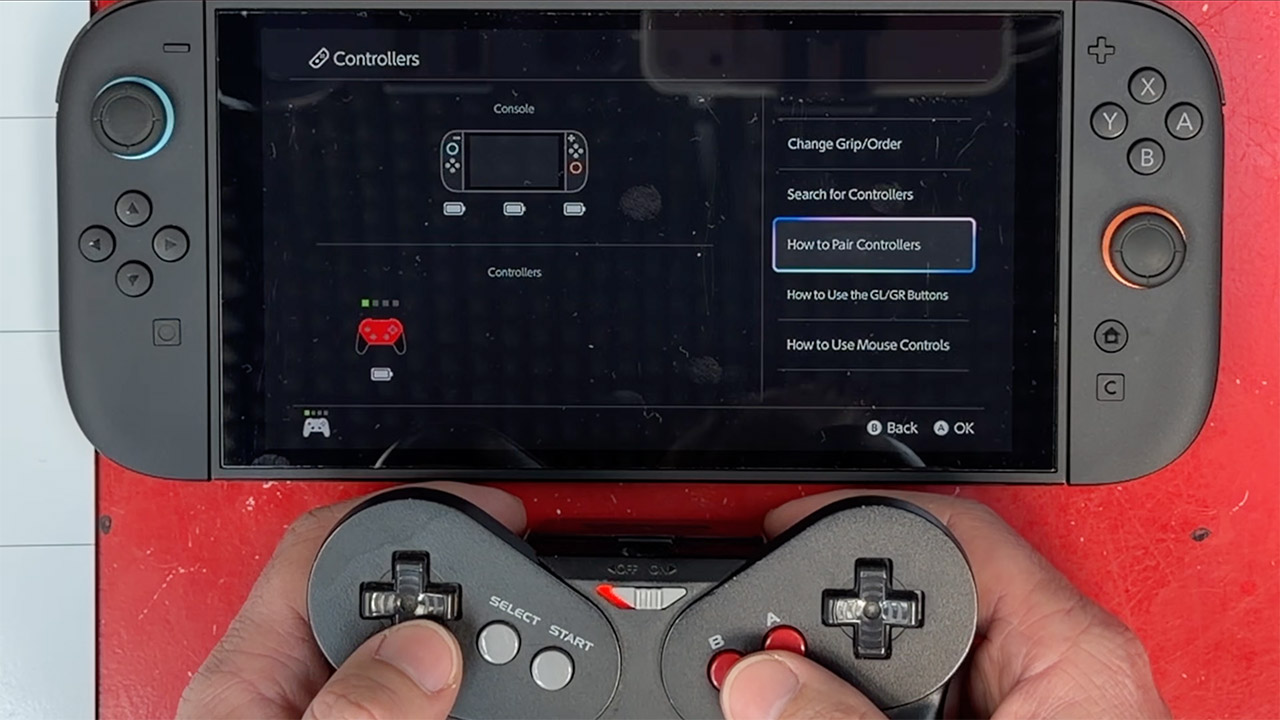

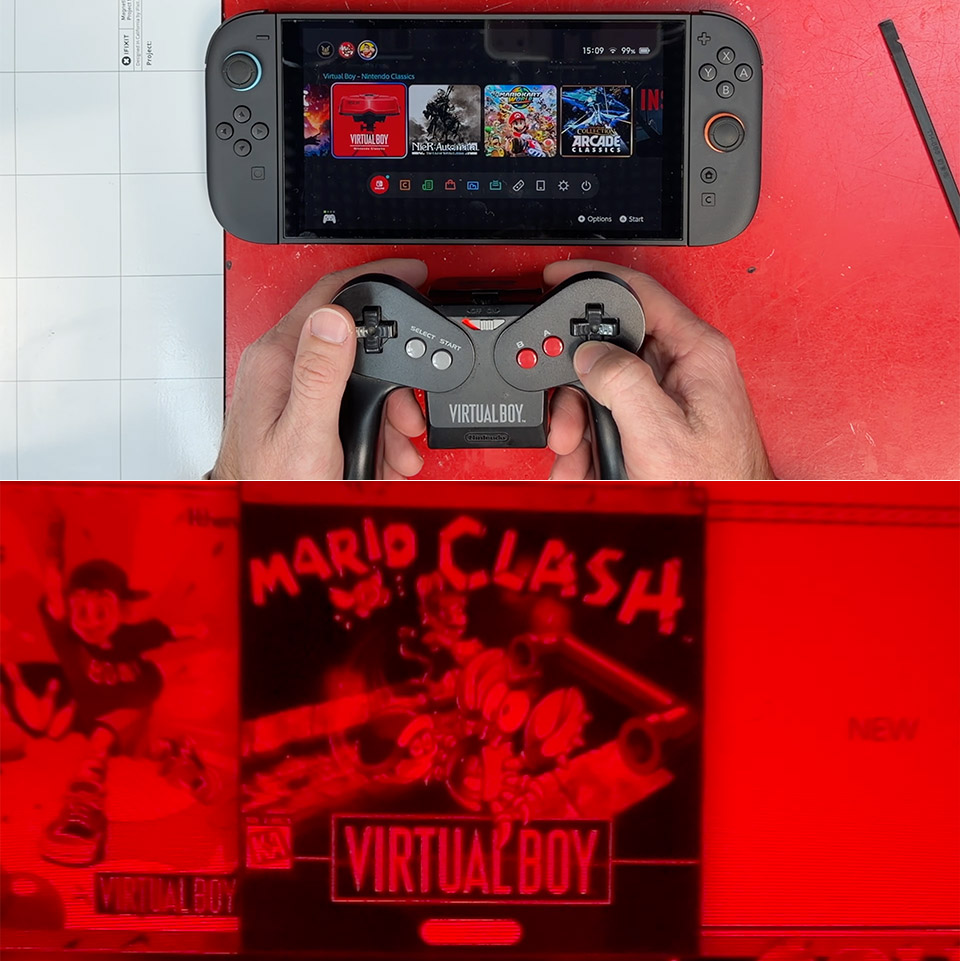

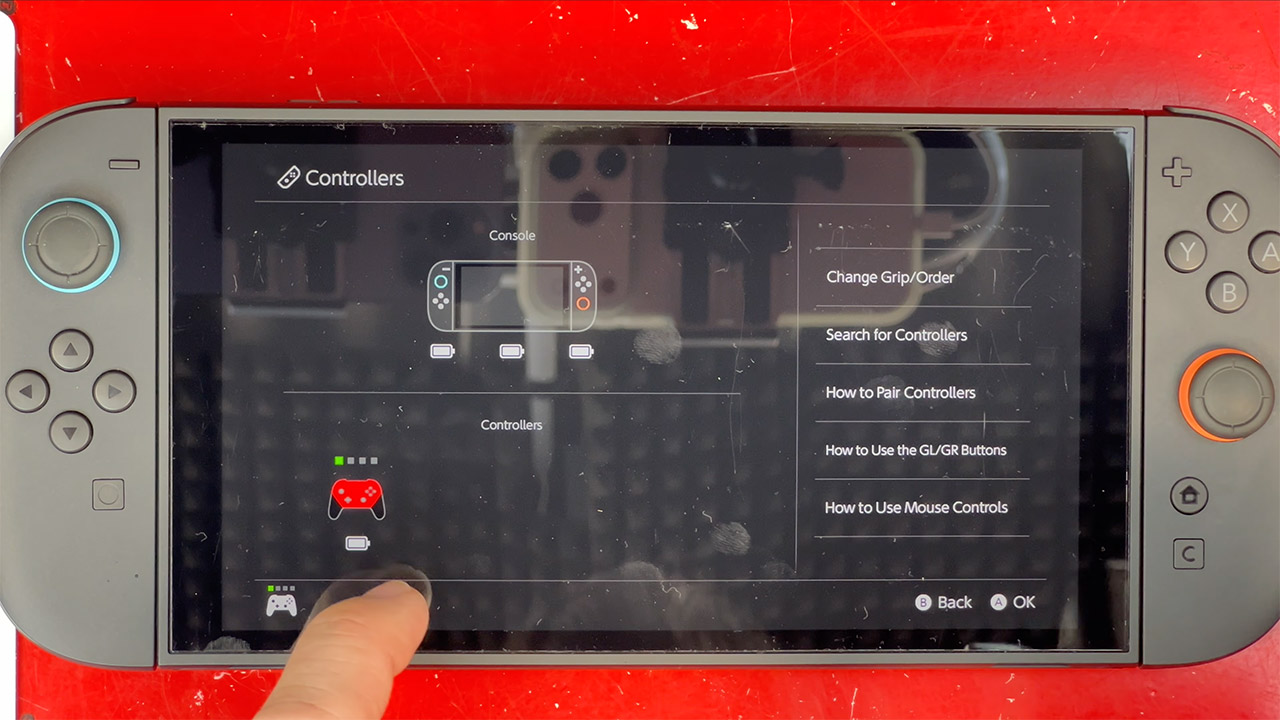

Once the wireless controller mod is up and running, the experience feels surprisingly natural. On a Switch or Switch 2, the upgraded Virtual Boy controller appears as a normal Pro Controller, pairing over Bluetooth through the usual system menu. A quick button press during power‑on lets you pick modes: Virtual Boy on Switch Online by default, or alternative PC and retro layouts that mimic SNES or N64 style controls. Additional button combinations tap into features the Switch already expects, like opening the home menu, adjusting volume and brightness, triggering rewind where supported, or capturing screenshots, all handled by the ESP32 on its own with no extra software.

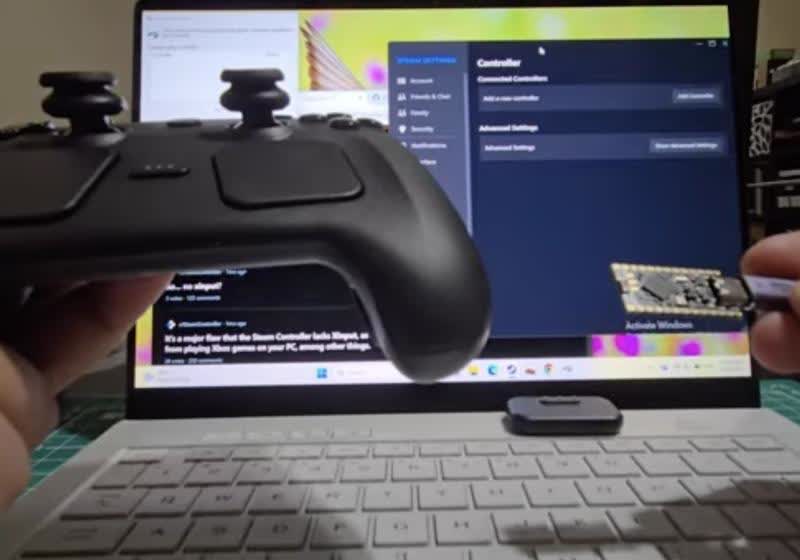

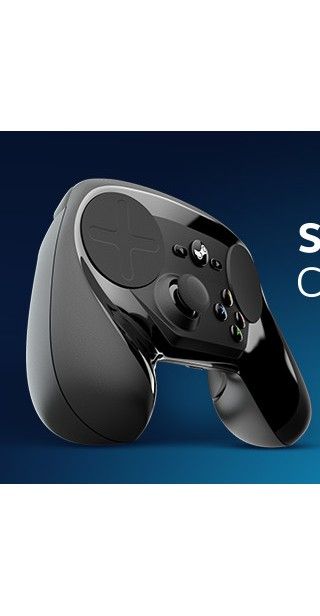

On PC and other devices, the Steam Controller XInput conversion is all about compatibility and freedom from cables. The microcontroller firmware reads inputs and remaps them to Switch Pro, Xbox, DualSense, or DualShock 4 profiles, and even supports legacy modes like DualShock 3 with motion controls. Because translation happens on the puck itself, you no longer depend on background software; your controller behaves like a first‑party pad from the system’s perspective. Wireless conversion mods remove cable constraints while keeping authentic ergonomics—the same grips, triggers, and button spacing you remember—so your muscle memory stays intact while your setup becomes far more flexible.

Why the Modding Community Keeps Pushing Retro Controllers Forward

Looking at these projects together, you can see why the modding community is so invested in retro gamepad conversion. The Virtual Boy board turns a 1995 peripheral into a wireless controller that serves both the original console—via a BlueRetro adapter—and modern Nintendo hardware, all without permanent case changes. The Steam Controller "puck" makes a discontinued pad much more useful by fixing compatibility issues that used to require extra software, extending its life well beyond its original ecosystem. This isn’t nostalgia for its own sake; it’s about keeping well‑designed hardware in the rotation instead of leaving it to collect dust.

Wireless conversion mods are worth the effort if you care about feel and flexibility more than owning the latest shiny pad. You gain cross‑platform compatibility, lower cable clutter, and controllers that match the games they were built for, while still working across current systems. The key thing to watch for is build quality: follow the steps, respect the wiring, and double‑check firmware and modes. Done carefully, these mods stay reversible, reliable, and fun to use for years.
