What a Gaming PC Test Rig Is and Why It Matters
A gaming PC test rig is a carefully planned reference system built with known, repeatable hardware so reviewers can measure game performance, compare components fairly, and reveal real-world strengths and weaknesses without hidden bottlenecks. Instead of swapping parts into random home builds, we create fixed platforms whose sole purpose is consistent, comparable benchmarking. That means choosing a fast CPU, a capable motherboard, ample memory, and high-speed storage so the graphics card or SSD under review is the part being tested, not limited by something else. We also use closed cases rather than open benches, because that is how people actually game day to day, with airflow, fan noise, and cable layouts all affecting the experience. A good gaming build methodology turns every review into a controlled experiment you can trust.
CPU and Motherboard: Eliminating Bottlenecks at the Core

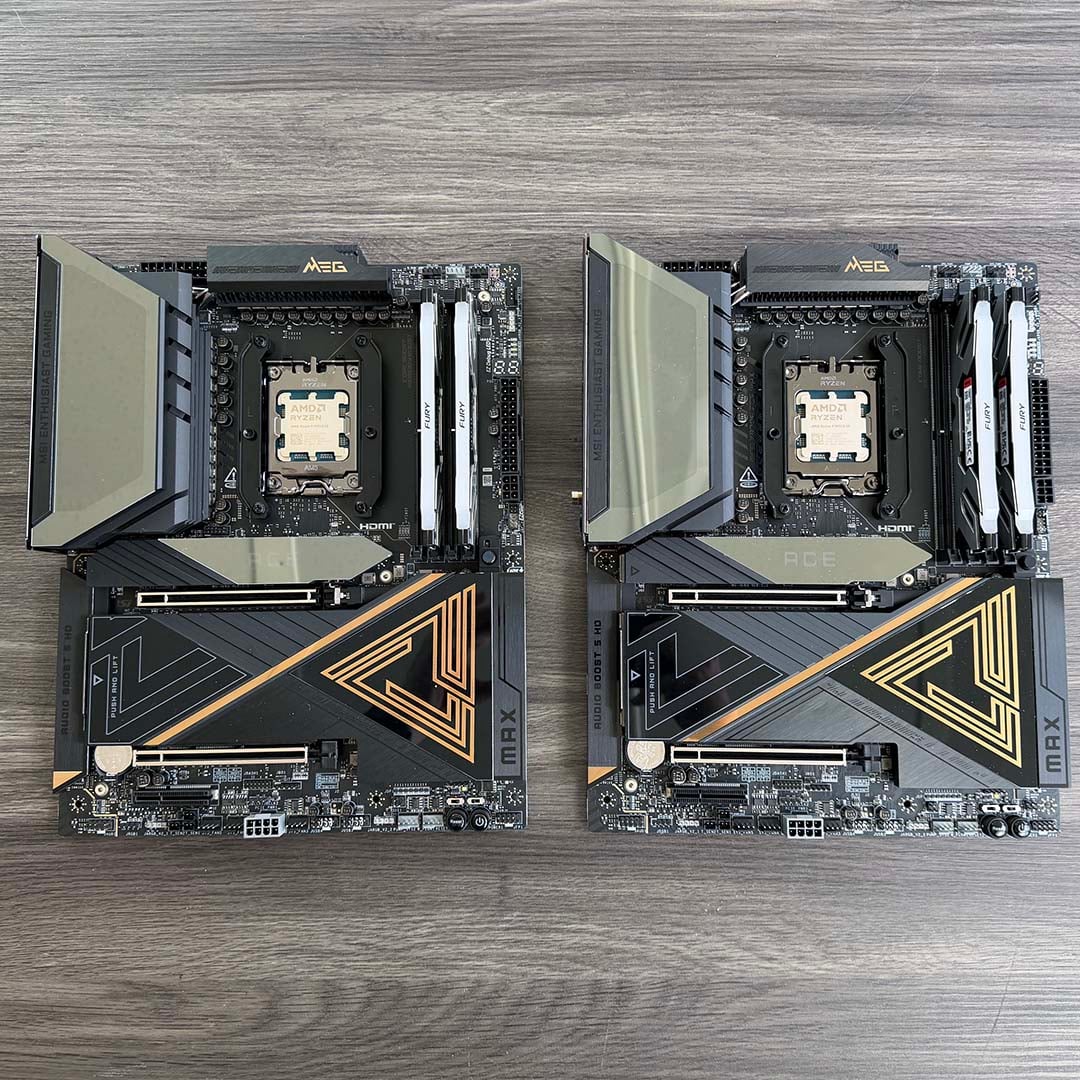

The heart of any performance benchmarking setup is the CPU and motherboard. For high-end test rigs, Club386 pairs AMD’s Ryzen 9 9950X3D with MSI’s MEG X870E Ace Max to remove CPU limits in GPU and storage reviews. This chip combines eight cores with 3D V‑Cache for higher frame rates and another eight high-clocked cores for heavy content creation, so the processor is rarely the weak link. The Ace Max board adds PCIe Gen 5 M.2 support, fast USB, and strong power delivery, which helps expose the true behavior of cutting-edge SSDs and GPUs. According to Club386, this AM5 combo is “ideal for benching AMD’s AM5 CPUs, but also testing SSDs, peripherals, and more besides.” For your own gaming build, the lesson is clear: choose a CPU and board that won’t cap your graphics card, even if that means fewer cosmetic features.
GPU, Memory, and Storage: Building Balanced Reference Systems
A gaming PC test rig has to show how graphics cards and drives behave in sensible, balanced builds. In the PCSpecialist Storm Elite II, an Intel Core i5‑14400F sits alongside an Nvidia GeForce RTX 5070, making a mid-range gaming PC that focuses on value at full HD and QHD. That system’s 32GB of DDR5 in dual-channel form improves smoothness, even though the memory runs at 5,600MT/s with relaxed timings to keep costs under control. On the storage side, a PCIe NVMe SSD ensures loading times and asset streaming do not distort GPU results. By also maintaining separate high-end reference rigs with faster CPUs and PCIe Gen 5 slots, reviewers can see whether a component’s performance is limited by platform or by its own design. For your build, aim for the same balance: adequate VRAM, dual-channel RAM, and SSD speeds that match your gaming goals.
Case, Cooling, and Real-World Testing Conditions
The most credible gaming build methodology avoids open-air frames and instead uses fully built PCs inside normal enclosures. Club386’s latest rigs live in complete cases so they can judge graphics card cooler noise, airflow demands, and SSD thermals as you would encounter them at home. In the Storm Elite II, for example, a PCSpecialist AS‑150 air cooler with dual 120mm fans keeps a 65W Intel Core i5‑14400F in check without excess noise, while the chosen chassis and fan layout support solid thermal management. Testing components this way shows whether a GPU’s fans whine once the side panel is on, or whether an SSD throttles when it depends on case airflow. When building your own system, think in the same terms: ensure the case has good intake and exhaust paths, pick a cooler sized to your CPU, and consider how cables and adapters affect both airflow and maintenance.
Multiple Reference Builds and How to Apply This to Your PC
To keep results comparable across reviews, we rely on several fixed gaming PC test rigs instead of a single catch-all machine. High-end platforms with CPUs such as the Ryzen 9 9950X3D and feature-rich boards like the MSI MEG X870E Ace Max reveal absolute performance limits, while well-balanced systems resembling the Storm Elite II show how the same GPUs or SSDs behave in realistic mid-range builds. Using multiple reference builds means a new graphics card can be compared clearly with older ones, because every test runs on the same tightly controlled setups. For your own build, take away three priorities: pick a CPU and motherboard that will not strangle your chosen GPU, use enough dual-channel RAM and a fast NVMe SSD, and think about long-term comparability so future upgrades slot cleanly into your existing platform without guesswork.
