The A20 Pro Leak in Plain Terms: Why Buyers Should Care
The iPhone 18 Pro A20 chip refers to Apple’s next high-end mobile processor, reportedly using new WMCM packaging, faster LPDDR6 memory, and an expanded neural engine to deliver cooler sustained performance and more capable on-device AI workloads than current iPhone Pro chips, based on leaked motherboard images and early technical analysis shared online.

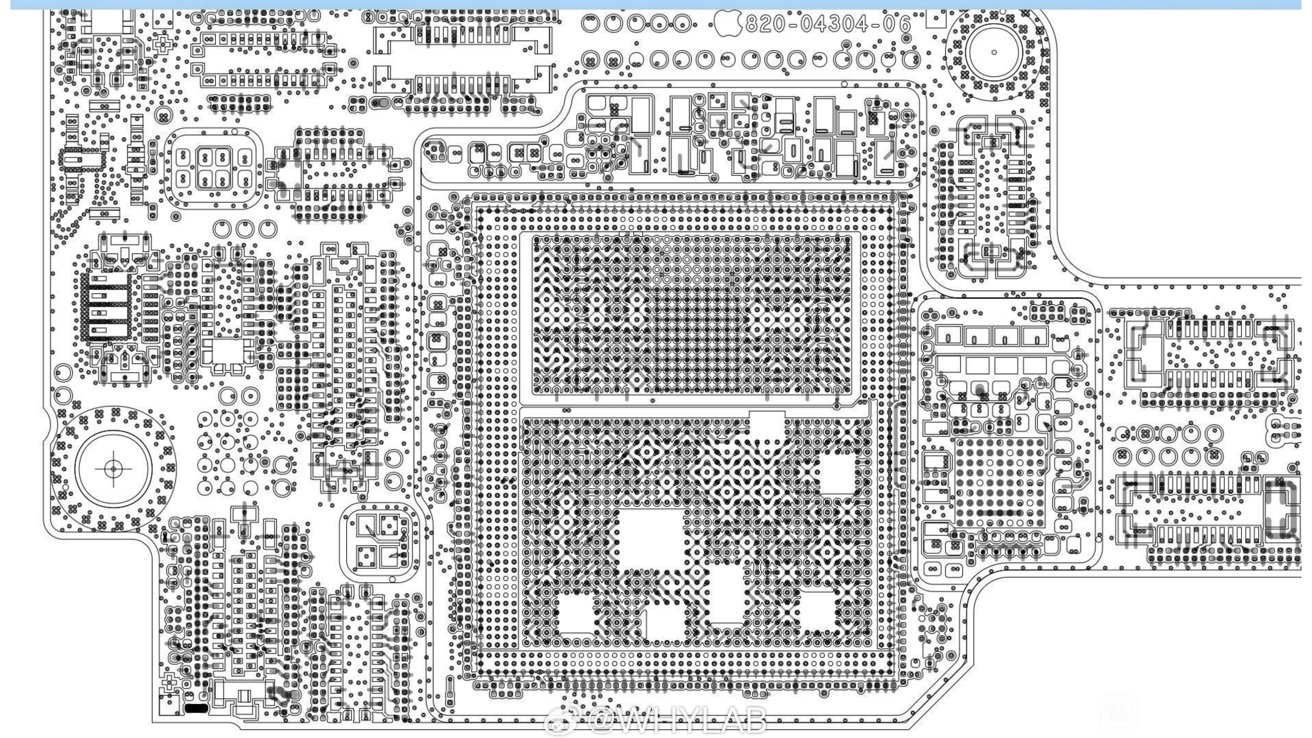

If these A20 Pro specifications hold, the takeaway is clear: this is not a cosmetic upgrade; it is Apple admitting that thermal management and AI performance now define the premium phone experience. Leaked images of an alleged iPhone 18 Pro motherboard show a redesigned package area for the A20 Pro and its surrounding connections, alongside claims that the chip will adopt a new packaging design aimed at improving sustained on-device AI performance. A supposed image of the motherboard used in the iPhone 18 Pro and Pro Max was shared on social media over the weekend, highlighting the central A20 Pro area as the main focus of attention. For buyers, that focus on the chip’s physical layout signals a shift from chasing peak benchmark numbers to chasing how long those peaks can be held without turning the phone into a hand warmer.
WMCM Packaging: The New Foundation of iPhone Thermal Management
The most important change in the iPhone 18 Pro A20 chip is not clock speed; it is how the chip is physically built. Details shared on X indicate the A20 Pro will adopt Wafer-Level Multi-Chip Module (WMCM) packaging, moving away from the traditional stack of processor and DRAM. Previously, Apple packed the DRAM on top of the application processor, which minimized latency and reduced power usage but concentrated heat generation in one small area, making the chip more prone to throttling under sustained load.
With WMCM, the DRAM sits beside the compute chiplets instead of directly above them, spreading out heat instead of turning the center of the board into a hot spot. The new arrangement is expected to create a clearer thermal path by reducing heat concentration around the CPU, GPU, and NPU, potentially allowing the chip to sustain peak performance for longer before thermal throttling. Considering that the previous iPhone Pro generation already used vapor chamber cooling to good effect, pairing that with a more thermally sensible A20 layout should produce a phone that keeps high frame rates, fast exports, and long gaming sessions without the familiar slowdown. In other words, iPhone thermal management finally looks designed for how people use these devices, not just for lab tests.
LPDDR6 Memory Upgrade: Bandwidth Over Bragging Rights
Instead of chasing headline RAM numbers, the A20 Pro leak suggests Apple is doubling down on the quality of memory. The leak points to the integration of LPDDR6 memory utilizing a 96-bit bus, a configuration that is expected to deliver significantly higher bandwidth and better overall energy efficiency compared with earlier LPDDR5 and LPDDR5X setups. Ice Universe notes that this represents a 50% increase from the 64-bit width used in previous generations, provided the frequency and efficiency of the memory are correspondingly high.
At the same time, supply chain intelligence suggests Apple plans to stick with 12GB of RAM for the iPhone 18 Pro lineup while upgrading to faster LPDDR6 memory, prioritizing bandwidth and efficiency improvements over raw capacity. That is a controversial choice for spec-sheet enthusiasts, but it is the right one for real-world performance. Faster memory access is critical for supplying data to the processor during complex, on-device workloads, from high-resolution video capture to AI photo editing, and it matters more than adding a few extra gigabytes that sit mostly idle. The iPhone 18 Pro A20 chip looks designed to move data faster, not just store more of it, which is a wiser path for a phone that doubles as an AI workstation in your pocket.
A Bigger Neural Engine: Turning Apple Intelligence Into a Daily Tool
Where the leak becomes genuinely exciting is the neural engine. The most prominent reported change is a noticeably expanded Neural Processing Unit on the 2-nanometer A20 Pro, even though the total die size is said to remain roughly identical to the current A19 Pro. There are improvements made to the NPU area, with the segment described as massively expanded compared to previous generations, meaning it will be more useful for on-device AI processing than ever before.
A larger NPU suggests Apple is placing greater emphasis on local compute power to support next-generation Apple Intelligence features rolling out across the ecosystem, so tasks such as instant language translation, semantic photo searches, advanced Siri reasoning, and other AI-powered features can be handled locally instead of leaning on cloud servers. For users, that should mean faster responses, better privacy, and fewer moments where AI features stall because reception is poor. It also hints that future iOS updates will treat the A20 Pro as a baseline for richer AI experiences, effectively turning the iPhone 18 Pro into the default device for people who expect their phone to understand context, intent, and content in real time.
What These Leaks Signal About the Next iPhone Generation
Apple is said to be just months away from introducing its iPhone 18 Pro and iPhone 18 Pro Max, and leaks around the A20 Pro continue to surface. Recent reports tie some of these diagrams and data sheets to a factory breach that included logic board designs for the iPhone 18 Pro as well as A20 Pro documentation, though the exact provenance of every image remains unconfirmed. Regardless of origin, the pattern is consistent: WMCM packaging, a LPDDR6 memory upgrade, and a much larger neural engine all point in the same direction.
The iPhone 18 Pro A20 chip appears designed not only to run faster but to stay fast under pressure and to push more of Apple Intelligence on device. A motherboard leak demonstrates that a new production technique has been used to make the A20 Pro in the iPhone 18 Pro, and observers now expect impressive performance and a cooler running iPhone as a result. The total die size staying close to the A19 Pro while being rearranged for better thermal paths and AI throughput shows Apple is rethinking architecture, not just scaling it. As more details emerge, buyers should track how these design choices translate into sustained performance, smarter features, and everyday reliability—because that, not the spec sheet alone, is what will define this generation of iPhone. For ongoing updates, you can follow the outlets sharing these leaks as the launch window approaches.
