From Incremental Uplift to Full Architecture Reset

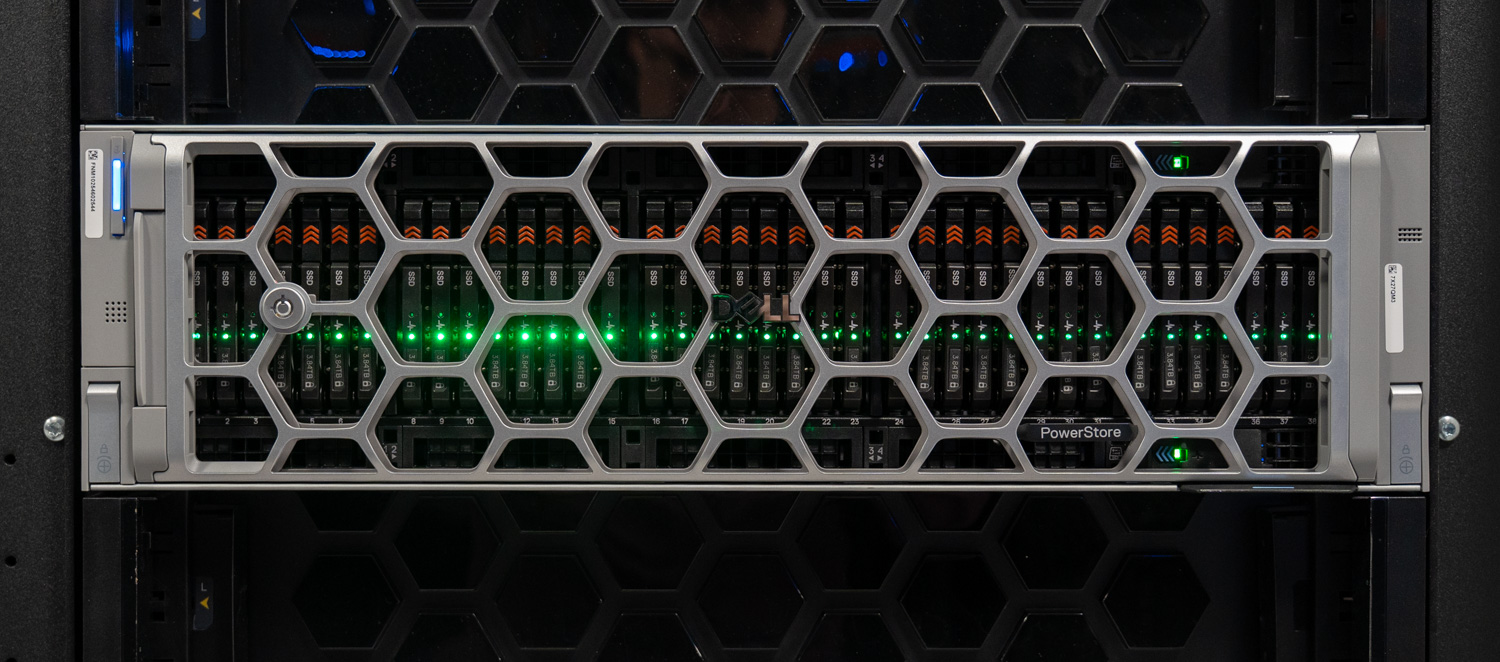

Dell’s PowerStore Gen 3 storage platform marks a clear break from routine refresh cycles. Instead of a simple CPU bump, Dell has rebuilt the unified array from the chassis up, targeting AI data center infrastructure that demands higher performance, density, and longevity. The new 3U dual-node design, branded as PowerStore Elite, is engineered for a decade of service life and modular, in-place controller upgrades rather than forklift swaps. Every major subsystem—drives, interconnects, cache architecture, and the management plane—has been rethought to support scale-out block and file services in a single appliance. This architectural reset is positioned as a foundation for continuous lifecycle extension, allowing Gen 1, Gen 2, and Gen 3 appliances to coexist in one cluster while workloads move non-disruptively. For enterprises planning multi-year AI and high-performance refreshes, PowerStore Gen 3 signals Dell’s intent to make storage a long-lived, upgradeable platform instead of a disposable asset.
40 E3.S Enterprise NVMe Bays in a 3U Chassis
Storage density sits at the center of PowerStore Gen 3’s value proposition. The new chassis supports up to 40 E3.S NVMe bays in just 3U, with planned support for E3.L, and reserves no slots for dedicated cache drives—every bay is available for user data. This represents a major leap in high-density flash storage, aligning directly with AI training and inference pipelines that must keep massive datasets close to compute. Dell has moved the platform to next-generation Intel processors (Sapphire Rapids–class), DDR5 memory, and end-to-end PCIe Gen5 connectivity, aided by OCP 3.0 I/O modules that replace proprietary SLIC cards. The result is a denser, more flexible fabric for storage-class memory, NVMe drives, and network interfaces. For enterprises consolidating multiple arrays into fewer, more capable systems, the combination of 40 enterprise NVMe bays and modern PCIe Gen5 architecture offers a clear path to shrinking physical footprints while expanding capacity and performance headroom.
200GbE RDMA Fabric for AI-Era Performance and Latency
To keep pace with AI workloads that are increasingly bottlenecked by data movement, Dell has overhauled PowerStore’s inter-node connectivity. The dual-socket PowerStore 5500 and 9500 models use a 200GbE RDMA fabric between controllers, with a roadmap to higher speeds via future I/O card upgrades. The single-socket PowerStore 1500 starts with 100GbE RDMA and is designed to scale to the same 40-drive, 200GbE configuration through a controller swap. This fabric, decoupled from the CPU generation, is built to deliver sub-millisecond latency and high-bandwidth data movement for AI training, inferencing, and mixed enterprise workloads. PowerStoreOS 5.0 adds new autonomous data path intelligence, log-structured metadata, and dynamic resource sharing between block and file services to fully exploit the 200GbE RDMA fabric. Together, these enhancements transform the array into a low-latency data hub that can consistently feed GPUs and CPU-intensive analytics without saturating inter-node links or sacrificing resiliency.
QLC, FDP, and High-Density Flash for AI Workloads
PowerStore Gen 3 is designed to embrace high-capacity QLC flash without forcing customers into separate performance tiers. All Gen 3 appliances support both TLC and QLC media within the same model, with no performance penalty for choosing QLC in suitable workloads. PowerStoreOS 5.0 introduces log-structured metadata and unaligned deduplication, plus enhanced compression offloads, enabling Dell to raise its data reduction guarantee to 6:1 and improve endurance for large-capacity drives. In parallel, Dell’s collaboration with Kioxia on a 2U PowerEdge R7725xd server loaded with 40 E3.L LC9 Series PCIe 5.0 SSDs—each up to 245.76TB—demonstrates how Gen5 QLC with advanced features like Flash-Determined Partitioning (FDP) can scale to 9.8PB of flash. These high-density, read-optimized platforms are well suited to AI data lakes, training repositories, and inference caches, delivering cost-effective scaling while still providing the bandwidth and latency profile modern AI pipelines require.
An AI-Ready Portfolio: Storage, Compute, Cyber Resilience, and Automation
PowerStore Gen 3 lands as part of a broader Dell initiative to align AI data center infrastructure around performance, density, and operational simplicity. Alongside PowerStore Elite, Dell’s 18th-generation PowerEdge portfolio targets AI and HPC with higher consolidation ratios and both air- and liquid-cooled designs. The PowerEdge M9825, for example, pairs 6th Gen AMD EPYC processors with liquid cooling in integrated racks for thermally demanding AI deployments. On the protection side, expanded PowerProtect and cyber-recovery integrations aim to harden AI pipelines against ransomware while leveraging PowerStore’s I/O-level telemetry groundwork for future inline threat detection. Finally, an extended automation stack for private cloud and distributed environments is designed to unify deployment, scaling, and lifecycle management. Taken together, these moves position PowerStore Gen 3 not as an isolated array, but as a core building block in a tightly coupled, AI-optimized infrastructure spanning compute, storage, resilience, and orchestration.
