How New Transducer and Waveguide Designs Are Raising the Bar
Professional audio transducers are the electromechanical devices that convert amplifier power into acoustic energy, and recent OEM speaker driver and waveguide technology breakthroughs are reshaping how venue audio systems balance sound quality, coverage, size, and installation flexibility. Instead of accepting old compromises between enclosure depth, directivity control, and frequency response, leading manufacturers are pairing new low-frequency motor designs with advanced high-frequency waveshaping. The aim is clear: deliver higher fidelity at higher output, while making systems easier to install in challenging spaces such as low-ceiling venues, tight under-balcony zones, and architecturally sensitive rooms. New patents in moving‑magnet subwoofers, tweeter exits, and line-array waveshapers show a shift toward fully engineered ecosystems rather than isolated components. For installers and venue operators, that means more predictable coverage, cleaner bass with fewer rattles, and less structural work to make the sound system disappear into the architecture.
Powersoft MM-Force: Low-Frequency Power in an Ultra-Shallow Package

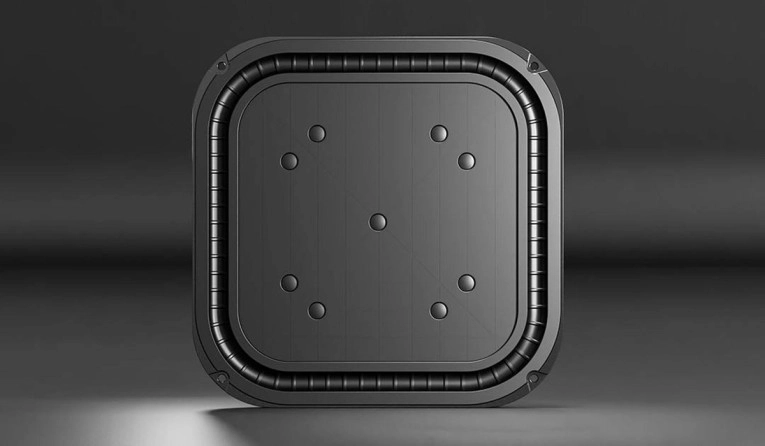

Powersoft’s MM-Force highlights how far OEM speaker drivers have come at the low end. MM-Force is a patented low-frequency moving‑magnet design with a profile under 80 mm deep, available in 8-inch and 10-inch formats. That ultra low-profile geometry allows subwoofers to fit where structural standards would typically rule them out, such as within slim wall cavities or furniture-grade enclosures. The driver uses a dual coil layout and a square carbon fiber reinforced polymer piston to maximize radiating area within its compact footprint. In MM-Force, the moving elements are engineered to counteract each other’s motion, enabling what Powersoft describes as vibrationless operation at the transducer itself. According to Powersoft, this lets even single‑driver boxes work without extra bracing or damping, opening the door to compact, self-contained subwoofers for fixed installs, portable systems, and space-limited automotive applications that previously had to compromise on low‑frequency impact.
Waveguide Technology and Lensguide: Shaping Sound for Complex Rooms
On the high‑frequency side, Celestion’s Lensguide waveguide technology shows how advanced modeling is changing loudspeaker design. Waveguides and horns for line arrays have long aimed to improve coverage, directivity, and phase behavior, but historically depended on iterative prototyping and experience-based tuning. With Lensguide, Celestion uses detailed simulation, including mode‑matching and edge‑diffraction models, to predict how energy behaves from throat to mouth. The result is a next-generation waveguide approach that targets optimized frequency response and directivity over a much wider band than conventional horns, particularly for large venue audio systems. Lensguide is designed to correct flaws typical in classic waveguide geometries, supporting ultra‑wide dispersion and more even audience coverage. For installers, this means fewer "hot" and "dead" spots, more consistent tonal balance across seats, and less time spent compensating for horn quirks with complex DSP or awkward cabinet angles.
Planar eXit and PXT6000: New Thinking in Tweeter and Waveshaper Design
Celestion’s Planar eXit Technology (PXT) takes waveshaping a step further with the PXT6000 rectangular exit compression driver. Traditional slot and rectangular exits have promised better coupling to rectangular waveguides and line-array style cylindrical wavefronts, but complexity in phase plug and acoustic matching kept them niche. PXT reworks the “fundamental anatomy of a conventional waveshaper” using advanced mathematical modeling to balance frequency response and controlled directivity. The PXT6000 creates a highly coherent rectangular pressure wave from a deep‑drawn titanium diaphragm, which offers more uniform thickness and lower distortion. A cast aluminum waveshaper and a slim 165 mm x 20 mm exit improve acoustic loading, helping deliver smoother off‑axis behavior and more natural sound from a single driver‑waveguide assembly. In practical terms, system designers gain finer control over high‑frequency coverage with fewer drivers, reducing array weight and simplifying rigging and alignment.
What These Innovations Mean for Installers and Venue Operators
Taken together, MM-Force, Lensguide, and PXT6000 show how professional audio transducers are evolving into tightly integrated systems tuned for real-world installations. Ultra‑shallow moving‑magnet subdrivers enable credible bass in spaces that previously could not host subwoofers, while their vibration‑cancelling operation cuts down on structural noise, wall buzz, and the need for heavy reinforcement. At the top end, sophisticated waveguide technology and patent-backed tweeter exits improve directivity and tonal consistency, so installers can meet coverage targets with fewer boxes and gentler EQ. These advances directly address demands for higher fidelity, durability in harsh environments, and more flexible mounting options. For venue operators, the benefits show up as clearer speech, more even music coverage, and visually unobtrusive systems that integrate with architecture instead of fighting it, raising expectations for how installed venue audio systems should perform.
