Verdict: Trust Measurements, Not Stiffness Specs
Turntable isolation stands are support systems designed to reduce how much vibration from floors, furniture, and the air reaches the platter, tonearm, and cartridge, with the goal of preserving vinyl playback fidelity by keeping the stylus as stable as possible during music reproduction. In light of the first comprehensive vibration study on lightweight decks, my bottom-line verdict is blunt: you should no longer choose turntable support systems based on stiffness specifications or marketing claims alone. Published stiffness numbers failed to predict how any of the supports actually performed, and one popular low‑stiffness rope isolator increased vibration at the cartridge instead of reducing it. Steel springs emerged as the only option that delivered strong, consistent vibration isolation performance across the measured range. For buyers, that means function must come before form. Beautiful rigid racks such as the Cyntaf, with their constrained layer damping and heavy materials, are excellent for equipment stability and sonic focus, but they do not replace dedicated spring isolation under the turntable when structural vibration is the main enemy.
Inside the Vibration Study: Six Supports, One Clear Winner
The peer‑reviewed experiment finally put six turntable support systems under controlled, repeatable stress. Researchers used a lightweight deck under 10 kg with its motor off, then struck the surface beneath it using a Norsonic Nor277 tapping machine to simulate footsteps and furniture movement. Four matching supports sat under the corners, and only the support material changed: rigid blocks, factory feet, Sylomer SR11 elastomer pads, ISOTOP MSN 1 KTL steel springs, an AMC WireRope Type B round‑rope isolator, and a PGFUN TR0‑25 line‑rope isolator. Accelerometers on the supporting surface, chassis, plate, tonearm, and cartridge recorded how each impact travelled through the structure. For every configuration, five impacts were averaged, yielding more than 2,000 spectra across 2–100 Hz. Those transfer functions exposed how tightly the deck followed the floor. Industrial steel springs provided the strongest and most consistent isolation of the six setups tested on one lightweight turntable exposed to vertical vibration from footsteps and furniture movement.
| Support type | Key characteristic | Headline result |
|---|---|---|
| Factory feet | Rigid, built-in | Little useful isolation; deck follows floor motion. |
| Sylomer SR11 pads | Elastomer, 20.1 N/mm stiffness | Moderate isolation, less consistent than springs. |
| ISOTOP MSN 1 KTL springs | Steel springs, 1.8 N/mm stiffness | Strongest and most consistent attenuation across 2–100 Hz. |
| AMC WireRope Type B | Round rope isolator, 9.1 N/mm stiffness | Some isolation but inferior to springs. |
| PGFUN TR0-25 | Line rope isolator, 1.9 N/mm stiffness | Increased vibration at the cartridge across most of the range. |
Why Stiffness Specs Mislead and One Rope Design Failed
On paper, the study’s most surprising result is how poorly theoretical stiffness predicted real‑world vibration isolation performance. Published dynamic stiffness figures suggested all isolators would resonate between 3.8 and 5.2 Hz, so meaningful isolation should have started around 8 Hz. In practice, clear attenuation did not appear until closer to 10 Hz on the assembled turntable, and the ranking of supports did not follow the stiffness chart at all. Softer elements did outperform stiffer ones, but only when their compliance worked with the deck’s mass and geometry. The winning steel springs had a dynamic stiffness of 1.8 N/mm and allowed the turntable to move more independently of the floor, effectively "floating" above incoming vibration. The PGFUN TR0‑25 line‑rope isolator, with a near‑identical stiffness of 1.9 N/mm, produced almost the opposite outcome at the cartridge, increasing vibration across nearly the entire measured range. That failure shows that complex rope geometries, internal friction, and mounting details can undermine promising numbers, and why stiffness alone is a poor buying guide.
Rigid Racks, Springs, and Vinyl Playback Fidelity

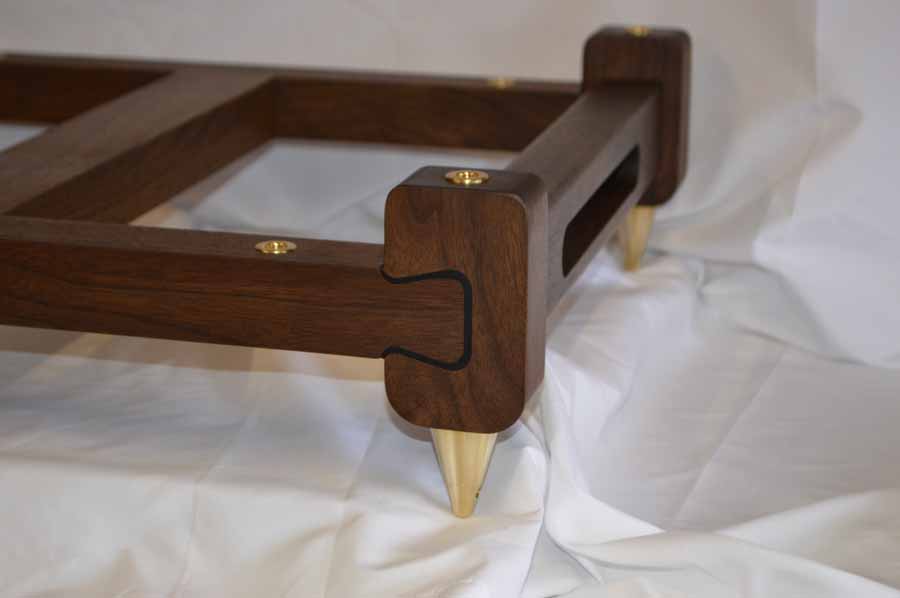

Rigid HiFi racks and spring isolators solve related but different problems. There are generally two types of HiFi stands: those with rigid coupling to keep equipment firmly in place and sharpen bass and timing, and those using elastomer or sprung support to give a cleaner, more open soundstage. The Cyntaf stand is firmly in the first camp. It uses a sandwich of 20 mm slate, 1.5 mm code‑4 lead sheet, and a 9.5 mm Birch plywood base to hold components as still as possible, combined with brass pins, sockets, and coned feet chosen for their density and damping over stainless steel. This constrained layer damping scheme is tuned to deal with air‑ and ground‑borne vibrations, and to tame resonances from the electronics themselves. In listening, that rigid stability pays off: CD playback sounds tighter and more focused, the turntable is quieter and more confident, and lower bass is extended and more assured. The science study adds an extra layer: the strongest isolation from steel springs showed particularly good attenuation between 8–15 Hz and 32–64 Hz, overlapping the tonearm‑cartridge resonance region where transmitted movement most easily excites the system. That suggests well‑designed spring supports can further protect vinyl playback fidelity beyond what rigid racks achieve, even though the experiment did not prove audible superiority over premium platforms.
How to Choose Effective Turntable Supports
Taken together, the study and the Cyntaf rack review point to a practical strategy: pick your turntable isolation stands based on measured behaviour and clear design intent, not numerical stiffness alone. Steel springs with known dynamic stiffness and proper loading have demonstrated the strongest and most consistent isolation in a controlled experiment, especially in the troublesome 8–15 Hz band that interacts with tonearm‑cartridge resonance. Rope isolators and generic elastomer pads can work, but the PGFUN TR0‑25 line‑rope example shows that even theoretically similar stiffness can translate to worse isolation and more vibration at the cartridge. For many systems, a hybrid approach makes sense: place your turntable on a high‑quality rigid rack like the Cyntaf to stabilise the equipment and control airborne and electronic resonances with its slate‑lead‑plywood sandwich and brass coupling, then add a tuned spring platform under the deck for structural vibration isolation. Because the experiment did not establish whether spring supports audibly outperform premium platforms during playback, you should audition where possible and focus on demonstrable improvements in noise, tracking stability, and bass clarity, rather than on spec sheets alone.
- Buy the turntable isolation stand if you want proven vibration isolation performance over the 2–100 Hz range and are willing to prioritise measured behaviour over stiffness numbers.
- Skip the turntable isolation stand if you rely solely on published stiffness specifications and do not plan to validate how the support behaves under your deck.
- Buy the MW Stands Cyntaf HiFi rack if you value rigid coupling, tighter CD playback focus, quieter and more confident turntable behaviour, and more extended low bass.
- Skip the MW Stands Cyntaf HiFi rack if your main problem is footfall‑induced vibration, where dedicated spring isolation under the turntable offers stronger attenuation than rigid support alone.
- Buy the turntable isolation stand if your tonearm‑cartridge system is sensitive to low‑frequency structural vibration and you want extra protection in the 8–15 Hz resonance region.
- Skip the turntable isolation stand if your listening room has solid floors, minimal structural vibration, and you already use a high‑quality rack that keeps equipment stable.
