What Zeiss Horizon Anamorphic Is and Why It Matters

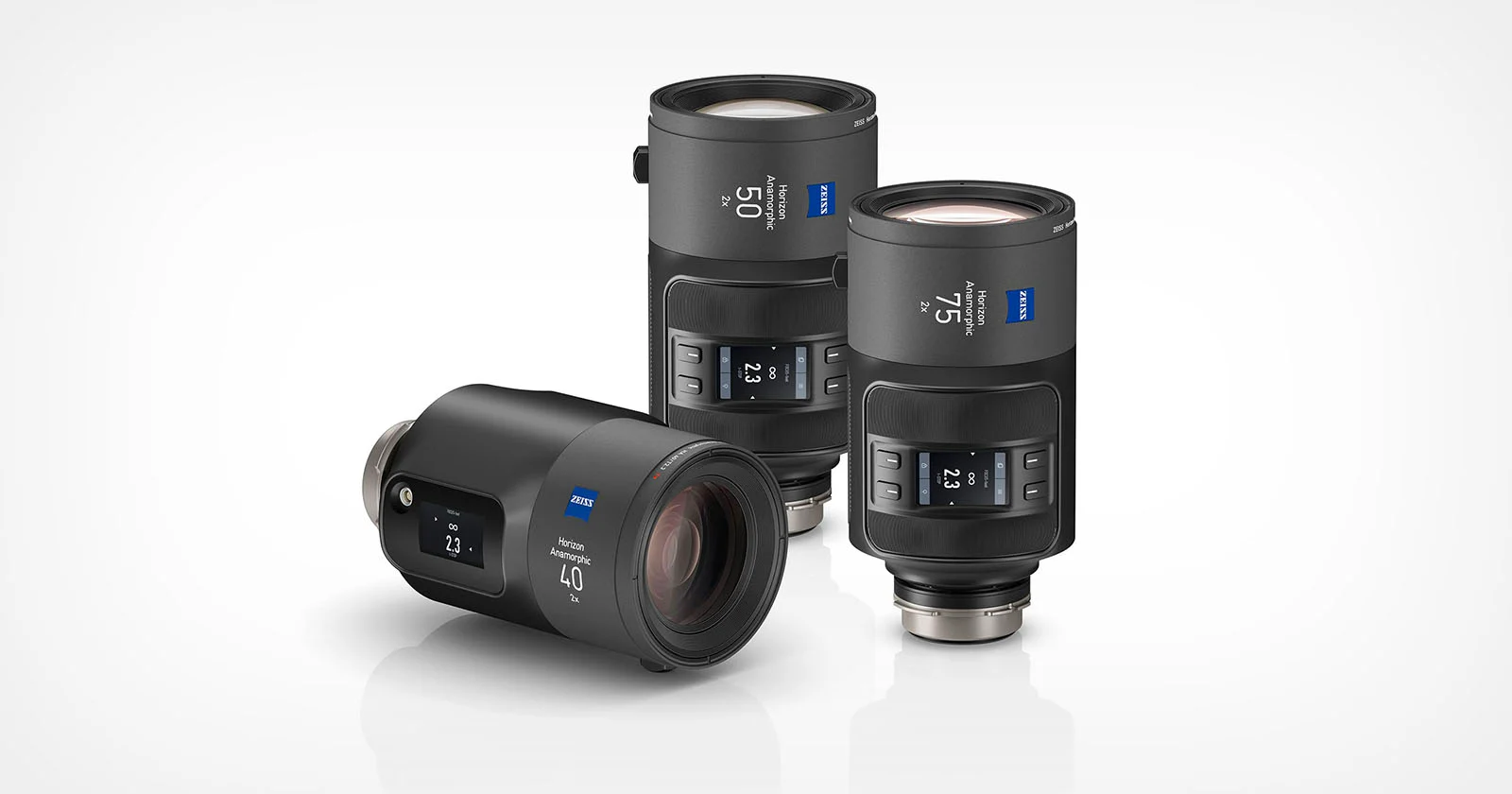

Zeiss Horizon Anamorphic is a new family of full‑frame 2x anamorphic cinema lenses that combines classic widescreen optical character with built‑in motorized focus and iris control plus swappable rear “look” elements, creating a modular platform aimed at modern, data‑driven production workflows. Unlike traditional anamorphic cinema lenses that are optically and mechanically fixed, Horizon is conceived as a technology base as much as a lens set. The seven primes span 35mm to 200mm and are designed to deliver pronounced oval bokeh, a stretched sense of depth, and shallow‑focus anamorphic rendering at T2.3 across most of the range (T2.9 at 200mm). Zeiss positions the series with a deliberately neutral baseline: clean, low‑distortion anamorphic cinema lenses that accept filtration, LUTs, and lighting styles without baking in a heavy signature, so the look can be shaped on set and in post.
Integrated Motorized Focus Control and Data-Rich Operation

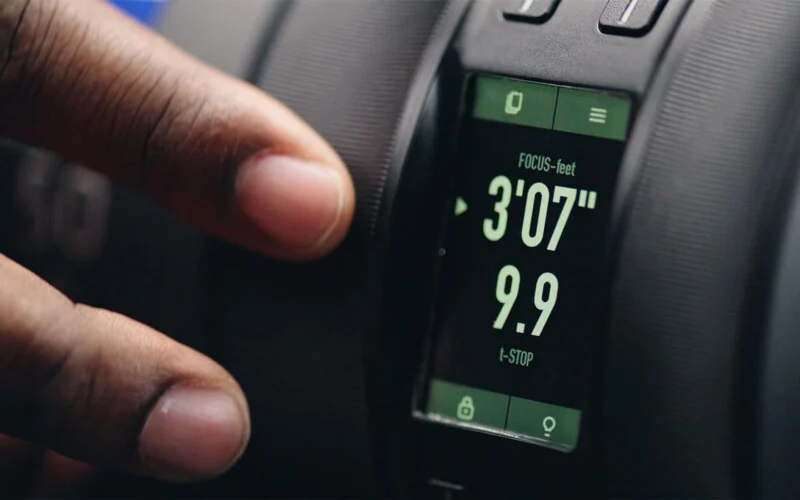

The defining mechanical shift with Zeiss Horizon lenses is their integrated motorized focus and iris system. Whisper‑quiet motors live inside the lens body, so camera teams no longer need bolt‑on units for motorized focus control. According to Zeiss, these motors talk directly to ARRI and Preston lens control systems via serial or LBUS, dropping the lenses straight into existing wireless focus ecosystems. Factory‑calibrated absolute encoders store all scales in the lens itself, creating a single, consistent metadata source and removing the need to re‑map gears when switching lenses or rigs. Dual displays and touch panels on the barrel show live focus distance and T‑stop readouts and let operators tap through settings without extra hardware. For studio crews and high‑end indies, this means faster lens swaps, cleaner rigs for gimbal or drone work, and more reliable lens data for VFX and virtual production.
Swappable Look Elements: A Modular Take on Anamorphic Character
Optically, Horizon introduces a swappable “look‑tuning” back element that lets cinematographers change the rendering of the 2x anamorphic glass without replacing the entire lens. This proprietary element, mounted via the Zeiss Interchangeable Mount System, can be swapped by removing eight screws. Changing this rear group adjusts sharpness, contrast, and overall micro‑contrast character while preserving scale accuracy and calibration, so assistants do not need to rebuild lens maps each time the look changes. The lenses ship with a neutral, sharp starting point that can be pushed toward softer, lower‑contrast aesthetics through these swappable lens elements or through external filtration. For indies, this promises more looks out of a single set of anamorphic cinema lenses; for studios, it means the same focal length can serve multiple visual treatments within one production without expanding the lens truck.
Designed for Both Indie Agility and Studio-Scale Workflows
While Horizon is pitched at high‑end productions, the design choices clearly aim at both independent filmmakers and large crews. All seven Zeiss Horizon lenses share a 114mm front diameter and comparable weights to Zeiss Master Anamorphic 2x primes, which helps balance handheld, gimbal, drone, crane, and car‑rig setups with predictable center of gravity. Focal lengths from 35mm to 200mm cover wide establishing shots through tight portraits in a single full‑frame 2x anamorphic system. Low distortion, stable color, and minimized aberrations make them suitable for VFX‑heavy work that demands clean keys, tracking marks, and CG integration. Built‑in processing and onboard memory are intended to support future features such as expanded metadata, broader ecosystem support, and potential autofocus, signaling that Horizon is a platform that can evolve as both indie and studio workflows become more automated.
How Horizon Compares to Traditional Anamorphic Cinema Lenses
Traditional anamorphic cinema lenses tend to lock in both mechanical behavior and optical personality: focus is driven by external motors, and the lens’s character is fixed by its glass and coatings. Horizon disrupts this model by combining 2x anamorphic glass with integrated motors, rear swappable lens elements, and data‑centric electronics. Christophe Casenave of Zeiss describes Horizon as “a new reference platform that integrates lens motors, data and ecosystem compatibility” rather than a one‑off lens line. For cinematographers, this means one set of Zeiss Horizon lenses can adapt between neutral, clean imaging for VFX plates and more expressive, tuned looks for dramatic scenes, all while feeding consistent lens data to onset and post teams. The result is a bridge between the aesthetic expectations of classic anamorphic cinema and the automated, metadata‑driven demands of current and future production pipelines.
