Specs at a Glance: Two Fanless x86 Home Servers

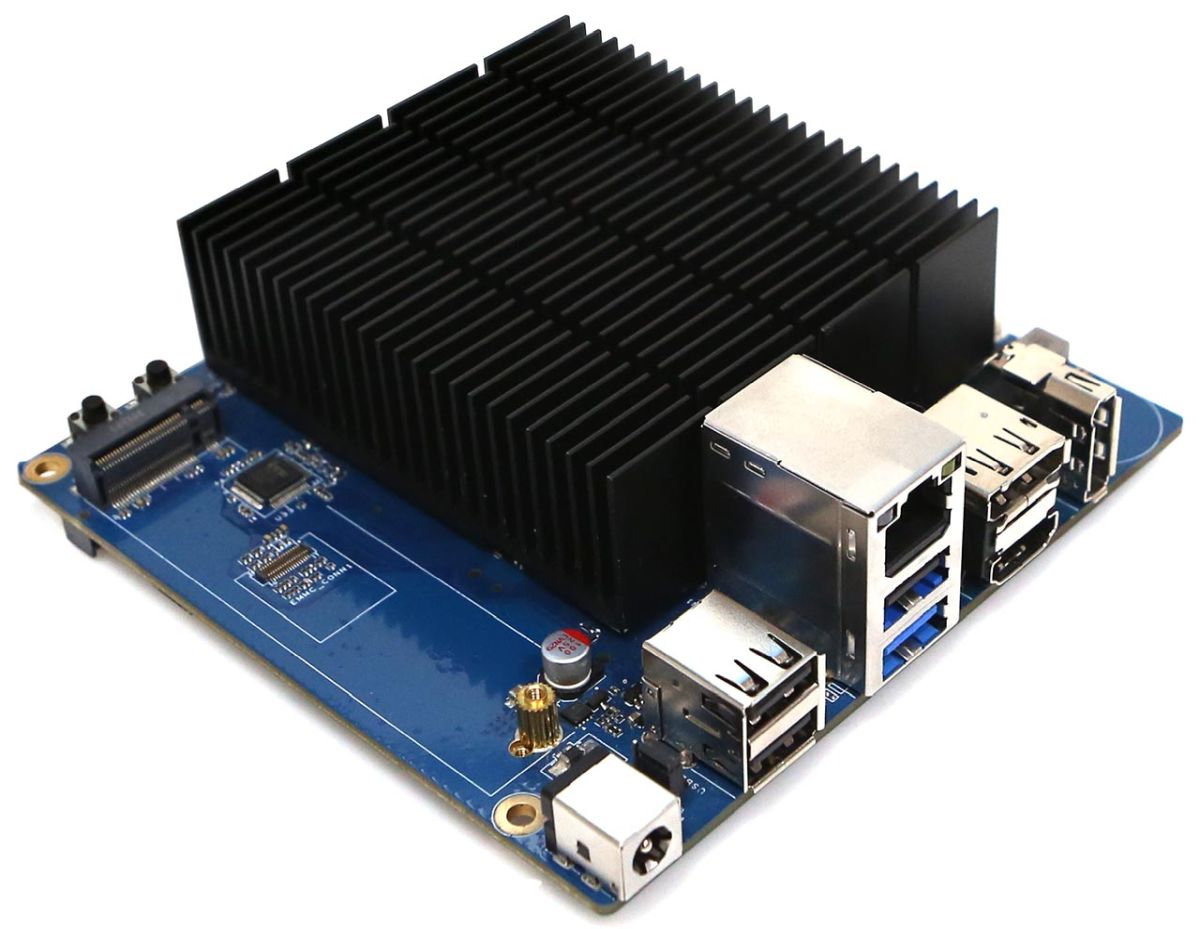

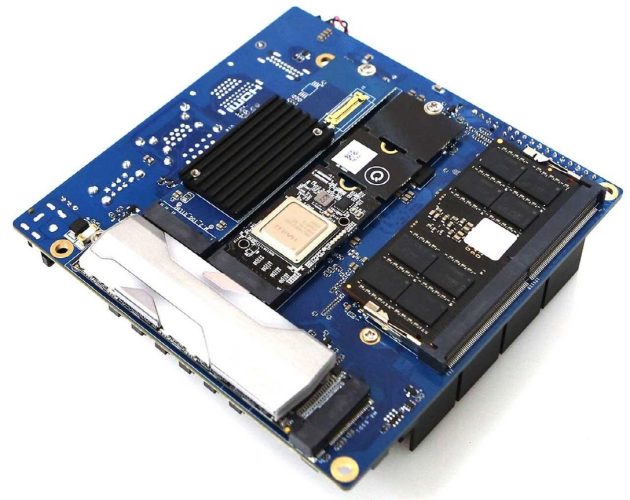

Both ZimaBoard 2 and ODROID-H5 are fanless x86 boards targeting always-on home lab and edge-server roles, but they take different routes. ZimaBoard 2 centers on Intel’s quad-core N150 with boost clocks up to 3.6 GHz and up to 16 GB of DDR5 in the 1664 configuration, wrapped in a dense aluminum heatsink chassis that doubles as a silent cooler. It brings dual 2.5 GbE, onboard 64 GB eMMC, two SATA III headers, an open-ended PCIe 3.0 x4 slot, and Mini DisplayPort 1.4 video. ODROID-H5 uses Intel’s 8‑core Core i3‑N300 Alder Lake‑N processor, tuned by Hardkernel for 24/7 operation with lower power than earlier H4 Ultra designs. Instead of SATA, it leans on four M.2 slots and a single 10 Gigabit LAN port, trading raw multi-port networking for a single, very fast uplink. Both boards are compelling fanless mini PC platforms, but with distinct philosophies.
CPU and Performance: Containers vs Heavier Virtualization
For pure CPU grunt, ODROID-H5’s Core i3‑N300 generally has the upper hand over ZimaBoard 2’s Intel N150, thanks to its 8‑core Alder Lake‑N design. Hardkernel notes that compared to the H4 Ultra’s 15 W Core i3‑N305, the N300 runs at 7 W with only a 10–15% performance drop, making it well suited to 24/7 duties while keeping thermals in check. ZimaBoard 2’s N150 remains very capable for an x86 home server: reviewers report it running stacks of Docker containers such as Vaultwarden, Uptime Kuma, n8n, and AdGuard Home without stress, even with additional automation workloads. Paired with 16 GB of DDR5 in the 1664 trim, it offers generous headroom for multiple services or light virtual machines. In a single-board server comparison, ODROID-H5 is better suited to heavier multi-core tasks and denser virtualization, while ZimaBoard 2 comfortably handles typical self-hosted services and homelab stacks.
Networking: Dual 2.5 GbE vs Single 10 GbE
Networking is where ZimaBoard vs ODROID diverges sharply. ZimaBoard 2 ships with dual 2.5 GbE Ethernet ports, giving home lab builders flexibility for soft router deployments, VLAN separation, or simple two-port NAS bonding. This makes it attractive for firewall, OPNsense, or multi-network lab scenarios, though it relies on Realtek controllers that some firewall enthusiasts treat cautiously. ODROID-H5 instead offers a single 10 Gigabit LAN connector, stepping away from the dual-port design of the older H4 Ultra. The upside is straightforward: if you need a fast backbone link to a 10 GbE switch, storage server, or editing workstation, the H5 gives you that bandwidth on-board. The downside is the lack of a second port for routing or link aggregation. In practice, choose ZimaBoard 2 for multi-port flexibility and ODROID-H5 when a single, very fast uplink matters more than port count.
Storage and Expansion: SATA and PCIe vs Four M.2 Slots
Storage strategy also separates these fanless mini PCs. ZimaBoard 2 includes 64 GB of onboard eMMC as a basic boot device, but its real strength is native storage connectivity: two SATA III ports for 2.5 or 3.5 inch drives and an open-ended PCIe 3.0 x4 slot. The PCIe slot can host GPUs, 10 GbE NICs, NVMe adapters, or accelerators, and the 1664 Starter Bundle even adds a PCIe-to-NVMe carrier plus a 2‑bay HDD rack tray to cleanly mount 2.5 inch drives. In contrast, the ODROID-H5 omits SATA and instead offers four M.2 slots for SSDs or add‑ons. While each slot is slower than the older H4 Ultra’s single PCIe 4.0 x4 connector, the sheer number of M.2 positions enables compact, cable‑free SSD arrays or specialized cards. Builders wanting traditional drives and broad PCIe expansion will favor ZimaBoard; those prioritizing dense, all‑M.2 storage will lean toward the H5.
Value and Best Use Cases for Each Board
ZimaBoard 2 1664 positions itself as a turnkey x86 home server platform. The base board is listed at USD 349 (approx. RM1,610), and the reviewed Starter Bundle that adds HDD tray, Mini DP adapter, and PCIe‑to‑NVMe carrier comes to around USD 400 (approx. RM1,850). That pricing targets enthusiasts who want a compact, silent box that can run Proxmox, TrueNAS, Debian, Ubuntu, Windows, pfSense, or the preinstalled ZimaOS with minimal compromise. Its dual 2.5 GbE, SATA, and PCIe x4 slot make it ideal for NAS, self-hosted apps, and lab routing experiments. ODROID-H5, at USD 260 (approx. RM1,200), undercuts that while offering an 8‑core Alder Lake‑N CPU, 10 GbE, and four M.2 slots, appealing to users who value bandwidth and solid-state storage density over SATA and multi-port networking. In this single-board server comparison, ZimaBoard 2 is the more versatile generalist, while ODROID-H5 is a specialist for fast, compact, SSD‑heavy builds.
