Your High-Speed SSD Is Throttled by Your Motherboard—Here's How to Fix It

Why Your Flagship PCIe Gen 5 SSD Feels Slow

Motherboard-induced SSD bottlenecks happen when a high-speed NVMe drive is installed in an M.2 slot that lacks dedicated PCIe lanes or the right PCIe generation, causing real-world performance to fall far below the drive’s advertised sequential speeds even though the SSD itself is functioning correctly and shows no obvious errors or stability issues.

If you’ve dropped serious money on a PCIe Gen 5 NVMe drive and your system still doesn’t feel “instant,” there’s a good chance the problem is not the SSD, but the way your motherboard feeds it data. Modern CPUs expose a limited number of PCIe lanes, and your GPU, primary SSD, and chipset all fight over that bandwidth. When a flagship drive rated around 14,000MB/s is routed through a shared chipset link or a lower-generation slot, it can end up running at half speed without obvious warning. This guide is for PC enthusiasts who already have, or are planning, high-end NVMe storage and want to make sure their motherboard isn’t silently throttling it.

What You Need Before You Start (And Common Gotchas)

To diagnose SSD bottleneck motherboard issues, you need only a few things: your PC, your SSD’s spec sheet or box, and two free utilities—CrystalDiskMark and HWiNFO. CrystalDiskMark lets you measure sequential read speeds and compare them against the drive’s rated numbers, while HWiNFO shows the PCIe link speed and width that your motherboard is providing to that M.2 slot. You also need access to your motherboard manual, especially the storage section that explains how each M.2 slot is wired and which ports or lanes it shares.

The biggest mistake enthusiasts make is ignoring that manual until something feels off. Many boards hide crucial lane-sharing notes in a single easy-to-miss line, such as a warning that populating a certain M.2 slot will force the PCIe x16 graphics slot down to x8 mode. Another common gotcha is assuming any M.2 slot will give full PCIe Gen 5 speeds; in reality, some slots are wired only for Gen 4 and will silently cap a Gen 5 drive at that lower ceiling. Luckily, spending five minutes with the manual before you commit to a slot—or even before buying a flagship SSD—avoids most of these compromises.

Step-by-Step: How to Detect and Fix Motherboard-Induced SSD Throttling

Here’s the practical workflow you’d use if you were standing next to a friend’s PC, trying to figure out why their new PCIe Gen 5 drive doesn’t feel any faster than the last one. Follow these steps slowly and in order; skipping ahead tends to hide the real culprit.

1. Run CrystalDiskMark and record the SSD’s sequential read speed, then compare it to the rated spec printed on the box or in the manual.
2. If the measured speed is within about 10–15% of the advertised figure, your NVMe speed optimization is already fine and you can stop here.
3. If speeds are around half, or even less than half, of the spec, open HWiNFO and locate the SSD entry to check PCIe link speed (Gen) and width (x4/x2).
4. If HWiNFO shows the drive running at a lower PCIe generation than the SSD supports or at fewer than x4 lanes, open your motherboard manual and read the storage/M.2 configuration table for that slot.

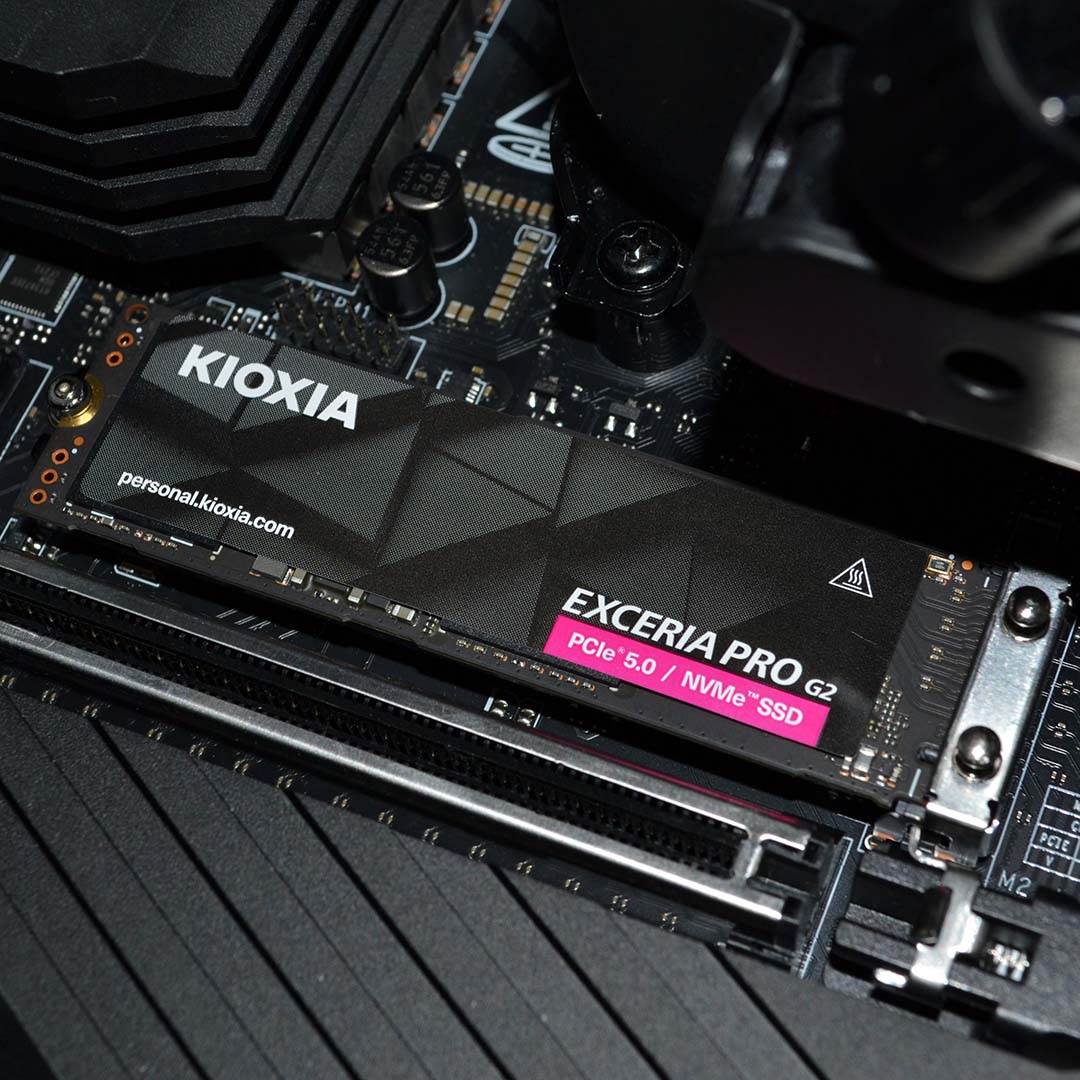

5. Identify which M.2 slot is CPU-connected and supports PCIe 5.0 x4, then power down the PC and physically move the flagship SSD to that primary slot, shifting any slower drive to a chipset-connected slot.
6. Boot back up, confirm the link speed and width again in HWiNFO, and rerun CrystalDiskMark to verify your new results are now close to the drive’s rated sequential performance.

The real “gotcha” here is that a Gen 5 drive sitting in a Gen 4 slot will behave perfectly—no errors, no crashes—while quietly negotiating down to that slot’s ceiling and running at half the interface’s potential. Likewise, an M.2 slot that shares bandwidth with SATA, USB, and networking traffic through the chipset will cap performance whenever the rest of the system is busy. Moving the drive to the CPU-connected primary slot and relegating lesser drives to secondary or chipset slots gives your fastest SSD the fastest lane, which is the core of NVMe speed optimization in high-end builds.

Recognizing When the Motherboard Is the Bottleneck

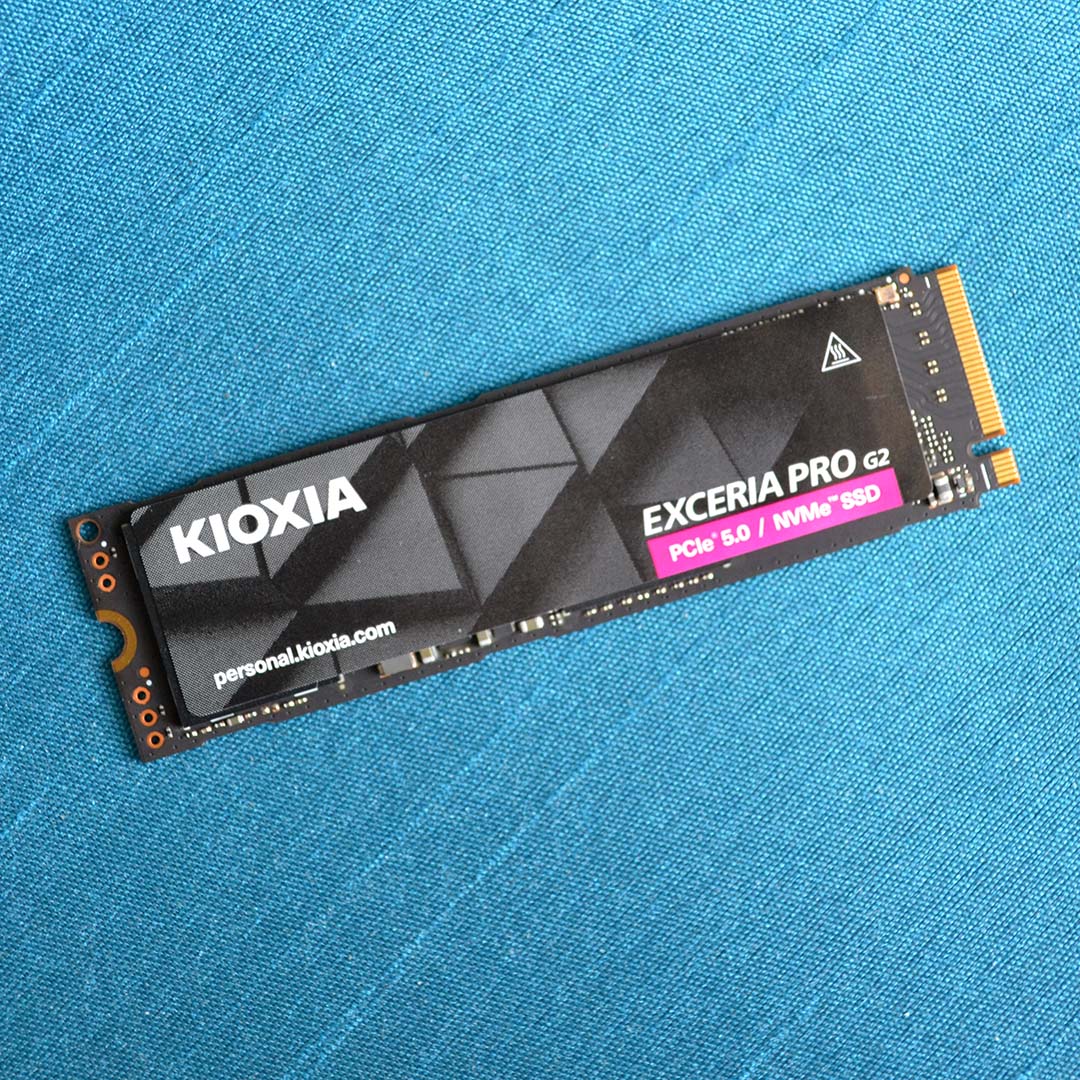

After following the step list, you’ll end up in one of two places. In the happy scenario, your CrystalDiskMark results land close to the advertized figures: for example, a 2TB PCIe Gen 5 SSD that is supposed to reach around 14,900MB/s read and 13,400MB/s write will now measure in that ballpark on a well-configured board. In this case, you can close your tools and enjoy your day, confident your motherboard isn’t throttling anything. You’ve aligned the SSD’s capabilities with the slot’s bandwidth, and the system will feel snappy across both sequential and high-IOPS workloads.

If every slot you try tops out below your SSD’s generation, or the storage table offers no way to avoid sharing bandwidth or robbing one component to feed another, the bottleneck is the motherboard itself, not your building skills. Some boards simply lack PCIe 5.0 M.2 slots, meaning a Gen 5 drive will always run at Gen 4 speeds regardless of what you do. In that situation, your options are either to accept the reduced speed—which still tends to be fast in practice—or plan a future platform upgrade that includes proper PCIe Gen 5 support. According to one in-depth review, a well-specified Gen 5 drive “delivers consistently high-speed performance across sequential and random loads, in both reads and writes, all without bothersome high temperatures,” which you only see when the board isn’t the limiting factor.

Takeaway: Check the Manual Before You Chase More Speed

For enthusiasts building high-end systems, the key lesson is simple: do your homework on the motherboard before buying a flagship SSD, not afterward. The usual question—“will my workload benefit from PCIe Gen 5 speeds?”—only matters once you know the board can feed those speeds to the drive in the first place. A quick scan of the storage section and lane-sharing notes will tell you which M.2 slot should host your fastest drive, and which ones are better for secondary or slower storage.

Is it worth the effort? If you care enough to buy a PCIe Gen 5 SSD, then yes. Five or ten minutes spent running CrystalDiskMark, checking HWiNFO, and reading the manual can uncover hidden PCIe Gen 5 throttling that cuts performance by half. Once you’ve moved the drive to the right slot, you get the speed you paid for, more responsive apps and games, and fewer nagging doubts about whether your hardware is underperforming. Watch for lane-sharing notes, generation mismatches, and chipset-routed slots—that’s where most of the nasty surprises hide.
