The Hidden Complexity Inside an iPhone Battery
iPhone battery manufacturing is a multi-stage industrial process that transforms fragile lithium‑polymer cells into smart, software‑controlled power packs through precision assembly, programmed protection circuits, and rigorous smartphone battery testing that checks capacity, safety limits, and health data before any unit is allowed to power a device. Consumers tend to treat batteries as disposable accessories, blaming them when phones feel slow or die early. That view is far too shallow. The factory tour shows an operation producing around 13 million battery cells per month, each passing through tight tolerances and repeated battery quality control gates. That scale and care are not a bonus feature; they are the reason your phone can run hot apps all day without turning into a safety hazard. If anything, the footage exposes how casually we talk about "battery life" without respecting the engineering that makes modern phones usable at all.
From Ultra-Thin Layers to a Finished Cell
The battery production process begins long before anything that looks like a familiar iPhone pack appears. Each lithium‑polymer cell starts life as dozens of folded, ultra‑thin layers assembled to microscopic tolerances, then sealed so that the chemistry remains stable and efficient over years of use. Skipping that precision would mean higher heat, faster capacity loss, and more risk. Quality control tests are already active at this stage, hunting for flaws that might cause capacity problems, heat buildup, or poor long‑term reliability. According to the factory tour footage, the site produces nearly 13 million smartphone battery cells every month, a number that makes it obvious why automation and strict checks are non‑negotiable. Calling this a “simple component” is like calling the engine of a car a metal box; it ignores the layers of design needed for stable, predictable performance.
The Brain of the Battery: Programming and Attaching the BMS

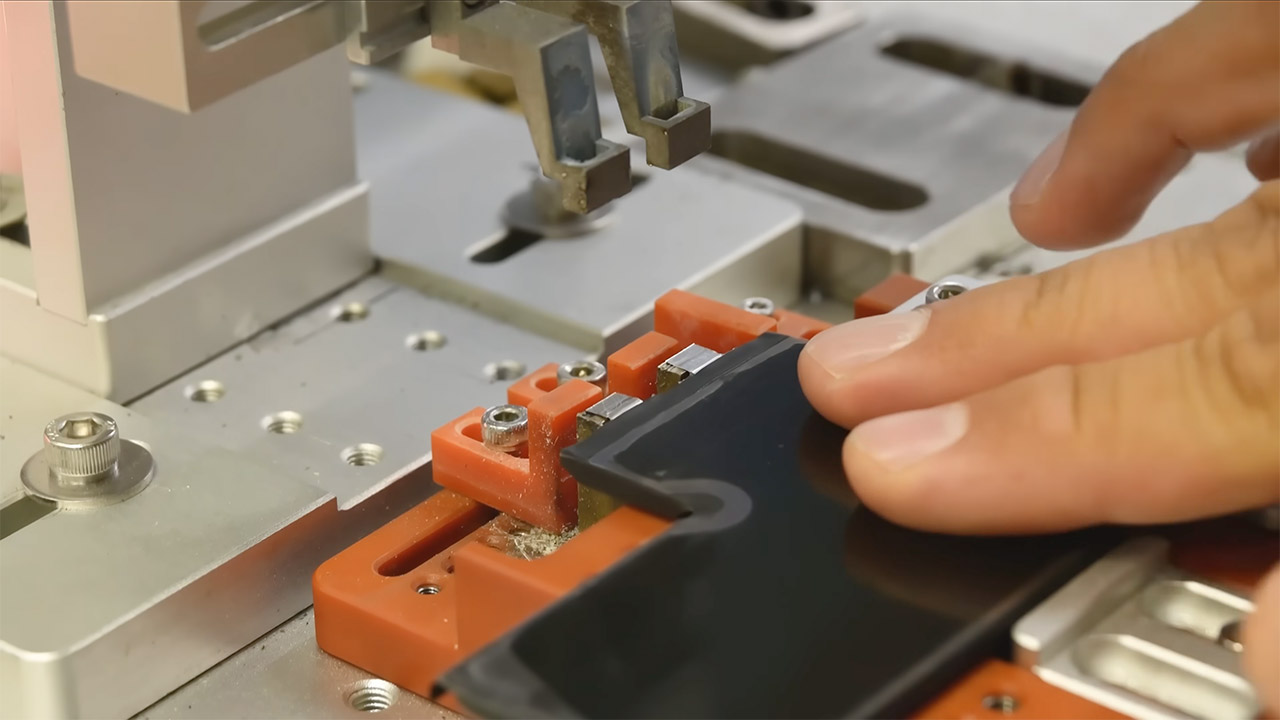

Here is where the myth of the “dumb battery” collapses. A raw cell is not safe to drop straight into an iPhone; feeding it power directly would be dangerous and unreliable at scale. In the assembly area, rows of blank Battery Management System (BMS) boards wait to be programmed. A machine inserts a contact pin and flashes firmware that protects the cell from overcharging and overdischarge, monitors temperature, and provides accurate health data to the phone. This tiny circuit is the battery’s brain, and treating it as optional is a misunderstanding. Once programmed, the BMS board and its flexible connector cable are pressed or welded onto the bare cell with tight alignment constraints so the whole pack still fits inside an iPhone’s cramped shell. Then comes careful folding of the BMS over the cell, with Kapton tape and stickers wrapped around edges to prevent short circuits and keep the board fixed in place during installation. This is precision electronics, not craft glue.
Smartphone Battery Testing: Turning Cells into Trusted Power Packs

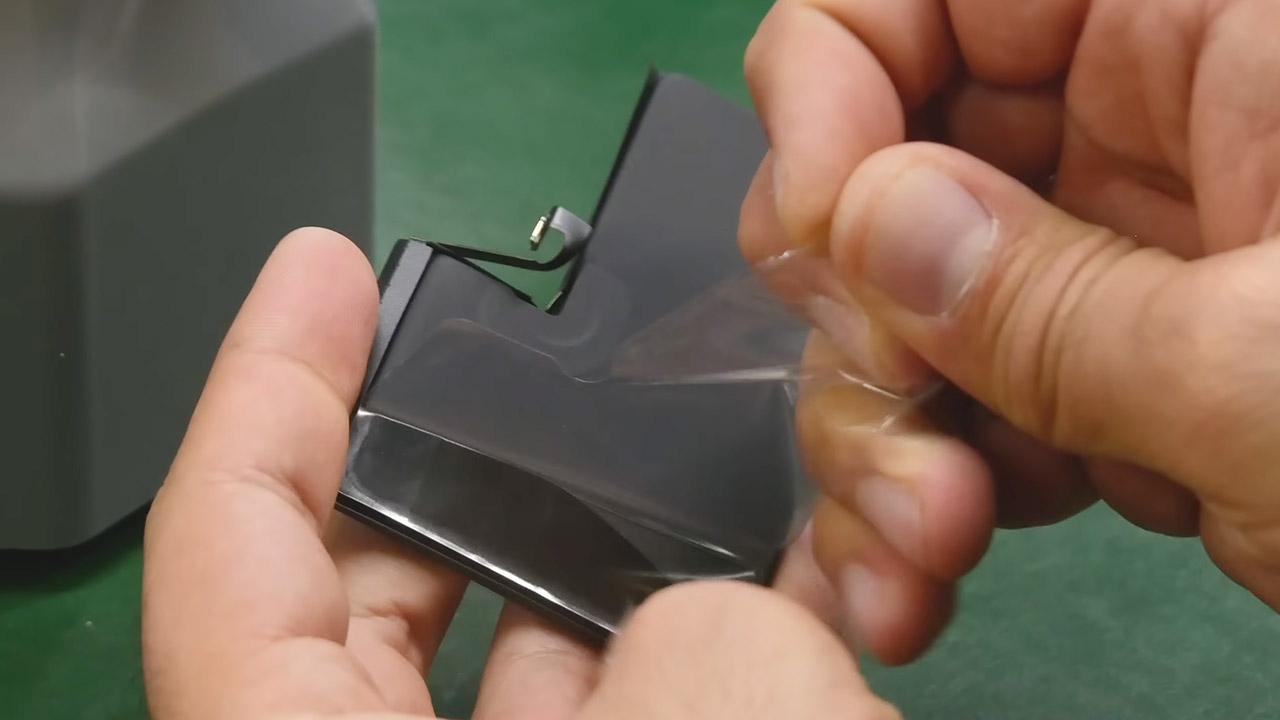

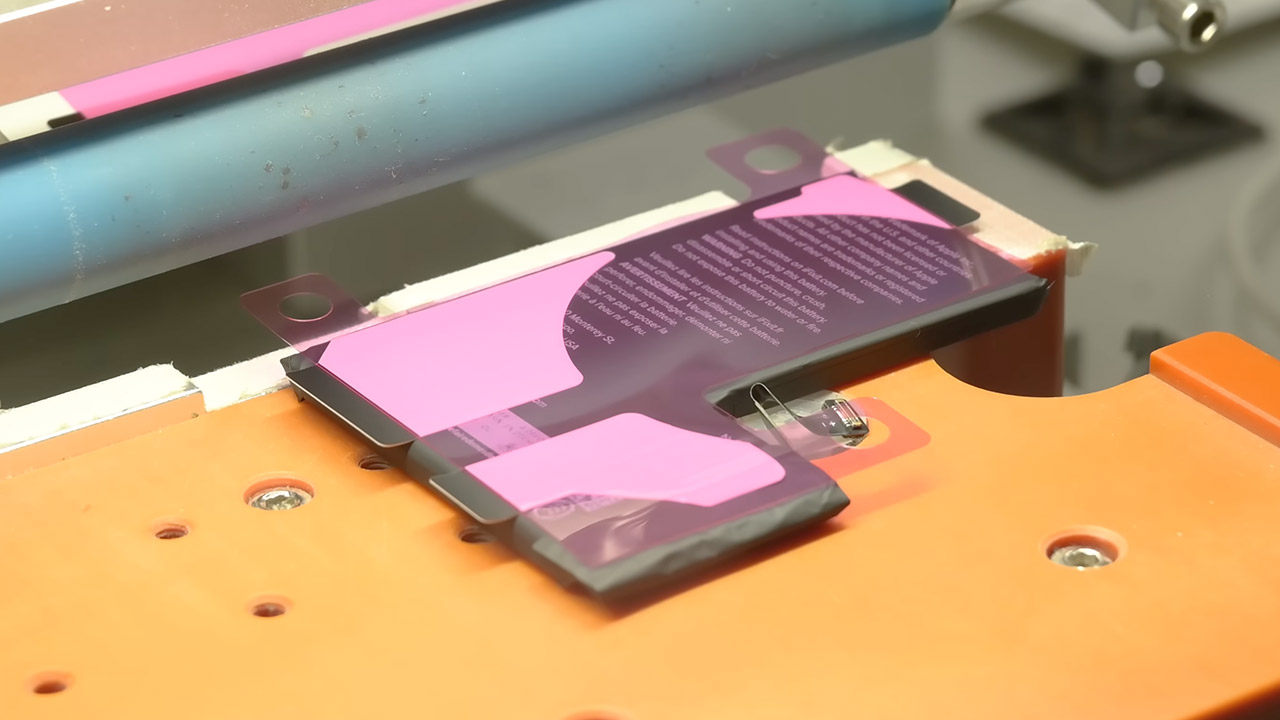

Once the protective films are peeled away and the pack is physically complete, the hard line of battery quality control begins. Dedicated diagnostic machines push each battery through a series of checks: internal impedance, overall capacity, and overcurrent safety thresholds, returning a simple pass or fail verdict. This is where theory meets reality. Any battery that fails is removed from the flow; there is no romantic second chance in mass manufacturing. The BMS is also read electronically to verify the design capacity and confirm that the initial state of health is set to 100% or slightly higher, matching strict device requirements. A technician then connects a diagnostic tool to view live data: charge level, health condition, temperature, design capacity, and actual maximum capacity straight from the BMS. Only after these tests do adhesive pull strips go on, turning the assembly into the familiar pack that can be stuck inside an iPhone and powered up without drama.
Why This Factory Detail Should Change How You Think About Batteries

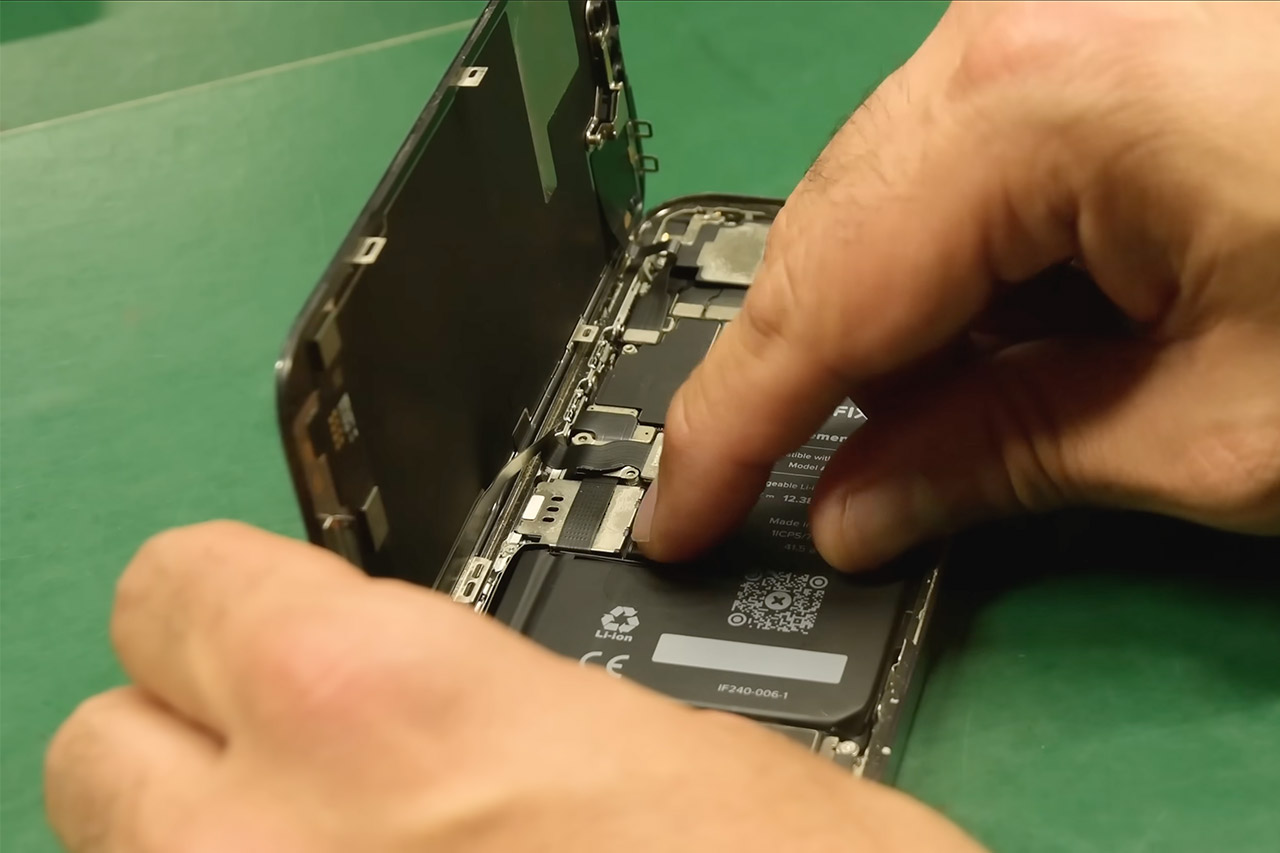

Seeing the full battery production process makes one point unavoidable: dismissing batteries as cheap, interchangeable parts is out of date. From ultra‑thin layer stacking to firmware‑driven protection and exhaustive smartphone battery testing, every step is engineered around safety, predictable capacity, and long‑term reliability. The factory footage shows that even a replacement iPhone battery goes through integration steps and quality control regimes that would look at home in any high‑end electronics line. When a completed battery is finally installed in an actual iPhone and the phone powers on smoothly, that is the culmination of thousands of micro‑decisions baked into design and testing, not a lucky outcome. If you care about device performance and longevity, treating the battery with more respect is not optional. It is the most engineered part of your phone that you never see—and the one piece that quietly decides how usable that phone feels every single day.
