From Either‑Or to In‑Between: The Rise of Range Extender Hybrids
For years, buyers were pushed into a binary choice: a full battery EV or a conventional combustion car. Many liked the smooth, quiet feel of electric driving but worried about range, slow charging, poor cold‑weather performance, and patchy public infrastructure. This is where the modern range extender hybrid comes in. Instead of using a large battery alone, these vehicles add a compact engine whose main job is to act as a generator, keeping the battery topped up and stretching total range. Suppliers such as Magna are developing dedicated systems that can run in pure EV mode around town, then switch to generator or parallel hybrid modes on the highway to improve efficiency and reduce disruptive charging stops. The idea is not to abandon electrification, but to add a practical range anxiety solution for drivers who want EV benefits without planning every long trip around fast chargers.
The Flat‑Four Range Extender That Fits Where an EV Motor Used to Be

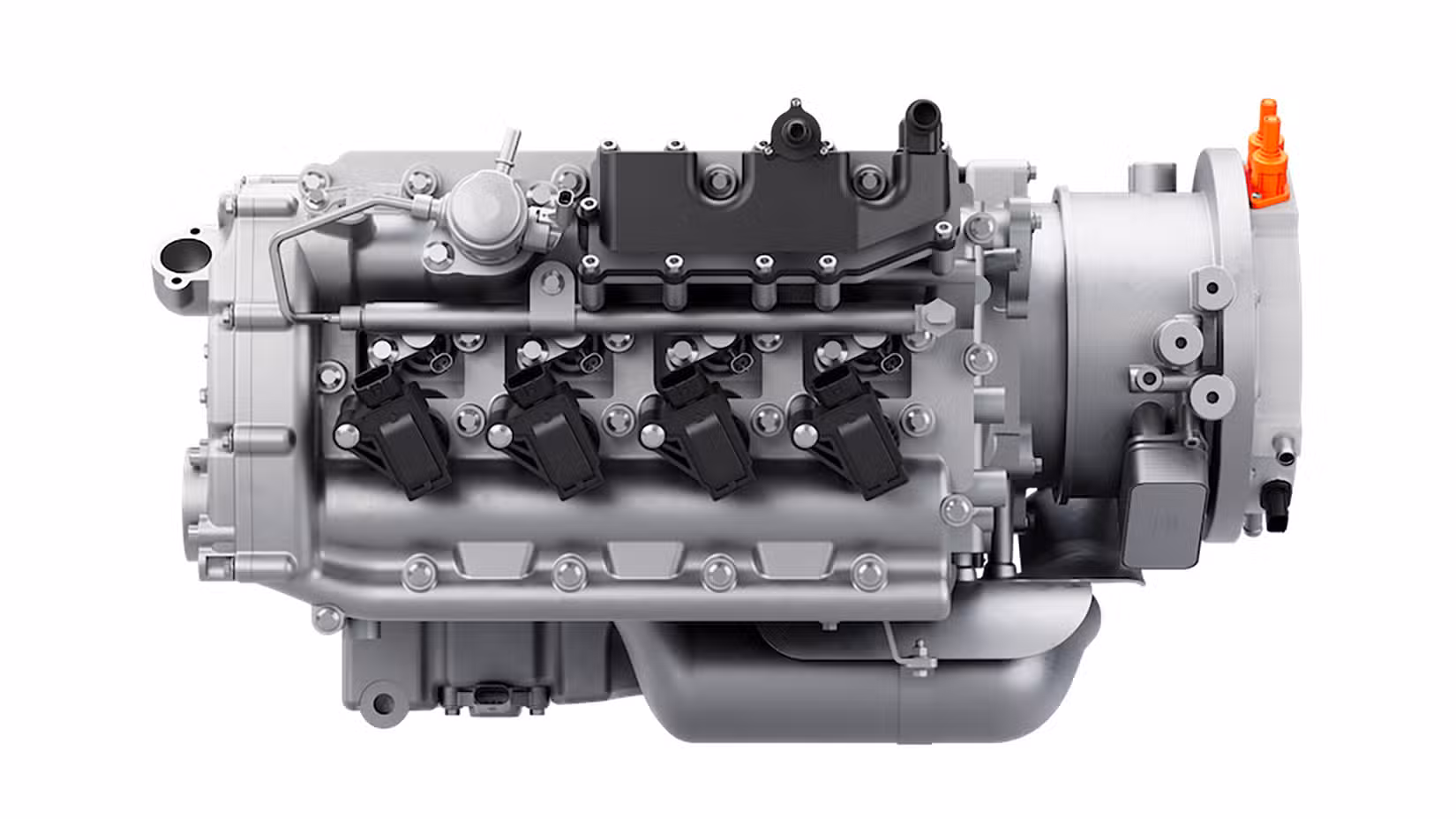

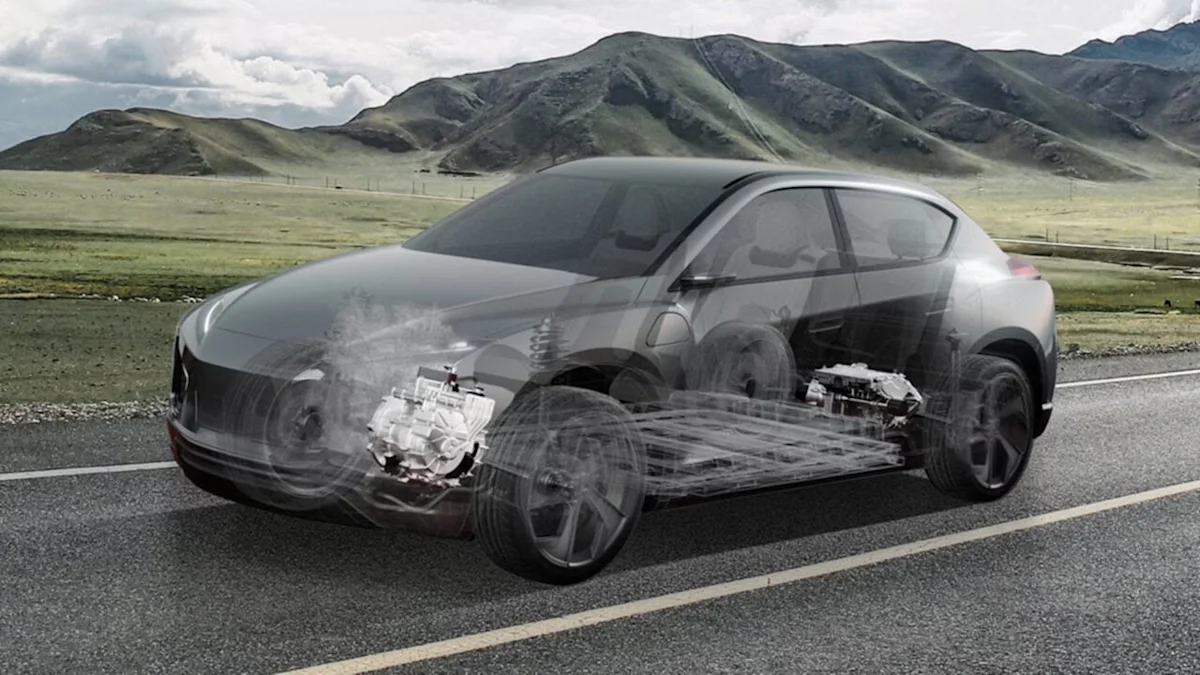

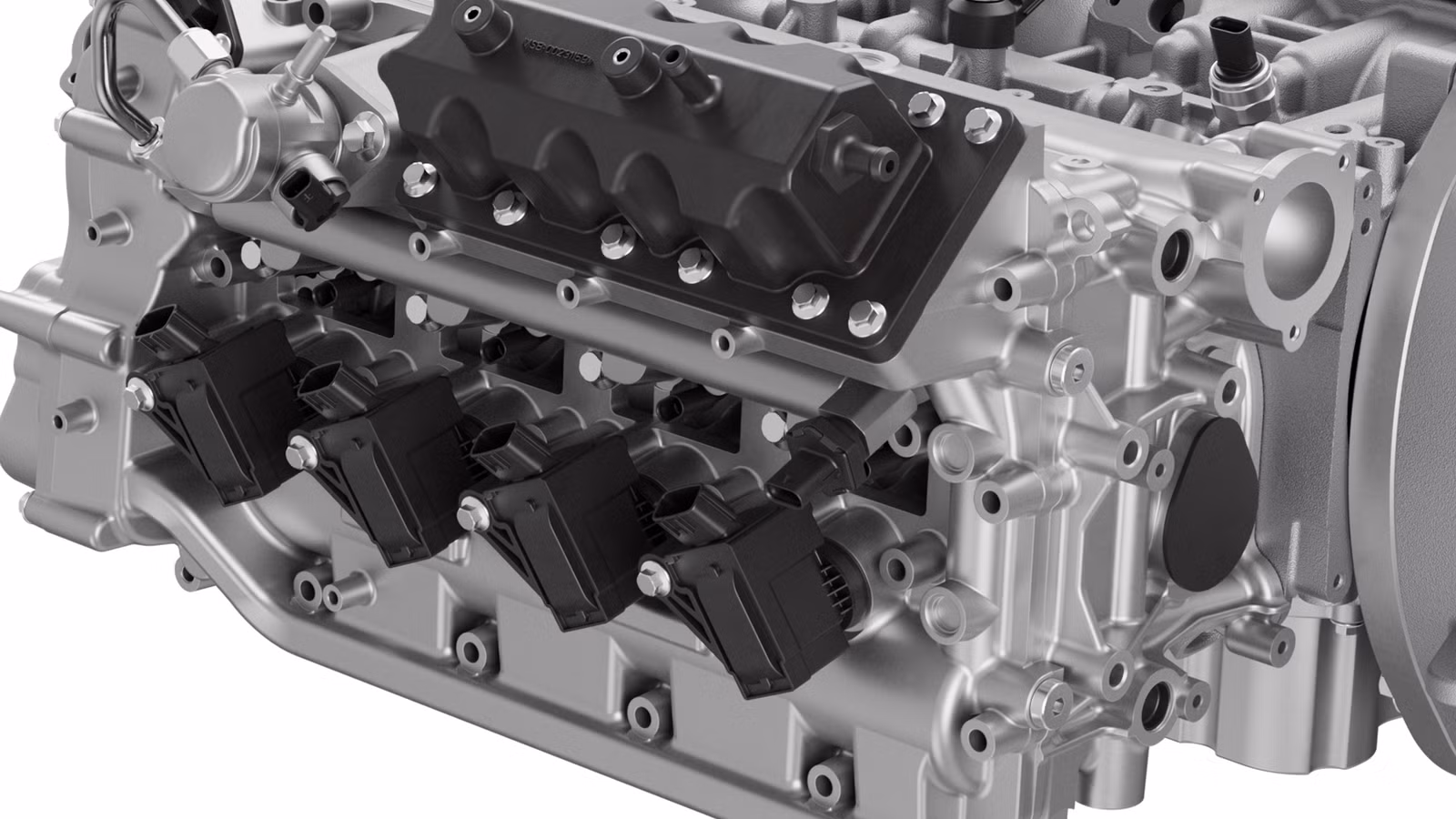

Horse Powertrain’s new flat‑four range extender hybrid shows how far this thinking has evolved. Its X‑Range C15 Direct Drive system packages a 1.5‑litre four‑cylinder engine, transmission, power electronics, and two electric motors into one compact housing that bolts to the rear subframe of an existing EV platform. Crucially, the engine is turned on its side, using an oil scavenging system similar to a dry sump so it can run horizontally without intruding into rear seats or cargo space. Because it occupies the space normally used by a rear electric motor, car makers can drop it into an EV platform with minimal changes to the floorpan or body. Power levels range from 94 horsepower in naturally aspirated form up to 161 horsepower with a turbo for heavier vehicles, giving engineers flexibility across everything from compact cars to light commercial models.
Inside the X‑Range C15 Direct Drive Powertrain

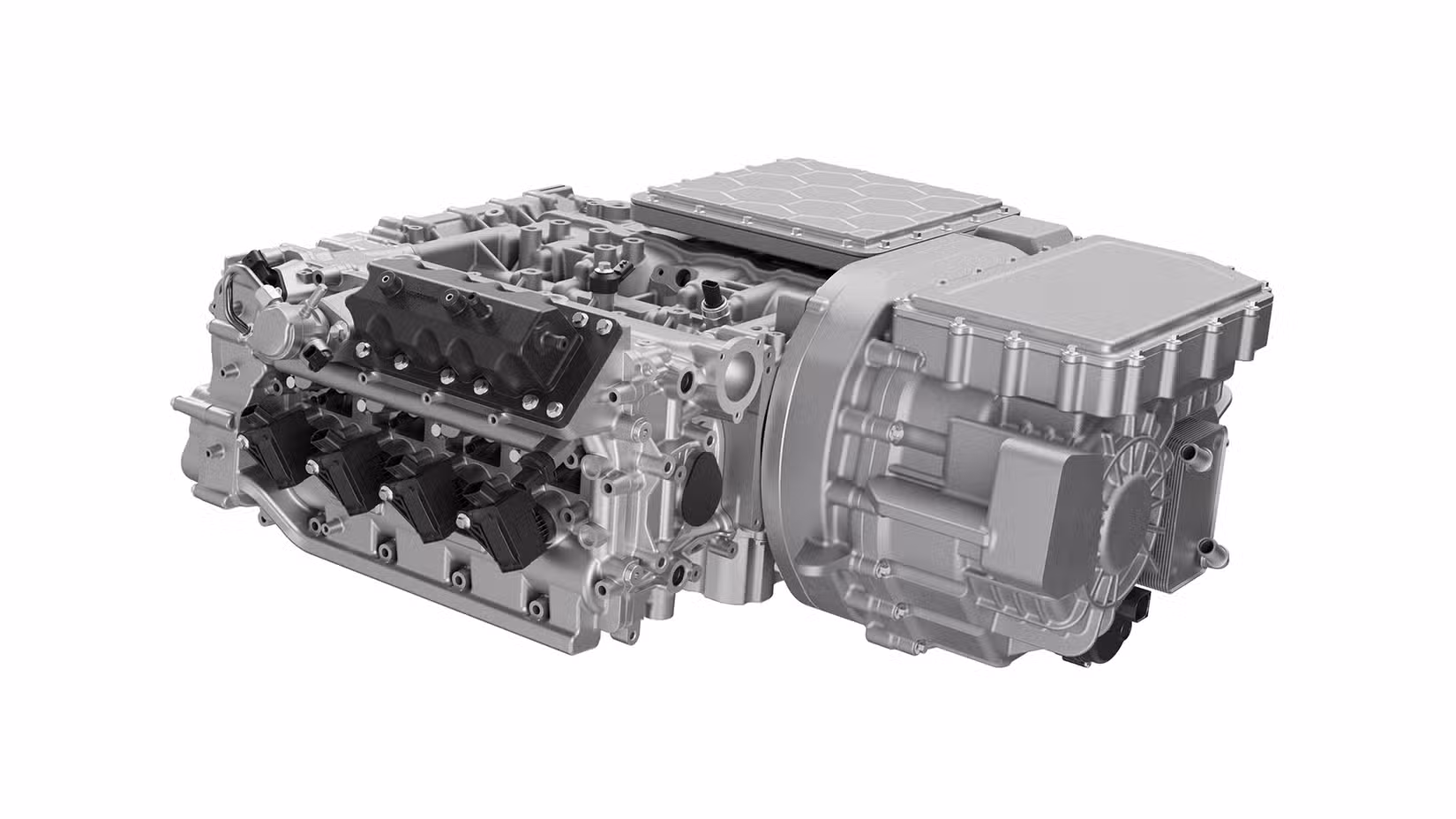

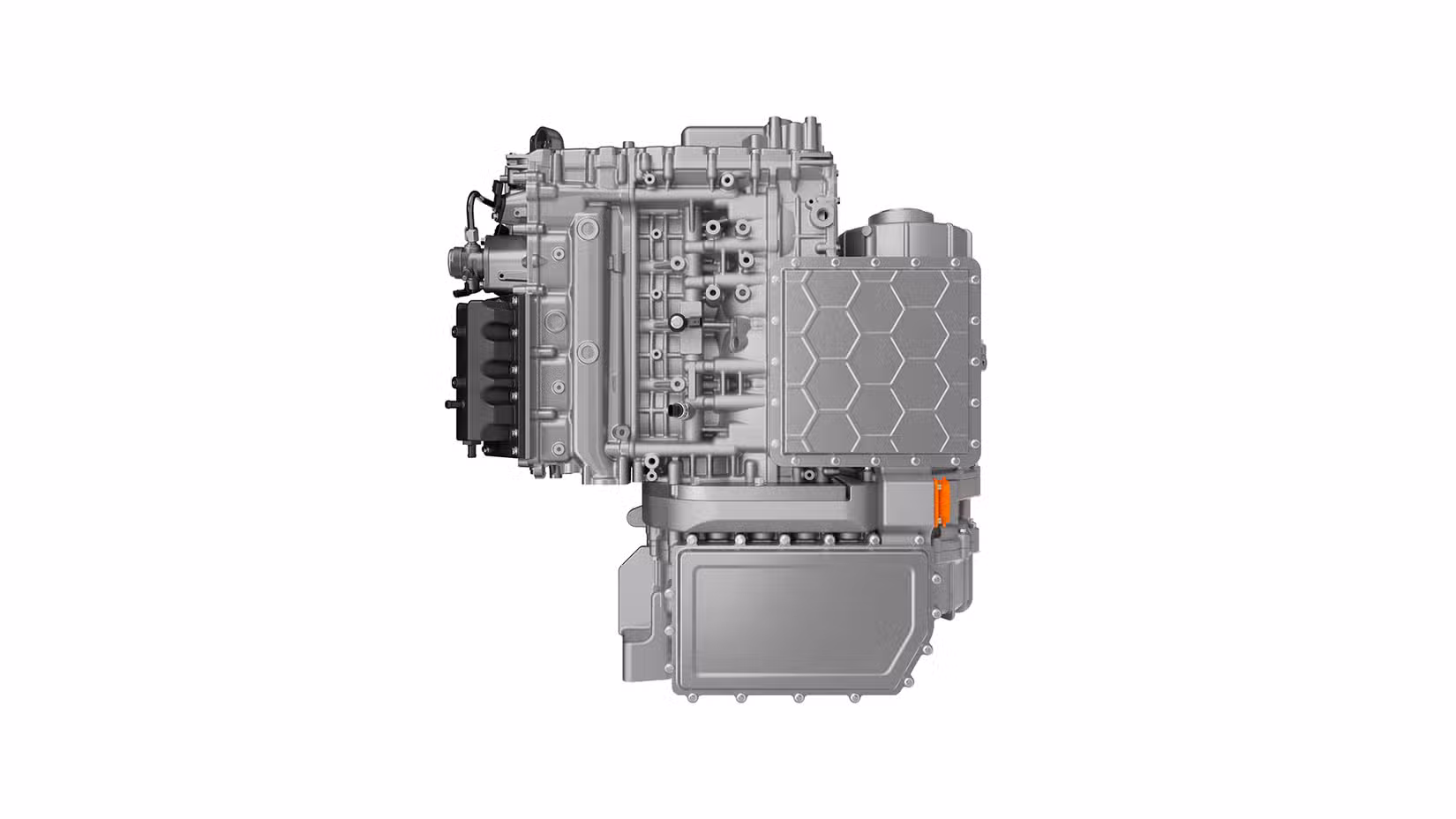

Technically, the X‑Range C15 Direct Drive is a flexible powertrain system designed to let an EV platform hybrid do almost anything. The flat 1.5‑litre engine is paired with a dedicated hybrid transmission and two electric machines in a P1 + P3 layout. One motor sits at the end of the crankshaft, mainly acting as a generator, while the second sits on the transmission output for traction. This layout lets the car operate in series mode, where the engine only generates electricity for the battery and drive motor, or in parallel mode, where the engine can help drive the wheels directly. Horse says this direct drive powertrain approach is more efficient than a pure series layout at higher speeds. Because the unit simply replaces the rear electric drive in a dedicated BEV platform, the same architecture can underpin BEV, HEV, plug‑in, or range extender hybrid variants without major production changes.
Range Extender vs Plug‑In Hybrid vs Full EV: How They Differ
Although all use electricity, full EVs, plug‑in hybrids, and range extender hybrids behave differently. A full battery EV relies entirely on its battery and must be plugged in to recharge. A plug‑in hybrid combines a combustion engine with a sizeable battery that can be charged from the grid; it can drive meaningful distances on electric power, then use fuel when the battery is depleted. A range extender hybrid, by contrast, often runs its engine mainly as a generator, turning fuel into electricity that feeds the battery and drive motor, though systems like Horse’s can also drive the wheels directly in parallel mode. There are also non‑plug‑in full hybrids, such as the latest Golf and T‑Roc systems, which use a small battery and engine‑driven generator but never need to be plugged in. For drivers, the key differences are how far you can drive on electricity alone, how often you refuel or recharge, and how the vehicle feels when the engine cuts in.
Why Flexible Powertrains Matter for Drivers and Automakers
Automakers are embracing range extender hybrid and flexible powertrain designs for both practical and strategic reasons. Many drivers still hesitate to go full EV because of range anxiety and unreliable charging access, especially for long‑distance travel. A range extender hybrid offers a range anxiety solution: daily commuting can be mostly electric, while long trips simply involve refuelling rather than hunting for fast chargers. For brands, systems like Horse’s X‑Range C15 and related units act as toolkits, letting them hybridise existing EV platforms instead of engineering entirely new architectures. That can cut complexity, preserve interior space, and speed time to market for EV platform hybrid models. The trade‑offs include added mechanical complexity, some tailpipe emissions, and potentially higher maintenance needs compared with a pure EV. Buyers who frequently drive long distances, lack reliable home charging, or want an easier transition from combustion to electric are likely to benefit most from these range‑extended EVs.
