Inside the PCIe 8.0 Specification Draft and Its 1TB/s Goal
The PCI-SIG has released draft 0.5 of the PCIe 8.0 specification to members, marking an important midpoint on the road to the final standard. PCIe 8.0 is designed to push raw data transfer speed to 256 GT/s per lane and deliver up to 1TB/s of bi-directional bandwidth over a x16 link. That is double the bandwidth targeted by PCIe 7.0, continuing the long-running pattern of each generation roughly doubling throughput. To reach this 1TB/s bandwidth goal, PCIe 8.0 keeps the PAM4 signaling and FLIT-based encoding that arrived with PCIe 6.0, allowing higher performance without a total protocol rethink. For server builders, the draft confirms that future platforms will have massive headroom for accelerators, high-performance SSDs, and fabric-connected memory, but it also signals tougher challenges in signal integrity, reach, and validation.
How PCIe 8.0 Compares to Today’s Generations

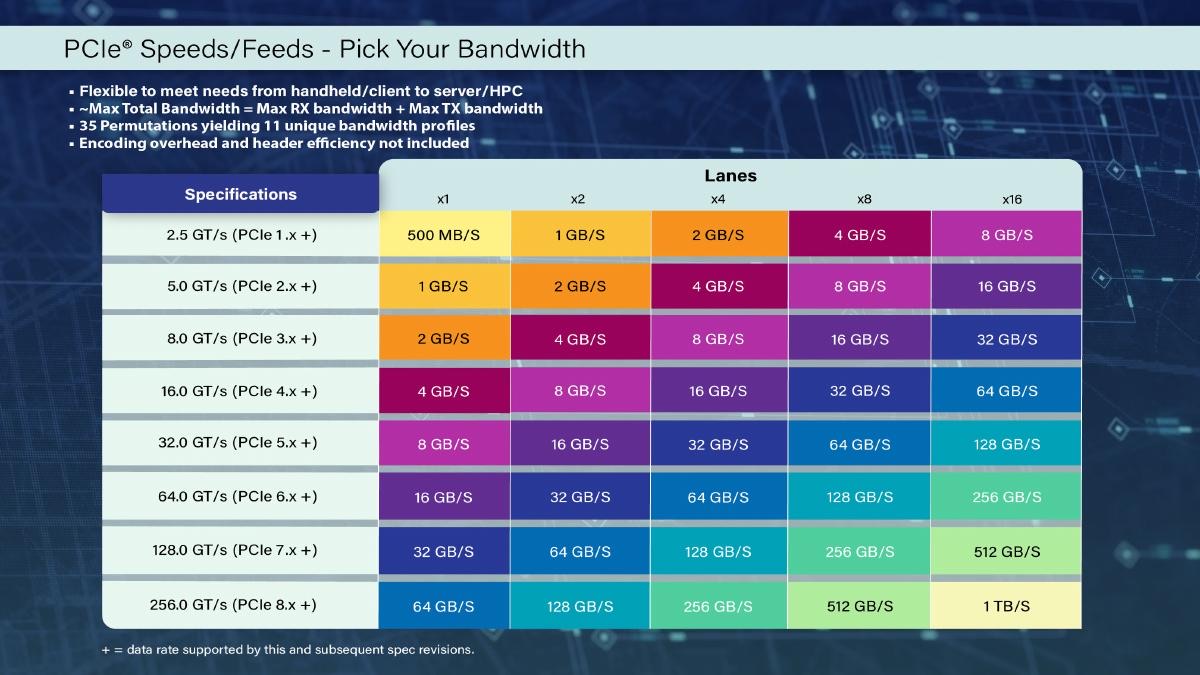

PCIe 8.0 sits several steps beyond what most production servers ship today. While vendors are only starting to roll out PCIe 6.0 SSDs, and PCIe 7.0 hardware at 128 GT/s and up to 512GB/s on a x16 link is not expected before the later 2020s, the new specification already sketches the next leap. The PCI-SIG bandwidth tables show that PCIe 8.0 moves a x16 link to roughly 1TB/s and even a modest x4 configuration to around 256GB/s. For context, many current accelerator and GPU designs make do with far less, and a single PCIe 4.0 x1 lane already covers 10GbE networking needs. This illustrates how aggressively the standard is outpacing mainstream requirements. For high-end servers and storage, however, the doubling of data transfer speed each generation is becoming essential to keep pace with AI, analytics, and dense flash deployments.
Realistic Timelines: From 2028 Spec to Deployable Hardware
Although the PCIe 8.0 specification remains on track for a full release by 2028, server and storage builders should not expect immediate ecosystem-wide adoption. Historically, there is a lag of several years between a standard’s finalization and broad availability of compliant platforms. For example, Micron’s first PCIe 6.0 SSDs entered mass production roughly four years after that spec was completed, and host CPUs capable of fully exploiting them are only now approaching launch. PCI-SIG itself notes that integrator lists often arrive about three years after a spec reaches version 1.0, with preliminary compliance testing beginning around the two-year mark. Early PCIe 8.0 devices may appear before formal compliance, but widespread interoperability in servers, retimers, switches, and storage controllers is more likely in the early 2030s. Planning roadmaps should reflect that delay.
Implications for Data Center, Storage, and Enterprise Infrastructure
For data center and enterprise architects, PCIe 8.0 is less about consumer GPUs and more about scaling clustered, accelerator-heavy systems. PCI-SIG explicitly targets AI, data center infrastructure, high-speed networking, edge platforms, and even quantum systems with this generation. PCIe remains the primary fabric between CPUs, GPUs, accelerators, memory expansion modules, storage, and NICs. Features such as Unordered I/O and emerging MultiLink capabilities support high-bandwidth, low-latency communication patterns that match AI training and inference workloads. With a x4 link offering lane bandwidth comparable to today’s higher-width slots, designers can attach more devices per socket, carve up connectivity more flexibly, or shrink form factors. At the same time, signal integrity challenges will push wider use of optical PCIe, optical-aware retimers, and advanced copper cabling as standardized in CopprLink to maintain reach in dense racks.
What Server and Storage Builders Should Do Now
Even though PCIe 8.0 hardware is years away, the draft gives server and storage builders enough clarity to begin long-term planning. Platform teams should evaluate backplane designs, power and cooling envelopes, and chassis layouts that can eventually host 1TB/s x16 devices without major rework. Networking and storage groups can model next-generation topologies where fewer lanes deliver adequate bandwidth, freeing connectivity for additional SSDs, NICs, accelerators, or CXL-attached memory. Vendors of retimers, switches, and cabling should track the evolving electrical and optical guidance, including optical-aware retimer extensions and future CopprLink updates. Finally, roadmaps should assume that PCIe 7.0 will be the practical stepping stone before PCIe 8.0, with overlapping qualification and interoperability testing cycles. Treat PCIe 8.0 as the north star for server connectivity and data transfer speed, informing architectural decisions made today.
