Siemens AI Engineering Push: From CAD to Automation
Siemens AI engineering now spans mechanical CAD, electrical design and automation platforms, aiming to automate project setup, reduce manual data transfer and free engineers for higher‑value decisions. Instead of treating CAD, ECAD and PLC programming as isolated stages, Siemens is threading AI through Designcenter Solid Edge and the Eigen Engineering Agent so the same model and machine description can drive multiple downstream tasks. On the design side, new CAD automation features address time‑consuming steps like assembly mating and drawing creation. On the automation side, electrical design AI reads structured ECAD data and turns it into TIA Portal automation projects, including PLC tags and device configurations. Together, these changes show Siemens shifting AI from a support add‑on into a core engineering assistant that plans, executes and validates work across the lifecycle of a machine or production system.
Designcenter Solid Edge Adds Three CAD Automation Features

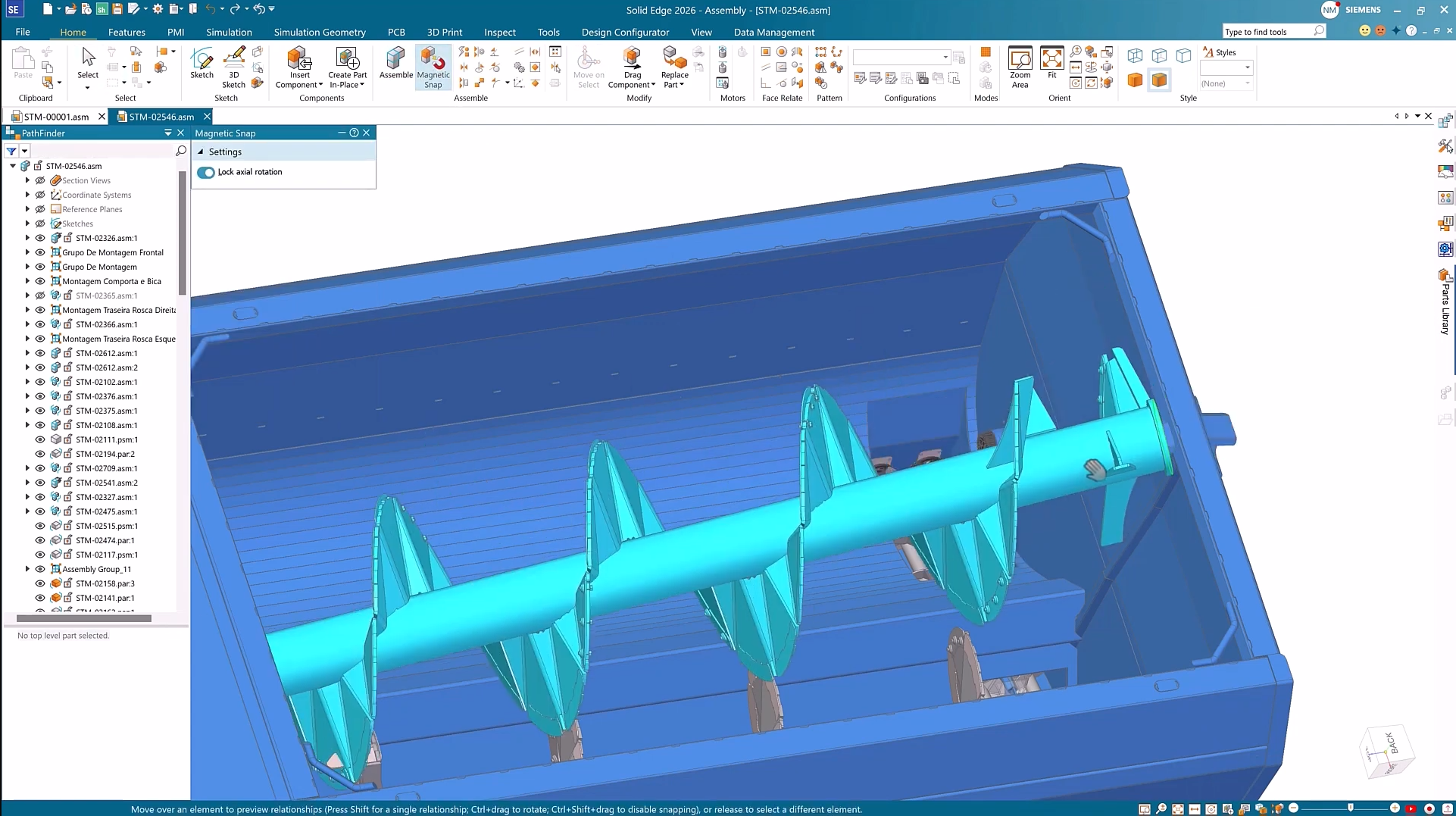

In Designcenter Solid Edge, Siemens has introduced three AI‑driven CAD automation features that directly target common bottlenecks in mechanical design. The AI Design Copilot, currently a support chatbot in Solid Edge X, is planned to evolve into an agent that can execute commands on the model rather than only describe them. Magnetic Snap speeds assembly work by letting users drag a part into place while the system automatically selects and applies suitable mates, cutting down repetitive constraint definition. Automated drawings focus on the largest documentation time sink. Siemens reports that "customers spend 25 to 30 percent of their time creating drawings," and the goal is to automate sheet size selection, view layout, scale and dimensioning based on the 3D model. This feature is available as a value‑based licensing add‑on, with Siemens promising further enhancements over time.
Electrical Design AI: From ECAD Files to PLC Tags
Siemens is extending AI into electrical engineering workflows by letting the Eigen Engineering Agent read ECAD data and feed it straight into automation projects. Electrical engineers often define hardware and wiring in ECAD tools, while automation engineers recreate that information as tags, devices and logic in TIA Portal, a process that invites errors and manual clean‑up. The new electrical design AI addresses this gap. The Eigen Engineering Agent can interpret XML and AML electrical design files, detect inconsistencies, and either flag or resolve them. It then adds devices into a TIA Portal project, configures connections and automatically generates PLC tags based on the hardware topology and machine structure. This shift from retyping to reusing design intent is intended to shorten project setup and keep ECAD and PLC data aligned as changes occur during the project lifecycle.
TIA Portal Automation and Standards-Based Project Generation
Beyond ECAD integration, Siemens has focused its automation AI on PLC project generation within TIA Portal. The Eigen Engineering Agent is designed not only to suggest code but to plan, execute and validate engineering tasks such as PLC programming, HMI visualization and device configuration. Siemens reports that companies using the agent see execution speeds 2 to 5 times faster than manual workflows, with up to 50 percent efficiency gains in engineering and an 80 percent improvement in overall solution quality. New standards‑compliant project generation goes a step earlier in the lifecycle: engineers can describe a machine in plain language, including stations, modules and expected behavior, and the agent generates a structured project based on the Siemens Automation Framework. This reduces the upfront work of defining machine structures and operating states before control software development begins.
Why Integrated AI Matters for Engineering Workflows
Taken together, Siemens’ CAD automation features and TIA Portal automation updates show a strategy to remove repetitive tasks throughout engineering. In mechanical CAD, AI handles routine assembly mating and setup of 2D drawings from 3D models. In electrical and automation design, electrical design AI converts ECAD files into PLC tags and device configurations, while PLC project generation tools build standards‑compliant projects from machine descriptions. This integrated approach turns separate data islands into a shared engineering context, reducing manual rework and potential inconsistencies. Engineers can spend less time translating information between tools and more time on system architecture, safety concepts and performance tuning. As Siemens AI engineering capabilities continue to expand across Designcenter Solid Edge and the Eigen Engineering Agent, AI is moving from a novelty feature toward being a common thread across modern industrial engineering workflows.
