What Samsung’s 40,000‑nit RGB OLEDoS Display Is and Why It Matters
Samsung’s new RGB OLEDoS display is a 1.3‑inch OLED-on-silicon microdisplay that reaches a claimed 40,000 nits of peak brightness, using direct-emission red, green, and blue pixels instead of filtered white light to deliver efficient, ultra-bright visuals tailored for extended reality headsets and outdoor AR glasses. At AWE USA, Samsung Display presented this XR microdisplay technology as the next step beyond its earlier 20,000‑nit panel, doubling brightness while keeping the form factor small enough for wearable devices. The panel is built as a single structure without a color filter, which improves light efficiency and helps extend panel lifespan compared with traditional OLEDoS approaches that rely on white subpixels. According to Samsung Display, the screen combines this 40000 nit brightness with high resolution, fine detail, and highly vivid colors, ingredients that are essential if XR devices are going to feel comfortable, legible, and visually rich in real-world environments.
How RGB OLEDoS Differs from Conventional Micro-OLED Panels
Most existing OLEDoS microdisplays start from white OLED pixels and then use color filters to create red, green, and blue subpixels. That design wastes a significant amount of light inside the filter and caps how bright a headset can get before power draw and heat become a problem. Samsung’s RGB OLEDoS display skips the filter stage and instead uses direct-emission RGB pixels on a silicon backplane. This change means more of the emitted light reaches the eye, so the same electrical power yields much higher luminance. Samsung Display notes that its new 1.3‑inch panel uses a single-panel structure with no color filter, improving light efficiency and contributing to a longer lifespan. In practice, this architecture allows the ultra-bright OLED panel to hit 40000 nit brightness while remaining suitable for compact XR devices that must balance brightness, battery life, and comfort on the user’s face.
Solving the Outdoor AR Problem with 40,000 Nits

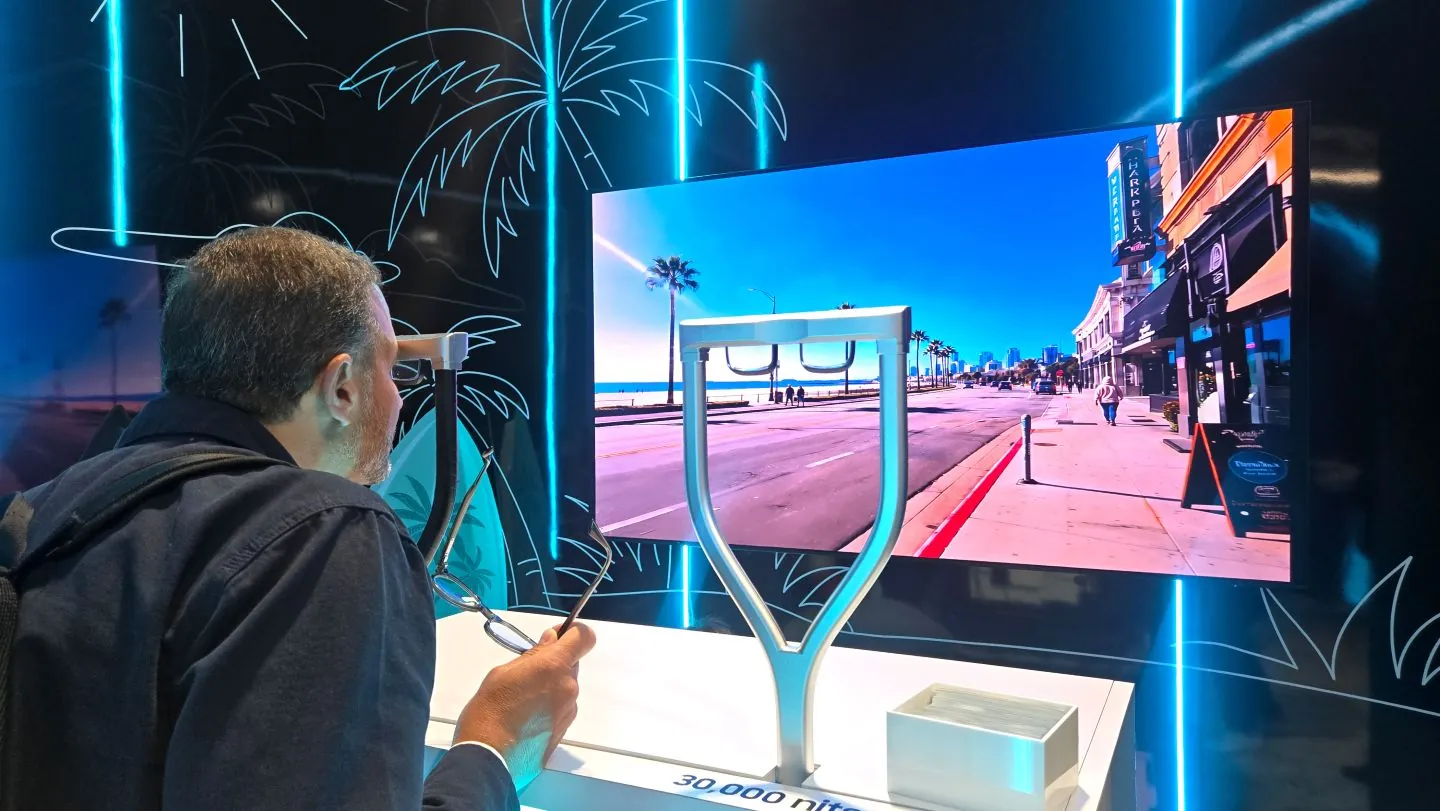

Outdoor AR glasses struggle today because ordinary displays cannot compete with direct sunlight; the digital layer looks washed out, faint, or disappears altogether. By pushing peak luminance to 40,000 nits, Samsung’s RGB OLEDoS display gives AR visuals enough headroom to stay clear against bright skies and reflective surroundings. The panel is explicitly designed for XR headsets and smart glasses, where a small, dense image is optically projected into the user’s field of view and must remain readable over real-world light. At AWE USA, Samsung Display set up a dark room called “The Big Dipper,” using seven screens to form the constellation; only two used the new RGB OLEDoS panel, and their higher brightness and more vivid colors stood out sharply. That same contrast advantage should translate outdoors, where ultra-high brightness is essential for text, graphics, and 3D overlays to remain legible without forcing users into the shade.
From Concept Booths to Next-Generation XR Headsets and Glasses
Samsung is positioning RGB OLEDoS as its core XR microdisplay technology across a range of form factors, not just one hero panel. Alongside the 1.3‑inch 40000‑nit display, the company demonstrated AR smart glasses built around a smaller 0.62‑inch RGB OLEDoS microdisplay rated at 30,000 nits, as well as a mixed reality headset prototype using the same underlying panel design for concert footage and gameplay. These prototypes suggest a roadmap where ultra-bright OLED microdisplays power both lightweight outdoor AR glasses and more immersive MR headsets. Because RGB OLEDoS is more light-efficient, device makers can trade some of the brightness surplus for better battery life or slimmer optics without losing outdoor visibility. As more brands look for comfortable, visually impressive spatial computing hardware, panels like Samsung’s 1.3‑inch RGB OLEDoS make it feasible to build XR devices that work everywhere, not only in dim living rooms or office spaces.
What Ultra-Bright OLED Means for Everyday XR Experiences
Pushing XR display brightness to 40,000 nits is about more than raw numbers; it is about making augmented reality trustworthy in daily use. With enough luminance to compete with daylight, digital overlays for navigation, translation, work instructions, or media can stay sharp and colorful across streets, offices, and shop floors. Ultra-bright OLED microdisplays also leave room for more advanced optics, such as waveguides and combiners, which often reduce perceived brightness before the image reaches the eye. Samsung’s RGB OLEDoS approach, with high resolution and vivid color reproduction, supports crisp text and detailed 3D content that do not dissolve into haze when the environment is bright. As XR moves toward mainstream adoption, this kind of XR microdisplay technology removes one of the biggest practical barriers: the need to retreat indoors. In effect, it turns outdoor AR glasses from a controlled demo into a practical everyday product category.
