Redefining What a 3D Printer Frame Can Be
DIY 3D printer builds using alternative printer materials such as wood show that functional, precise machines can be engineered from non‑metal frames when designers account for rigidity, vibration, and thermal stability through clever structure and reinforcement rather than cost alone. Traditionally, both commercial and maker 3D printing projects rely on aluminum or steel frames to keep motion systems aligned under fast movement and heating cycles. The assumption has been simple: without metal, you cannot get accuracy. Recent wooden 3D printer frame experiments challenge that belief. By combining thoughtful mechanical design with modern control electronics and firmware, makers are proving that the frame material is a design variable, not a hard rule. That shift opens the door to more accessible, customizable, and sustainable builds for people who care as much about materials and craft as they do about print quality.
Inside a Six‑Month Wooden 3D Printer Build

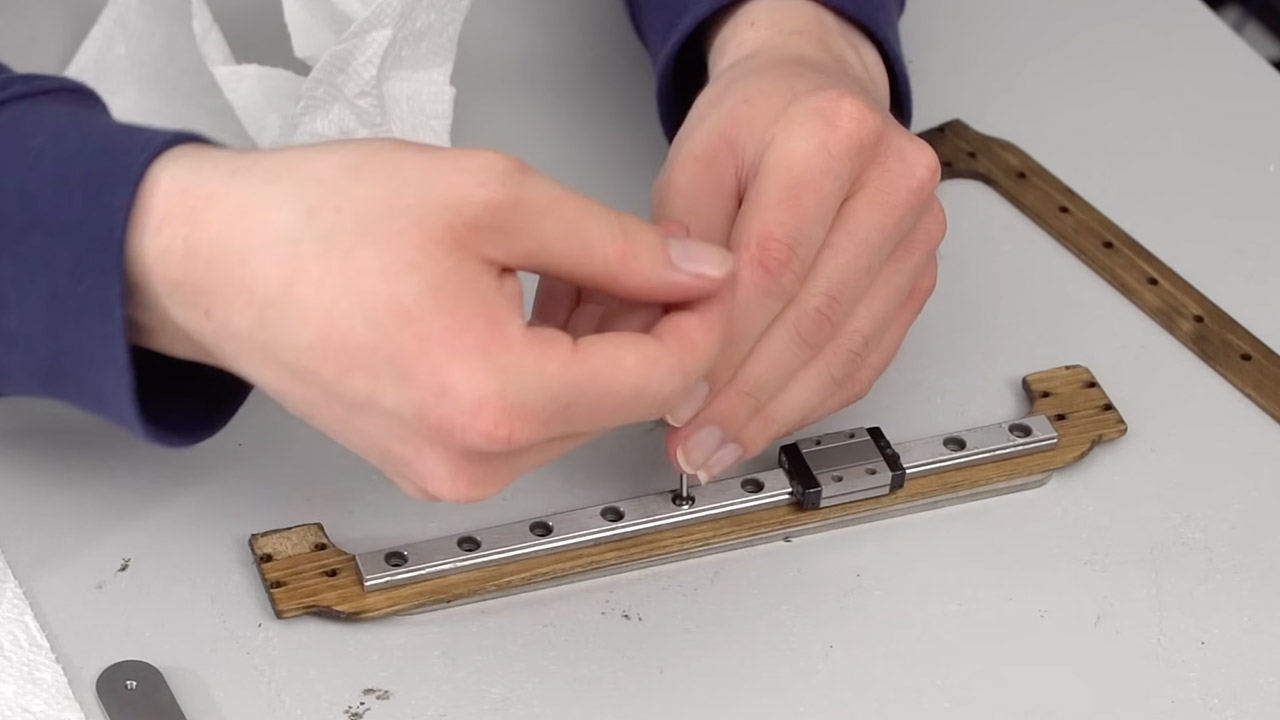

One striking example comes from maker Mitsu Makes, who spent six months constructing a working 3D printer with a frame made primarily from wood. He started with thick solid wood stock, then used CNC machining to cut bespoke frame parts before hand‑sanding for seven hours to remove flex and ensure a tight fit. Conventional wood glue provided the main structural bond, while clamps kept the large frame square during several days of drying to prevent warping. Only after the structure had fully set did he stain the frame and related pieces, testing finishes on spare parts first. Thin sections of the wooden 3D printer frame, around 3 mm, were reinforced using laser‑cut steel backing plates wherever linear rails met the wood. This mix of carpentry, CNC precision, and selective metal reinforcement underpins the machine’s stiffness and reliability.
Performance: Proof That Wood Can Compete

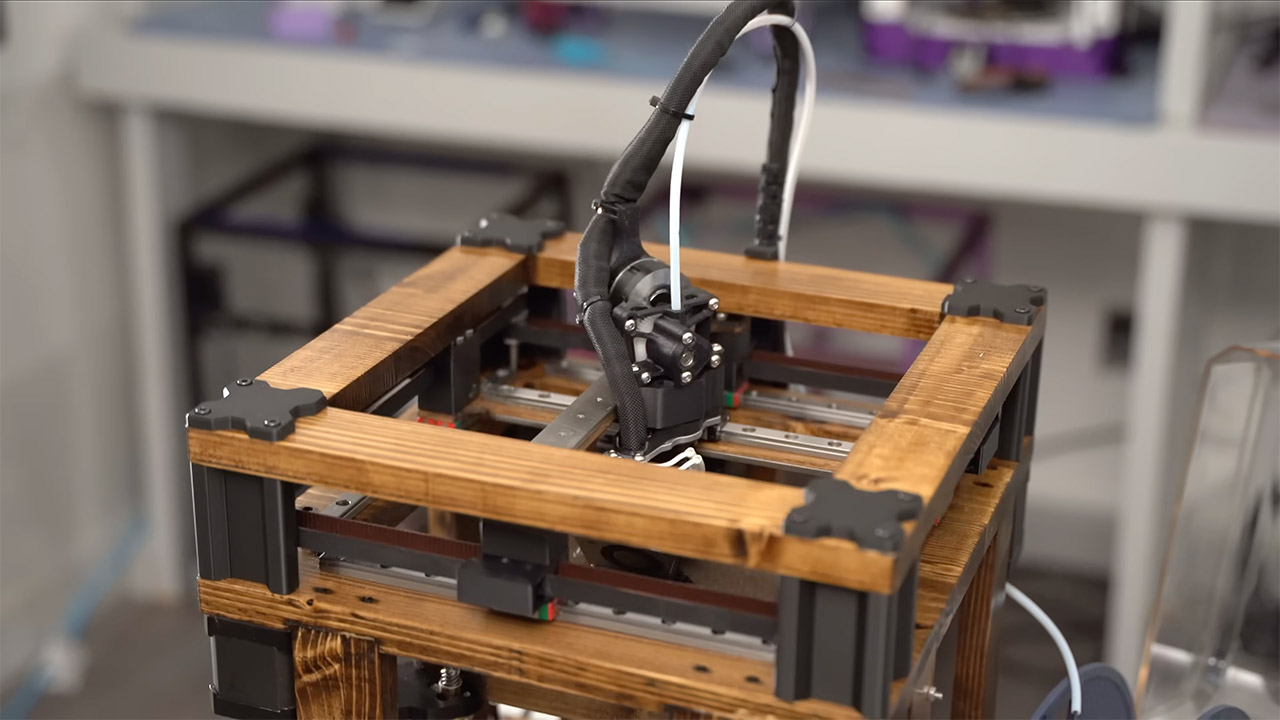

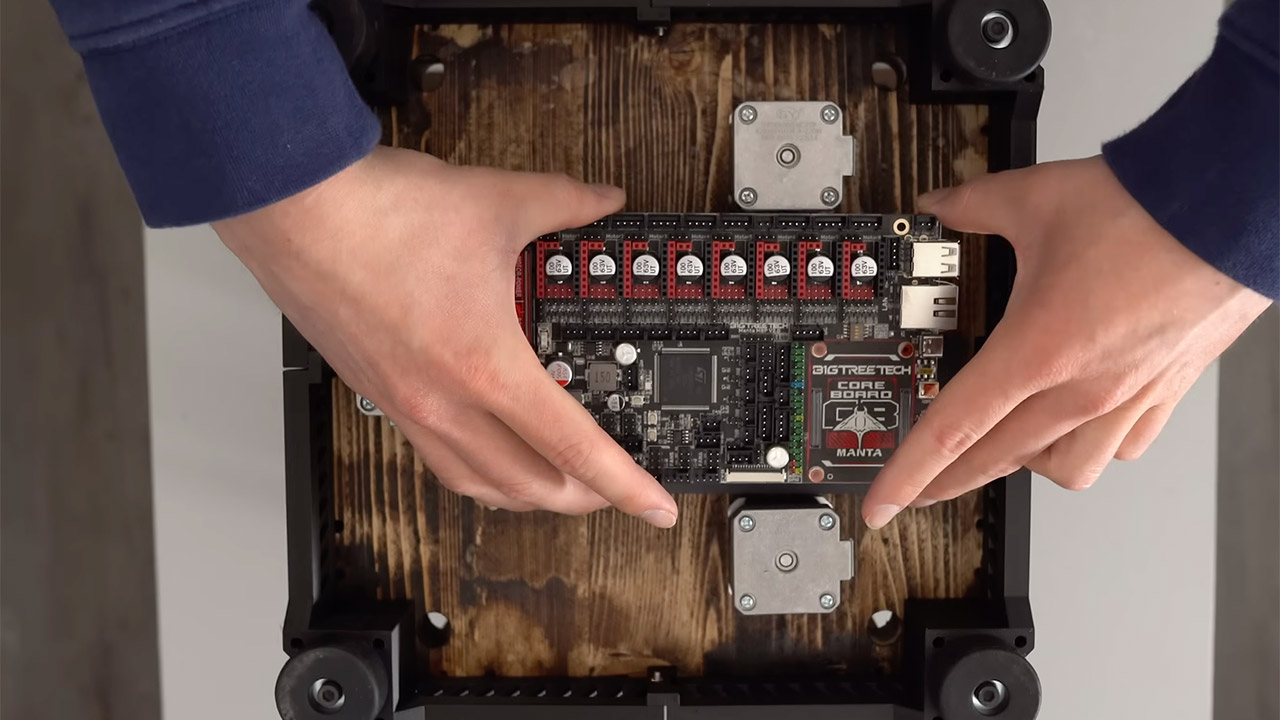

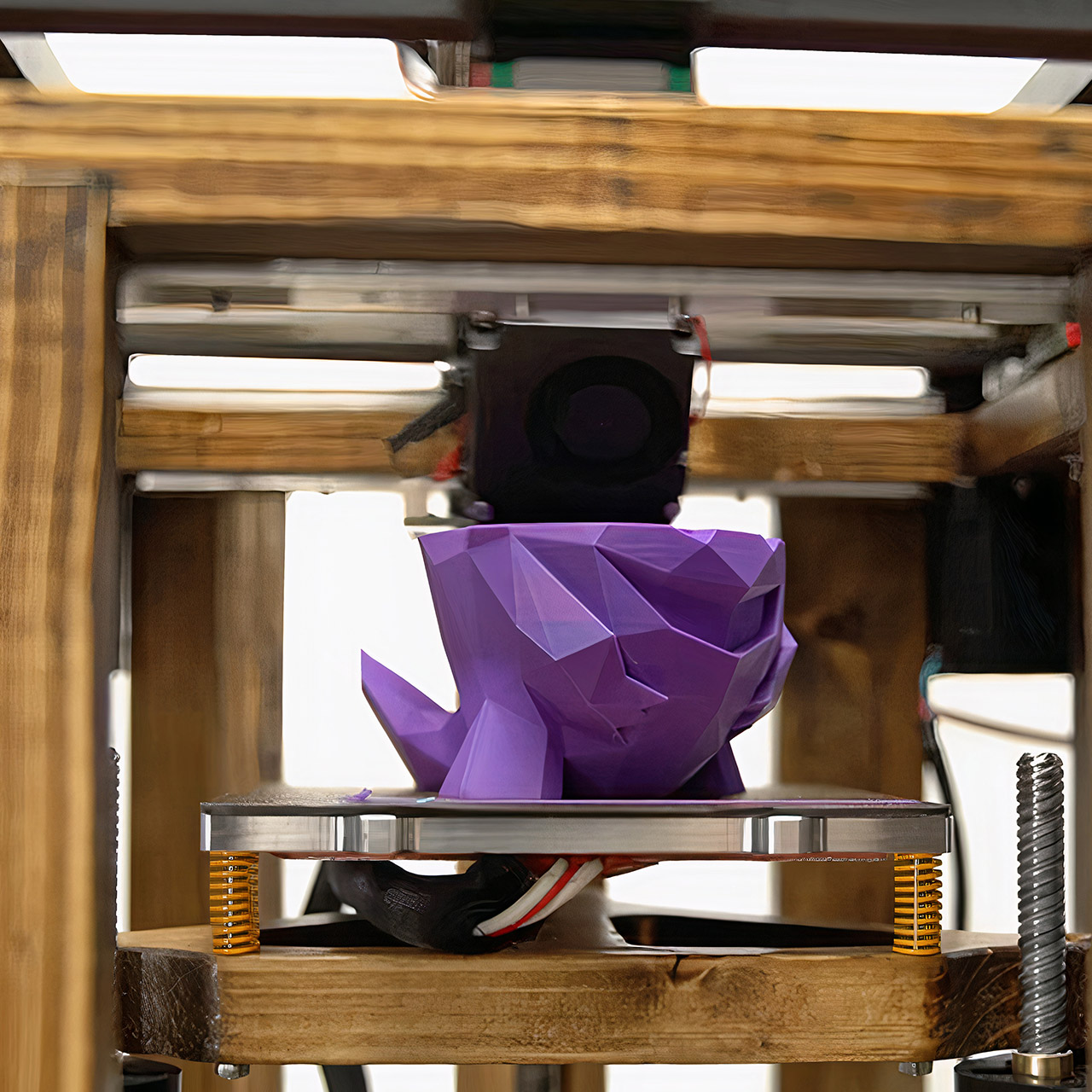

Despite its unconventional frame, the machine behaves like a serious 3D printer. Mitsu Makes used a cross‑gantry setup driven by two stepper motors for the X and Y axes and a third for the Z axis, linked to 150 mm lead screws. This gives about 110 mm of vertical travel and, as he notes, “the ability to automatically tram the bed, which is a game changer.” A BigTreeTech Manta M8P board running Klipper firmware keeps motion smooth and tuning flexible, while a modified Annex Engineering K3 carriage carries a Dragon UHF hot end, Sherpa Mini extruder, and Beacon RevH probe for accurate bed mapping. First test prints, including a Voron calibration cube, already looked strong, and further tuning improved results. A notable bonus: the wood frame dampens vibration, making this DIY 3D printer build quieter than many metal‑framed machines.
Why Alternative Printer Materials Matter for Makers
Projects like this wooden 3D printer show that maker 3D printing projects do not depend on expensive, industrial‑grade metal components to achieve usable accuracy. With careful planning, reinforcement in key areas, and modern electronics, unconventional materials such as wood can deliver dependable motion and quality. That lowers the barrier for people who have access to woodworking tools and stock, but not to precision metal fabrication. It also expands how printers can look and feel: frames can match furniture, be repaired with hand tools, or be adapted to local materials. According to TechEBlog’s coverage of the build, wood’s natural damping makes the printer “far superior to your average metal frame” in terms of noise. As more makers experiment with alternative printer materials, 3D printing becomes more accessible, personal, and sustainable for hobbyists and small workshops.
