What the Dell Pro Max 16 Plus Is and Who It’s For
The Dell Pro Max 16 Plus is a 16‑inch mobile workstation laptop that combines an Intel Core Ultra 9 processor and NVIDIA RTX Pro 5000 Blackwell GPU in a desktop‑replacement chassis designed for creative professionals and engineers who need powerful, workstation‑grade performance they can carry between offices, studios, and client sites. Classified by Dell as a desktop replacement, it aims to bridge the gap between tower workstations and consumer notebooks by prioritizing sustained performance, expandability, and ports over ultra‑thin styling. With up to 128GB of DDR5 memory, dual PCIe Gen5 SSDs in RAID 0, and a 96Wh battery, it targets 3D artists, video editors, CAD users, and data‑heavy professionals who run demanding GPU‑accelerated workflows but still value the flexibility of a laptop form factor.
Design, Build, and Portability

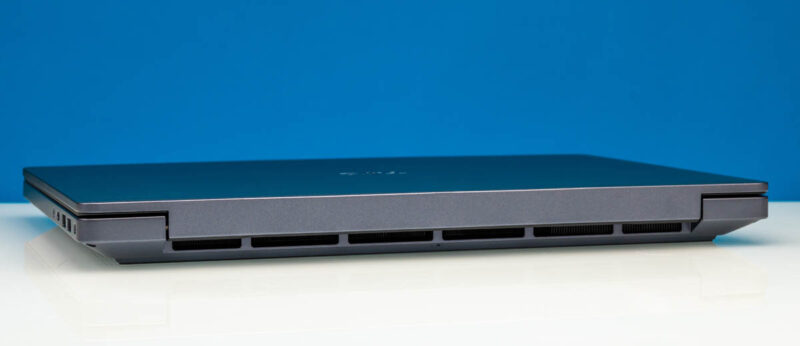

The Pro Max 16 Plus is unapologetically a workstation first, laptop second. At 360 x 258.6 x 29.4 mm and 2.55 kg, it is far from ultra‑portable, but lighter and smaller than Dell’s 18‑inch Pro Max models, which start at 3.25 kg. The gray “Magnetite” chassis has an industrial, slightly plasticky look, with a tapered profile and extensive rear venting to cool high‑power components and a 280W power brick. Inside, you get a full keyboard with numeric pad and a left‑shifted trackpad, underscoring the productivity focus. This is a machine meant to live in backpacks and on desks, not coffee‑shop tables. For professionals comparing workstation laptop review options, the Pro Max 16 sits in the middle ground: transportable enough for regular travel, but clearly designed to prioritize thermal headroom and reliability over fashion or extreme thinness.
OLED Display and Creator-Focused Features

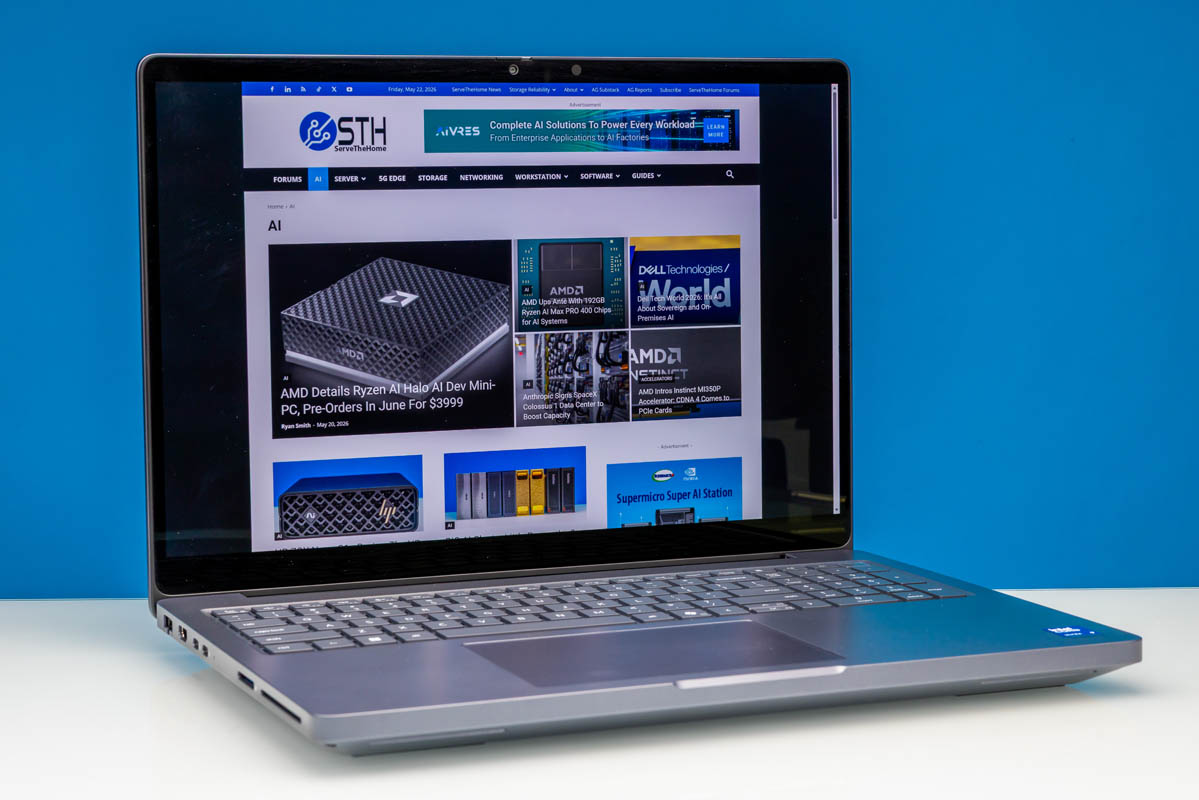

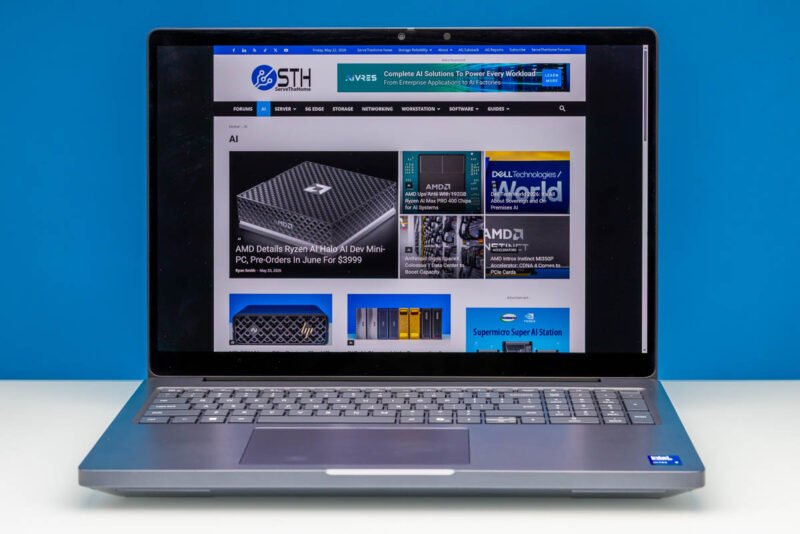

Display options are a highlight for creators. Our configuration uses a 16‑inch 3840 x 2400 OLED panel in a 16:10 aspect ratio, delivering more vertical room for timelines and tool palettes. Dell rates it at up to 500 nits brightness with 100% DCI‑P3 coverage, and it carries VESA True Black 1000 certification for deep contrast, which suits color‑critical work and HDR viewing. The panel supports up to 120Hz with variable refresh rate, reducing tearing when RTX Pro 5000 performance fluctuates in heavy scenes, and this is the only configuration that adds touch input. According to ServeTheHome, “the display is rated to deliver up to 500 nits of brightness and covers 100% of the DCI‑P3 color space.” An 8MP + IR camera with a privacy shutter and Windows Hello support, plus basic downward‑firing 2W speakers, round out the creator‑friendly feature set.
Ports, Connectivity, and Mobile Workflow

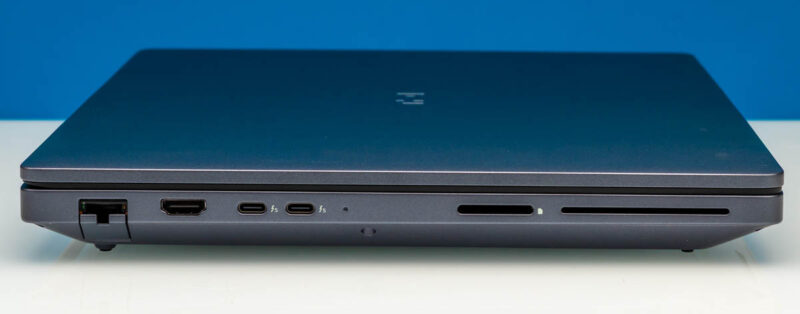

For a mobile workstation, I/O often matters as much as raw speed, and the Pro Max 16 Plus delivers. The left side holds two Thunderbolt 5 USB‑C ports capable of 80Gbps and 120Gbps modes, both supporting charging and DisplayPort Alt Mode, alongside HDMI 2.1, a 2.5GbE RJ45 jack, SD card reader, and smart card reader. On the right, you get a third USB‑C port (Thunderbolt 4 at 40Gbps), two USB‑A 5Gbps ports with PowerShare, and a 3.5mm combo audio jack. Wi‑Fi 7 and Bluetooth 5.4 come via Intel’s BE200 module. For video editors and photographers, this means native SD ingest, wired 2.5Gb networking, and multiple high‑bandwidth display paths without dongle clutter. It reinforces the Pro Max 16 as a serious mobile workstation, particularly for on‑site shoots or engineering teams who need reliable, high‑speed connectivity in the field.
RTX Pro 5000 Performance and Desktop Replacement Verdict
At the heart of this workstation is Intel’s Core Ultra 9 285HX (8 performance and 16 efficient cores up to 5.5GHz) paired with NVIDIA’s RTX Pro 5000 Blackwell GPU and dual PCIe Gen5 x4 SSDs in RAID 0. This combination targets accelerated 3D rendering, GPU‑assisted video exports, simulation workloads, and AI‑infused creative tools that benefit from CUDA and professional drivers. While exact RTX Pro 5000 performance figures depend on your software stack, this configuration stands at the top of the 16‑inch mobile workstation market. The 96Wh battery and heavy power brick remind you it is tuned for plugged‑in work. For creative professionals and engineers, the Pro Max 16 Plus can replace many tower workstations, especially when you value portability, certified GPU features, and pro‑grade I/O more than the last slice of multi‑GPU or CPU‑only performance.
