Compact SSD Technology: The New Lever for Device Design
Compact SSD technology and ultra-high-capacity memory cards are storage innovations that shrink physical size or massively increase capacity while maintaining high performance, allowing device makers to redesign laptops, handhelds, and cameras for better cooling, slimmer profiles, and more flexible internal layouts. For years, most systems have revolved around 2.5‑inch drives and M.2 2280 sticks, which limited how tightly engineers could pack batteries, cooling systems, and other key parts. As performance climbed, form factors stayed relatively static. Now, microSSD laptop storage, ultra-dense SDUC cards, and record-speed portable SSDs are starting to break that pattern. Together they point to a future where storage is no longer the bulky, fixed block inside a device, but a modular building element manufacturers can shape around, trading raw volume for airflow, battery space, or expansion options.

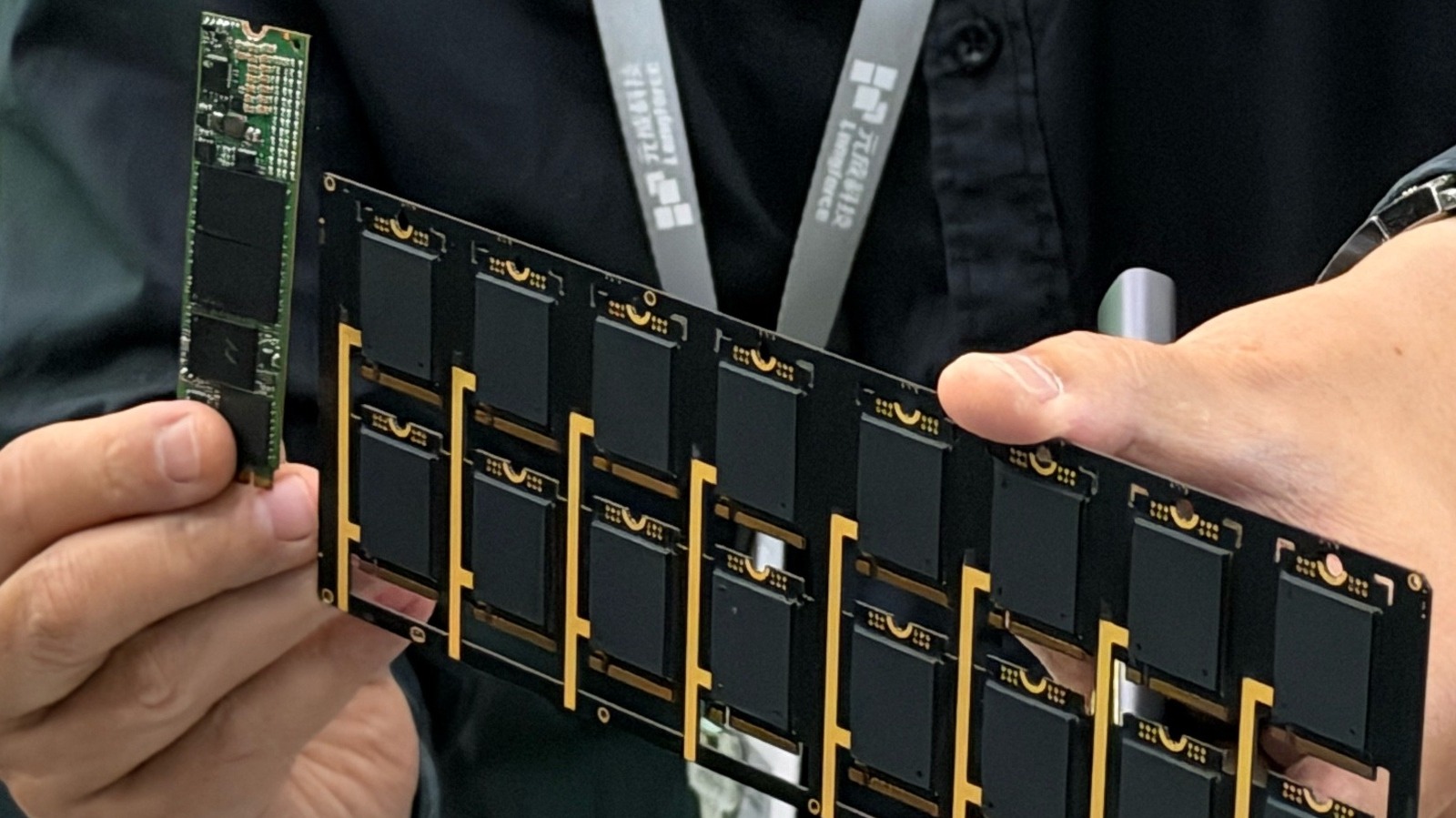

Lexar’s MicroSSD: Smaller Footprint, Bigger Design Freedom
Lexar’s new mSSD, or micro Solid State Drive, targets the long-unchanged M.2 2280 format by compressing PCIe Gen 4 performance into a far smaller package. The company’s Play X mSSD reaches up to 7,400 MB/s read and 6,500 MB/s write speeds while moving toward a compact M.2 2230 form factor, which can be around 40% smaller than common laptop SSDs. Lexar positions this as the next storage milestone, telling BGR that it wants the microSSD form factor to become an industry standard as part of its “commitment to innovation” at its 30th anniversary. For laptop makers, that size reduction frees internal volume for thicker heat pipes, more fan capacity, or larger batteries without sacrificing performance. For users, it hints at thinner, cooler systems that still offer high-end PCIe storage, plus the option for more than one SSD slot in spaces where only a single drive previously fit.
SanDisk’s 8TB SDUC Cards and the Rise of High-Capacity SD Cards
SanDisk’s forthcoming 4TB and 8TB SDUC cards highlight how high-capacity SD cards are turning removable media into primary storage for many workflows. At Computex, the SD Association showed spec sheets for 4TB and 8TB SDUC cards that multiple manufacturers said will be available “shortly,” bringing huge capacity to cameras, handheld gaming devices, and other portable hardware. These standard-size cards use UHS-I with V10 video class and A1 application performance, promising at least 10MB/s sustained writes and minimum random performance of 1,500 read and 500 write IOPS. That means they are usable not only for file archiving but also light application and video editing tasks. A faster 4TB SanDisk Extreme Pro variant lifts the bar further with UHS speed class 3, V30 for 30MB/s sustained writes, and A2-grade random performance, making SD-based workflows more practical for creators on the move.
Oyen U35 Bolt+: Record Speeds, Thermal Trade-Offs
Oyen Digital’s U35 Bolt+ illustrates how portable storage advances are racing ahead in speed but still wrestling with thermal limits. This USB4 (80Gbps) portable SSD promises up to 6,000 MB/s, and PetaPixel’s testing on a MacBook Pro with an M5 Max processor measured 6,064.4 MB/s reads and 6,278.8 MB/s writes out of the box, making it the fastest external SSD they have tested, behind only Apple’s internal laptop drive. The catch is heat. After filling the 4TB model to capacity, write speed dropped to 2,244.5 MB/s while reads fell to 5,585.3 MB/s, a 63% collapse in write performance blamed on thermal throttling. With no active cooling, the drive takes a long time to shed heat. For device designers and power users, it is a reminder that interface bandwidth and compact SSD technology must be matched by thoughtful thermal management to sustain headline speeds.
What These Advances Mean for Future Devices
Taken together, Lexar’s microSSD, SanDisk’s SDUC cards, and Oyen’s U35 Bolt+ point to a shift toward more flexible storage architectures. Smaller microSSD laptop storage modules can free room for cooling or bigger batteries, while multi-terabyte SDUC cards make it viable to treat removable media as working storage, not just backup. External drives like the U35 Bolt+ show how USB4 and Thunderbolt-class links can bring near-internal performance to plug-in devices, though they also expose the need for better thermal design in slim enclosures. As new SDUC readers appear with support for SD Express and higher-speed buses, manufacturers can mix internal microSSDs with external and removable options tuned to different workloads. For users, that means more choice: buy a thin laptop with modest onboard storage plus ultra-fast external drives, or a thicker system that uses reclaimed space for cooling and long-term reliability.
