Audio Measurements vs Listening: The Core Disconnect

Audio measurements vs listening describes the tension between laboratory test results like distortion, noise, and frequency response, and the way amplifiers and DACs are judged by what people hear in blind audio testing during everyday music playback. It is the gap between neat graphs and messy human perception, where budget hardware can sound equal to or better than premium gear despite ranking lower on traditional charts, and where listening tests occasionally contradict what spec sheets seem to promise about amplifier sound quality and DAC performance testing. That gap is no longer theoretical. A blind DAC test recently drew attention after Josh Mound scored 110 correct answers out of 112 trials. He used a discontinued Van Alstine A/B/X Comparator, a December 2021 revision that archived versions suggest may have been the last made. The test forced him to choose between DACs without seeing which was which, putting ears directly against numbers. Cheap DACs and amps are now regularly landing near the top of measurement charts, sometimes beating hardware that cost several times more, which makes the listening-versus-metrics conflict impossible for audiophiles to ignore.

When Blind Audio Testing Embarrasses the Spec Sheet

Mound’s experiment is a quiet rebuke to the idea that well-measuring DACs are interchangeable. He fed five delta-sigma DACs and two R-2R designs the same S/PDIF signal from a single Mutec MC 1.2 and level-matched outputs within 0.1 dB using the Comparator’s attenuation steps. For each pairing, he ran two formal blind tests, eight guesses per test, so 16 trials per matchup. His lowest score across any pairing was 13 correct guesses out of 16. The result sparked a long technical debate over whether timing or other setup clues explained his performance. But while the argument continued, an ASR member posted downloadable ABX file sets built from recordings of several DACs so other listeners could try to pass the same threshold at home. That simple move matters more than the online bickering: downloadable ABX files are now available for anyone who wants to test DAC audibility at home with their own system. In other words, the myth that measurements alone settle DAC performance has been handed back to the audience to test rather than to accept.

Leaderboard Logic: Why Premium Specs Can Mislead

Measurement charts are supposed to make buying easy: higher SINAD, lower noise, better amp, right? Yet recent rankings show budget DACs and small Class D monoblocks landing near the top, sometimes beating much more expensive units on distortion and noise. That reshuffle is not a quirk; it highlights a blunt question: what does the extra money actually buy? According to one published application note, the AHB2 amplifier can sit 17 to 30 dB quieter than typical competition while remaining well below the 0 dB SPL threshold of normal hearing at realistic playback levels. By the same math, an amp could be roughly 17 dB noisier in that system and still keep its hiss below audibility. On those criteria, many mid-priced and budget options are already engineered past the ear. Leaderboard measurements can also hide problems simply because the standard test never looks for them. Legal digital signals can exceed 0 dBFS between samples, creating intersample peaks that a DAC must handle without clipping—a stress no one sees from static test tones.

Why Measurement Charts Don’t Tell the Whole Story

Real-World Amplifier Sound Quality Lives in the Margins

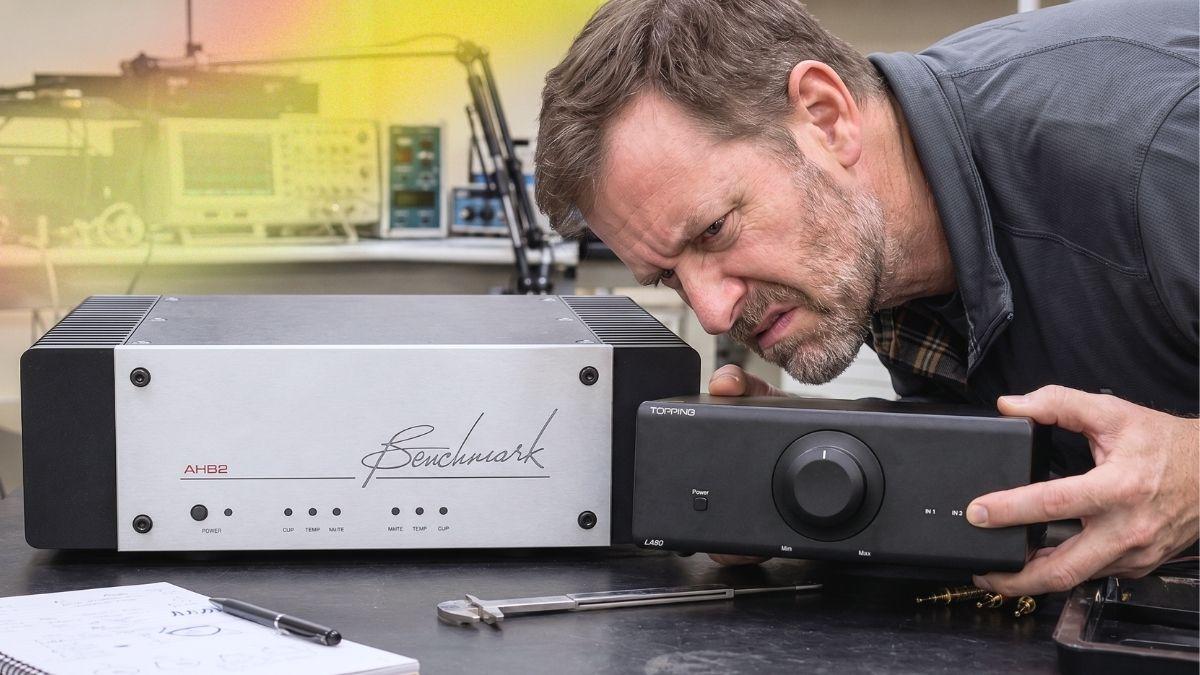

If many products clear the audibility bar for noise and distortion, amplifier sound quality shifts to how hardware behaves in demanding, non-standard situations. One monoblock’s usable power roughly doubled when the power supply was upgraded, jumping from about 100 W into 4 ohms at 1 percent THD to roughly 200 W at 0.1 percent THD+N. The listening verdict was that the small amps “sound like hi-fi amplifiers with clean output, produces excellent dynamics when called for, provides great transients, and tight bass within the power envelope”. Meanwhile, the AHB2’s continuous ratings are taken at vanishing distortion and climb as impedance falls, with 29 A of peak current available to handle difficult loads. Those figures describe a safety net for hard speakers and fault conditions, not an obvious difference at casual listening levels. What premium money buys here is not the existence of a safety net, but how comprehensively the amplifier handles faults and difficult conditions. Measurement charts rarely test clipped intersample peaks, reactive loads, or protection behavior, yet that is where designs meaningfully diverge.

Why Measurement Charts Don’t Tell the Whole Story

How Audiophiles Can Escape Measurement Myths

Audiophile measurement myths thrive because most people never pressure-test them. Now they can. While the argument over Mound’s DAC results continued, downloadable ABX file sets built from recordings of several DACs were posted so anyone could run blind audio testing at home. Pma set 12 correct answers out of 16 as the passing threshold; early reported runs stayed below it, with the strongest 16-trial score reaching 10/16 and one listener scoring 8/20. That spread of results is the point. Some listeners hear differences, others do not, and the decision to trust a chart or a preference can be made with your own ears instead of forum dogma. The practical impact for ordinary users is direct: downloadable ABX files are now available for anyone who wants to test DAC audibility at home with their own system, and real-world amplifier behavior often matters more than tiny leaderboard gaps. The conclusion is uncomfortable for spec absolutists but liberating for everyone else: measurements are essential, yet they are the beginning of evaluation, not the end. If your budget amp sounds better in your blind tests than a flagship, the graphs have to live with that.
