Why Complex Drivers Demand Complex Speaker Driver Testing
Modern speaker driver testing has to keep up with increasingly sophisticated transducer designs. A good example is a 15" triaxial unit such as the B&C 15HTX100, which combines a high-output woofer with a coaxial compression driver integrating midrange and high-frequency diaphragms into a single horn throat. Instead of measuring one acoustic source, engineers are dealing with three sources that share the same physical axis but interact acoustically. Test setups must therefore capture on-axis response, directivity, sensitivity, and power handling for each band while also checking how the three ways sum in the listening window. Because the woofer cone, midrange, and HF section all load the same motor system and horn geometry, small anomalies in phase or breakup can appear only when the entire device is driven as a system. That makes standardized, repeatable audio measurement techniques critical for fair comparisons.
Inside Triaxial Transducer Measurement: Directivity, Integration, and Power

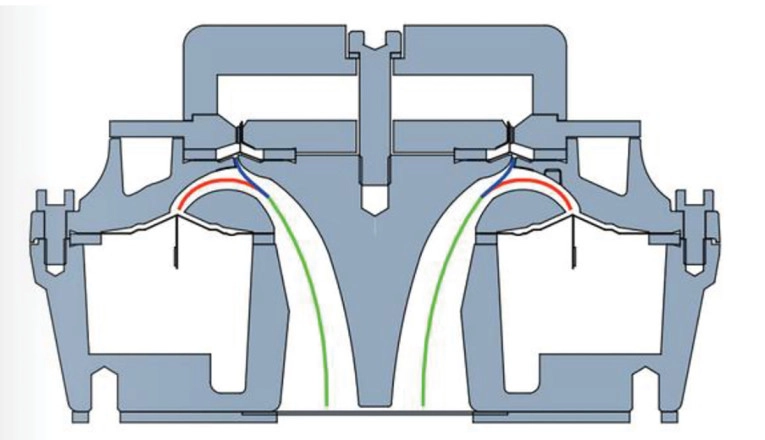

With triaxial transducers, measurement goes far beyond a simple on-axis frequency sweep. The 15HTX100, for instance, uses a 15" stiff, coated paper cone driven by a 4" aluminum-wound voice coil on a glass fiber former, plus a coaxial compression driver with a patented midrange integrator feeding a 1.4" throat horn. Engineers evaluate the woofer’s low-frequency behavior, the compression driver’s mid and high bands, and how all three integrate through the horn’s nominal 60°×40° coverage. Horizontal and vertical directivity maps reveal whether the device behaves like a true point source across frequency, or if lobing and narrowing occur off-axis. At the same time, motor details such as the neodymium ring magnet, T-pole, and aluminum demodulation ring are indirectly assessed via distortion measurements and sensitivity, which for this driver reaches 99 dB at 2.83 V/1 m with substantial continuous power handling.
Accelerometer-Based Audio Measurement Techniques for Drivers and Cabinets
Acoustic measurements tell only half the story; engineers also need to understand how a cone, diaphragm, or cabinet is physically moving. That is where accelerometer-based audio measurement techniques come in. Projects such as the AP-805 accelerometer amplifier are designed to interface a small sensor, like the TE Connectivity 805M1, with test equipment. The sensor is attached to a cone, dust cap, or enclosure panel, and the AP-805 converts the raw signal into separate acceleration, velocity, and excursion outputs. Selectable gain from 0 to 60 dB, high-pass and low-pass filters, and a mains notch filter help optimize signal-to-noise ratio and reject interference. By correlating these motion signals with electrical input and microphone measurements, engineers can pinpoint resonances, rocking modes, or panel vibrations that microphones alone might miss, enabling more precise tweeter performance evaluation and woofer linearity analysis.
Waveguides, Tweeter Performance Evaluation, and Directivity Mapping
Tweeter performance evaluation increasingly focuses on controlled directivity, not just flat on-axis response. Purifi’s PTT1.3T04-HAG-01 WG104 tweeter illustrates how waveguide design shapes measurable results. This device uses a 33 mm hard anodized aluminum dome with unusually large 1.1 mm Xmax, combined with a wide-dispersion cast-aluminum waveguide and integrated phase plug. Engineers test it using gated or quasi-anechoic sweeps at multiple angles, then assemble polar maps and listening-window-normalized directivity plots. For the PTT1.3T, the waveguide delivers a wide ±65° beam width at –6 dB in the horizontal plane, demonstrating smooth off-axis rolloff that simplifies crossover design and room integration. Measurements also confirm whether the waveguide introduces diffraction ripples or maintains a clean response down near the intended 2 kHz crossover region. Such transducer measurement data directly guide decisions about crossover slopes, EQ settings, and intended listening distances.
DIY Measurement Projects and Standardized Test Bench Procedures
Professional-grade speaker driver testing is no longer restricted to large labs. DIY projects like the AP-805 accelerometer amplifier provide hobbyists and small studios with tools once reserved for advanced facilities. With published PCB layouts, front panel designs, and clear assembly guidance, builders can create reliable accelerometer amplifier systems that integrate into existing audio interfaces and measurement software. However, gear alone is not enough; standardized test bench procedures are essential for meaningful comparisons. Engineers typically control baffle size, microphone distance, drive voltage, and environmental conditions while documenting settings such as filter choices and gain on devices like the AP-805. Applying the same rigor to triaxial drivers, dome tweeters, and full systems ensures that data sets are reproducible across sessions and labs. This consistency democratizes access to high-quality engineering information, letting more designers refine their drivers and enclosures using objective, repeatable metrics.
