3D Printed Batteries: Why Geometry Is Becoming as Important as Chemistry
3D printed batteries are energy storage devices whose electrodes and internal structures are fabricated using additive manufacturing, allowing complex architectures that improve ion transport, energy density, and testing speed compared with conventional flat, layered designs. Instead of chasing exotic new materials, leading universities are proving that reshaping what we already have may be the faster path to better batteries. Caltech and UCLA have each shown that changing battery geometry through 3D printing can unlock performance leaps that traditional manufacturing could barely prototype, let alone mass-produce. In a world where demand for better batteries is rising across electric vehicles, data centers, renewable energy, and everyday electronics, rethinking form rather than chemistry looks like the most pragmatic revolution.
Caltech’s 3D Lithium-Ion Cathode: Upgrading a Workhorse Technology

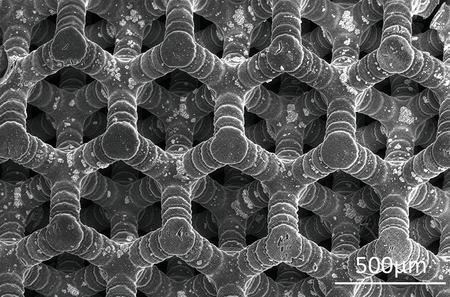

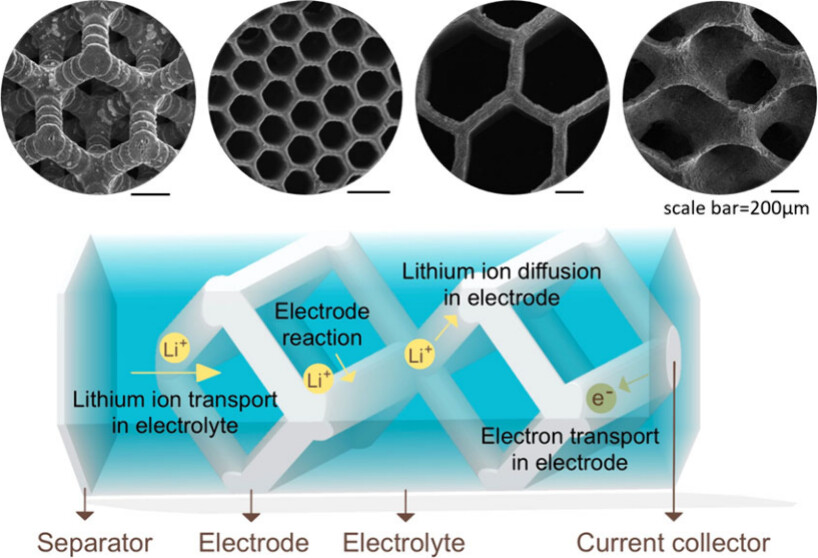

Caltech’s team made a deliberate choice: do not discard lithium-ion, redesign it from the inside out. Most lithium-ion battery design still relies on flat, layered electrodes because they are easy to manufacture at scale. That simplicity has now become a limitation. By 3D printing a microarchitected cathode using their hydrogel infusion additive manufacturing (HIAM) process, the researchers built a tiny but intricate structure that gives lithium ions a continuous 3D network to move through instead of a single planar sheet. Julia Greer notes that in a 3D architected battery, “every lithium ion is going to have an active surface available to it as it’s transporting through the electrolyte,” making energy transfer more efficient. Crucially, the cathode replaces cobalt, cutting reliance on a costly and controversial material. This is not a new chemistry; it is a new architecture, published in ACS Energy Letters as a direct challenge to the assumption that lithium-ion has hit a performance wall.
UCLA’s Hybrid Zinc-Ion Lattice: Seven Times the Energy, Same Chemistry

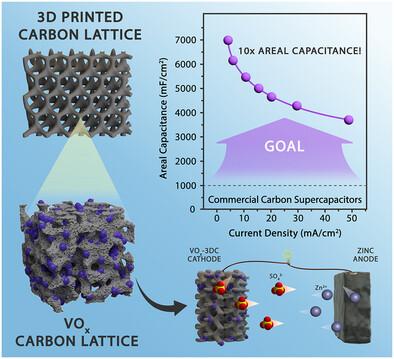

If Caltech’s work proves lithium-ion can be reinvented, UCLA’s zinc-ion battery shows how 3D printing can turn an underdog chemistry into a serious contender. Their hybrid zinc-ion battery, built on a 3D printed hollow lattice electrode, stores more than seven times as much energy as similar devices. Zinc is cheaper, easier to find, and less prone to overheating than lithium, which has long made zinc-based batteries appealing for storing electricity from solar and wind farms where low cost and safety beat compact size. Instead of a new material, the team printed a lightweight lattice on a resin printer, then pyrolyzed it into a conductive carbon scaffold and coated it with vanadium oxide. Billions of pores create a vast internal surface area while leaving channels for zinc ions to move. The result: high capacity, plus 82% of that capacity retained after 1,500 charge–discharge cycles. As Maher El-Kady puts it, these zinc-ion hybrid devices “can store nearly one order of magnitude higher capacity” than comparable options.
Additive Manufacturing Energy: Faster Prototyping, Smarter Testing
The real disruption is not a single lithium-ion battery design or one zinc-ion battery; it is the way additive manufacturing energy research changes the pace of innovation. Caltech’s HIAM process allows microarchitectures that would be extremely difficult to build with conventional techniques, while UCLA’s method can “build any 3D scaffold, layer by layer, and control its microstructure,” yielding “billions and billions of these tiny holes” for charge storage. Both projects show that 3D printed batteries give researchers unprecedented control over electrode geometry, from hollow lattices to porous networks that tune ion pathways. UCLA extends this logic to tooling: a sealed, 3D printed electrochemical test cell that replaces ad hoc lab setups with a standard platform, making data more consistent across experiments. According to Ric Kaner, that kind of repeatable scaffold design and testing is exactly what the field needs to compare new architectures reliably.
From Laboratory Breakthroughs to Real Devices: Promise and Patience
These results are exciting, but they are not products on a shelf. Caltech’s 3D architected lithium-ion electrodes remain firmly at the research stage, with no sign they are ready for mass production and many hurdles before manufacturers can adopt such a different internal architecture. Scaling any new battery technology from lab prototypes to millions of devices usually takes years. The same caution applies to UCLA’s zinc-ion lattice: promising numbers do not automatically translate into grid-scale storage containers or home batteries. Still, the direction of travel is clear. As demand for better batteries keeps growing for electric vehicles, AI data centers, renewable energy systems, and everyday electronics, design-centric 3D printed batteries look far more realistic than waiting for a miracle material. The most important takeaway from these university races is simple: the future of batteries will be designed, not discovered. Geometry, not chemistry alone, is where the next gains will come from.
