Thunderbolt 5 vs Thunderbolt 4: When an Upgrade Is Worth It

Thunderbolt 4 vs 5 in plain English (and our top pick)

Thunderbolt 5 is a high-speed connection standard that uses a USB‑C port to provide up to 80Gbps of bidirectional bandwidth, 120Gbps one‑way Bandwidth Boost, higher display support, and more charging power than Thunderbolt 4, which tops out at 40Gbps and more modest display and power capabilities.

For most people, sticking with Thunderbolt 4 is the right choice: you should spend money on a reliable Thunderbolt 4 dock and cable now and only move to Thunderbolt 5 when you buy a laptop that supports it. Thunderbolt 5’s doubled bandwidth and 120Gbps Bandwidth Boost shine on paper, but you only benefit if your laptop and workflow can saturate that speed, such as with demanding external GPU connectivity or multi‑monitor 4K/8K setups. Until you upgrade your computer, you will not see the benefits of newer Thunderbolt 5 docking stations, cables, or accessories. In other words: do not upgrade your dock for its own sake—upgrade when your laptop port upgrade forces the change.

Where Thunderbolt 5 is a real upgrade (and where it is not)

Thunderbolt 5 is twice as fast as Thunderbolt 4, with 80Gbps bidirectional bandwidth and up to 120Gbps in one direction when Bandwidth Boost is active. That extra bandwidth lets Thunderbolt 5 support up to three 4K monitors at 144Hz, a clear upgrade over Thunderbolt 4’s support for two 4K screens at 60Hz. It also doubles PCIe throughput by moving to PCIe 4.0 and can deliver up to 64Gbps of data tunneling, which is ideal for bandwidth‑heavy peripherals like an external GPU or PCIe storage accessory.

Charging is stronger, too: Thunderbolt 4 requires only 140W, while Thunderbolt 5 ports have to offer 240W charging. In practical terms, that makes Thunderbolt 5 docking stations attractive if you are building a high‑end desk setup with several 4K or 8K displays, fast external SSDs, or external GPU connectivity—all fed over one cable. If your dock use is limited to a couple of standard monitors, USB accessories, Ethernet, and SD cards, Thunderbolt 4’s 40Gbps bandwidth is usually more than enough.

Thunderbolt 5 docking stations worth buying (if your laptop supports them)

If you do have a Thunderbolt 5 laptop and a demanding setup, a modern Thunderbolt 5 docking station is worth the premium. Thunderbolt 5 docks are built to deliver that 80Gbps bidirectional bandwidth and 120Gbps Bandwidth Boost across displays, storage, and peripherals, and every Thunderbolt 5 cable, accessory, and computer is required to support those speeds. They are also backwards‑compatible with Thunderbolt 4 and USB4 devices, though you will not reap Thunderbolt 5’s extra performance on older hardware.

According to one detailed roundup of Thunderbolt 5 docking stations, these models target multi‑monitor workstations and the fastest external SSDs while keeping one‑cable laptop charging at up to 140W. If you already run or plan to build a multi‑display, high‑bandwidth desk setup, these docks are the right way to tap Thunderbolt 5’s bandwidth instead of daisy‑chaining random adapters.

USB4 vs Thunderbolt, compatibility, and when to upgrade

Thunderbolt 5 uses the same USB‑C connector as USB4 and is compatible with USB4 v2, supporting up to 80Gbps bidirectional bandwidth. Unlike USB4 v2, that 80Gbps and the 120Gbps Bandwidth Boost mode are mandatory in Thunderbolt 5, which means every Thunderbolt 5‑certified dock, cable, and laptop must support them. USB4 devices, by contrast, can vary more in performance. The upside is that Thunderbolt 5 remains backwards‑compatible with Thunderbolt 4, USB4, and older USB gear—you can plug Thunderbolt 5 cables into older gear without problems, but performance will fall back to the slower standard.

This is why compatibility, not marketing, should drive your buying decision. Thunderbolt 5 only matters if your devices support it; you will not get the benefits without a supported computer. One user who upgraded to a new laptop without Thunderbolt 5 support concluded that Thunderbolt 4 docks were still the smarter choice and that learning the Thunderbolt 4 vs 5 differences saved them from an unnecessary upgrade. Save your money for a future laptop port upgrade; then match it with a Thunderbolt 5 dock if your workflow truly needs the extra bandwidth.

Buy if / Skip if

• Buy the UGREEN Maxidok 17‑in‑1 if you own a Thunderbolt 5 laptop and want a single‑cable desk with dual 8K displays, fast NVMe storage, and 140W charging.
• Skip the UGREEN Maxidok 17‑in‑1 if your current laptop only supports Thunderbolt 4 or USB‑C and you run one or two standard 4K monitors at 60Hz.
• Buy the UGREEN Maxidok 10‑in‑1 if you need Thunderbolt 5 performance on a tighter budget and plan to connect up to dual 6K or a single 8K display on a supported Mac.
• Skip the UGREEN Maxidok 10‑in‑1 if you will never use more than 40Gbps bandwidth and are satisfied with your existing Thunderbolt 4 dock.

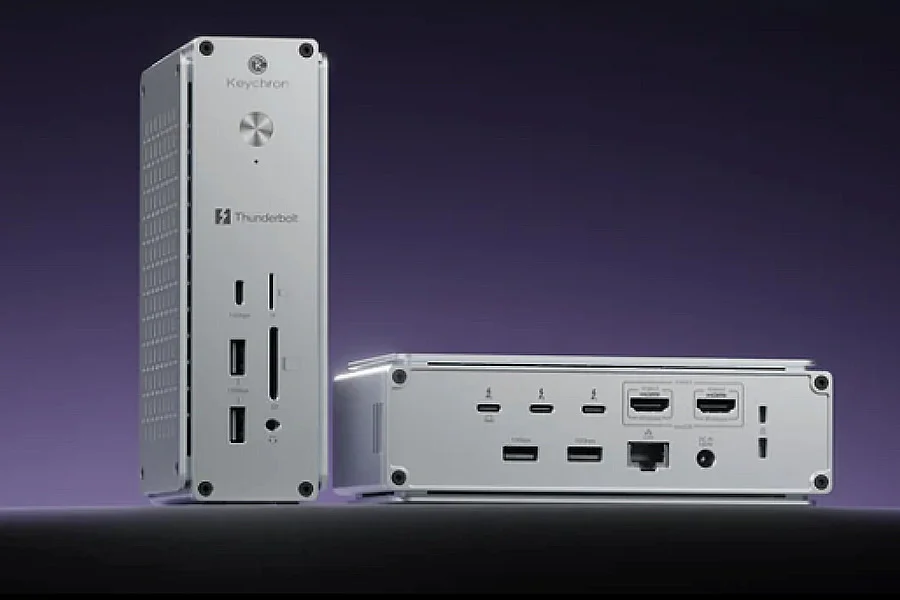

• Buy the Keychron Thunderbolt 5 Dock (14‑in‑1) if you want to drive up to four external displays from a Thunderbolt 5 laptop and still keep 140W charging over one cable.
• Skip the Keychron Thunderbolt 5 Dock (14‑in‑1) if your computer does not support Thunderbolt 5 and you do not need four‑monitor output or 80Gbps data tunneling.
• Buy the Kensington SD5010T5 EQ if you want a lower‑cost entry into Thunderbolt 5 docking with triple 4K or dual 8K support and 140W charging.
• Skip the Kensington SD5010T5 EQ if a reliable Thunderbolt 4 dock already covers your ports, displays, and charging needs at 40Gbps.
