From Single Breakthroughs to a Full CATL Battery Ecosystem
At its Super Technology Day, CATL stopped talking about one magic chemistry and instead laid out an ecosystem strategy. It unveiled third‑generation Shenxing LFP, third‑generation Qilin NCM, the Freevoy II hybrid pack, a Naxtra sodium ion EV battery, and a unified EV battery swapping network combined with ultra‑fast charging. The headline figure is a CATL fast charging battery that goes from 10% to 98% in 6 minutes 27 seconds, approaching refuelling times for combustion cars. Qilin long range pack variants promise around 1,000 km of driving, while a condensed Qilin version for sedans stretches that to about 1,500 km. Sodium‑ion targets cost and resource constraints rather than headline range, and the charge‑plus‑swap network aims to solve infrastructure bottlenecks. Together, these moves signal CATL’s intent to lock in automaker partners with an end‑to‑end energy platform rather than competing on cells alone.
Shenxing LFP vs Qilin NCM vs Freevoy: Different Packs for Different Drivers

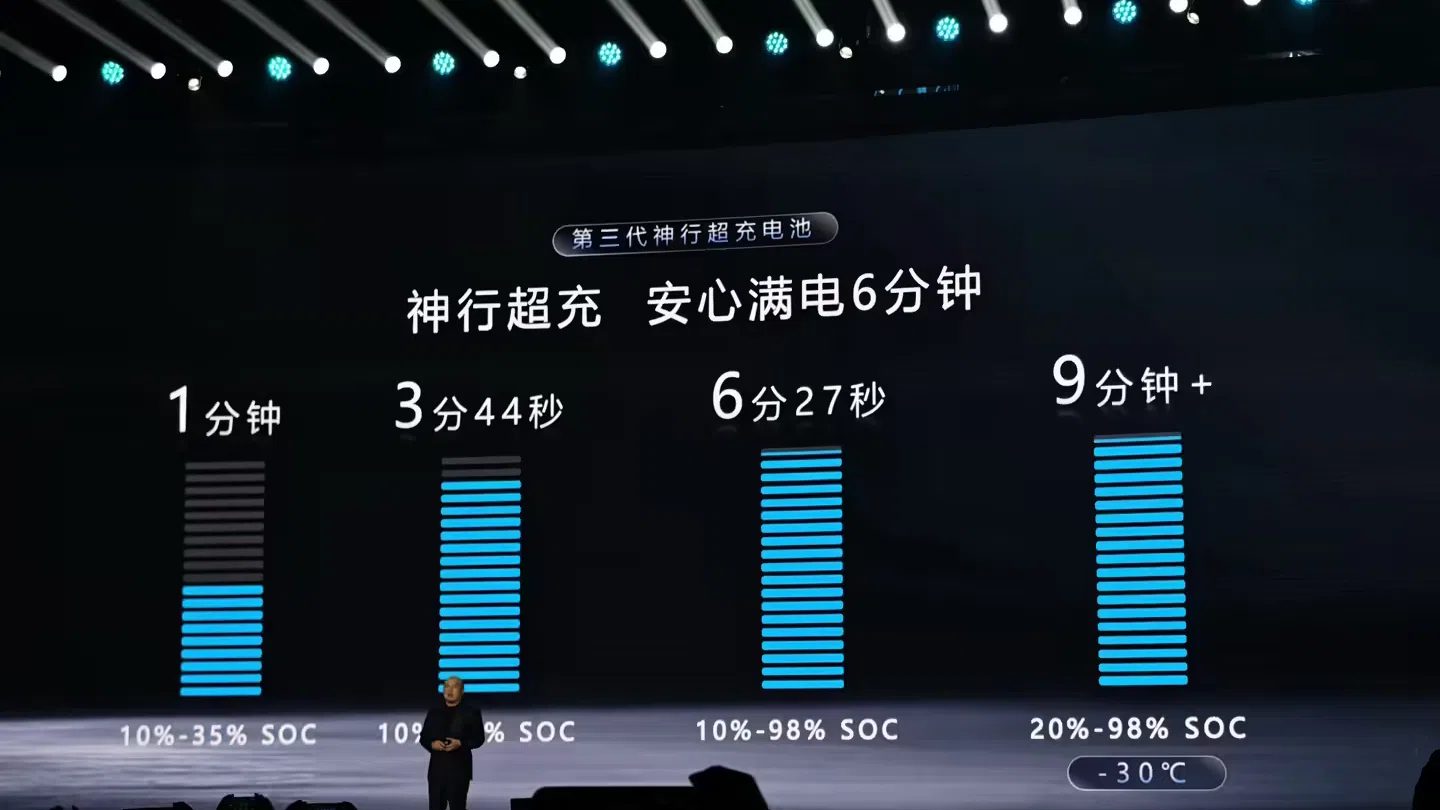

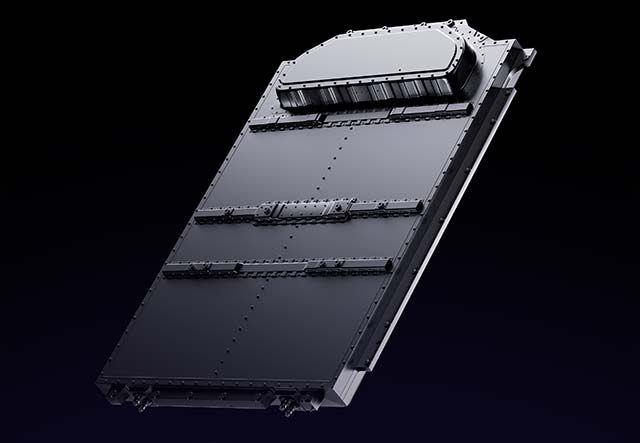

Shenxing is CATL’s mass‑market workhorse: an LFP chemistry optimised for speed, not record range. The latest Shenxing LFP battery achieves 10–35% charge in 1 minute, 10–80% in 3 minutes 44 seconds and 10–98% in 6 minutes 27 seconds, while keeping more than 90% capacity after 1,000 ultra‑fast cycles and working in −30°C conditions in roughly nine minutes. Qilin, by contrast, is a premium nickel cobalt manganese pack built around energy density and performance. The third‑generation Qilin long range pack delivers about 280 Wh/kg, enabling over 1,000 km range and 3,000 kW peak discharge, with a 125 kWh pack weighing 625 kg—around 255 kg lighter than a comparable LFP pack, improving acceleration and braking. Freevoy II sits in between: a blended LFP–NCM pack aimed at extended‑range hybrids, with pure‑electric driving up to 600 km and total vehicle range quoted above 2,000 km for drivers who still want petrol backup.
Sodium‑Ion and the Push Beyond Lithium for Cheaper, Hardier EVs
CATL’s sodium ion EV battery, branded Naxtra, targets a different problem: material cost and supply risk. Chief scientist Wu Kai argues that LFP is approaching its theoretical energy density ceiling, while sodium‑ion offers broader potential in extreme temperatures and stationary storage. CATL says it has solved more than 100 engineering challenges, including moisture control and aluminium foil bonding, and has achieved GWh‑level industrialisation. Mass production is scheduled by the end of 2026, with passenger EV launches planned the same year. Although sodium’s energy density trails LFP, CATL is targeting future ranges of up to roughly 600 km once the supply chain matures. Sodium cells can retain around 90% of their nominal capacity at −40°C and avoid lithium and other scarce minerals, which should ease resource pressure and lower pack costs over time—especially for city EVs, light commercial vehicles and large energy‑storage projects where every kilometre of range is less critical than upfront affordability.
3,000 kW Charging and an EV Battery Swapping Network: How Refuelling Could Change

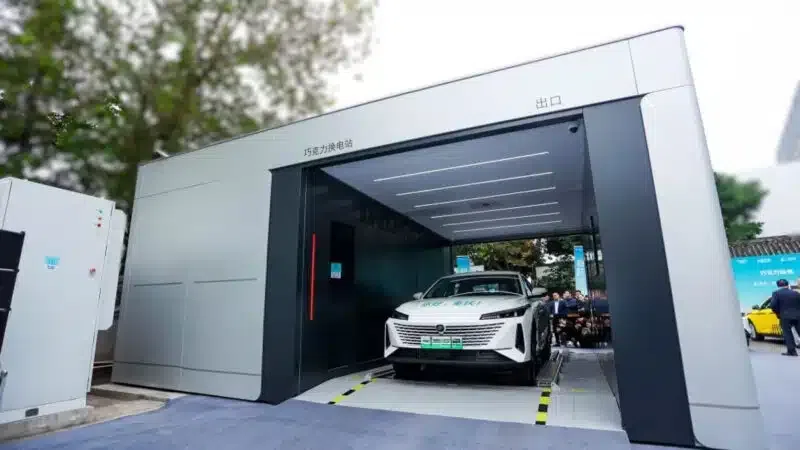

CATL is pairing its new cells with matching infrastructure. The company is rolling out an integrated EV battery swapping network that combines ultra‑fast charging—up to 3,000 kW peak discharge capability at the pack level—with automated swap bays. It plans around 4,000 integrated supercharging and swapping stations across nearly 190 cities by the end of 2026. Shenxing’s self‑heating technology means low‑temperature fast charging is no longer limited to specialised "warm" chargers, while onsite station batteries can buffer power, pushing utilisation above 85% and smoothing grid demand. For drivers, this could change long‑distance habits: ultra‑fast top‑ups in 4–7 minutes for most trips, with option of a quick swap on busy corridors or for fleet operations. Compared with today’s 30–40 minute DC fast‑charging norms, such a network could dramatically reduce queuing, make high‑power chargers feel more like fuel pumps, and turn charging downtime into a brief rest stop rather than a planned break.
Timelines, Real‑World Impact and the Race Against BYD
Many of these technologies are closer to market than they sound. Shenxing 3rd‑gen packs are already being positioned for mass‑market models, directly outpacing BYD’s latest Blade Battery 2.0 on every published fast‑charging metric. Qilin 3rd‑gen NCM and its condensed variant are aimed at upcoming premium sedans and SUVs, giving automakers a route to 1,000–1,500 km flagships without the penalty of 750 kg‑plus packs. Sodium‑ion will follow later, with passenger EVs expected from late 2026. For buyers outside early launch markets, timelines will depend on how quickly partner brands adopt CATL’s full ecosystem—cell, pack, software and infrastructure—rather than just slotting in a battery. BYD, which focuses on its own LFP packs and charging, currently lacks a direct NCM competitor to Qilin, giving CATL a window to lock in global OEMs. For everyday drivers, the most visible change within a model cycle or two could be simple: road trips that require minutes, not half hours, to top up.
