Why the 12V-2x6 Power Connector Needs Smarter Protection
The 12V-2x6 power connector is a compact high-current plug used on modern GPUs that can deliver huge amounts of power through a small interface, but it has also been linked to cable melting and reliability issues when connections are loose or current is imbalanced, so GPU makers are adding hardware and software safeguards to detect abnormal conditions, reduce power, and warn users before damage occurs. As next-gen GPUs such as RTX 5090-class designs push power density higher, vendors are pairing GPU power safety systems with advanced next-gen GPU cooling, including diamond thermal pads and new baseplates, to keep both connectors and components within safe operating temperatures. Together, these changes mark a shift from passive, fire-and-forget designs to actively monitored, fail-safe power delivery that aims to prevent catastrophic connector failures rather than simply surviving them.
MSI Safeguard: Smart 12V-2x6 Protection Built Into the GPU
MSI is treating GPU power safety as a first-class feature with its RTX 5090 SUPRIM Safeguard concept. The card integrates current-monitoring hardware on the 12V-2x6 power connector and uses server-grade eFUSE components to protect against electrical damage. Each power pin is monitored so the GPU can spot imbalances early. If abnormal power is detected, MSI’s Intelligent Power Safeguard turns on a red LED, sounds a buzzer, and triggers a system notification, guiding users to reseat or replace the cable. After 120 seconds of sustained problems, it locks the GPU to 70% power to reduce connector strain. According to Overclock3D, this behavior mirrors MSI’s Safeguard and Safeguard+ PSUs, but now the logic lives directly on the graphics card, so users get GPU power safety benefits regardless of which power supply they own.
Diamond Thermal Pads and Metal Fans: MSI’s Next-Gen GPU Cooling

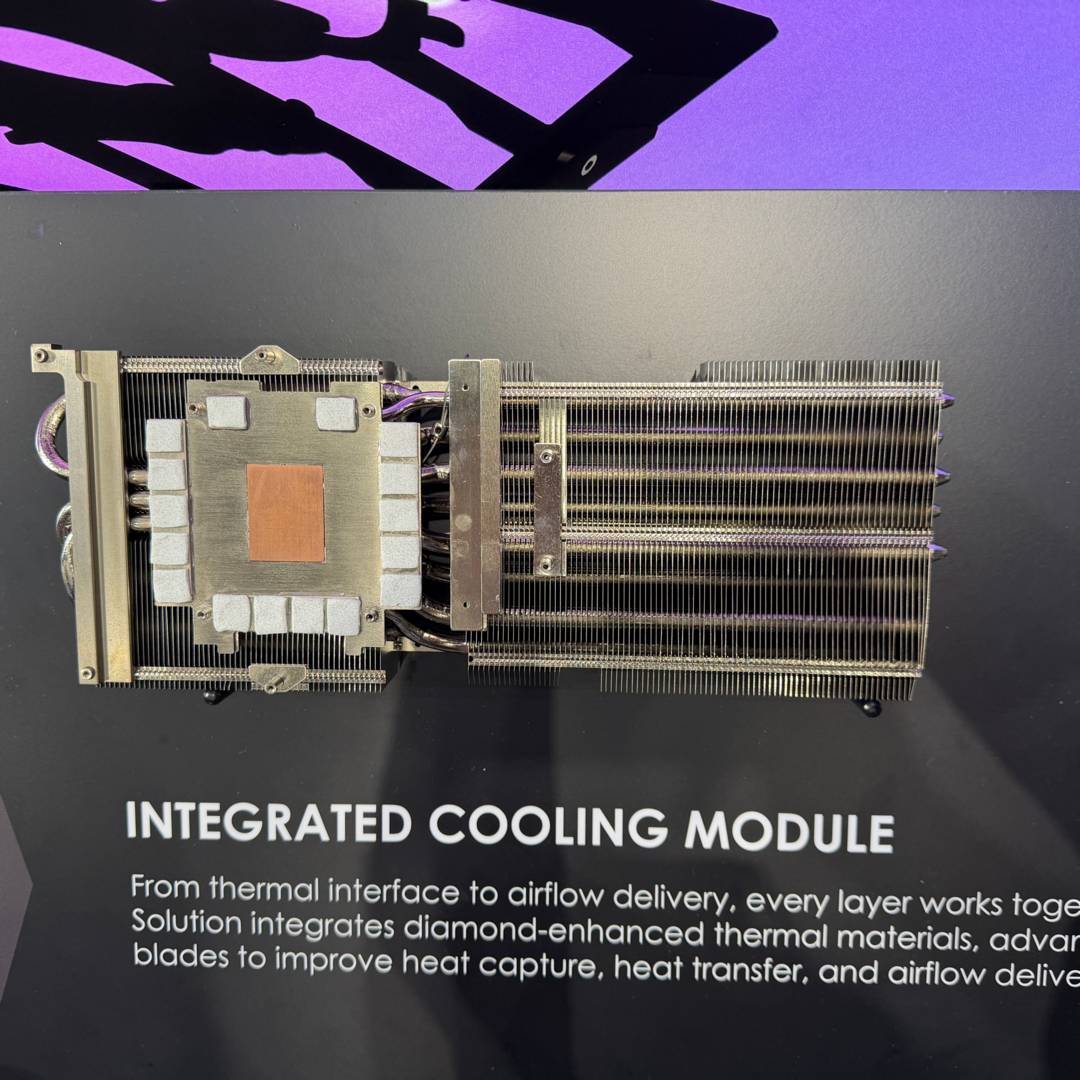

MSI is pairing safer power delivery with next-gen GPU cooling designed to handle rising thermal loads. Its upcoming Gaming Trio Next-Gen cooler swaps plastic blowers for ultra-thin metal fan blades that are 0.8mm thick, increasing airflow area while resisting deformation at high speeds. MSI says this metal design can deliver up to 40% better airflow by reducing blade thickness and airflow resistance. Beneath the shroud, a diamond-copper composite baseplate sandwiches a diamond layer between copper sheets to create a high-conductivity path from the GPU core to the heatsink. Complementing this are diamond thermal pads on the memory modules, which enhance heat transfer across the VRAM. Combined with new spiral-groove heat pipes and an updated fin stack, these elements form a tightly integrated cooling module aimed at keeping RTX 5090-class GPUs cooler and more stable under sustained high power draw.
Cooler Master’s GPU Shield: PSU-Side Defense for 12V-2x6
While MSI moves safeguards onto the GPU, Cooler Master attacks the problem from the power supply side with its MWE Gold V4 line and GPU Shield technology. GPU Shield uses per-pin sensing on the PSU’s modular output to track current in real time on 12V-2x6 power connectors. If any pin exceeds 9A, the PSU automatically reduces power delivery to prevent connector overheating or melting. A red status LED inside the PSU signals the fault, and if the anomalous condition persists for more than three minutes, the system powers off entirely. That forced shutdown pushes users to check, reseat, or replace their 12V-2x6 cable rather than continuing to run in an unsafe state. Cooler Master’s approach turns the PSU into an active guardian for high-end GPUs, adding another layer of GPU Shield technology on top of card-side protections.
PNY LYNK+ and the Future of Safer, Cooler High-Power GPUs
Cooling is the other half of GPU power safety, and PNY’s LYNK+ modular AIO liquid cooling system offers a different path from bulky triple-fan air coolers. By moving heat into a radiator, LYNK+ can reduce thermal stress on both the GPU and nearby components, which indirectly helps the 12V-2x6 power connector by lowering case temperatures and improving airflow around the power cable. Its modular design also allows enthusiasts to adapt cooling layouts as next-gen GPU architectures evolve and power demands rise. Together, MSI’s diamond thermal pads and metal fans, Cooler Master’s GPU Shield technology in MWE Gold V4 PSUs, and PNY’s liquid-cooled approach form a layered response to connector failures. Rather than treating 12V-2x6 problems as isolated incidents, the industry is baking GPU power safety into GPUs, PSUs, and next-gen GPU cooling solutions to make high-wattage cards more reliable.
