What an NBA Broadcast Camera Setup Really Is
An NBA broadcast camera setup is a tightly planned network of more than fifty cameras, microphones, control rooms, and mobile trucks that work together in real time so viewers at home can see and hear a live basketball game from multiple angles with smooth replays and synced audio. For key playoff games, NBC crews arrive hours early to place cameras all around the arena, run cables to production trucks, and test every signal. This live sports camera setup covers everything from sweeping overhead shots of the court to tight frames on a single player sprinting in transition. Camera feeds, audio, and graphics are fed into switching systems where directors, replay operators, and audio engineers coordinate every cut, replay, and chant from the crowd to make the game feel immediate and alive on screen.
Mapping 50 Cameras Around One Court

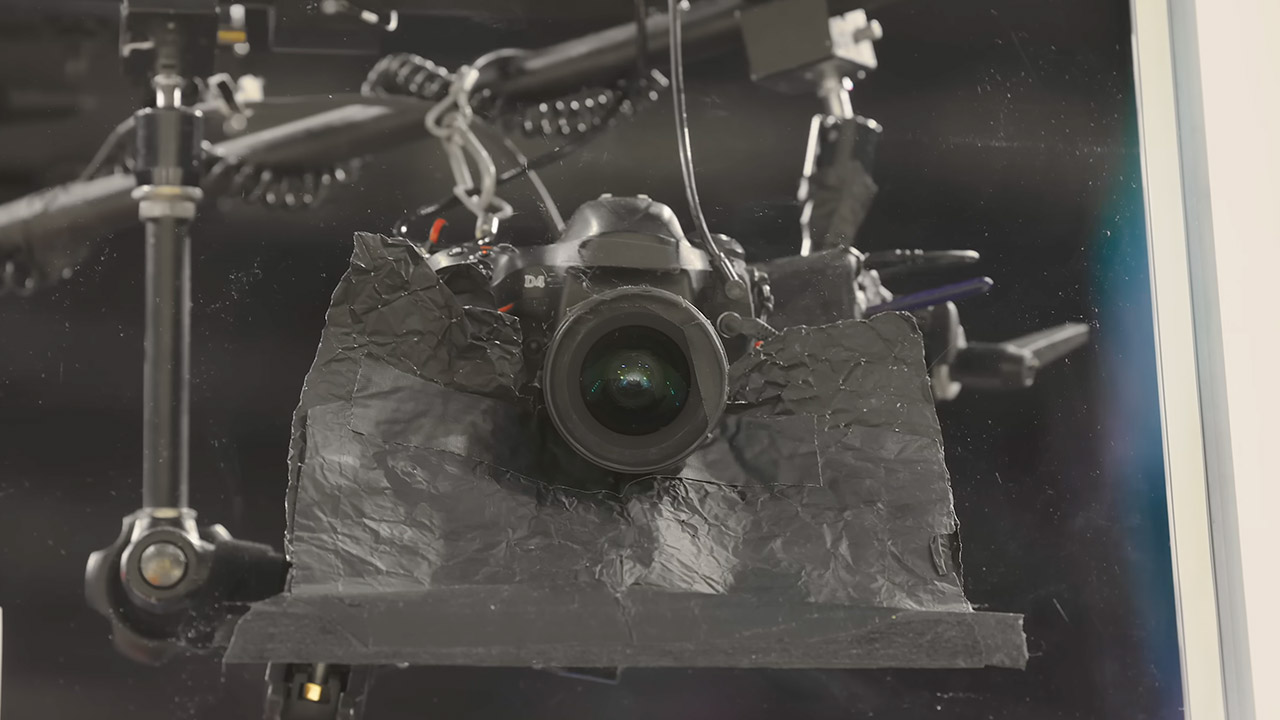

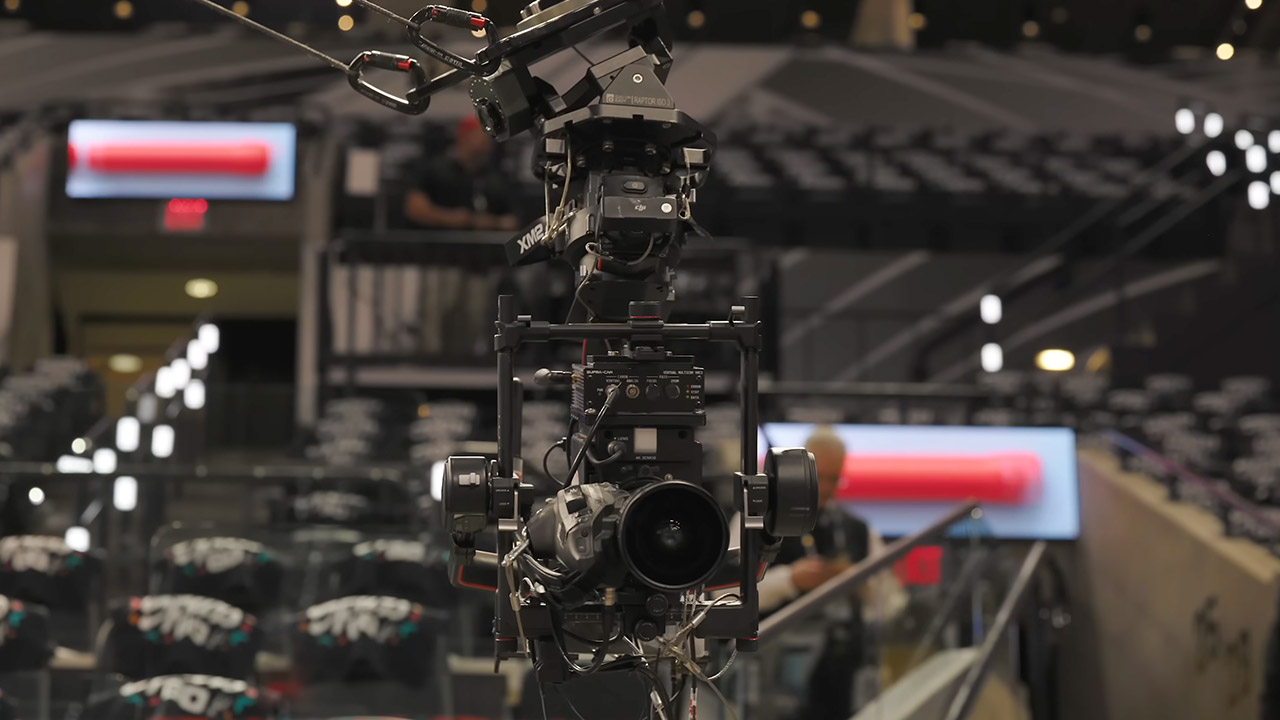

In a typical playoff game, NBC deploys around 40 to 50 NBA broadcast cameras scattered across the arena, each with a clear role in telling the story of the game. “NBC typically sets up 40 to 50 cameras for key games,” reports TechEBlog. Standard wide-angle units high above center court track overall flow, while lower cameras at the baselines pull viewers to floor level. Six Sony P50 cameras sit together on swiveling seats, dedicated to isolating individual players on command. Overhead, a cable-suspended rig carries another P50 on a stabilized gimbal for those cinematic glides over the court. Around each basket, supports hold RED and Sony units plus a remote camera mounted directly above the rim for straight-down dunk views, while remote dome cameras give rotating looks at the arena and crowd.
Camera Types: From Fingernail Sensors to Thousand-Millimeter Zooms
The sports production equipment behind each angle is highly specialized. Many cameras in the core package are Sony P50 units, each with a sensor small enough to fit on a fingernail yet capable of 1080p at 60 frames per second with a global shutter, which keeps fast motion from bending or smearing. One variant lens spans an 8-to-1000 millimeter range, delivering 122x optical zoom while servo controls keep zoom and focus transitions smooth, even at full speed. Close-up cameras on the sidelines lock onto faces and reactions. High-angle cameras capture formations and spacing in half-court sets. A roaming Steadicam operator works the baseline with a stabilized rig for smooth sideline motion, while low-angle units near the floor exaggerate height and hangtime, turning drives and dunks into dramatic moments for the audience.
Live Decisions: Directors, Operators, and Switching Logic

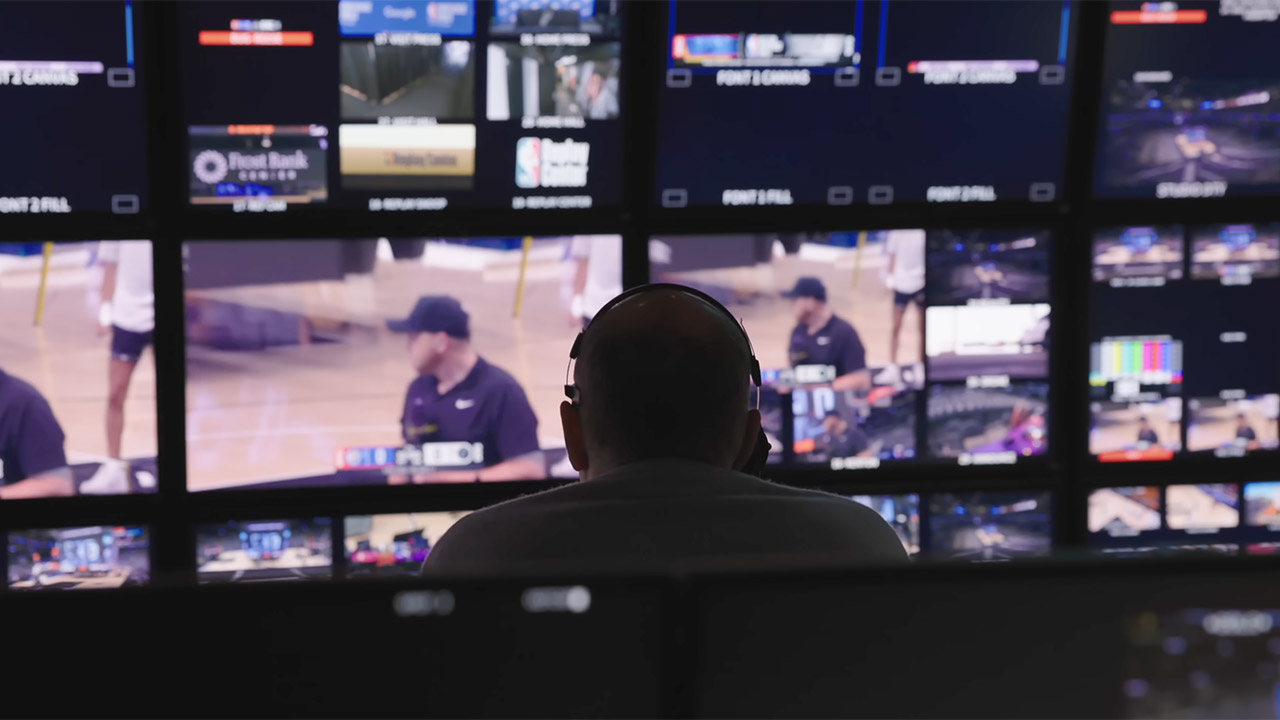

All those angles are only as good as the people deciding which one you see. Camera operators listen to the director over headsets and have to think like coaches, reading plays before they fully unfold. When the director calls for a specific player, an operator using a Sony P50 has about two seconds to find him, track him down the court, and settle on a steady frame before the next instruction comes in. Operators keep quick-reference sheets with player headshots at hand to speed recognition. Inside the truck, directors sit in front of walls of monitors connected to an advanced broadcast switching technology system. With a few taps, they pick from dozens of live feeds, cut between camera angles, and cue replays, all while keeping the game’s rhythm intact and the viewer oriented.
Trucks, Audio, and the Tech That Glues It Together

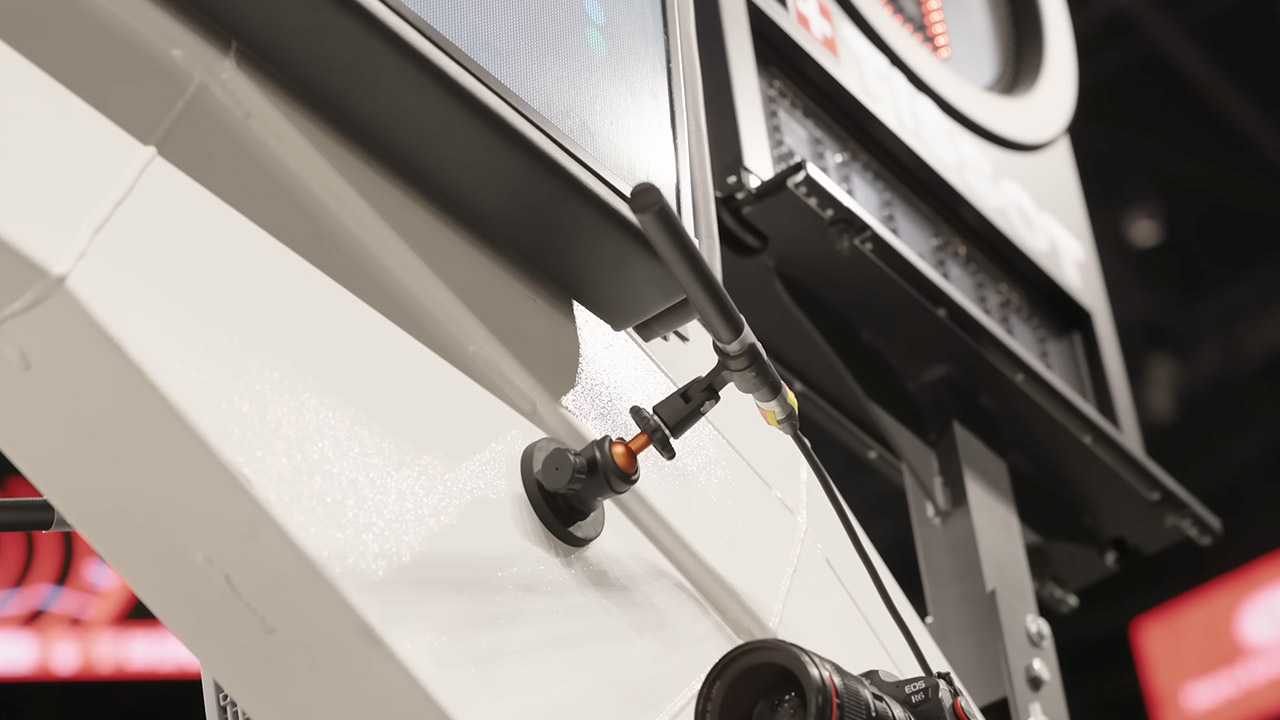

Outside the arena, a cluster of broadcast trucks ties the entire live sports camera setup together. Every camera feed and microphone line runs back here, where engineers color-grade the pictures, manage signal routing, and keep latency under control. Sennheiser shotgun mics around the court pick up sneaker squeaks, rim hits, and ball bounces, while other mics in the seats capture the rise and fall of the crowd. Replay operators use scrub wheels and variable-speed controls to find crucial moments, roll slow-motion angles, and feed them back into the live show within seconds. According to TechEBlog, these teams “make the live audio sound clean and clear, prepare fast replays, and decide which shot to air next.” The result is a broadcast where dozens of moving parts feel like one smooth view of the game.
